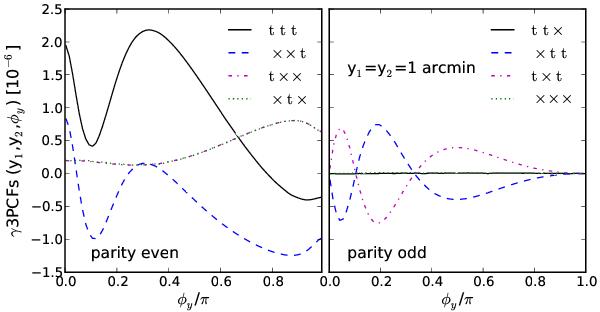

Dependence of the modeled shear 3PCFs on triangle configuration. A subset of triangle configurations with two equal side-lengths y₁ = y₂ = 1 arcminute is shown, and plotted are the dependencies of the shear 3PCFs on the angle between them. The left panel “parity even” shows shear 3PCFs that involve zero or two tangential shears and are thus invariant under a parity transformation, while the right panel shows shear 3PCFs that contain an odd number of tangential shears and therefore change sign under parity transformation. The notation in the labels is analogous to Fig. 2.
