Fig. 4

thumbnail

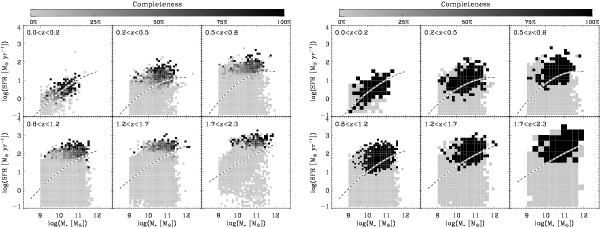

Left: fraction of sources (i.e., completeness) in a given SFR–M bin with individual PACS/SPIRE detections and accurate dust temperature estimates. Right: SFR–M bins with accurate dust temperature estimates (i.e., completeness =100%), as inferred from our stacking analysis. Because each SFR–M bin corresponds to only one set of stacked FIR flux densities and thus one dust temperature estimate, here the completeness can only take two different values: 0% if the dust temperature estimate is inaccurate; 100% if the dust temperature estimate is accurate. The quality of our dust temperature estimates were evaluated using criteria presented in Sects. 3.1 and 3.2. Short-dashed lines on a white background show the MS of star formation.

This figure is made of several images, please see below:
