Fig. 5

thumbnail

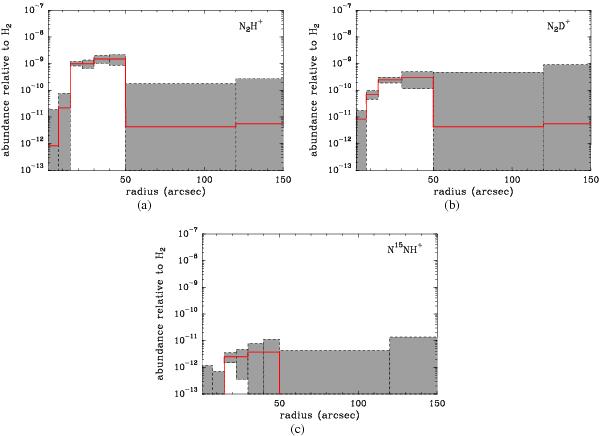

Abundance profiles of the N2H+ isotopologues derived from the modelling (red lines). The shaded areas give a confidence zone for the abundance as delimited by the lower and upper boundaries in each region (see Sect. 3.2 for details).
