Fig. 12

thumbnail

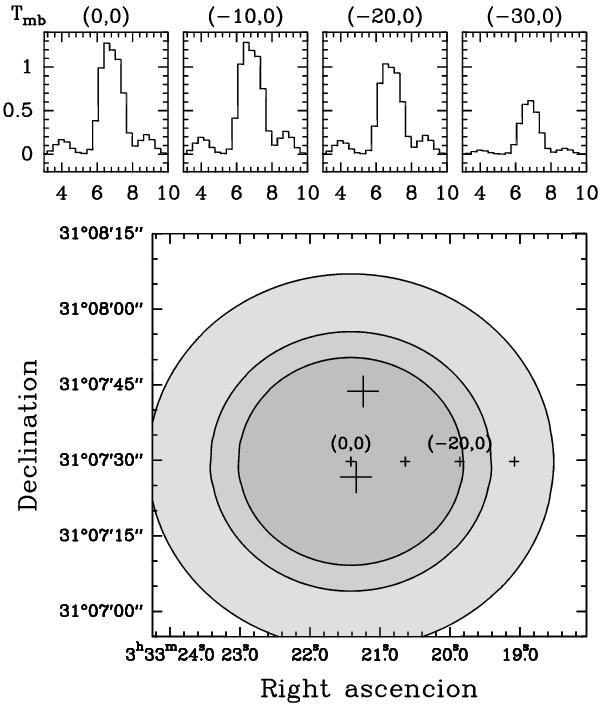

Simulated map of the N2H+J = 3 − 2 integrated intensity as seen by a telescope of synthesized beam size of 4″ (bottom panel). This map can be directly compared to the map given in Fig. 2c of Huang & Hirano (2013). The three isocontours shown are 0.51, 1.02, and 1.53 Jy km s-1/beam as in Huang & Hirano (2013). The large crosses indicate the positions of B1-bN and B1-bS. The upper panels show line profiles as a function of the distance from the centre. The corresponding positions are indicated by small crosses in the map. The velocity resolution of the spectra is 0.3 km s-1.
