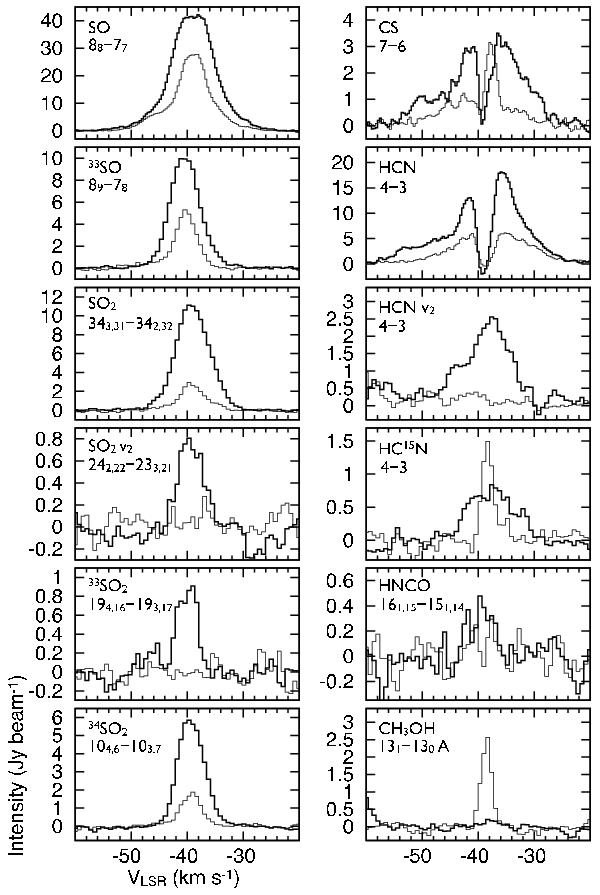

Fig. 5

Hanning-smoothed molecular spectra toward molecular zone A (thick line; offset position (− 0.42″, − 0.43″)) and B (thin line; offset position (− 1.89″, − 1.78″)). The compact-configuration dataset and natural weighting is used for all molecules except CS 7–6, SO NJ = 88–77 and HCN 4–3 which are taken from the combined dataset using natural weighting but convolved to the beam size of the compact dataset (, PA − 12°). The apparent offset in velocity seen in 33SO and 33SO2 is due to the blending of hyperfine transitions for which the reference velocity is set to the transition with lowest frequency (see Table 2).
