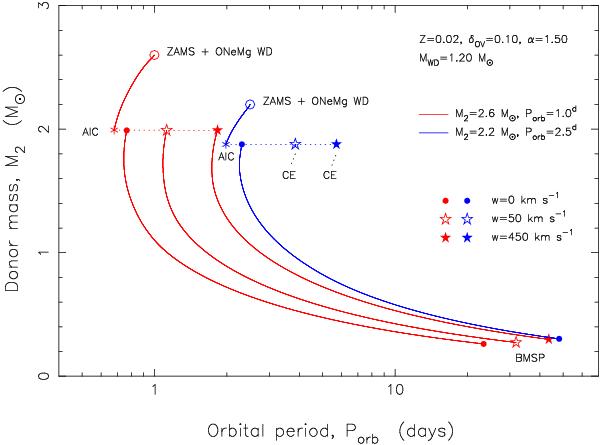

Fig. 2

Evolutionary tracks in the (Porb,M2)-plane. The initial system configurations are: M2 = 2.6 M⊙, Porb = 1.0 days (red tracks) and M2 = 2.2 M⊙, Porb = 2.5 days (blue tracks). The ONeMg WD has an initial mass of 1.20 M⊙ and grows to 1.48 M⊙ when the AIC occurs. After the AIC three tracks were computed for each system depending on the kick velocity applied in the AIC. Here we applied w = 0, w = 50kms-1 (φ = θ = 0°), and w = 450kms-1 (φ = 107° and θ = 90°) resulting in different values of Porb for the post-AIC system. In two post-AIC cases presented here, and in general if the donor star is quite evolved by the time it refills its Roche lobe (i.e. because the post-AIC Porb is large) and if the donor star is significantly more massive than the newborn NS (1.28 M⊙), the RLO becomes dynamically unstable and the system evolves through a common envelope (marked by CE).
