Fig. 6

thumbnail

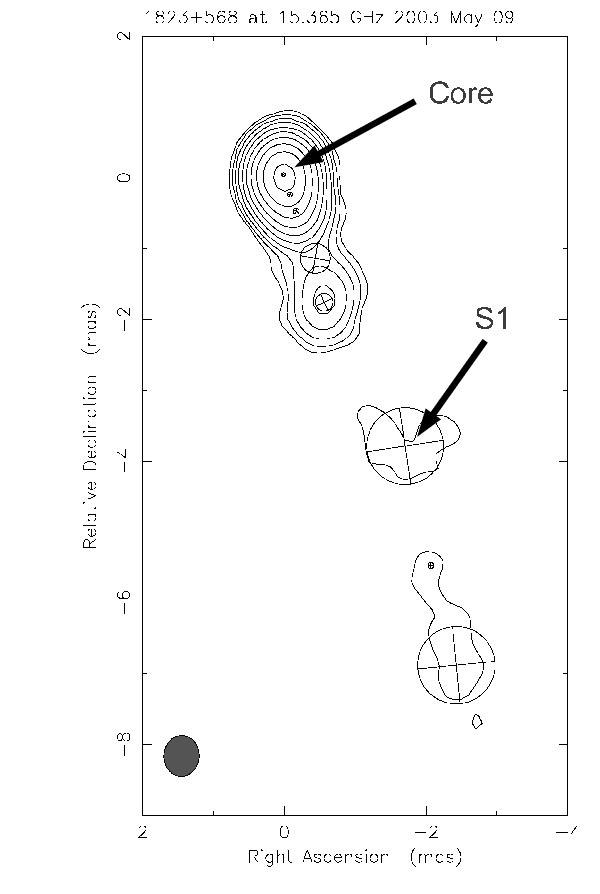

15   GHz natural weighted VLBI image of 1823+568 with fitted circular Gaussian components observed 9 May 2003 (Glück 2010). The map peak flux density was 1.27   Jy/beam, where the convolving beam was 0.58 × 0.5   mas at position angle (PA) − 2.09°. The contour levels were drawn at 0.15, 0.3, 0.6, 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, and 76.8% of the peak flux density.
