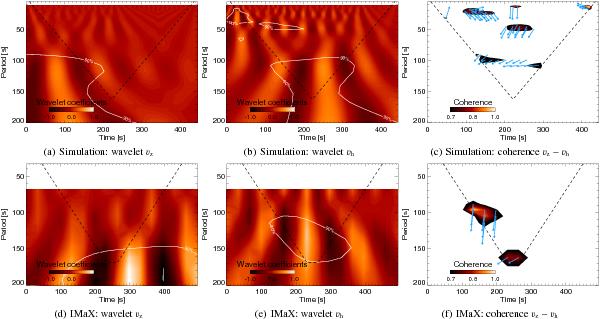

a) Wavelet amplitude spectrum of vz from the simulation. b) Wavelet amplitude spectrum of vh from the simulation. c) Wavelet phase coherence spectrum between vz and vh from the simulation. The arrows represent the phase lag in polar coordinates (zero phase corresponds to arrows pointing to the right). d) Wavelet amplitude spectrum of vz from IMaX. e) Wavelet amplitude spectrum of vh from IMaX. f) Wavelet phase coherence spectrum between vz and vh from IMaX. The arrows represent the phase lag in polar coordinates (zero phase corresponds to arrows pointing to the right). The dashed line represents the cone of influence where results cannot be trusted (area between the dashed lines and the edges of the diagram). The white contours represent the 95% confidence level.
