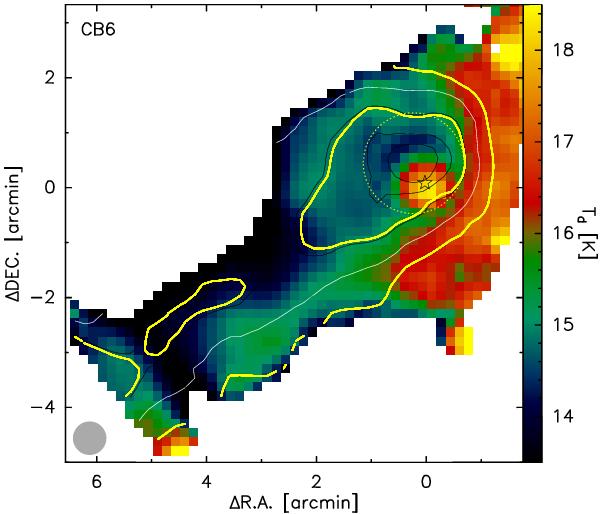

Fig. B.2
Dust temperature map of CB 6 (color scale), overlaid with contours of the hydrogen column density (white: 1021 cm-2, black: 2, 4, and 6 × 1021 cm-2). Yellow contours mark Nout (Eq. (3)) and N1′ (Eq. (10)). The dotted yellow ellipse marks the N1′ approximation described in Sect. 5.3. The asterisk marks the position of the embedded YSO.
