Fig. A.1

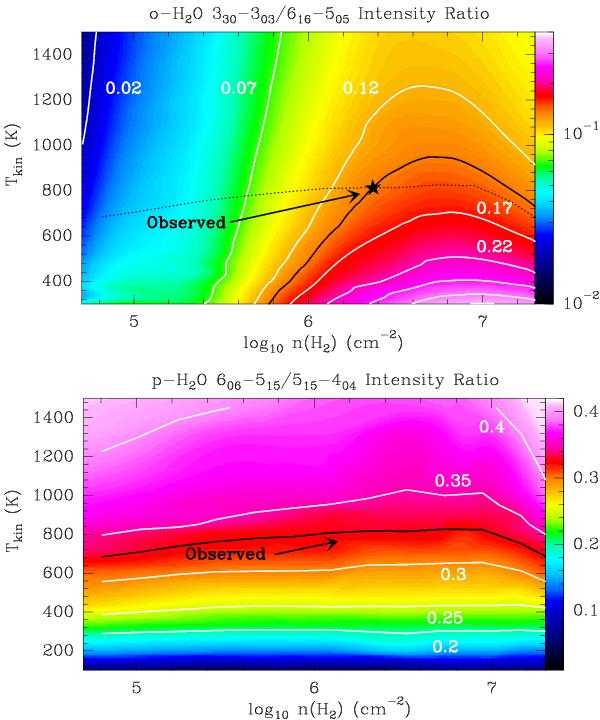

Grid of H2O LVG models for different gas temperatures and densities. Bottom: contour levels of the p-H2O 606–515/515–404 (83.284/95.627 μm) line ratio for N(p-H2O) = 1016 cm-2. Note the gas temperature dependence of this ratio. The black continuous curve shows the observed intensity line ratio of 0.33. Top: contour levels of the o-H2O 330–303/615–305 (67.269/82.031 μm) ratio for N(o-H2O) = 3 × 1016 cm-2. Note the gas density dependence of this ratio. The black continuous curve shows the observed intensity line ratio of 0.14 while the black dotted curve shows the observed p-H2O 606–515/515–404 ratio. The intersection of both curves is marked with a star (see text).
