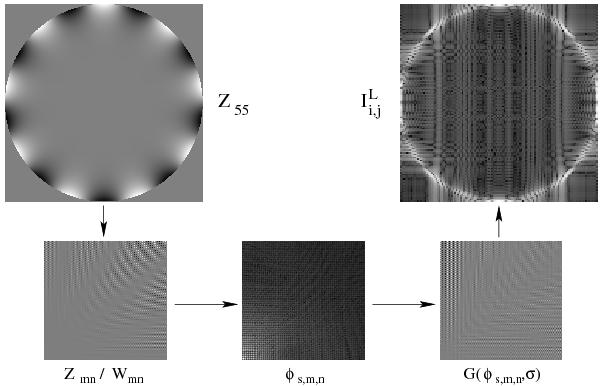

Fig. 4

Example of the nonlinear simulation on Zernike 55. The projection of
Z55 in the Fourier plane gives the
Zm,n/Wm,n
coefficients. The Airy-type stress function
φs,m,n is evaluated by the
Wm,n coupling (see Eq. (D.17)). The nonlinear part of the
Eq. (29)
(G(φs,σ))
is calculated and the Iz,m,n is
directly obtained. A deconvolution by the Gaussian laser beam distribution
(Egxy) and the final projection on
the DM plane gives . All
images are given in linear brightness except for
φs,m,n where the intensity is power
of 0.1.
