The properties of nonthermal Xray filaments in young supernova remnants
^{1}
Institute of Physics and Astronomy, University of Potsdam,
14476
Potsdam, Germany
email: robertrettig@gmx.net
^{2}
DESY, 15738
Zeuthen,
Germany
Received:
13
April
2012
Accepted:
26
July
2012
Context. Young supernova remnants (SNRs) exhibit narrow filaments of nonthermal Xray emission whose widths can be limited either by electron energy losses or damping of the magnetic field.
Aims. We want to investigate whether or not different models of these filaments can be observationally tested.
Methods. Using observational parameters of four historical remnants, we calculated the filament profiles and compared the spectra of the filaments with those of the total nonthermal emission. For that purpose, we solved a onedimensional stationary transport equation for the isotropic differential number density of the electrons.
Results. We find that the difference between the spectra of filament and total nonthermal emission above 1 keV is more pronounced in the damping model than in the energyloss model.
Conclusions. A considerable damping of the magnetic field can result in an observable difference between the spectra of filament and total nonthermal emission, thus potentially permitting an observational discrimination between the energyloss model and the damping model of the Xray filaments.
Key words: acceleration of particles / ISM: supernova remnants / ISM: magnetic fields / Xrays: ISM
© ESO, 2012
1. Introduction
Based on simple energetic considerations regarding the energy density of cosmic rays and the energy release per supernova explosion, supernova remnants (SNRs) have long been thought to be sources of galactic cosmic rays. This presumption is supported by numerous detections of nonthermal emission in the radio and Xray band (e.g., Koyama et al. 1995; Slane et al. 1999, 2001; Bamba et al. 2000) observed from the direction of known SNRs and interpreted to be synchrotron radiation of relativistic electrons with energies up to 100 TeV.
Highresolution observations of young SNRs performed with the Chandra satellite show that this emission of nonthermal radiation is concentrated in narrow regions on the limbs (Vink & Laming 2003; Bamba et al. 2005). These regions of increased synchrotron emissivity close to the forward shock are called filaments and demonstrate the presence of highenergy electrons around their acceleration sites.
The most plausible process for the acceleration of electrons is diffusive shock acceleration (DSA), which leads to a powerlaw distribution of particles (e.g., Bell 1978; Blandford & Ostriker 1978; Drury 1983). Although no clear evidence for relativisticion acceleration exists at shocks, the DSAmechanism is also considered to be responsible for the acceleration of cosmicray nuclei, as indicated by observations of nonrelativistic ion acceleration at solarwind shocks driven by coronal mass ejections (Rouillard et al. 2011). However, many details of the DSA are still vague such as the maximum energy of particles, the role of the magnetic field, and how the particles are injected into the acceleration process (also referred to as the injection problem). Apparently, the investigation of the properties of the nonthermal filaments may provide key information for a better understanding of the DSAmechanism. In particular, knowing the magneticfield strength gives constraints on the maximum particle energy achievable in the acceleration process, which can help answering the question whether SNRs can accelerate particles to energies above the knee in the cosmicray spectrum.
Accurate analysis of several SNRs shows that the filamentary structures are very thin compared with the radii of the remnants. This limitation of the filament widths is associated with a rapid decrease of the synchrotron emissivity that can be explained by energy losses of the electrons in a locally enhanced magnetic field. A number of authors have used that model to constrain the magneticfield strength, the degree of turbulence and the obliquity (e.g., Bamba et al. 2003; Parizot et al. 2006; Araya et al. 2010). Araya et al. (2010), for instance, have investigated several filaments of the remnant of Cas A and found that the magnetic fields of the filaments are highly turbulent and nearly perpendicular to the shock normal. Another important result of this and other studies is an estimate of the downstream magneticfield strength that is higher than simple shock compression would suggest. Such observations indicate an additional amplification of the magnetic field in the shock region of the SNRs. A possible amplification process could be a streaming instability in the upstream region as proposed by Lucek & Bell (2000) and Bell (2004), or the effects of preexisting turbulent density fluctuations on the propagating shock front (Giacalone & Jokipii 2007).
Besides energy losses, also the magnetic field itself can limit the filament widths. Based on the turbulence relaxation downstream of the forward shock and neglecting any amplification process, Pohl et al. (2005) have calculated that the turbulent magnetic field downstream can decay exponentially on a dampinglength scale l_{d} = 10^{16}−10^{17} cm that is small enough to produce the narrow observable filaments. Furthermore, from observations of the postshock steepening of the synchrotron spectrum in Tycho’s SNR it can be seen that also the damping of the magnetic field fairly well describes the corresponding Xray data (CassamChenaï et al. 2007) and thus, may appear within the filaments.
Since the magnetic field controls the radiative cooling of electrons, high magnetic fields lead to strong cooling, and too few highenergy electrons remain capable of producing the gammaray emission, which is observed from regions near the edges of numerous SNRs (e.g., Aharonian et al. 2007; Acero et al. 2010; Abdo et al. 2011). Any gamma rays observed in such a case are likely to be hadronic in origin. Weak cooling leads to a large number of highenergy electrons and the possibility of gammaray emission through inverse Compton or bremsstrahlung processes. All these implications of the magneticfield structure on the particle acceleration, gammaray emission and magneticfield amplification make it necessary to understand the nonthermal filaments in detail.
In this paper we investigate the properties of the filaments for both cases, filaments limited by electron energy losses or by damping of the magnetic field. For that purpose, using observational values of some characteristical SNR parameter, we calculate the Xray emission of the filaments. The resulting filament profiles then allow us to make specific predictions regarding the magneticfield strength. We additionally calculate the total nonthermal emission, which shall be referred to as “plateau”, and compare their spectra with those of the filaments. It should be noted that in our models we only consider nonthermal synchrotron emission and restrict ourselves to the evolution of relativistic electrons in the downstream region. Furthermore, we assume the electrons to be already accelerated at the shock front and treat our problem to be independent of the acceleration process. We also do not consider any electron propagation into the upstream region and simplify the SNRs to be spherical objects of constant downstreamvelocity profile. Recent hydrodynamical simulations suggest that this oversimplification of a constant velocity is an acceptable approximation only for SNRs of an age of less than several hundred years (Telezhinsky et al. 2012), implying that our models are restricted to SNRs being in the adiabatic phase and just entering the Sedov phase, respectively.
2. Modelling the filaments
We calculate the Xray intensity as a function of the projected radius, r_{p}. It is an integral over the synchrotron emission coefficient, j_{ν}, along the line of sight, . Using and taking into account that only emission originating inside the SNR contributes, the Xray intensity can be written as (1)where r and r_{s} denote the positions inside the SNR and the radius of the SNR, respectively. Then, obtaining the corresponding spectrum of the filaments just involves an integration over the Xray emission along the projected radius, whereas the spectrum of the plateau emission can be calculated as a volume integral over the synchrotron emission coefficient. In both cases, the isotropic synchrotron emission coefficient is needed, given by (2)where N(r,E) and P_{ν}(r,E) are the isotropic differential electron number density and the spectral emissivity per electron, respectively. Thus, we need to derive the appropriate electron distribution within the filaments.
2.1. The electron distribution
In the following, we derive the electron distribution that is necessary to calculate the synchrotron emissivity. To do this, a transport equation describing the dynamics of a distribution of relativistic electrons affected by advection, diffusion and energy losses needs to be solved. According to simulations described in Telezhinsky et al. (2012), we can approximate the advection velocity of young SNRs to be constant downstream of the shock, implying that energy losses due to adiabatic deceleration can be neglected. Note that the nonthermal emission come from a thin spherical shell near the edges of the SNRs. If we restrict our treatment to a region near the shock that is crossed by the advection flow on a timescale short compared with the age of the SNR, then we approximate the electron distribution with a onedimensional steadystate solution.
It is convenient to introduce a comoving spatial coordinate, z = r_{s} − r, where z = 0 marks the position of the shock front at all times. Hence, restricting ourselves on the downstream region, the onedimensional transport equation for the isotropic differential number density, N = N(z,E), reads as follows: (3)In this equation v denotes the constant advection velocity of the electrons relative to the forward shock, D(z,E) is the diffusion coefficient, β(z,E) = dE/dt represents the electron energy loss due to the emission of radiation, and Q(z,E) is the source term describing the injection of accelerated electrons into the propagation process.
Since the electrons are likely accelerated by the DSAmechanism at the forward shock (z = 0), we assume the electrons to be injected with a powerlaw dependence E^{−s}, where s is the injection index. Hence, the source term reads (4)and includes a cutoff at energy E_{cut}, because the maximum possible energy can be limited by either the finite acceleration time of the SNR (Drury 1991) or energy losses (Webb et al. 1984).

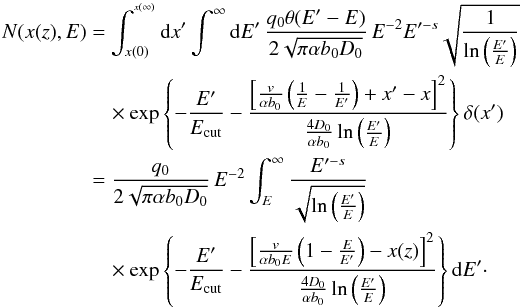

Equation (3) can be solved using Green’s method, implying that the solution can be written in terms of Green’s function, (5)where Green’s function g = g(z,z′;E,E′) satisfies (6)Assuming the diffusion coefficient and the energy losses to be separable in a spatial and in an energetic part, and that the spatial dependent terms are inversely proportional to each other, (9)as well as introducing the substitutions an analytical solution to Eq. (6) can be found in the literature (Lerche & Schlickeiser 1980, see their Eq. (A20)) and reads (13)where Θ(λ − λ′) is the step function and λ′ = λ(E′). Note, this analytical solution is valid only if Eq. (9) applies.
In general, the diffusion coefficient is an unknown parameter. But it is often assumed that the diffusion proceeds in the socalled Bohmregime. Hence, the diffusion coefficient can be written in the extremerelativistic limit E ≫ mc^{2} as D = ηr_{L}c/3, where r_{L} = E/(eB) and η ≥ 1 are the gyroradius and gyrofactor, respectively. Here, m is the mass of the electron, e is its charge, c is the speed of light, and B is the magneticfield strength. Therefore, we may write D(E) = D_{0}E, where D_{0} = ηc/(3eB). Additionally, we assume the emission of synchrotron radiation to be the main energyloss process that is proportional to the square of the electron energy, B(E) = b_{0}E^{2}, where b_{0} = 4e^{4}B^{2}/(9m^{4}c^{7}). Using these assumptions, Eq. (12) rewrites as so that and hence, According to Eqs. (10) and (13), Green’s function then reduces to (14)Now, the electron distribution can be easily determined using Eq. (5) and the appropriate source distribution (4), so that (15)Substituting n = E′/E, we can rewrite the desired result as (16)
2.2. Parameter used in the models
The models we use are based on different assumptions on the magnetic field. In the first model, which shall be referred to as “energyloss model”, we assume the magnetic field to be spatially constant, whereas the second one, which is referred to as “magneticfield damping model”, includes the damping of magnetic turbulence and assumes a spatiallydependent magneticfield strength described by a profile following the relation (17)where l_{d} is the damping length and z ≥ 0. Here, we choose the minimum value of the magnetic field to be similar to that of the interstellar medium, B_{min} = 10 μG, whereas the maximum value, B_{max}, corresponds to the field at the shock. It should be noted that Eq. (17) describes the averaged amplitude of the magnetic field in a given volume. Hence, we do not make any assumption on the magneticfield direction and do not distinguish between parallel and transverse diffusion, as is done in detailed calculations of diffusion coefficients (e.g., Marcowith et al. 2006).
According to the RankineHugoniot conditions, the downstream advection velocity can be expressed by the shock velocity, v_{s}, through v = v_{s}/4, if we consider strong shocks with a high Mach number and a monatomic gas with adiabatic index of 5/3, leading to a shock compression ratio of 4. Thus, we neglect any nonlinear effects expected to occur with efficient particle acceleration, which would modify the shock (Ellison et al. 2004). Furthermore, the filament width, w, is defined as the length, at which the intensity described by Eq. (1) is reduced by a factor 1/e of its maximum.
Parameters used to derive the filament profiles and spectra.
To have a realistic model, the values chosen for the shock velocity, filament width, and radius are based on reference values of real SNRs. In our case, we consider the young remnants of the historical supernovae SN 1006, Cas A, Tycho and Kepler. It should be noted that the real filament widths found in the literature have been measured in a certain Xray band and not for an individual Xray energy. However, as is shown in the calculation done in Sect. 3, the shape of the filament profiles depends on the Xray energy. Nevertheless, we relate the observational value of the width to a Xray energy of 5 keV, since it is an energy, at which no significant contribution from thermal emission is expected.
Additionally, we treat the cutoff energy to be the maximum electron energy that can be achieved in the acceleration process. Unlike cosmicray nuclei whose energy is probably agelimited due to the finite acceleration time available, we assume the maximum electron energy to be losslimited, since the electrons experience synchrotron losses during their acceleration. By equating the acceleration time scale to the synchrotron loss time, it is possible to derive an expression for the maximum electron energy in terms of the downstream magneticfield strength and shock velocity (Parizot et al. 2006): (18)Since different mechanism can account for magneticfield amplification (Lucek & Bell 2000; Giacalone & Jokipii 2007), the structure of the magnetic field is generally unknown within the shock region. We therefore simplify the problem by making the assumption that only the magneticfield strength at the shock determines the maximum electron energy given by Eq. (18). In addition, we have taken a shock compression ratio of 4.
At last, we assume the injection index to be s = 2, which results from the RankineHugoniot conditions for strong shocks (Bell 1978), as well as Bohm diffusion (η = 1), which implies the smallest possible value of the diffusion coefficient, as the mean free path of the particle is equal to the gyroradius.
All parameter used are summarized in Table 1. Note, that it is possible that all four SNRs could exhibit similar shock velocities. To take the uncertainties of this quantity into account, we perform the calculation of SN 1006 and Kepler for two different shock velocities.
3. Results
3.1. Energyloss model
In this model we treat the magnetic field to be constant, B(z) = B = const., implying no spatial dependence of the energyloss term, b(z) = 1. Using d(z) = α/b(z), as well as Eq. (11), the spatial coordinate x(z) then scales as Using the parameters given in Table 1, we calculate the Xray intensity as a function of the projected radius according to Eq. (1). Here, the magneticfield strength is a free parameter whose value can be chosen so that the filament widths match those found in the observations. In addition, we also determine the cutoff energy of the electron spectrum, which is connected to the magnetic field through Eq. (18).
Reproducing the filament width for each SNR at a photon energy of 5 keV determines the magneticfield strengths as given in Table 2. For our examples the downstream magneticfield strength ranges from about 100 μG up to about 500 μG. Remnants with narrower filaments exhibit a higher downstream magnetic field. These magnetic fields then imply cutoff energies of the electron spectra in the energy range between 19 TeV and 37 TeV. The order of magnitude of the cutoff energies is in agreement with the results obtained from spectral modelling of the radiotoXray spectra of young SNRs whose cutoff energies of their electron distribution must be in the TeVband, since the cutoff frequencies are generally found in the Xray band (Reynolds & Keohane 1999).
In Fig. 1 we illustrate the profiles of the filaments for four different photon energies calculated with the parameters of Tycho. To be noted from the figure is a frequency dependence of the filament widths, which can be explained by the energy loss of the electrons in a constant magnetic field and by the advection process. The advection length represents the distance covered by the electrons within the synchrotron loss time, , and is given by (19)Synchrotron radiation usually provides a continuum around a characteristic synchrotron frequency, (20)where ν_{L} and γ are the Larmor frequency and the Lorentz factor of the accelerated electrons, respectively. Hence, the relation E ∝ ν^{1/2}. Therefore, a dependence of the width on the frequency of the radiation of the form l_{ad} ∝ ν^{−1/2} would result. But the electrons are also affected by diffusion. With the Bohm diffusion coefficient, D = r_{L}c/3, one thus obtains for the corresponding diffusion length (21)which does not depend on the electron energy. Equating the advection and diffusion length, the relation (22)can be derived. Electrons with energies E > E_{c} can stream farther from the shock than advection alone would allow. According to Eqs. (20) and (22), the characteristic synchrotron frequency for the electrons with E > E_{c} is then higher than (23)corresponding to a Xray energy of about 13 keV, if v_{s} = 5000 km s^{1}. Hence, the filament profiles at higher photon energies, which need the most energetic electrons, show approximately the same behaviour as can be seen in Fig. 1 for the 5keV and 10keV profile.
Fig. 1 Nonthermal Xray intensity as a function of the projected radius calculated for four different Xray energies with the parameters of Tycho given in Table 1, as well as B = 310 μG. The forward shock is located at r_{s} = 3 pc.
In addition, the advection and diffusion length also explain the relation between the filament widths and the corresponding magnetic fields given in Table 2. Narrower filaments require a faster decrease in the synchrotron emissivity, implying a shorter advection and diffusion length. And according to Eqs. (19) and (21), this is given for higher magneticfield strengths.
Now, equipped with the Xray intensity distribution establishing the filament profiles, and the volume emissivity, we calculate the spectra of the filament and plateau for each of our examples. To obtain the filament spectrum, we integrate the intensity along the projected radius from r_{p} = r_{s} up to r_{p} = r_{s} − w. Because we do not know the electron source strength, q_{0}, we are not interested in absolute fluxes. However, we can show the qualitative behaviour described by the appropriate photon spectral indices, which should be sufficient for the comparison. Assuming the photon spectra to show a powerlaw characteristic, N_{ν} = F_{ν}/hν ∝ ν^{−Γ}, where F_{ν} and Γ are the flux and photon spectral index, respectively, we can then describe the spectra between the photon energies hν and hν′ through (24)Here, we also want to calculate the differences between the photon spectral index of the filament spectrum, Γ_{f}, and that of the plateau emission, Γ_{p}, which are given at three different photon energies, E_{ν}, in Table 2. Additionally, in Fig. 2 we show the photon spectral indices calculated with the parameters of Tycho.
As can be seen from Table 2, as well as from Fig. 2, the spectra at higher photon energies rarely differ significantly. The plateau shows a steeper spectrum at lower photon energies. Up to a photon energy of 1 keV the difference between the indices of filament and plateau is in the range 0.05−0.34, whereas at energies higher than 1 keV the difference is always smaller than 0.1. This property can be explained by the effective radiation of the energetic electrons in the enhanced magnetic field. Accordingly, the most energetic electrons lose all of their energy inside the filaments, implying that the regions farther from the shock provide almost no contributions to the total emission of hard Xrays, so that both filament and plateau show nearly the same behaviour.
Fig. 2 Photon spectral indices of the spectra of filament and plateau using the parameters of Tycho.
Constraints on the downstream magneticfield strength, cutoff energy of the electron spectrum, photon spectral index of the filament, and the difference between the photon indices of the spectra of filament and plateau at three different photon energies, E_{ν}, for four young SNRs.
In Table 2 we also show the indices of the filaments at three different photon energies. One can see that the parameters of Cas A, Tycho, Kepler and SN 1006 lead to the same spectral behaviour, if their shock velocities are similar. However, using the shock velocities measured in the northwestern limb of SN 1006 and resulting from the upper limit to the distance to Kepler, it turns out that the filament spectrum is softer and harder, respectively, than in the former case.
3.2. Magneticfield damping model
As already mentioned above, in the model of magneticfield damping we assume the magneticfield strength to follow a profile described in Eq. (17), which can also be written as The spatial dependence of the energyloss term then obeys the relation corresponding to a spatial variation of the diffusion coefficient because the product b(z)d(z) must be constant, as required by Eq. (9). According to Eq. (11), the spatial coordinate x(z) then scales as (25)Again, using the parameters given in Table 1, we calculate the Xray intensity as a function of the projected radius. In this case, the damping length and the maximum field strength, B_{max}, are free parameters that can be chosen so that the filament widths match those observed. According to the calculation of Pohl et al. (2005), the damping length should be in the range l_{d} = 10^{16}−10^{17} cm (l_{d} = 0.003−0.03 pc). To also investigate the influence of the damping length on the results, we perform the calculation using two different values of l_{d} in each of our examples. Here, the larger value used for l_{d} may describe weak magneticfield damping, whereas the smaller one may cause a strong damping of the field. But note that energy losses are still included.
Reproducing the filament width of each SNR at a photon energy of 5 keV requires the maximum field strengths given in Table 3. Depending on the damping length, the maximum field strength can be found in the range between 50 μG and 260 μG, implying, according to Eq. (18), cutoff energies between 27 TeV and 62 TeV. Furthermore, it turns out that an increased damping length requires an increased field strength, because the electrons radiate efficiently in a larger volume, resulting in wider filaments. To retain the observed filament widths, it is then necessary to have a higher magnetic field that, on the other hand, also leads to a smaller cutoff energy of the electron distribution.
If the damping length is too small, the observed filament widths cannot be realized for any maximum field strength. In these cases the intensity first decreases but then increases again even for the 5keV profile, so that the typical shape of the filament profiles is not given anymore. Therefore, we use damping lengths in the case of strong damping, for which the profiles just still exhibit the typical shape. For instance, using the given parameters of SN 1006, the damping length used in the calculation should not be smaller than 0.02 pc.
Fig. 3 Nonthermal Xray intensity as a function of the projected radius calculated for four different Xray energies with the parameters of Tycho given in Table 1, as well as l_{d} = 0.008 pc and B_{max} = 85 μG. The forward shock is located at r_{s} = 3 pc.
Constraints on the maximum magneticfield strength, cutoff energy of the electron spectrum, photon spectral index of the filament, and the difference between the photon indices of the spectra of filament and plateau at three different photon energies, E_{ν}, for four young SNRs.
The filament profiles calculated with the parameters of Tycho for four different photon energies are illustrated in Fig. 3. As can be seen from the figure, there is also a dependence of the filaments on the frequency of the Xrays. This dependence is based on the spatial variation of the magneticfield strength. Only in regions very close to the shock front the electrons radiate in fields of high magnitude, so that even the most energetic of them can emit photons of several keV in energy only in a small volume. The electrons remain energetic when they propagate into the downstream region, where they radiate at lower frequencies. Hence, we expect increased emission of lowenergy Xrays in regions farther from the shock. For instance, using the cutoff energy of the electron spectrum in Tycho obtained for the case of strong damping, E_{cut} = 45 TeV, one finds that according to Eq. (20), even the most energetic electrons located in a magnetic field of B = 10 μG have their synchrotron continuum around the characteristic frequency ν_{c}(E_{cut}) = 3.3 × 10^{17} Hz, corresponding to about 1.4 keV in Xray energy. This issue can be seen for the 0.1keV and 1keV profile in Fig. 3. The Xray intensity does not decrease with decreasing projected radius as happens in the energyloss model, but remains nearly constant and even increases, respectively.
Using the Xray intensity distribution, as well as the volume emissivity, we now calculate the spectra of filament and plateau for each example. Again, we integrate the intensity along the projected radius between r_{p} = r_{s} and r_{p} = r_{s} − w in order to obtain the filament spectrum. The difference between the photon spectral indices of filament and plateau, Γ_{f} − Γ_{p}, at three photon energies is given in Table 3, whereas in Fig. 4 we illustrate the photon spectral indices calculated with the parameters of Tycho.
As can be seen again, the spectrum of the plateau is steeper than that of the filament. However, the difference between the spectra of filament and plateau depends on the chosen damping length. At relatively large damping lengths (weak damping) the difference between the indices over the hole energy range is smaller than 0.1, whereas at smaller damping lengths (strong damping) it also takes values in the range 0.1−0.2. The small differences at larger damping lengths are due to the higher magnetic fields that need to be chosen in order to retain the observed filament widths. Hence, considerable energy losses have to be taken into account. Similarly to the energyloss model, this results in an almost equal behaviour of the spectra of filament and plateau at high photon energies. In contrast, the magnetic fields used at smaller damping lengths are low enough to result in spectra that show significant differences among each other.
Finally, one can also see from Table 3 that the filament spectrum becomes steeper with decreasing damping length, in particular at small Xray energies. This is due to the lower magneticfield strengths used in that case. Although the weaker magnetic fields imply higher cutoff energies, which harden the spectra, their influence is not sufficient enough to result in spectra similar to those found at larger damping lengths. Besides, as in the energyloss model and independently of the damping length, Cas A, Tycho, Kepler and SN 1006 show roughly the same spectral behaviour, if the shock velocities are similar, whereas the filament spectrum obtained from the shock velocity of the northwestern limb of SN 1006 has a steeper profile. In contrast, the upper limit to the distance to Kepler implies a harder filament spectrum.
Fig. 4 Photon spectral indices of the spectra of filament and plateau using the parameters of Tycho.
4. Conclusions
Compared to the magneticfield damping model, the spectra of filament and plateau obtained in the energyloss model exhibit larger spectral indices. This can be explained by the considerable energy losses leading to the evolution towards a softer electron distribution in the energyloss model, and hence, resulting in Xray spectra that are softer than those obtained in the damping model.
In case of a weak magneticfield damping the difference between the spectral indices of filament and plateau over the full Xray spectrum is smaller than 0.1, which is probably to small to be detectable. Only if there is a strong damping, our calculation suggests a measurable difference between the spectra in some SNRs, since the difference between the spectral indices of filament and plateau can take values of almost 0.2 at Xray energies higher than 1 keV.
In the energyloss model the difference between the indices of filament and plateau above the Xray energy of 1 keV is even smaller than 0.1, so that a possible detection can be excluded here, too. On the other hand, the difference between the indices below 1 keV is larger than 0.1, and at a photon energy of 0.1 keV it is even approximately 0.3. This might suggest that there is a measurable difference in the spectra of filament and plateau at small Xray energies, if the filaments are limited by energy losses. However, on account of the interstellar photoelectric absorption of the soft Xrays, these different spectral characteristics are probably not detectable, too. Furthermore, the plasma downstream of the forward shock is at high temperature, implying also thermal emission contributing to the soft Xray band, and thus, complicating a clear identification of the nonthermal emission.
Hence, if there is no measurable difference between the spectra of filament and plateau, it is not possible to make definite predictions from the comparison of the spectra whether the filaments are limited by energy losses of the radiating electrons or by damping of the magnetic field. But if a significant difference appears, our calculations then suggest that the filaments are limited by the magnetic field itself.
It should be noted that our results presented here have been derived using Bohm diffusion. According to Eq. (21), a larger diffusion coefficient with gyrofactor η > 1 would imply a larger diffusion length, resulting in significant widening of the filaments, because now, the regions farther from the shock contain a sufficient number of highenergy electrons contributing to the intensity. Widening must then be compensated by a higher magnetic field to retain the observed filament widths. Hence, the magneticfield strengths derived in our models represent lower limits for the chosen parameters. The calculation then shows that a larger diffusion coefficient results in softer spectra due to a lower cutoff energy, which decreases with increasing gyrofactor. However, the final results regarding the differences in spectral indices do not change fundamentally.
In a last step we want to compare the predictions derived here with observations. At first, we notice that, independently of the model, the parameters from the remnants of Cas A, Tycho, Kepler and SN 1006 lead to nearly the same spectral behaviour in case of similar shock velocities, as can be seen from the spectral indices in Tables 2 and 3. However, the analysis of the filament spectra of these remnants reported by Bamba et al. (2003, 2005) reveals significant differences among the spectral indices obtained from the fit of an absorbed powerlaw model. Compared to our spectra whose calculation has been done using an injection index resulting from an unmodified shock (s = 2), the observation may be an indication for different electron injection indices in these remnants, implying shocks that are differently affected by nonlinear effects due to differences in efficiency in the particle acceleration.
Regarding the magneticfield strengths, we take, as an example for comparison with our results, the nonthermal filaments of Cas A analysed by Araya et al. (2010). From the bestfit parameters used to fit the observed filament spectra, the magnetic field has been derived to be in the range (30−70) μG. These values are consistent with those derived from the magneticfield damping model, in which the magnetic field varies, according to Eq. (17) and the values from Table 3, between the field strengths (10−260) μG for weak damping and (10−115) μG for strong damping, respectively. For comparison, the constant magnetic field derived from the energyloss model is several times higher, B = 520 μG. This might suggest that the nonthermal filaments of Cas A are limited by the damping of the magnetic field.
Another comparison concerns the magnetic fields in SN 1006 and Tycho. Using the data from radio up to TeVobservations, Acero et al. (2010) have analysed the multiwavelength spectrum of SN 1006 in the framework of a leptonic and hadronic origin for the gammaray emission, giving a magneticfield of ~30 μG in the leptonic model and a magnetic field of ~120 μG in the hadronic model, respectively. Moreover, combining radio and Xray data with recent TeVobservations performed with the VERITAS instrument, the magnetic field of Tycho has been estimated to be ~80 μG in a leptonicdominated model, whereas a hadronic dominated model yields a magnetic field of ~230 μG (Acciari et al. 2011). Compared to our model predictions given in Tables 2 and 3, we notice that the magnetic fields derived from the energyloss model are in good agreement with those estimated from the hadronic model used to describe the observed spectra of SN 1006 and Tycho. In contrast, the predictions from the magneticfield damping model suggest the leptonic model for the origin of the gammaray emission from these remnants. It should be noted that current gammaray observations do not reach the spatial resolution of those done in Xrays, so that the magnetic fields estimated using gammaray observations of SN 1006 and Tycho are averages over a region much larger than the filaments, implying that the observed values do not necessarily match those found for the filaments.
To discriminate between the energyloss model and magneticfield damping model, and hence between a leptonic and a hadronic origin of TeVband gammaray emission, one may either search for differences between Xray spectra of filaments and plateau, as calculated in this paper, or perform gammaray observations with higher spatial resolution.
Acknowledgments
We acknowledge support by the “Helmholtz Alliance for Astroparticle Phyics HAP” funded by the Initiative and Networking Fund of the Helmholtz Association.
