Fig. 4

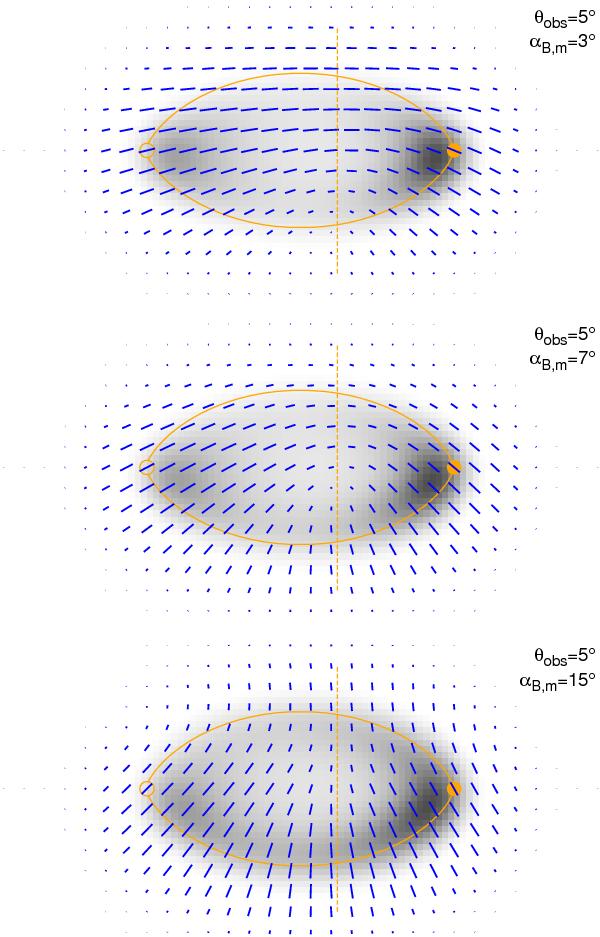

Synthetic emission maps of the reconfinement shock with jet Lorentz factor Γj = 10, opening angle Θj = 5° and external pressure index η = 0, filled with a helical magnetic field of different minimum pitch angle αB,m and seen from the viewing angle θobs = Θj. Dashed orange lines mark the turning point for polarization angle profiles in Fig. 5. See Fig. 1 for more explanation.
