Fig. 12

thumbnail

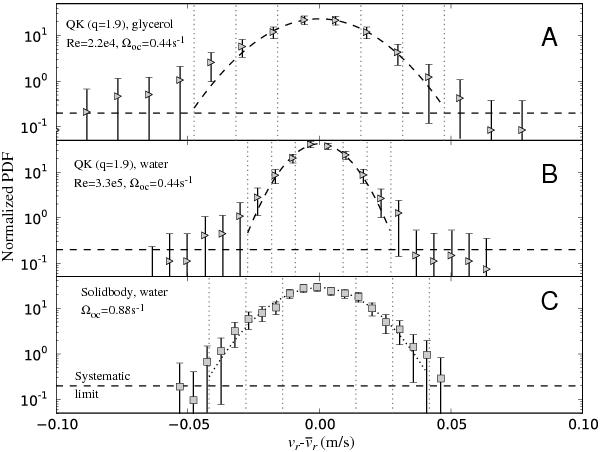

Probability densities of vr for QK(q = 1.9) configuration at Re ≈ 2.2 × 104 using water-glycerol mixture (top panel, labelled A in Fig. 10), QK(q = 1.9) configuration at Re ≈ 3.3 × 105 using water (middle panel, labelled B in Fig. 10), and solid-body rotation (bottom). Apparently larger standard deviations in the solid body flow (C) than those in the QK flow in water (B) are due to the larger ΩOC in the flow (C). The curves are Gaussian fits to the data, vertical lines are first, second and third standard deviations from their means . The data were acquired at z = 75 mm. Note that non-Guassian tails at the level of ≈ 0.2 are due to acrylic optical defects and not genuine characteristics of the flows.
