Fig. 6

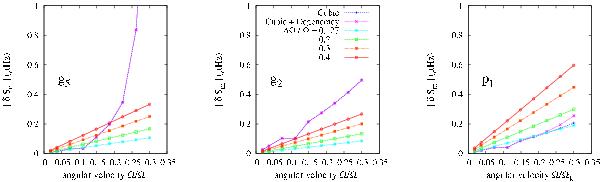

Departure from linear splitting for ( = 1,m = 1) triplets due to cubic-order effects (dark blue), to cubic-order effects including near-degeneracy corrections (purple, these two contributions overlap for g5 and g2) and to latitudinally differential rotation with ΔΩ/Ω = 0.127 (light blue), 0.2 (green), 0.3 (orange), and 0.4 (red). These departures are plotted as a function of the rotation rate for a g5 mode (left), a g2 mode (center), and a p1 mode (right). These results were computed for the uniformly rotating evolved 8.5 Mβ Cephei model described in Sect. 5.1 (Table 2).
