Fig. 5

thumbnail

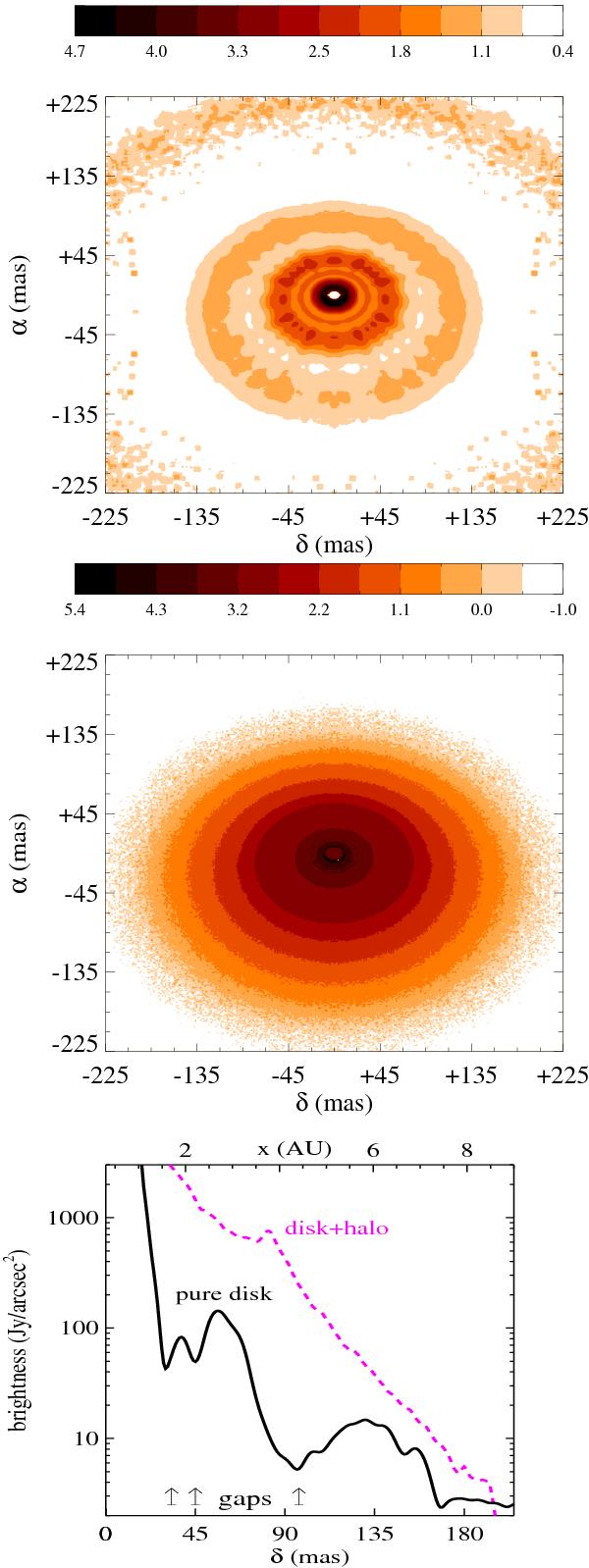

Mid-IR images of disks heated by a T Tauri star at distance of 50 pc and viewed at 30°. The image of a pure disk (top) and a disk plus halo is shown (middle). Color bars are in log (Jy/arcsec2). Bottom: corresponding surface brightness distribution measured as cut along δ through origin of the image. Gaps between emission rings are indicated.
