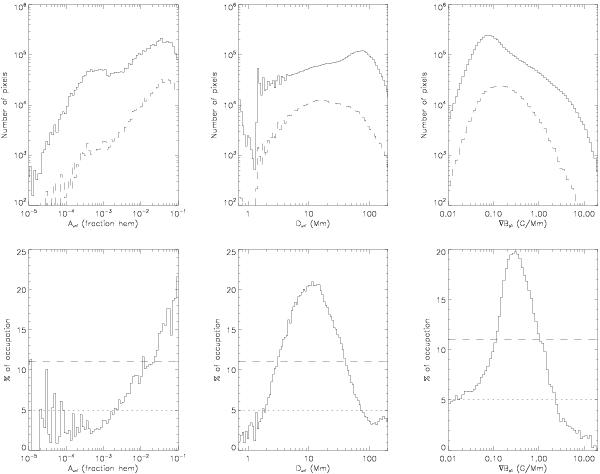

Fig. 4
Upper right panel: number of PIL pixels versus Auni, for all pixels (solid line) and for pixels associated with a filament (dashed line). Lower right panel: percentage of occupied PIL pixels (i.e. Dfil < 30 Mm) versus Auni (solid line). The horizontal dahsed line shows the average percentage, and the dotted line the 5% level. Middle panels: same for Duni. Right panels: same for ∇Bpil.
