Fig. 2

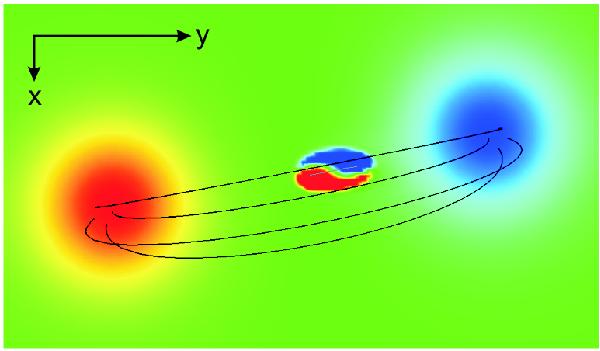

The new flux emerging into the mature region at t = 58. Some field lines of the mature region are shown in black. A field line from the emerging flux is shown in grey. The angle between the axes of the two flux systems is 11°. The magnetogram (at z = 0) displays the shape of the emerging flux – leading polarities with trailing tongues.
