Free Access

Fig. 2

thumbnail

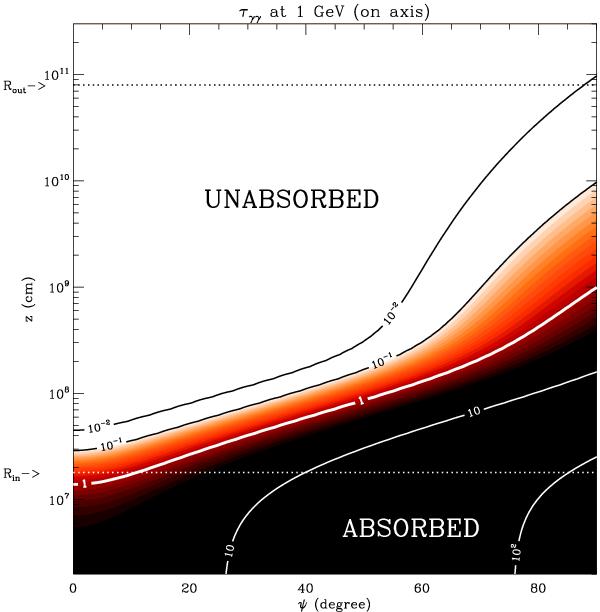

Optical depth τγγ map for a gamma-ray photon of energy ϵ1 = 1 GeV, integrated along the line of sight up to the observer situated at infinity. The compact object is a Mco = 20 M black hole accreting at acc = 10-8 M yr-1. The inner radius of the disk is Rin = 6 rg ≈ 1.8 × 107 cm and the outer radius is Rout = 8 × 108 cm. The altitudes z ≡ Rin and z ≡ Rout are indicated by dotted lines. Absorption is calculated with the temperature profile given in Eq. (4). Primary gamma rays are injected along the axis of the disk at an altitude z (r ≡ 0). The observer sees the disk with an inclination ψ. Bright regions indicate low opacity or “unabsorbed” regions, and dark regions high opacity or “absorbed” regions. Level lines τγγ = 10-2, 10-1, 1, 10, 102 are overplotted.

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
