Fig. 9

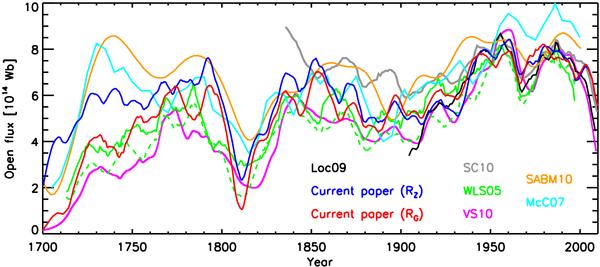

Comparison of the reconstructed open flux with other reconstructions. Loc09: see Lockwood (2003) and Lockwood et al. (2009). WLS05: Wang et al. (2005); solid and dashed green are their models S1 and S2, respectively. SC10: Svalgaard & Cliver (2010). A factor 0.4 used to convert their data into open flux. VS10: Vieira & Solanki (2010). SABM10: Steinhilber et al. (2010, PCA composite). McC07: McCracken (2007). All data are 11-yr running averages, except SABM10 which is a 25-yr running average.
