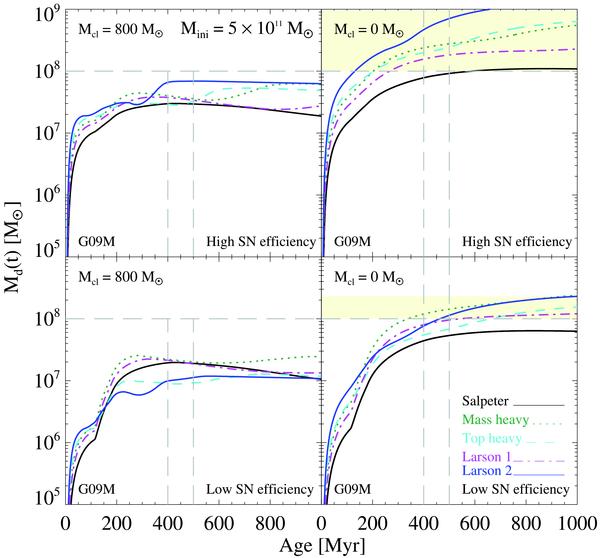

Evolution of the total dust mass for G09M, presented for a galaxy with M_ini = 5 × 10¹¹ M_⊙. Total dust masses M_d(t) are shown for a “high” (top row) and a “low” (bottom row) SN dust production efficiency ϵ_i(m). Dust destruction is taken into account for M_cl = 800   M_⊙ (left column) and 0 M_⊙ (right column). Maximum dust masses exceeding 10⁸ M_⊙ are indicated as yellow shaded zones. The grey horizontal dashed line marks the limit of 10⁸ M_⊙ of dust. The grey vertical dashed lines indicate epochs at 400 and 500 Myr after the onset of starburst. The black solid, green dotted, cyan dashed, magenta dashed-dotted, and blue dashed-dot-dotted lines represent the Salpeter, mass-heavy, top-heavy, Larson 1, and Larson 2 IMF, respectively.
