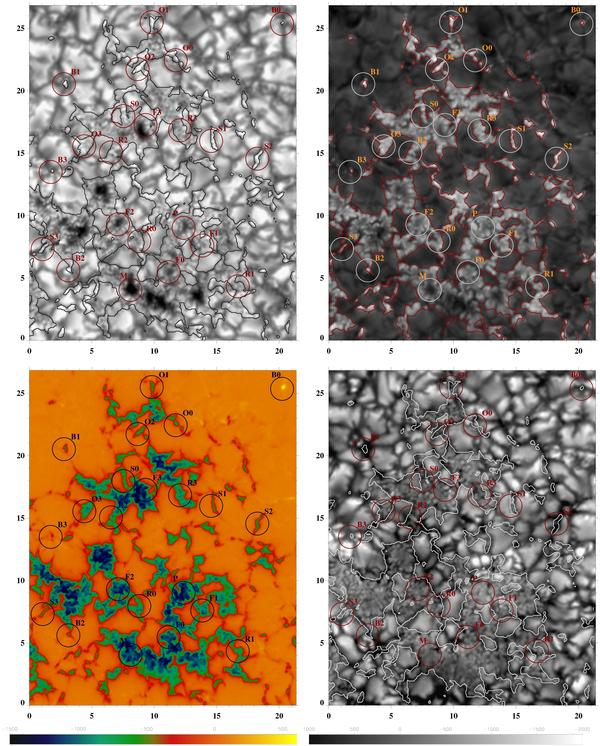

The ROI shown in Fig. 1, used to identify isolated bright points (B0–B3), ribbons (R0–R3), flowers (F0–F3), strings (S0–S3), and other features (O0–O3). The upper row shows the continuum image and the Imin map, the lower row BLOS and vLOS maps obtained from inversions. The white/black/red contours correspond to  |BLOS|  = 200 G. Tick marks are in units of arcsec. The color bar indicates the signed LOS magnetic field in Gauss, the grey scale bar the LOS velocity in m s-1.
