Relevance of jet emitting disc physics to microquasars: application to Cygnus X1
^{1}
Laboratoire d’Astrophysique, UMR 5571 Université J. Fourier/CNRS,
Observatoire de Grenoble, BP
53, 38041
Grenoble Cedex 9,
France
email: pierreolivier.petrucci@obs.ujfgrenoble.fr
^{2}
Centre d’Étude Spatiale des Rayonnements, CESR, Université de
Toulouse [UPS], CNRS [UMR 5187], 9
Av. du Col. Roche, 31028
Toulouse,
France
Received:
8
April
2010
Accepted:
29
June
2010
Context. Interpretation of the Xray spectra of Xray binaries during their hard states requires a hot, optically thin medium. There are several accretion disc models that account for this aspect. However, none is designed to simultaneously explain powerful jets detected during these states.
Aims. A new quasiKeplerian hot accretion disc solution, a jet emitting disc (JED hereafter), which is part of a global discjet MHD structure producing stationary superalfvénic ejection, is investigated here. Its radiative and energetic properties are then compared to the observational constraints found in Cygnus X1.
Methods. We solve the disc energy equation by balancing the local heating term with advection and cooling by synchrotron, bremsstrahlung, and Comptonization processes. The heating term, disc density, accretion velocity, and magnetic field amplitude were taken from published selfsimilar models of accretionejection structures. Both optically thin and thick regimes are considered in a onetemperature, gassupported disc.
Results. Three branches of solutions are found to be possible at a given radius, but we only investigate the hot, optically thin and geometrically slim solutions. These solutions give simultaneously and consistently the radiative and energetics properties of the discjet system. They are able to reproduce the global accretionejection properties of Cygnus X1 very well, namely its Xray spectral emission, jet power, and jet velocity. About half of the released accretion power is used to produce two mildly relativistic (v/c ≃ 0.5) jets, and for a luminosity of about 1% of the Eddington luminosity, the JED temperature and optical depth are close to what is observed in the hard state of Cygnus X1.
Conclusions. The accretion and ejection properties of JEDs agree with the observations of the prototypical black hole binary Cygnus X1. The JED solutions are likely to be relevant to the whole class of microquasars.
Key words: black hole physics / accretion, accretion disks / magnetohydrodynamics (MHD) / ISM: jets and outflows / Xrays: binaries
© ESO, 2010
1. Introduction
Powerful ejections are commonly observed in galactic black holes. Xray binaries show permanent jet radio emission during the socalled hard states (Stirling et al. 2001; Remillard & McClintock 2006; Done et al. 2007) and superluminal sporadic ejection in intermediate flaring states (Mirabel & Rodriguez 1994; Hannikainen et al. 2001; Fomalont et al. 2001; Fender et al. 2004)^{1}.
Several models have been put forward to explain the formation of these astrophysical jets. They can be roughly classified into two categories both relying on the existence of an organized largescale magnetic field. The first one taps the accretion energy reservoir of the disc, as first proposed by Lovelace (1976) and Blandford (1976). Since the seminal paper of Blandford & Payne (1982), it is known that jets can indeed be both accelerated and collimated by the magnetic field threading the disc. In the second category of models, jets are supposed to mainly tap the rotational energy of the black hole thanks to the socalled BlandfordZnajek process (hereafter BZ process, Blandford & Znajek 1977). In this model, accretion serves only to bring in and maintain the magnetic field in the black hole ergosphere.
That the jet power observed in some Xray binary systems (the socalled microquasars Mirabel & Rodriguez 1998) seems remarkably independent of the nature of the compact objects, namely white dwarf, neutron star, or black hole (e.g. Kording et al. 2006; Kording et al. 2008; Tudose et al. 2009), argues for an ejection process that is also independent of the central object. This seems to be confirmed by the lack of correlation between jet power or jet velocities and measured values of black hole spins (Fender et al. 2010). Although all this evidence does not constitute definitive proof, it severely weakens the scenario where powerful jets would be powered by the BZ process.
There have been numerous 2D and 3D relativistic magnetohydrodynamic (hereafter MHD) numerical simulations of accretion flows around black holes (e.g. McKinney & Gammie 2004; Komissarov et al. 2007; Hawley & Krolik 2006; Beckwith et al. 2008; McKinney & Blandford 2009). Starting from a geometrically thick donut pervaded by its own weak poloidal or toroidal magnetic field, simulations end up with accretion onto the black hole with outflowing material along opened field lines. Accretion is caused by the onset of the magnetorotational instability or MRI (see Balbus 2003, and references therein) that leads to formation of an almost geometrically thin disc in the innermost radii. A Poyntingdominated funnel jet is formed in the black hole polar regions in good agreement with the BZ process. This electromagnetic (no mass) funnel wind is surrounded by a massdominated outflow concentrated in a hollow and relatively thin cone at roughly 40 degrees inclination. Ejection is both thermally and magnetically driven and is only present if the initial magnetic field had a vertical component (Beckwith et al. 2008). Although these simulations look very promising, it is still not clear how they compare to the observed largescale jets. Indeed, it is not clear yet whether such flows will be selfconfined further out and if the mass and energy fluxes agrees with observational constraints.
On the other hand, in the footsteps of the Blandford & Payne (1982) pioneering work, it has been realized that jets could extract a significant fraction of the underlying disc angular momentum and accretion power. Under such circumstances, jets would not be a mere epiphenomenon of accretion but possibly its main driver. The whole disc structure should then be revisited by taking the discjet interrelation into account. This was done within a selfsimilar Ansatz, allowing the full set of dynamical MHD equations to be solved without neglecting any term (Ferreira & Pelletier 1995; Ferreira 1997; Casse & Ferreira 2000a,b; Ferreira & Casse 2004). It was found that the structure of these jet emitting discs (hereafter JED) is indeed deeply modified, with dynamical properties significantly different from those of a standard accretion disc or an ADAF. As a consequence, the radiative properties of a JED may also be very different. Noticeably, the main results of these selfsimilar, steadystate studies have been confirmed by 2D numerical MHD simulations with the VAC code (Casse & Keppens 2002, 2004), the FLASH code (Zanni et al. 2007), and the PLUTO code (Tzeferacos et al. 2009).
The purpose of this paper is to explain the dynamical, energetic, and radiative properties of JED around compact objects and to compare them with those estimated from the observations of the prototype of black hole binaries: Cygnus X1.
The structure of the paper is as follows. We start by recalling the main characteristics of a JED in Sect. 2. We also present in Sect. 3 the method used to compute the JED thermal equilibrium. We then compare, in Sect. 4 the model expectations with the observational constraints known in Cyg X1. Concluding remarks are discussed in Sect. 5.
2. Jet emitting discs
Jet emitting discs were originaly studied by Ferreira & Pelletier (1993) in their magnetized accretion ejection structures model (MAES herafter). This model was developed so as to treat both the accretion disc and the jet it generates consistently. The idea is the same as in earlier studies of magnetocentrifugally launched disc winds (Blandford & Payne 1982). However, in the MAES, the solution starts from the midplane of the resistive MHD disc and evolves outwards in the ideal MHD wind/jet. This differs drastically from other studies where the disc was only treated as a boundary condition, hence forbidding any precise quantication of the effect of the MHD wind on the disc.
It would be lengthy but also irrelevant to present the MAES model in great detail in this paper. Many papers have dealt with the subject from both analytical and numerical point of views, so we refer the reader to these papers for further details (e.g. Ferreira 1997; Casse & Ferreira 2000a,b; Ferreira 2002; Ferreira & Casse 2004; Casse & Keppens 2002, 2004; Zanni et al. 2007; Combet & Ferreira 2008). Instead, we give the few key assumptions and elements of the model that are important to our work.
2.1. Main assumptions
The goal of these studies was to find out the conditions for steady state jet formation and to relate jet properties (mass loss, power, kinematics, collimation) to the underlying disc properties. The MAES calculations were done under several assumptions discussed below: (1) a selfsimilar Ansatz; (2) an alphaprescription for the transport coefficients; (3) the presence of a large scale, organized vertical B_{z} field.

(1)
Selfsimilarity enables solution of the full set of MHD equations without ignoring any term. The only simplification that must be made is in the energy equation, since microphysics (within cooling terms) is not selfsimilar. Thus, given some approximation (i.e. isothermal or adiabatic magnetic surfaces), a computed solution is a real solution of the full set of equations. In our case here, such a solution is obtained by crossing the MHD critical points of the flow. On the other hand, selfsimilarity introduces unavoidable biases in the jet collimation properties (see e.g. Ferreira 1997, for more details).

(2)
The disc is assumed to be turbulent so that, within our mean field approach, some prescription must be made to mimic turbulence. Following Shakura & Sunyaev (1973), an alpha prescription for the transport coefficients, namely viscosity and magnetic diffusivity, is employed. It has been shown recently that MRI gives rise to a turbulent magnetic transport that seems to behave like a resistivity, with an effective magnetic Prandtl number of order unity (Guan & Gammie 2009; Lesur & Longaretti 2009). It turns out that JED solutions are found to be close to the marginal stability limit, but always MRI unstable (Ferreira & Pelletier 1995; Ferreira 1997). Note that there is a whole range of other possible MHD instabilities when the fields are close to equipartition (Keppens et al. 2002; Blokland et al. 2005, 2007). Whether magnetically driven turbulence can indeed be described with local alpha prescriptions is still an open question (Beckwith et al. 2009). Full 3D global simulations are thus required to assess this assumption, but the huge span on spacetime scales are such that this is still out of reach of modern computers.

(3)
The last assumption of a largescale magnetic field in the inner regions of accretion flows is still an open and highly debated question (e.g. Lubow et al. 1994a,b; Cao & Spruit 2002; BisnovatyiKogan & Lovelace 2007; Rothstein & Lovelace 2008). It has been recently argued, however, that fields could be advected inward in a standard accretion disc thanks to the quenching of the MRI at the disc upper layers (Rothstein & Lovelace 2008; Lovelace et al. 2009). This picture has been given some support from recent 2D MHD simulations of accretionejection structures (Murphy et al. 2010). GRMHD simulations also suggest that a vertical largescale magnetic field is indeed needed to produce powerful jets (Beckwith et al. 2008). Thus while the controversy is certainly not closed, the assumption of a largescale magnetic field threading the disc appears quite plausible.
2.2. Physical properties
Throughout the paper, we use R for the cylindrical radius, M for the black hole mass, and Ṁ_{a}(R) for the disc accretion rate at the radius R. The dimensionless radius will be r = R/R_{g} where R_{g} = GM / c^{2}, mass m = M/M_{⊙}, and disc accretion rate with L_{Edd} the Eddington luminosity.
2.2.1. Radial profiles

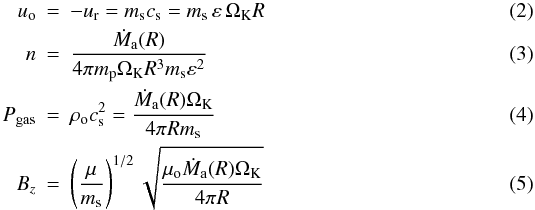

Since a JED undergoes mass loss, the disc accretion rate is written as (1)where ξ measures the local disc ejection efficiency (Ferreira & Pelletier 1993) and Ṁ_{out} the accretion rate at the disc outer radius R_{out}. A standard accretion disc is recovered when ξ = 0. The ejection efficiency ξ is equivalent to the p exponent used in ADIOS models (Blandford & Begelman 1999). But, in strong contrast to the latter, it is not assumed but computed as a function of the disc parameters as a transAlfvénic regularity condition (see Ferreira 1997, for more details). For isothermal (Ferreira 1997) and adiabatic (Casse & Ferreira 2000a) magnetic surfaces, ξ is found to vary in a narrow interval around 0.01. When the disc’s upper layers are heated, mass loss can be enhanced with ξ typically reaching 0.1 or slightly more (Casse & Ferreira 2000b). Discs with more mass loss do not give rise to stationary superAlfvénic jets.
The disc’s vertical equilibrium depends on the balance between, on one hand, gravity and magnetic compression due to both radial and toroidal field components and, on the other, the vertical pressure (gas + radiation) gradient. We nevertheless use as a proxy for the real scale height the hydrostatic value, namely evaluated at the disc’s midplane, where P = P_{gas} + P_{rad}: this greatly simplifies our expressions and produces an overestimation of at most a factor 2 (Ferreira & Pelletier 1995). With this caveat in mind, the disc’s aspect ratio in a gas supported disc is ε = H/R = c_{s}/v_{K}, namely the ratio of the isothermal sound speed to the Keplerian speed v_{K} = Ω_{K}R. Given these definitions, the radial profiles of the accretion velocity u_{o}, particle density n = ρ_{o} / m_{p}, gas pressure P_{gas}, and vertical magnetic field B_{z} in the JED midplane are given by where we have introduced two dimensionless parameters, the sonic Mach number m_{s} = u_{o} / c_{s} and the disc magnetization^{2}.
2.2.2. JED parameter space
The previous expressions (2)–(5) are common to all powerlaw, nearly Keplerian gas supported disc solutions. What distinguishes JEDs from other models are the values taken by the parameters ξ,m_{s},μ, and ε.

The value of ε is fixed by the resolution of the JED energy equation (see Sect. 3).

μ and ξ are provided by the resolution of the full set of MHD equations when properly dealing with the regularity conditions at the slow magnetosonic and Alfvénic critical points, respectively. We have already discussed the values achieved for ξ. For isothermal or adiabatic magnetic surfaces, steadystate ejection is only possible for a field smaller than but close to equipartition (Ferreira & Pelletier 1995; Ferreira 1997; Casse & Ferreira 2000a). More precisely, the range of allowed magnetizations in isothermal models goes from 0.3 to 0.8, with an average value around 0.6 (see examples of JED parameter values in Fig. A.1). This can be understood in the following way. The magnetic field is vertically pinching the accretion disc so that a quasistatic vertical equilibrium is obtained only thanks to the kinetic pressure support. As a consequence, the field cannot be too strong. But on the other hand, the field must be strong enough to accelerate the plasma efficiently at the disc surface so that the slowmagnetosonic point is crossed smoothly.

In a JED, the sonic Mach number can be rewritten in the form (6)where α_{v}ϵ denotes the effect of standard transport and 2qμ the specific contribution of the magnetic torque. The magnetization μ = B^{2}/μ_{0}P measures the strength of the magnetic field in the disc and q = μ_{o}J_{r}h/B_{z} is the normalized radial electric current density flowing at the disc midplane. This last parameter measures the magnetic shear as it provides an estimate of the toroidal magnetic field component at the disc surface, . In a standard accretion disc, m_{s} = α_{v}ϵ, with typically α_{v} = 10^{2} and ϵ = H/R < 1, so that the accretion velocity is largely subsonic. However, the situation in a JED is very different since the presence of powerful jets strongly modifies the disc angular momentum. A common feature of all solutions is that the jet torque always dominates the local turbulent torque, as initially proposed by Pelletier & Pudritz (1992). This is because steadystate MAES solutions are generally found close to equipartition (i.e. μ ≃ 1 as explained before) and q is also of the order of unity (Ferreira & Pelletier 1995; Ferreira 1997). As a consequence, JED solutions present high accretion velocities with m_{s} ~ 1, which this is verified by all isothermal and adiabatic solutions (Fig. A.1).
2.2.3. Global energy budget
The global energy budget in an accretionejection structure is (10)where P_{jets} is the total power feeding the jets and P_{JED} is the power dissipated within the JED. More precisely, P_{JED} is the sum of the radiated P_{rad} and advected P_{adv} power. The disc luminosity is therefore the released accretion power minus what is advected onto the black hole and what feeds the jets.

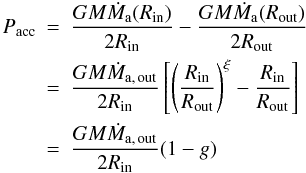

Given the expression (1) of the accretion rate, the total accretion power released in a quasiKeplerian accretion disc writes as^{3}(11)where (12)namely P_{acc} = ηṁL_{Edd} with an accretion efficiency η = (1 − g) / 2r_{in}. The usual expression for the nonrelativistic accretion efficiency is recovered for ξ = 0. In the following, we use r_{in} = 6 for a Schwarzschild black hole.
The power P_{adv} that is advected onto the central object along with the accreting material scales as P_{adv} ∝ ε^{2}P_{acc}. It is thus negligible in a thin disc. P_{jets} is the sum of the total (kinetic, potential, and internal) energy flux advected by the outflowing plasma and the MHD Poynting flux leaving the disc surfaces. Since we are mainly interested in powerful jets, the latter contribution dominates, i.e., (13)where is the toroidal component of the magnetic field at the disc surface and Ω^{∗} the rotation speed of the magnetic surfaces^{4}. Using the disc angular momentum conservation, one gets (see Appendix A) (14)where b, the jet power parameter, is known for a given MHD solution. In the above derivation, it has been assumed that the fraction of the released energy that is transferred to the jets is a constant throughout the disc. That is not necessarily true. Indeed, published selfsimilar models (where b is by definition a true constant) provide b ranging from ~0.5 to almost unity. It turns out that this value depends on the disc aspect ratio, but its actual dependence still needs to be looked for. As a first step and for the sake of clarity in this paper, we use it as an independent parameter.
Consequently, given the above expressions, the total JED power P_{JED} and JED luminosity P_{rad} are given by The jet power parameter b is thus a crucial parameter as it controls the power sharing between the jet and the disc. Since it is generally found in the range 0.5–0.99 (see Fig. A.1), JEDs considered here are engines converting accretion power into ejection power with high efficiency. To get the fraction of the power P_{rad} that is actually radiated away, however we need to compute the JED thermal balance. This is explained in the next section.
3. Disc thermal balance
The equation governing the internal energy of the accretion flow writes as (17)where q_{heat} is the heating power density, q_{rad} the sum of all radiative cooling terms, P the total plasma pressure, u the flow velocity, U its internal energy and q_{adv} the advection term. These different terms are explained below. Equation (17) is equivalent to Eq. (16) but expressed locally in the JED.
In Eq. (17) we neglect any turbulent energy transport (such as convection for instance) and assume a Maxwellian onetemperature plasma. This last point could be a crude assumption at low accretion rates (ṁ < 10^{3} − 10^{4}). However, since we are mainly interested in this paper to apply our calculations to Cyg X1, whose accretion rate is a few % of the Eddington rate, this assumption is expected to be quite reasonable (see e.g. Malzac & Belmont 2009).
3.1. Heating and advection terms

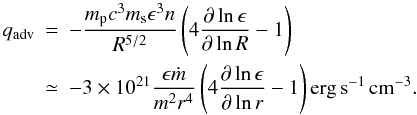

Equation (15) directly provides the radial JED volumetric heating rate in a disc ring of height 2H, radius R and extent dR: On the other hand, the advection term is identified as (21)where γ = 5 / 3 is the gas adiabatic index. Assuming that the flow poloidal velocity is dominated by its radial component u_{r} (provided by Eq. (2)) and after some algebra, this expression becomes (22)The comparison between Eqs. (20) and (22) shows that advection becomes important only for large aspect ratios, namely ϵ > 0.1. As already examplified by Yuan (2001) and Yuan et al. (2003) in ADAF, the advection term may change sign and become negative, then playing the role of a heating term for the flow. Equation (22) shows that this should occur when the exponent in the radial dependency of ϵ becomes larger than 1 / 4.
3.2. Radiative cooling term
We strictly follow Esin et al. (1996) for computing of the different radiative cooling rates. In the optically thin regime, the total cooling rate is simply (23)where q_{C,sync} and q_{C,brem} correspond to the synchrotron + Comptonized synchrotron and bremsstrahlung+Comptonized bremsstrahlung cooling rates. Since JED solutions may also be optically thick, we use the generalized radiative cooling formula used by Narayan & Yi (1995) and adapted from the initial work of Hubeny (1990), which bridges the optically thin and thick cases: (24)where τ = τ_{es} + τ_{abs} is the disc optical depth in the vertical direction, with τ_{es} the Thomson optical depth and τ_{abs} = (H / 4σ_{B}T^{4})(q_{C,sync} + q_{C,brem}) the optical depth for absorption. At high energies, pair creation provides another means of cooling. But an a posteriori check showed that this effect always remains weak and has thus been neglected.
3.3. Existence of three solutions
Fig. 1 Thermal balance of a jet emitting disc (JED) at r = 6 for ṁ = 0.001 and m = 10. The underlying JED structure has a jet power parameter b = 0.5 and an ejection efficiency ξ = 0.1. The dotted line is the heating term q_{heat}, the dotdotdotdashed line the radiative cooling term q_{rad}, and the long dashed line is the advective term q_{adv}. The Comptonized bremsstrahlung q_{C,brem} (short dashed) and the Comptonized synchrotron q_{C,sync} (dotdashed) radiative terms are also shown. The solid line corresponds to q_{rad} + q_{adv} and the solutions of Eq. (17) are indicated by crosses.

Open with DEXTER
Figure 1 shows the different heating, cooling, and advection terms as functions of the temperature for a given black hole mass, JED radius, and accretion rate. In a gassupported, onetemperature disc, the midplane temperature is given by (25)The resolution of the thermal equilibrium (Eq. (17)) gives three branches of solutions, indicated by crosses on the figure The hottest one corresponds to the JED solution discussed in this paper (a more detailed discussion of the other solutions is postponed to a future work). It is a hot, optically thin, thermally and viscously stable disc solution that behaves radiatively in the same way as the LHAF solutions studied by Yuan (2001; see also Yuan et al. 2006, for a discussion on hot onetemprature accretion flows). The major difference concerns the underlying dynamics of our JED solutions, which selfconsistently include the presence of powerful selfcollimated jets.
Figure 2 also indicates the different domains of JED solutions in the ṁr plane and for the two extreme values of the jet power parameter b, 0.5 and 1. In the latter case, a cold branch exists in the whole JED, regardless of the value of the accretion rate, while the hot branch is only valid below a critical accretion rate that depends on the JED radius (cf. Fig. 2). For b = 0.5, the parameter space for the cold branch is now limited to accretion rates >10^{3} − 10^{4}, while the upper limit for the hot branch has shifted to a slightly higher accretion rate compared to b = 1, reaching ṁ of a few for JED radius greater than ~ 100 R_{g}.
Fig. 2 JED solution domain in the ṁr plane. The solid line, corresponding to a jet power parameter b = 1, separates this plane into 2 regions: the top one where only the cold solution is valid and the bottom one where the 3 solutions exist. The region where only a hot solution is valid exists at very low accretion rate not shown in this figure. The limits for b = 0.5 are plotted in dashed lines. In this case the plane is divided into 3 parts with a region, for low accretion rate, where only the hot solution exists.

Open with DEXTER
Fig. 3 Left: observational parameter space of and . The grey area corresponds to conservatives values of these two parameters while the dark grey one corresponds to more commonly adopted ones (see M09 for more details). Right: corresponding parameter space in the b − ξ JED parameter plane.

Open with DEXTER
4. Comparison to Cygnus X1
4.1. Observational constraints
The energetics of the jets and the Xray corona of Cygnus X1 have been investigated recently by Malzac et al. (2009 herafter M09). It is one of the best observed blackhole Xray binaries and is composed of a massive star and a black hole of about 10 solar masses. It is also one of the rare BHBs for which a jet has been directly observed in the hard state (Stirling et al. 2001). But more importantly, deep radio observations of the field of CygX1 resulted in the discovery of a shelllike structure that is aligned with the resolved radio jet (Gallo et al. 2005). Assuming that this largescale structure was inflated by the inner radio jet, its kinetic power was estimated to be near the bolometric Xray luminosity of the binary (Gallo et al. 2005; Russell et al. 2007). With these constraints, it is possible to deduce a rough estimate of the ratio j = P_{jets}/L_{h} of the total jet kinetic power to the typical Xray luminosity in the hard state (M09): (26)Like most Xray binaries, the bolometric luminosity of Cyg X1 does not change dramatically during the transition to the soft state (see e.g. Frontera et al. 2001; Zdziarski et al. 2002; Malzac et al. 2006; Wilms et al. 2006). The observed luminosity jumps at most reach a factor L_{s} / L_{h} ≃ 3 − 4 (Zdziarski et al. 2002). Since the transition to soft state is likely triggered by an increase in mass accretion rate, the ratio of the soft to hard radiative efficiencies can be safely upper limited by (27)It is noteworthy that there are also several estimates of the terminal jet velocity of Cyg X1. Indeed, based on the absence of counter jet, Stirling et al. (2001) give a lower limit on the bulk velocity of the radio jet of V_{∞} / c > 0.6. Similar considerations and the lack of response of the radio emission on short time scales led Gleissner et al. (2004) to constrain the jet velocity in the range 0.4 < V_{∞} / c < 0.7. Ibragimov et al. (2007) find a similar result, 0.3 < V_{∞} / c < 0.5, by modelling the superorbital modulation observed in Xray and radio bands. This gives another independent constraint that will be very useful while comparing models to observations.
4.2. Model comparison
These observational constraints on j and λ can be easily translated into constraints on our JED parameters b and ξ. From Eqs. (14) and (16) and assuming that advection is negligible (this is verified for JEDs at ṁ of a few % of the Eddington accretion rate, as expected for Cyg X1) we obtain (28)The soft state is free of ejection (i.e. ξ = 0) so that , with η_{s} ≃ 1 / 2r_{in}. The hard state is characterized by , with η_{h} ≡ (1 − g) / 2r_{in} where g in the hard state is defined in Eq. (12) and then depends on ξ and the JED radial extent R_{out} / R_{in}. Within this framework, we obtain (29)The left panel of Fig. 3 displays the domain in the observed parameter space j − λ allowed by the observations. The right panel shows the same constraints but translated into our JED parameter space ξ − b, assuming R_{out} / R_{in} = 100. This value is comparable to what could be deduced from observations (e.g. Fabian et al. 1989; Young et al. 2001; Torres et al. 2005) if the standard accretion disc inner edge is directly assimilated to the JED outer radius as proposed in Ferreira et al. (2006). This figure depends only slightly on this parameter with a smooth increase in the ξ upper limit with decreasing R_{out}/R_{in}.
We can thus safely conclude that ξ has to be lower than ~ 0.1 and b ranging between 0.4 and 0.6 to be consistent with Cyg X1 data.
Now, the jet terminal velocity can also be estimated. Since the jets of Cyg X1 are not highly relativistic, we can assume that the jet power P_{jets} is asymptotically dominated by the kinetic energy of the ejected matter. This provides an average terminal bulk Lorentz factor (30)where the total mass loss rate Ṁ_{jets} is such that (31)with the last equality holding only for small ξ. Combining this expression with Eq. (14), we finally obtain (32)The range of average jet velocities V_{∞} / c consistent with the values of b and ξ needed to agree with Cyg X1 observations can then be computed from this last expression. Figure 4 shows V_{∞} / c as a function of the disc ejection efficiency ξ. The generally accepted values (i.e. the dark grey area in Fig. 4) provide a range in V_{∞} / c between 0.3 and 0.6 in good agreement with observations. This is remarkable as it arises from another independent observational constraint.
Fig. 4 Average terminal jet velocity versus the disc ejection efficiency ξ in a JED, with Ṁ_{a} ∝ R^{ξ}. The grey and dark grey areas correspond to the regions that agree with the observational constraints reported in Fig. 3.

Open with DEXTER
Fig. 5 Contour plots of the JED temperature (solid lines) and optical depth (dashed lines) in the ξ − b plane at a distance of 10 R_{G} from a 10 M_{⊙} black hole. The ratio of the outer to inner JED radii is taken equal to 100, and the total accretion rate for the computation of the disc thermal balance is fixed to 1% of L_{Edd}, i.e., the typical luminosity of Cyg X1. The grey and dark grey areas correspond to the regions that agree with the observational constraints reported in Fig. 3.

Open with DEXTER
Our treatment of the disc thermal balance allows us to estimate the expected temperature and optical depth within a JED. Contours of these two quantities at a radius of 10 R_{G} are shown in Fig. 5. The black hole mass is taken equal to 10 M_{⊙} and the total luminosity is about 1% of the Eddington luminosity. This corresponds to the typical luminosity of Cyg X1 close to the hardtosoft state transition. The ratio of the outer to inner JED radii is fixed to 100 but Fig. 5 does not strongly depend on this parameter. Interestingly, the temperature ranges between 120 and 140 keV and the optical depth τ ≃ 0.7 − 0.9, which are not so far, given the simplicity of our thermal balance computation, from the values deduced from sophisticated fits of Cyg X1 in the hard state (Salvo et al. 2001; Gierlinski et al. 1997; Frontera et al. 2001; Ibragimov et al. 2005; Bel et al. 2006; Wilms et al. 2006).
5. Concluding remarks
Jet emitting discs can be much less radiative than standard accretion discs fed at the same accretion rate. Indeed, JEDs redistribute the released accretion power into three outputs: radiation, advection onto the central object, and jet power. Using published selfsimilar calculations of JEDs that provided us with the relevant disc parameters we were able to solve the disc thermal balance around compact objects in a consistent way.
As in other studies (e.g. Chen et al. 1995), we found that there are usually three branches of solutions at a given radius: (1) a cold solution, optically thick and geometrically thin, (2) an intermediate solution, and (3) an optically thin and geometrically thicker hot solution. Only the cold and hot solutions are both thermally and viscously stable. In this paper, we focussed on the properties of the hot solution as it corresponds to the physical situation envisioned during the hard states of Xray binaries, which are known for harbouring jets. We compared our JED model to observations by comparing the disc Xray emission, jet power, and jet velocity with those derived in Cygnus X1.
We found that these hot JED solutions reproduce both dynamical and radiative properties of Cygnus X1. These solutions are characterized by a jet power parameter b ~ 0.5 and an ejection efficiency ξ < 0.1. The first condition arises from the observational fact that, in Cyg X1, the gravitational power is apparently equally shared between the accretion flow and the jet. This requires discs with quite a large aspect ratio, ε ≃ 0.1. Such solutions, like our JED ones, are now available. On the other hand, if ξ were too large, the disc accretion rate (scaling as r^{ξ}) at the inner radius during the hard state would be much lower than at the outer radius, while they are basically the same during the soft state. This would therefore lead to a ratio of radiative efficiencies that is much higher than what is currently observed. This upper limit on the local disc ejection efficiency translates into an upper limit of the jet mass loss, namely Ṁ_{jets} / Ṁ_{a}(r_{out}) ≃ ξln(r_{out} / r_{in}) < 50% (for a JED extension arbitrarily chosen to be r_{out} / r_{in} = 100). At first sight, this may not appear to be too constraining. However, accretionejection dynamics link the jet mass loss to the jet asymptotic velocity. This is why any independent measurement of the jet terminal velocity is so important. By comparing the average velocity provided by the models to the values derived from observations, we concluded that any JED model with ξ of a few percent matches all observational constraints for Cygnus X1 jets (velocity, power, mass loss).
For the disc itself, we found JED temperatures of 120–140 keV and optical depths τ ≃ 0.7 − 0.9 for Cyg X1 parameters. The temperature is slightly higher and the optical depth less than the values generally deduced from observations, namely T_{e} ≃ 70 − 100 keV and τ ≃ 1 − 3 (Gierlinski et al. 1997; Frontera et al. 2001; Ibragimov et al. 2005; Bel et al. 2006; Wilms et al. 2006). However, our value for the Compton parameter agrees closely with the observations. We thus expect an Xray spectrum with the correct spectral index but with too high a cutoff (mainly controlled by the temperature). This could be directly linked to our overly simple treatment of the disc radiative transfer, which neglects, for example, its vertical stratification. One might also argue that the electron particle distribution is not a perfect Maxwellian. Indeed, recent computations of plasma radiative equilibria, including radiative and kinetic processes, show that a nonthermal, highenergy tail in the particle distribution is generally expected (Belmont et al. 2008; Malzac & Belmont 2009). The highenergy photons produced by these particles could create pairs, thereby increasing the particule density and decreasing the temperature. These different effects will be more precisely studied in a forthcoming paper.
The presence of a nonthermal high energy tail above the thermal Comptonization cutoff in the hard state of Cygnus X1 (McConnell et al. 2002) and GX 3394 (Wardzinski et al. 2002; Joinet et al. 2007) suggests that the magnetic field is low in the Comptonizing region. Indeed, this excess is believed to be the signature of a population of nonthermal electrons in the corona. These highenergy electrons produce a selfabsorbed synchrotron emission in the IRoptical bands. The soft photons are then Comptonized in the hot plasma. If the synchrotron luminosity is too strong then it is impossible to sustain the relatively high ( ~ 100 keV) temperature of the Maxwellian electrons. In the case of Cygnus X1, Wardzinski & Zdziarski (2001) estimate that the nonthermal tail implies a strongly subequipartition magnetic field. Then based on detailed spectral modelling, Malzac & Belmont (2009) and Poutanen & Vurm (2009) infer that the ratio of magnetic to radiation energy density U_{B} / U_{R} < 0.3. In the framework of our model, this would imply a magnetization that is much too low to allow for the production of a jet.
However, this constraint on the magnetic field holds only if the nonthermal tail is produced inside the thermal Comptonization region. One possibility would be that the bulk of the Comptonized emission in the hard state is produced within the JED, while the nonthermal Comptonization component arises from a magnetic accretion disc corona above and below the standard outer disc. If so, the magnetic field could be strong in both JED and nonthermal corona. Then, during spectral state transitions, the nonthermal component would gradually get stronger and stronger as the transition radius between outer disc and JED moves closer to the black hole. In the soft state the JED disappears and the hard Xray emission is dominated by nonthermal Comptonization in the corona.
A tentative summary of our knowledge of accretionejection phenomena can be found here http://www.issibern.ch/teams/proaccretion/
This expression neglects any input of energy from the central object at the disc’s inner edge, through turbulence or MHD Poynting flux (see for instance Casse & Ferreira 2000b).
A steadystate jet is a bunch of axisymetric magnetic surfaces nested around each other and in differential rotation. Each magnetic surface is put into rotation by the underlying disc, so that Ω^{∗} ≃ Ω^{ + }(r), where Ω + (r) is the angular rotation at the disc surface. This velocity can be significantly lower than that at the disc midplane.
Acknowledgments
This work has been partly supported by the French National Agency (ANR) through the project “Astro2flots” ANR05JCJC0020 and the GdR PCHE in France. POP also thanks the International Space Science Institute (ISSI) for hospitality.
References
 Balbus, S. A. 2003, ARA&A, 41, 555 [NASA ADS] [CrossRef] [Google Scholar]
 Beckwith, K., Hawley, J. F., & Krolik, J. H. 2008, ApJ, 678, 1180 [NASA ADS] [CrossRef] [Google Scholar]
 Beckwith, K., Hawley, J. F., & Krolik, J. H. 2009, ApJ, 707, 428 [NASA ADS] [CrossRef] [Google Scholar]
 Bel, M. C., Sizun, P., Goldwurm, A., et al. 2006, A&A, 446, 591 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Belmont, R., Malzac, J., & Marcowith, A. 2008, A&A, 491, 617 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 BisnovatyiKogan, G. S., & Lovelace, R. V. E. 2007, ApJ, 667, L167 [NASA ADS] [CrossRef] [Google Scholar]
 Blandford, R. D. 1976, MNRAS, 176, 465 [NASA ADS] [Google Scholar]
 Blandford, R. D., & Begelman, M. C. 1999, MNRAS, 303, L1 [NASA ADS] [CrossRef] [Google Scholar]
 Blandford, R. D., & Payne, D. G. 1982, MNRAS, 199, 883 [NASA ADS] [CrossRef] [Google Scholar]
 Blandford, R. D., & Znajek, R. L. 1977, MNRAS, 179, 433 [NASA ADS] [CrossRef] [Google Scholar]
 Blokland, J. W. S., van der Swaluw, E., Keppens, R., & Goedbloed, J. P. 2005, A&A, 444, 337 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Blokland, J. W. S., Keppens, R., & Goedbloed, J. P. 2007, A&A, 467, 21 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Cao, X., & Spruit, H. C. 2002, A&A,385, 289 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Casse, F., & Ferreira, J. 2000a, A&A, 353, 1115 [NASA ADS] [Google Scholar]
 Casse, F., & Ferreira, J. 2000b, A&A, 361, 1178 [NASA ADS] [Google Scholar]
 Casse, F., & Keppens, R. 2002, ApJ, 581, 988 [NASA ADS] [CrossRef] [Google Scholar]
 Casse, F., & Keppens, R. 2004, ApJ, 601, 90 [NASA ADS] [CrossRef] [Google Scholar]
 Chen, X., Abramowicz, M. A., Lasota, J.P., Narayan, R., & Yi, I. 1995, ApJ, 443, L61 [NASA ADS] [CrossRef] [Google Scholar]
 Combet, C., & Ferreira, J. 2008, A&A, 479, 481 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Done, C., Gierlinski, M., & Kubota, A. 2007, A&ARv, 15, 1 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Esin, A. A., Narayan, R., Ostriker, E., & Yi, I. 1996, ApJ, 465, 312 [NASA ADS] [CrossRef] [Google Scholar]
 Fabian, A. C., Rees, M. J., Stella, L., & White, N. E. 1989, MNRAS, 238, 729 [NASA ADS] [CrossRef] [Google Scholar]
 Fender, R., Gallo, E., & Russell, D. 2010, MNRAS, 406, 1425 [NASA ADS] [Google Scholar]
 Fender, R. P., Belloni, T. M., & Gallo, E. 2004, MNRAS, 355, 1105 [NASA ADS] [CrossRef] [Google Scholar]
 Ferreira, J. 1997, A&A, 319, 340 [NASA ADS] [Google Scholar]
 Ferreira, J. 2002, in Star Formation and the Physics of Young Stars, ed. J. Bouvier, & J.P. Zahn, EAS Pub. Ser., 3, 229 [Google Scholar]
 Ferreira, J., & Casse, F. 2004, ApJ, 601, L139 [NASA ADS] [CrossRef] [Google Scholar]
 Ferreira, J., & Pelletier, G. 1993, A&A, 276, 625 [NASA ADS] [Google Scholar]
 Ferreira, J., & Pelletier, G. 1995, A&A, 295, 807 [NASA ADS] [Google Scholar]
 Ferreira, J., Petrucci, P.O., Henri, G., Sauge, L., & Pelletier, G. 2006, A&A, 447, 813 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Fomalont, E. B., Geldzahler, B. J., & Bradshaw, C. F. 2001, ApJ, 558, 283 [NASA ADS] [CrossRef] [Google Scholar]
 Frontera, F., Palazzi, E., Zdziarski, A. A., et al. 2001, ApJ, 546, 1027 [NASA ADS] [CrossRef] [Google Scholar]
 Gallo, E., Fender, R., Kaiser, C., et al. 2005, Nature, 436, 819 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
 Gierlinski, M., Zdziarski, A. A., Done, C., et al. 1997, MNRAS, 288, 958 [NASA ADS] [CrossRef] [Google Scholar]
 Gleissner, T., Wilms, J., Pooley, G. G., et al. 2004, A&A, 425, 1061 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Guan, X., & Gammie, C. F. 2009, ApJ, 697, 1901 [NASA ADS] [CrossRef] [Google Scholar]
 Hannikainen, D., CampbellWilson, D., Hunstead, R., et al. 2001, Ap&SS, 276, 45 [CrossRef] [Google Scholar]
 Hawley, J. F., & Krolik, J. H. 2006, ApJ, 641, 103 [NASA ADS] [CrossRef] [Google Scholar]
 Hubeny, I. 1990, ApJ, 351, 632 [NASA ADS] [CrossRef] [Google Scholar]
 Ibragimov, A., Poutanen, J., Gilfanov, M., Zdziarski, A. A., & Shrader, C. R. 2005, MNRAS, 362, 1435 [NASA ADS] [CrossRef] [Google Scholar]
 Ibragimov, A., Zdziarski, A. A., & Poutanen, J. 2007, MNRAS, 381, 723 [NASA ADS] [CrossRef] [Google Scholar]
 Joinet, A., Jourdain, E., Malzac, J., et al. 2007, ApJ, 657, 400 [NASA ADS] [CrossRef] [Google Scholar]
 Keppens, R., Casse, F., & Goedbloed, J. P. 2002, ApJ, 569, L121 [NASA ADS] [CrossRef] [Google Scholar]
 Komissarov, S. S., Barkov, M. V., Vlahakis, N., & Konigl, A. 2007, MNRAS, 380, 51 [NASA ADS] [CrossRef] [Google Scholar]
 Kording, E., Rupen, M., Knigge, C., et al. 2008, Science, 320, 1318 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
 Kording, E. G., Fender, R. P., & Migliari, S. 2006, MNRAS, 369, 1451 [NASA ADS] [CrossRef] [Google Scholar]
 Lesur, G., & Longaretti, P.Y. 2009, A&A, 504, 309 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Lovelace, R. V. E. 1976, Nature, 262, 649 [NASA ADS] [CrossRef] [Google Scholar]
 Lovelace, R. V. E., Rothstein, D. M., & BisnovatyiKogan, G. S. 2009, ApJ, 701, 885 [NASA ADS] [CrossRef] [Google Scholar]
 Lubow, S. H., Papaloizou, J. C. B., & Pringle, J. E. 1994a, MNRAS, 267, 235 [NASA ADS] [Google Scholar]
 Lubow, S. H., Papaloizou, J. C. B., & Pringle, J. E. 1994b, MNRAS, 268, 1010 [NASA ADS] [CrossRef] [Google Scholar]
 Malzac, J., & Belmont, R. 2009, MNRAS, 392, 570 [NASA ADS] [CrossRef] [Google Scholar]
 Malzac, J., Petrucci, P. O., Jourdain, E., et al. 2006, A&A, 448, 1125 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Malzac, J., Belmont, R., & Fabian, A. C. 2009, MNRAS, 400, 1512 [NASA ADS] [CrossRef] [Google Scholar]
 McConnell, M. L., Zdziarski, A. A., Bennett, K., et al. 2002, ApJ, 572, 984 [NASA ADS] [CrossRef] [Google Scholar]
 McKinney, J. C., & Blandford, R. D. 2009, MNRAS, L199 [Google Scholar]
 McKinney, J. C., & Gammie, C. F. 2004, ApJ, 611, 977 [NASA ADS] [CrossRef] [Google Scholar]
 Mirabel, I. F., & Rodriguez, L. F. 1994, Nature, 371, 46 [NASA ADS] [CrossRef] [Google Scholar]
 Mirabel, I. F., & Rodriguez, L. F. 1998, Nature, 392, 673 [NASA ADS] [CrossRef] [Google Scholar]
 Murphy, G. C., Ferreira, J., & Zanni, C. 2010, A&A, 512, 82 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Narayan, R., & Yi, I. 1995, ApJ, 452, 710 [NASA ADS] [CrossRef] [Google Scholar]
 Pelletier, G., & Pudritz, R. E. 1992, ApJ, 394, 117 [NASA ADS] [CrossRef] [Google Scholar]
 Poutanen, J., & Vurm, I. 2009, ApJ, 690, L97 [NASA ADS] [CrossRef] [Google Scholar]
 Remillard, R. A., & McClintock, J. E. 2006, ARA&A, 44, 49 [NASA ADS] [CrossRef] [Google Scholar]
 Rothstein, D. M., & Lovelace, R. V. E. 2008, ApJ, 677, 1221 [NASA ADS] [CrossRef] [Google Scholar]
 Russell, D. M., Fender, R. P., Gallo, E., & Kaiser, C. R. 2007, MNRAS, 376, 1341 [NASA ADS] [CrossRef] [Google Scholar]
 Salvo, T. D., Done, C., Zycki, P. T., Burderi, L., & Robba, N. R. 2001, ApJ, 547, 1024 [NASA ADS] [CrossRef] [Google Scholar]
 Shakura, N. I., & Sunyaev, R. A. 1973, A&A, 24, 337 [NASA ADS] [Google Scholar]
 Stirling, A. M., Spencer, R. E., de la Force, C. J., et al. 2001, MNRAS, 327, 1273 [NASA ADS] [CrossRef] [Google Scholar]
 Torres, D. F., Romero, G. E., Barcons, X., & Lu, Y. 2005, ApJ, 626, 1015 [NASA ADS] [CrossRef] [Google Scholar]
 Tudose, V., Fender, R. P., Linares, M., Maitra, D., & van der Klis, M. 2009, MNRAS, 400, 2111 [NASA ADS] [CrossRef] [Google Scholar]
 Tzeferacos, P., Ferrari, A., Mignone, A., et al. 2009, MNRAS, 1371 [Google Scholar]
 Wardzinski, G., & Zdziarski, A. A. 2001, MNRAS, 325, 963 [NASA ADS] [CrossRef] [Google Scholar]
 Wardzinski, G., Zdziarski, A. A., Gierlinski, M., et al. 2002, MNRAS, 337, 829 [NASA ADS] [CrossRef] [Google Scholar]
 Wilms, J., Nowak, M. A., Pottschmidt, K., Pooley, G. G., & Fritz, S. 2006, A&A, 447, 245 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Young, A. J., Fabian, A. C., Ross, R. R., & Tanaka, Y. 2001, MNRAS, 325, 1045 [NASA ADS] [CrossRef] [Google Scholar]
 Yuan, F. 2001, MNRAS, 324, 119 [NASA ADS] [CrossRef] [Google Scholar]
 Yuan, F., Quataert, E., & Narayan, R. 2003, ApJ, 598, 301 [NASA ADS] [CrossRef] [Google Scholar]
 Yuan, F., Taam, R. E., Xue, Y., & Cui, W. 2006, ApJ, 636, 46 [NASA ADS] [CrossRef] [Google Scholar]
 Zanni, C., Ferrari, A., Rosner, R., Bodo, G., & Massaglia, S. 2007, A&A, 469, 811 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Zdziarski, A. A., Leighly, K. M., Matsuoka, M., Cappi, M., & Mihara, T. 2002, ApJ, 573, 505 [NASA ADS] [CrossRef] [Google Scholar]
Appendix A: Jet power and b parameter
The power leaving the disc and carried away by the jets (from both face) is P_{jets} = 2^{∫}ρu_{p}E·dS, where the integration is along one disc surface from R_{in} to R_{out} and (A.1)is the wellknown Bernoulli integral. It is the sum of all specific energies carried by the jet, kinetic, enthalpy, potential, and magnetic. In this last term, Ω^{∗} is the rotation speed of the magnetic surface and η the mass flux per magnetic flux unit.
Fig. A.1 Parameter space for the ejection efficiency ξ, the magnetization μ, the jet power parameter b and the sonic Mach number m_{s} for the accretionejection solutions of Ferreira (1997) used in this paper. The lines correspond to different values of the disc aspect ratio H/R: solid lines: H/R = 0.1, dashed lines: H/R = 0.01, dotdashed lines: H/R = 0.001. For this set of solutions, the turbulence level parameter α_{m} is taken equal to unity.

Open with DEXTER
In the ideal MHD regime realized in jets, E is an invariant that can be evaluated at the disc surface. In a thin disc (ε ≪ 1), it writes as , where λ_{BP} is the Blandford & Payne (1982) magnetic lever arm parameter. For the models considered here, λ_{BP} varies between 10 and 100 so that the magnetic contribution dominates in Eq. (A.1). The jet power leaving the disc is therefore mostly in the form of an MHD Poynting flux, (A.2)which is exactly Eq. (13). The toroidal magnetic field at the disc surface scales as where J_{o} is the radial electric current density at the disc midplane, with F_{1} ≃ 0.4 − 0.6 for most published solutions. In a JED, where the dominant torque comes from the jets, the disc angular momentum conservation is (A.3)where the subscript “o” stands for values evaluated at the disc midplane. Writing , with F_{2} a number of order unity found to vary between 0.40.6 also for most of our solutions, we obtain (A.4)In this expression, is a priori a function of the radius. However, it cannot vary much if ejection is to occur on a large radial extent. Under this assumption, our selfsimilar scalings apply, and we obtain Eq. (14) with (A.5)While this quantity is nearly independent of ξ, it is clearly a function of the disc thickness, hence its temperature. The rotation of the disc material at the disc midplane scales as , where the second term is due to the radial pressure gradient and the third to the magnetic tension (). Thus, the thicker the disc, the greater the deviation from Keplerian and the smaller b.
But the dominant effect is from the rotation of the magnetic surfaces Ω^{∗}. Indeed, Ω^{∗} is only defined in the upper layers of the disc once ideal MHD becomes valid. The disc density has therefore decreased significantly, thereby enhancing the outward effect of the magnetic radial tension. This tends to decrease the angular velocity Ω^{ + } of the matter and thus of the magnetic surfaces Ω^{∗} (see for instance the vertical profiles shown in Ferreira & Pelletier 1995). This behaviour can be also understood with the magnetic torque, which is first negative before becoming positive in the disc’s upper layers. The disc is therefore first spun down and Ω decreases.
Numerical solutions obtained with isothermal magnetic surfaces provide b ranging from 0.99 for thin discs with ε smaller than ~ 10^{3} to roughly 0.5 for slim discs with ε ~ 0.1.
All Figures
Fig. 1 Thermal balance of a jet emitting disc (JED) at r = 6 for ṁ = 0.001 and m = 10. The underlying JED structure has a jet power parameter b = 0.5 and an ejection efficiency ξ = 0.1. The dotted line is the heating term q_{heat}, the dotdotdotdashed line the radiative cooling term q_{rad}, and the long dashed line is the advective term q_{adv}. The Comptonized bremsstrahlung q_{C,brem} (short dashed) and the Comptonized synchrotron q_{C,sync} (dotdashed) radiative terms are also shown. The solid line corresponds to q_{rad} + q_{adv} and the solutions of Eq. (17) are indicated by crosses.

Open with DEXTER
In the text
Fig. 2 JED solution domain in the ṁr plane. The solid line, corresponding to a jet power parameter b = 1, separates this plane into 2 regions: the top one where only the cold solution is valid and the bottom one where the 3 solutions exist. The region where only a hot solution is valid exists at very low accretion rate not shown in this figure. The limits for b = 0.5 are plotted in dashed lines. In this case the plane is divided into 3 parts with a region, for low accretion rate, where only the hot solution exists.

Open with DEXTER
In the text
Fig. 3 Left: observational parameter space of and . The grey area corresponds to conservatives values of these two parameters while the dark grey one corresponds to more commonly adopted ones (see M09 for more details). Right: corresponding parameter space in the b − ξ JED parameter plane.

Open with DEXTER
In the text
Fig. 4 Average terminal jet velocity versus the disc ejection efficiency ξ in a JED, with Ṁ_{a} ∝ R^{ξ}. The grey and dark grey areas correspond to the regions that agree with the observational constraints reported in Fig. 3.

Open with DEXTER
In the text
Fig. 5 Contour plots of the JED temperature (solid lines) and optical depth (dashed lines) in the ξ − b plane at a distance of 10 R_{G} from a 10 M_{⊙} black hole. The ratio of the outer to inner JED radii is taken equal to 100, and the total accretion rate for the computation of the disc thermal balance is fixed to 1% of L_{Edd}, i.e., the typical luminosity of Cyg X1. The grey and dark grey areas correspond to the regions that agree with the observational constraints reported in Fig. 3.

Open with DEXTER
In the text
Fig. A.1 Parameter space for the ejection efficiency ξ, the magnetization μ, the jet power parameter b and the sonic Mach number m_{s} for the accretionejection solutions of Ferreira (1997) used in this paper. The lines correspond to different values of the disc aspect ratio H/R: solid lines: H/R = 0.1, dashed lines: H/R = 0.01, dotdashed lines: H/R = 0.001. For this set of solutions, the turbulence level parameter α_{m} is taken equal to unity.

Open with DEXTER
In the text
Current usage metrics show cumulative count of Article Views (fulltext article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 4896 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
