Fig. 6

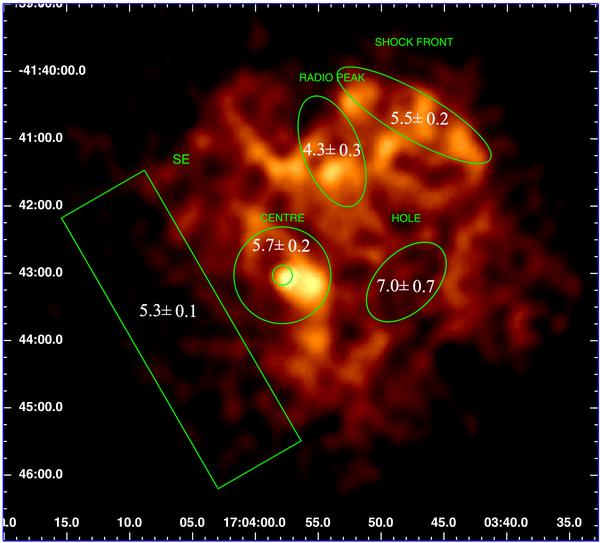

Distribution of the column density NH for different regions (i.e., centre, hole, radio peak, shock front and southeast:SE) expressed in units of 1022 cm-2. NH was derived using the model summarized in Table 2. Note that the central point-like source was excluded from the center region.
