A&A 517, A78 (2010)

VLBI study of maser kinematics in high-mass star-forming regions

II. G23.01-0.41[*]

A. Sanna1,2 - L. Moscadelli3 - R. Cesaroni3 - A. Tarchi2 - R. S. Furuya4 - C. Goddi5,6

1 - Dipartimento di Fisica, Università degli Studi di Cagliari, S.P. Monserrato-Sestu km 0.7, 09042 Cagliari, Italy
2 - INAF - Osservatorio Astronomico di Cagliari, Loc. Poggio dei Pini, Strada 54, 09012 Capoterra (CA), Italy
3 - INAF - Osservatorio Astrofisico di Arcetri, Largo E. Fermi 5, 50125 Firenze, Italy
4 - Subaru Telescope, National Astronomical Observatory of Japan, 650 North A'ohoku Place, Hilo, HI 96720, USA
5 - European Southern Observatory, Karl-Schwarzschild-Strasse 2, 85748 Garching bei M $\ddot{\rm u}$nchen, Germany
6 - Harvard-Smithsonian Center for Astrophysics, 60 Garden Street, Cambridge, MA 02138, USA

Received 10 February 2010 / Accepted 27 April 2010

Abstract
Aims. We performed a detailed study of maser and radio continuum emission toward the high-mass star-forming region G23.01-0.41. This study aims at improving our knowledge of the high-mass star-forming process by comparing the gas kinematics near a newly born young stellar object (YSO), analyzed through high spatial resolution maser data, with the large-scale environment of its native hot molecular core (HMC), identified in previous interferometric observations of thermal continuum and molecular lines.
Methods. Using the VLBA and the EVN arrays, we conducted phase-referenced observations of the three most powerful maser species in G23.01-0.41: H2O at 22.2 GHz (4 epochs), CH3OH at 6.7 GHz (3 epochs), and OH at 1.665 GHz (1 epoch). In addition, we performed high-resolution ( ${\geq}0\hbox{$.\!\!^{\prime\prime}$ }1$), high-sensitivity (<0.1 mJy) VLA observations of the radio continuum emission from the HMC at 1.3 and 3.6 cm.
Results. We have detected H2O, CH3OH, and OH maser emission clustered within 2000 AU from the center of a flattened HMC, oriented SE-NW, from which emerges a massive 12CO outflow, elongated NE-SW, extended up to the pc-scale. Although the three maser species show a clearly different spatial and velocity distribution and sample distinct environments around the massive YSO, the spatial symmetry and velocity field of each maser specie can be explained in terms of expansion from a common center, which possibly denotes the position of the YSO driving the maser motion. Water masers trace both a fast shock (up to 50 km s-1) closer to the YSO, powered by a wide-angle wind, and a slower (20 km s-1) bipolar jet, at the base of the large-scale outflow. Because the compact free-free emission is found offset from the putative location of the YSO along a direction consistent with that of the maser jet axis, we interpret the radio continuum in terms of a thermal jet. The velocity field of methanol masers can be explained in terms of a composition of slow (4 km s-1 in amplitude) motions of radial expansion and rotation about an axis approximately parallel to the maser jet. Finally, the distribution of line-of-sight velocities of the hydroxyl masers suggests that they can trace gas less dense ( $n_{\rm H_{2}} \le 10^6$ cm-3) and more distant from the YSO than that traced by the water and methanol masers, which is expanding toward the observer. A few pairs of OH masers, with different circular polarization, are well aligned in position on the sky and we interpret them as Zeeman pairs. From Zeeman splitting, the derived typical values of the magnetic field are of a few mG.

Key words: masers - techniques: high angular resolution - ISM: kinematics and dynamics - stars: individual: G23.01-0.41 - stars: formation

1 Introduction

Hot, dense, molecular cores (HMCs) of dust and gas located in giant molecular clouds (GMCs) are the birth sites of high-mass young stellar objects (YSOs). Ultraviolet light from the newly formed stars ionizes the surrounding gas, creating a compact H II region (e.g., Hoare et al. 2007), excites several molecular transitions (e.g., Sridharan et al. 2002), and heats the dust, which reradiates the energy in the far-infrared (FIR) band (e.g., Molinari et al. 2008). At the radio wavelengths, maser emissions of several molecular transitions are observed during the earliest evolutionary phases of high-mass (proto)stars (e.g., Szymczak et al. 2005), even before the appearance of an ultra compact H II region (UCH II). From an observational point of view, however, the study of high-mass star-forming regions (HMSFRs) is challenging because of three main limitations: the dusty environment is obscured at optical/NIR frequencies; time scales of massive star formation are short, and therefore the chance of observing massive YSOs is small; massive YSOs are rare and statistically found far away from the observer, at distances of a few kpc, clustered in tight associations.

A few years ago, we started an observational campaign to study the high-mass star-forming process by comparing interferometric thermal data, tracing the large-scale environment (e.g., Furuya et al. 2008; Codella et al. 1997), with Very Long Baseline Interferometry (VLBI) measurements of maser transitions, tracing the inner kinematics of the (proto)stellar cocoon. Details about our VLBI observational program to measure molecular masers in HMSFRs are extensively presented in Sanna et al. (2010, hereafter Paper I). The present paper focuses on our observations and analysis of the HMSFR G23.01-0.41.

In Sect. 2, we provide an up-to-date review of previous observations toward the HMSFR G23.01-0.41. Section 3 describes our VLBI observations of the 22.2 GHz water (H2O), 6.7 GHz methanol (CH3OH) and 1.665 GHz hydroxyl (OH) maser transitions, together with the new Very Large Array (VLA) observations of the radio continuum emission at 1.3 and 3.6 cm. In Sect. 4, we illustrate the spatial morphology, kinematics, and time-variability of individual maser species, and present results from our VLA observations, constraining the properties of the radio continuum observed associated with the masers. Section 5 discusses the spatial association of the maser species and their overall kinematics, and draws a comprehensive picture of the phenomena observed in the HMSFR G23.01-0.41 on angular scales from a few mas to tens of arcsec. Main conclusions are summarized in Sect. 6.

2 The HMSFR G23.01-0.41

The HMSFR G23.01-0.41 is located at a distance of 4.59 +0.38-0.33 kpc (Brunthaler et al. 2009), has a large-scale clump mass of about 4 $\times$ $10^3~M_\odot$ (Furuya et al. 2008), and a bolometric luminosity of about $10^5~L_\odot$ (upper limit) inferred from IR data (Araya et al. 2008)[*]. From observations of NH3 and CH3CN transitions, the systemic velocity of the region ( $V_{\rm sys}$) with respect to the local standard of rest (LSR) was determined to be 77.4 km s-1 (Furuya et al. 2008; Codella et al. 1997).

On an arcminute scale, Spitzer IRAC GLIMPSE observations show strong 4.5 $\mu$m excess indicative of shocked gas (Araya et al. 2008, and references therein), at the position of a molecular clump extended over an area of about 30 $\hbox{$^{\prime\prime}$ }$ $\times$ $30\hbox{$^{\prime\prime}$ }$, imaged with the Nobeyama Millimeter Array (NMA) in the 13CO (1-0) and C18O (1-0) lines (Furuya et al. 2008). Associated with the extended mid-IR emission, a massive 12CO (1-0) bipolar outflow was observed, with a prominent red-wing emission, elongated in the NE-SW direction. The same outflow was also detected in the 13CO (1-0) and HNCO  (505-404) lines (Furuya et al. 2008). Single-dish observations toward G23.01-0.41 detected several molecular transitions, both thermal and maser. Anglada et al. (1996) reported similar spatial and velocity distribution of the CS (1-0) and NH3 (1,1) lines tracing the turbulent, high-density ( 104-105 cm-3) gas in the region (see also Larionov et al. 1999). Thermal, broad line (FWHM > 20 km s-1) SiO emission in the ground vibrational state (J = 2-1 and 3-2) was detected by Harju et al. (1998). Caswell et al. (2000) detected thermal CH3OH emission from the 156.6 GHz (see also Slysh et al. 1999) and 107.0 GHz transitions, this latter superimposed on a maser component. Methanol maser emission was also reported at 6.7 GHz (e.g., Goedhart et al. 2004; Menten 1991), 12.2 GHz (e.g., Caswell et al. 1993; Baszkiewicz & Kus 2004), 44.1 GHz (Slysh et al. 1994), and 95.2 GHz (Val'tts et al. 2000). First attempts to measure Zeeman splitting of the 6.7 GHz maser components suggest a magnetic field strength of a few tens of mG (Vlemmings 2008). The G23.01-0.41 region hosts both strong 22.2 GHz H2O (e.g., Szymczak et al. 2005; Caswell et al. 1983) and 1.665, 1.667 (main-lines), and 1.612 GHz (satellite-line) OH masers (e.g., Caswell & Haynes 1983; Szymczak & Gérard 2004). Through Zeeman splitting of the 1.667 GHz maser components, Szymczak & Gérard (2004) estimated a magnetic field strength of a few tenths of mG. Interestingly, in the spectra of the 1.665, 1.667, and 1.720 GHz OH transitions, absorption features were also noted (Caswell & Haynes 1983; Szymczak & Gérard 2004). A similar absorption pattern was observed in the 4.8 GHz H2CO transition by Downes et al. (1980), who associated G23.01-0.41 to a nearby diffuse H II region, identified through the H$110\alpha$ recombination line emission.

On angular scales of a few arcsec, NH3 (3,3) VLA and CH3CN (6-5) NMA observations (Furuya et al. 2008; Codella et al. 1997) revealed an HMC with an elongated shape and a velocity gradient oriented in the NW-SE direction. From the 3 mm dust continuum emission the HMC mass was estimated to be of about 70 $M_\odot$ (Furuya et al. 2008). These observations suggest that the HMC may be a flattened structure rotating about the axis of the 12CO (1-0) bipolar outflow detected at larger scales. The VLA positions of the H2O, OH (Forster & Caswell 1999), and 4.8 GHz H2CO (Araya et al. 2008) masers, as well as the positions of the 6.7 GHz (Caswell unpublished; Caswell et al. 2000) and 12.2 GHz (Brunthaler et al. 2009) CH3OH masers measured with the Australia Telescope Compact Array (ATCA) and Very Long Baseline Array (VLBA), respectively, agree well with the position of the HMC. From the large collection of multi-wavelength data reported here, the G23.01-0.41 region can be convincingly depicted as an active site of massive star formation.

3 Observations and calibration

3.1 VLA observations: 1.3 cm and 3.6 cm continuum

The source was observed with the VLA[*] at X and K bands in both the C-array (in April 2008) and A-array configurations (in October 2008). At 3.6 cm in both configurations and at 1.3 cm in the VLA-C, the continuum mode of the correlator was used, resulting in an effective bandwidth of 172 MHz. At 1.3 cm in the VLA-A we used mode ``4'' of the correlator, with a pair of 3.125 MHz bandwidths (64 channels) centered on the strongest H2O maser line and a pair of 25 MHz bandwidths (8 channels) sufficiently offset from the maser lines to obtain a measurement of the continuum emission. The two bandwidths centered on the same frequency (measuring the two circular polarizations) were averaged.

At X band, 3C 286 (5.2 Jy) and 3C 48 (3.1 Jy) were used as primary flux calibrators, while 1832-105 (1.4 Jy) was the phase calibrator. For the K-band observations, the primary flux calibrator was 3C 286 (2.5 Jy), the phase calibrator 1832-105 (1.0 Jy), and the bandpass calibrator (for the VLA-A data only) 1733-130 (3.7 Jy).

The data were calibrated with the NRAO AIPS software package using standard procedures. Only for the VLA-A data at 1.3 cm, several cycles of self-calibration were applied to the strongest maser channel, and the resulting phase and amplitude corrections were eventually transferred to all the other line channels and to the K-band continuum data. This procedure resulted in a significant (at least a factor 2) improvement to the signal-to-noise ratio (SNR).

Natural-weighted maps were made with task IMAGR of AIPS both for the continuum and the line data. Simultaneous observation of the line and continuum emission at K band made it possible to obtain the relative position of the continuum image with respect to the H2O maser spots with great precision ( ${\sim}0\hbox{$.\!\!^{\prime\prime}$ }01$). Finally, we identified the maser spots that appear in both our VLBA and VLA images and, using the accurate absolute position information obtained from the VLBA observations, we re-centered the VLA spots and continuum image. The correction thus applied turns out to be <20 mas in each coordinate. In conclusion, we believe that the absolute astrometrical precision of the continuum maps presented in this paper is of  ${\sim}0\hbox{$.\!\!^{\prime\prime}$ }01$.

3.2 Maser VLBI

We conducted VLBI observations of the H2O and CH3OH masers (at several epochs) and of the OH maser (at a single epoch) toward G23.01-0.41 in the K, C, and L bands, respectively. In order to derive the maser absolute position, we used phase-referencing by fast switching between the maser target and the calibrator J1825-0737. This calibrator has an angular offset from the maser source of  $2\hbox{$.\!\!^\circ$ }6$ and belongs to the list of sources defining the International Celestial Reference Frame (ICRF). Its absolute position is known to better than $\pm2$ mas, and its flux measured with the VLBA at S and X bands is 68 and 151 mJy beam-1, respectively (Fomalont et al. 2003). Five fringe finders (J1642+3948; J1751+0939; J1800+3848; J2101+0341; J2253+1608) were observed for bandpass, single-band delay, and instrumental phase-offset calibration. Data were reduced with AIPS following the VLBI spectral line procedures. Paper I describes the general data calibration procedures.

3.2.1 VLBA observations: 22.2 GHz H2O masers

We observed the HMSFR G23.01-0.41 (tracking center: RA(J2000) = $\rm 18^h34^m40\hbox{$.\!\!^{\rm s}$ }39$ and Dec(J2000) = $-09\degr00'38\hbox{$.\!\!^{\prime\prime}$ }5$) with the VLBA[*] in the 616-523 H2O transition (rest frequency 22.235079 GHz). The observations (program code: BM244) consisted of 4 epochs: April 17, June 29, and September 22, 2006, and January 17, 2007. During a run of about 6 h per epoch, we recorded the dual circular polarization through a 16 MHz bandwidth centered on an LSR velocity ( $V_{\rm LSR}$) of 77.0 km s-1. The data were processed with the VLBA FX correlator in Socorro (New Mexico) using an averaging time of 1 s and 1024 spectral channels. The total-power spectrum of the 22.2 GHz masers toward G23.01-0.41 is shown in Fig. 1 (top panel). This profile was obtained by averaging the total-power spectra of all VLBA antennas, after weighting each spectrum with the antenna system temperature ( $T_{\rm sys}$).

\begin{figure}
\par\includegraphics[width=7cm,clip]{14234fg1.eps}
\end{figure} Figure 1:

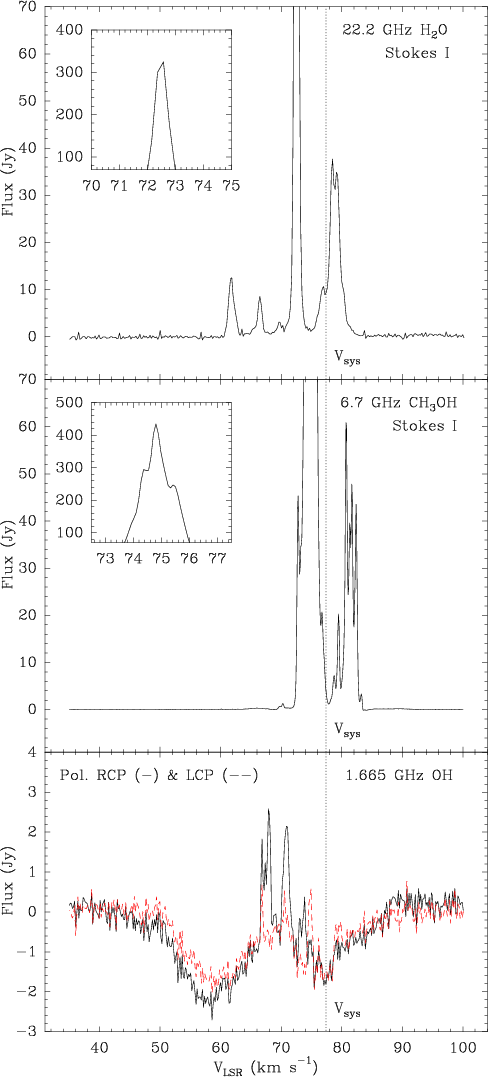

Total-power spectra of the H2O, CH3OH, and OH masers toward G23.01-0.41. Upper panel: system-temperature ( $T_{\rm sys}$) weighted average of the 22.2 GHz total-power spectra of the 9 VLBA antennas observing on 2007 January 17 (BR, FD, KP, LA, MK, NL, OV, PT, SC). Inset: zoom of the water maser peak. Middle panel: effelsberg total-power spectrum of the 6.7 GHz methanol maser emission on 2007 March 17. Inset: zoom of the methanol maser peak. Lower panel: $T_{\rm sys}$-weighted average of the 1.665 GHz total-power spectra of the 9 VLBA antennas observing on 2007 April 27 (BR, FD, HN, KP, MK, NL, OV, PT, SC). Continuous (black) and dashed (red) lines are used to distinguish between right (RCP) and left (LCP) circular polarizations, respectively. The dotted line crossing the spectra represents the systemic velocity ( $V_{\rm sys}$) inferred from CH3CN measurements.

Open with DEXTER

Table 1:   G23.01-0.41: radio continuum emission.

The natural CLEAN beam was an elliptical Gaussian with an FWHM size of about $1.3~{\rm mas}$ $\times$ $0.4~{\rm mas}$ at a PA of  $-19\hbox{$^\circ$ }$ (east of north), with small variations from epoch to epoch. The interferometer instantaneous field of view was limited to about 2 $.\!\!^{\prime\prime}$7. In each observing epoch, using an on-source integration time of about 2.5 h, the effective rms noise level of the channel maps ($\sigma $) varied in the range 0.006-0.03 Jy beam-1. The spectral resolution was 0.2 km s-1.

3.2.2 VLBA observations: 1.665 GHz OH masers

We observed the HMSFR G23.01-0.41 (tracking center: RA(J2000) = $\rm 18^h34^m40\hbox{$.\!\!^{\rm s}$ }27$ and Dec(J2000) = $-09\degr00'37\hbox{$.\!\!^{\prime\prime}$ }5$) with the VLBA in the $^2\Pi_{3/2}$ J = 3/2 OH transition (rest frequency 1.665401 GHz) on April 27, 2007 (program code: BM244N). During a run of about 6 h, we recorded the dual circular polarization through two bandwidths of 1 MHz and 4 MHz, both centered at an LSR velocity of 70.0 km s-1. The 4 MHz bandwidth was used to increase the SNR of the weak L-band signal of the continuum calibrator. The data were processed with the VLBA FX correlator in two correlation passes using 1024 and 512 spectral channels for the 1 MHz and 4 MHz bands, respectively. In each correlator pass, the data averaging time was 2 s. The $T_{\rm sys}$-weighted mean of antenna total-power spectra for the right and left circular polarizations at 1.665 GHz are shown in Fig. 1 (bottom panel). After removing a first order baseline, the 1.665 GHz OH spectra of both circular polarizations present similar characteristics, i.e. several maser emission components superposed on a broad absorption feature (see Sect. 4.3).

The natural CLEAN beam was an elliptical Gaussian with an FWHM size of 19 mas $\times$ 10 mas at a PA of  $3\hbox{$^\circ$ }$. The interferometer instantaneous field of view was limited to about 18 $.\!\!^{\prime\prime}$5. With an on-source integration time of about 1.9 h, the effective rms noise level of the channel maps was about 0.02 Jy beam-1. The 1 MHz band spectral resolution was 0.2 km s-1. The visibility phase of both circular polarizations was calibrated using as phase-reference the brightest maser channel of the right circular polarization.

3.2.3 EVN observations: 6.7 GHz CH3OH masers

We observed the HMSFR G23.01-0.41 (tracking center: RA(J2000) = $\rm 18^h34^m40\hbox{$.\!\!^{\rm s}$ }39$ and Dec(J2000) = $-09\degr00'38\hbox{$.\!\!^{\prime\prime}$ }5$) with the European VLBI Network (EVN)[*] in the 51-60A+ CH3OH transition (rest frequency 6.668519 GHz). This work is based on 3 epochs (program codes: EM061, EM069), separated by about 1 year, observed on February 27, 2006, on March 17, 2007, and on March 16, 2008. At the first two epochs, antennas involved in the observations were Cambridge, Jodrell2, Effelsberg, Hartebeesthoek, Medicina, Noto, Torun, and Westerbork. Because the longest baselines involving the Hartebeesthoek antenna (e.g., Ef-Hh baseline about 8042 km) heavily resolve the maser emission and do not produce fringe-fit solutions, the Hartebeesthoek antenna was replaced with the Onsala antenna in the third epoch. During a run of about 6 h per epoch, we recorded the dual circular polarization through two bandwidths of 2 MHz and 16 MHz, both centered on an LSR velocity of 77.0 km s-1. The 16 MHz bandwidth was useful to increase the SNR of the weak continuum calibrator. The data were processed with the MKIV correlator at the Joint Institute for VLBI in Europe (JIVE - Dwingeloo, The Netherlands) using an averaging time of 1 s and 1024 spectral channels for both observing bandwidths. The Effelsberg total-power spectrum at 6.7 GHz toward G23.01-0.41 is shown in Fig. 1 (middle panel).

The natural CLEAN beam was an elliptical Gaussian with an FWHM size of about $ 13~{\rm mas}$ $\times$ $5~{\rm mas}$ at a PA of  $30\hbox{$^\circ$ }$, slightly varying from epoch to epoch. The interferometer instantaneous field of view was limited to about 9 $.\!\!^{\prime\prime}$2. With an on-source integration time of about 2.2 h the effective rms noise level of the channel maps varied at each observing epoch in the range 0.008-0.3 Jy beam-1. The 2 MHz band spectral resolution was 0.09 km s-1.

4 Results

This section reports our main results for the radio continuum and individual maser species in G23.01-0.41. We describe in Paper I the criteria used to identify, derive parameters of (position, intensity, flux and size), and measure proper motions of individual masing-clouds. Below the term ``spot'' refers to maser emission on a single velocity channel, whereas the term ``feature'' indicates a collection of spots emitting at a similar position over contiguous channels (i.e. an individual masing-cloud).

4.1 1.3 cm and 3.6 cm continuum

Our measurements of the 1.3 and 3.6 cm continuum emission in both VLA-A and VLA-C configurations are summarized in Table 1. While the most extended VLA configuration partly resolved the radio continuum at 1.3 cm (missing about half of the flux measured in the compact configuration), the fluxes at 3.6 cm of both configurations are comparable. Taking into account the shape of the VLA-A beam (HPBW of $0\hbox{$.\!\!^{\prime\prime}$ }13$ $\times$ $0\hbox{$.\!\!^{\prime\prime}$ }09$ at a PA of  $-13\hbox{$^\circ$ }$), the 1.3 cm continuum emission appears slightly elongated in the E-W direction (see Fig. 3). Figure 2 shows that a spectral index ($\alpha $) of 0.9 is derived from our highest-flux measurements.

\begin{figure}
\par\includegraphics[angle=-90,width=7cm,clip]{14234fg2.eps}
\end{figure} Figure 2:

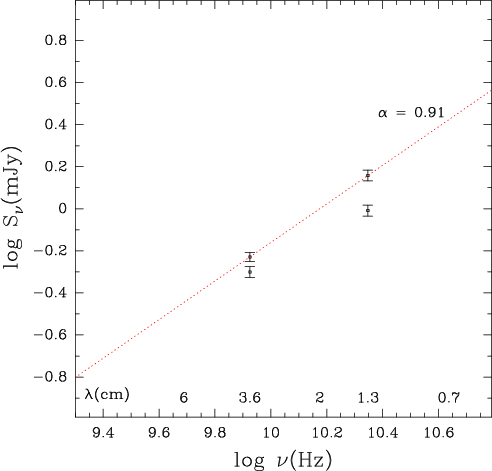

Spectral energy distribution of the radio continuum in the HMSFR G23.01-0.41. Dots and error bars report the values and the associated errors (1$\sigma $) of our measurements at 1.3 and 3.6 cm using both the VLA-A and VLA-C configurations (see Table 1). The derived spectral index (dotted line) of the highest-flux measurement of each observing frequency is $\alpha $ = 0.9.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=12cm,clip]{14234fg3.eps}
\vspace*{2mm}
\end{figure} Figure 3:

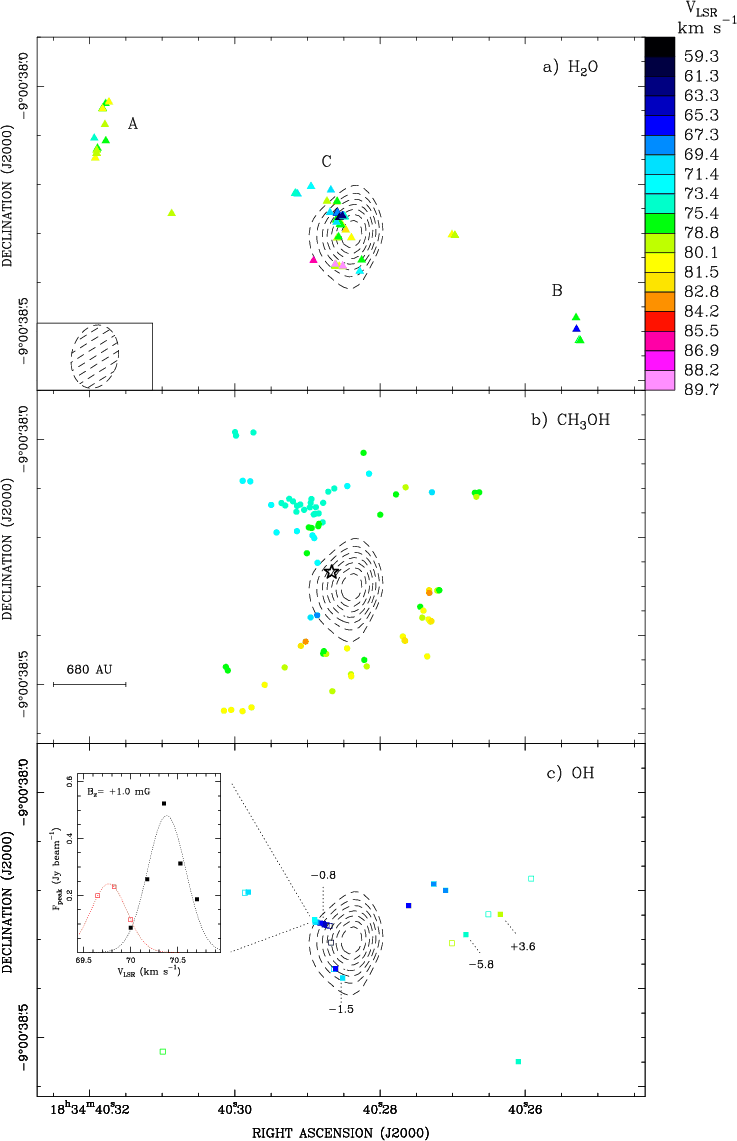

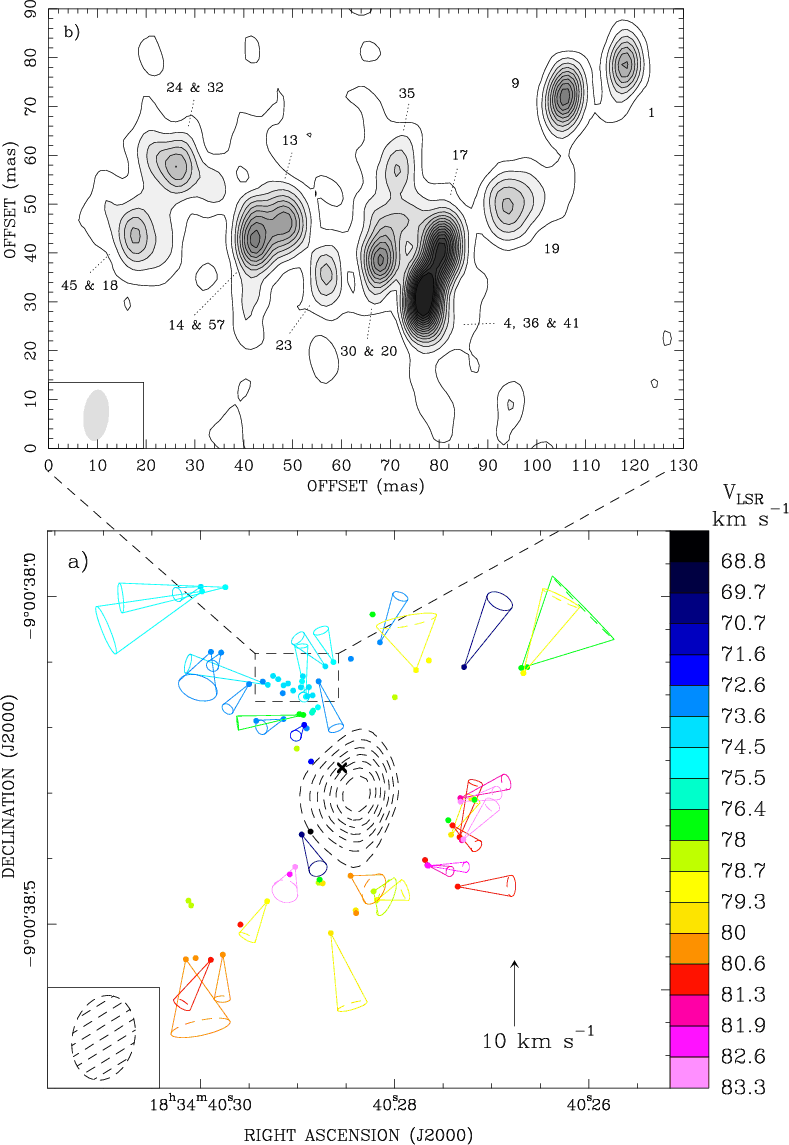

Absolute positions and LSR velocities of the three maser species observed in G23.01-0.41: a) H2O (triangles), b) CH3OH (dots), and c) OH (squares). Different colors are used to indicate the maser LSR velocities, according to the color scale on the righthand side of the plot, with green representing the systemic velocity of the HMC. The VLA 1.3 cm continuum emission is plotted with dashed contours. Contour levels range from $30\%$ to $90\%$ of the peak emission (0.72 mJy beam-1) at multiples of $10\%$. The restoring beam is shown in the lower left corner of the upper panel. The linear scale of the plots is shown in the lower left corner of the middle panel. For water masers, letters A-C indicate the clusters defined in Sect. 4.2. For methanol masers, the star marks the position of the barycenter of the methanol maser distribution, as defined in Sect. 4.4. For hydroxyl masers, full and empty squares denote right and left circularly polarized features, respectively, and numbers close to (some) maser features indicate the inferred local value of the magnetic field strength (in mG). Inset: example of Zeeman pair for the feature #11, reporting the Gaussian fits to the spectral profiles of the RCP (black line) and LCP (red line) components. The RCP and LCP measurements are indicated with full and empty squares, respectively.

Open with DEXTER

Previous observations at 3 cm and 6 cm were performed using the ATCA and the VLA-BnA configuration, respectively (Araya et al. 2008; Forster & Caswell 2000). Forster & Caswell (2000) reported a flux at 3 cm of 0.37 $\pm$ 0.12 mJy with an HPBW of $1\hbox{$.\!\!^{\prime\prime}$ }5$ $\times$ $1\hbox{$.\!\!^{\prime\prime}$ }5$, and Araya et al. (2008) derived a $5\sigma$ upper limit of 2.4 mJy in the 6 cm band (HPBW of $1\hbox{$.\!\!^{\prime\prime}$ }6$ $\times$ $1\hbox{$.\!\!^{\prime\prime}$ }1$ at a PA of  $-7\hbox{$^\circ$ }$).

4.2 22.2 GHz H2O masers

We imaged the whole range of LSR velocities from 68 to 87 km s-1 where Forster & Caswell (1999) detected water maser emission. With the VLA-C they identified two regions of maser activities, each elongated in the north-south direction by about 1'', and separated by about 40''. Our field of view covers the region associated with their brightest spots and the absolute position we determined for the reference maser spot is offset by about 1 $.\!\!^{\prime\prime}$5 from the reference position of Forster & Caswell (1999).

We identified 86 distinct water maser features distributed within an area of about $1\hbox{$^{\prime\prime}$ }$ $\times$  $0\hbox{$.\!\!^{\prime\prime}$ }5 $. They are mainly grouped in three clusters to the NE, SW, and toward the center of the plotted area, which are identified in Fig. 3a with labels ``A''-``C'', respectively. The individual features properties are presented in Table 2 (see the electronic edition of the Journal). Their intensities range from 0.07 to 202.89 Jy beam-1. Only 28 features (33% of the total) persisted over at least 3 epochs, 15 of which lasting 4 epochs. The spread in LSR velocities ranges from 89.4 km s-1 for the most redshifted feature (#57) to 57.0 km s-1 for the most blueshifted one (#22). The clusters ``A'' and ``B'' are observed at a similar angular separation of about 0 $.\!\!^{\prime\prime}$5 (i.e. 2 $\times$ 103 AU) from the cluster ``C'' and both have a threadlike N-S morphology extending up to 117 mas. Water maser emission from cluster ``A'' (15 features) and ``B'' (6 features) presents different properties: the cluster ``B'' consists of faint (weaker than 0.49 Jy beam-1), short-living (one epoch) features, whereas the cluster ``A'' consists of bright (up to 22.21 Jy beam-1) and persistent emission (67% of the features lasted at least 3 epochs and 8 features persisted 4 epochs). The cluster ``C'' has an arc-like morphology, of about 200 mas in size, and extends on top of the 1.3 cm continuum emission. Water maser emission from this region (61 features) is the most variable: only 25% of the observed features persisted for at least 3 epochs and only 4 features lasted 4 epochs. This region has also undergone a powerful maser flare (feature #1 in Table 2) observed during the last epoch (Fig. 1 upper panel) with an increase in intensity of about 200 times. The water masers absolute distribution and line-of-sight (l.o.s.) velocities are plotted in Fig. 3a. With a time baseline of 9 months, we measured relative transverse velocities of individual features with a mean accuracy of about 30%. The magnitude of relative proper motions ranges from 6.0 $\pm$ 3.7 km s-1 for feature #21 to 59.3 $\pm$ 4.7 km s-1 for feature #6. Positions and velocities are relative to the isolated and compact feature #24. Our measurements of absolute proper motions have been corrected by the velocity vector $\mu_x = -37$ and $\mu_y = -90$ km s-1 (where the X and Y indices refer to the motion components toward the east and the north, respectively) representing the Galactic peculiar motion of the HMSFR as measured by Brunthaler et al. (2009). Mean uncertainties in the magnitude of the absolute motions of water maser features are about 40%. The relative and absolute proper motions of water masers are plotted in Figs. 5a and b, respectively. Absolute velocities of maser features belonging to cluster ``C'' show a regular variation of orientation with position, rotating from north to south through the west across the arc-like distribution of features, and it appears that they are diverging from a point to the east of the maser cluster.

4.3 1.665 GHz OH masers and absorption

We imaged the whole range of LSR velocities from 65 to 81 km s-1 where 1.665 GHz OH maser emission was detected by Forster & Caswell (1999). With the VLA A-B hybrid configuration they found OH maser emission scattered over a region of about $2\hbox{$^{\prime\prime}$ }$ $\times$  $1\hbox{$^{\prime\prime}$ }$. The absolute position of our reference maser spot is offset by about 0 $.\!\!^{\prime\prime}$9 from the reference position of Forster & Caswell (1999).

Although the whole distribution of hydroxyl masers is scattered across a region of about $0\hbox{$.\!\!^{\prime\prime}$ }8$ $\times$  $0\hbox{$.\!\!^{\prime\prime}$ }4 $, half of maser features are clustered into a small area, $0\hbox{$.\!\!^{\prime\prime}$ }06$ $\times$  $0\hbox{$.\!\!^{\prime\prime}$ }12$, eastward of the 1.3 cm continuum peak (Fig. 3c). We identified 24 distinct OH maser features and individual features properties are presented in Table 3 (see the electronic edition of the Journal). Positions are relative to the isolated and bright feature #1. The absolute distribution and l.o.s. velocities of hydroxyl masers are plotted in Fig. 3c. The LSR velocities range from 79.7 km s-1 for the most redshifted feature (#13) to 60.5 km s-1 for the most blueshifted one (#23). The mean FWHM line width of individual maser features is 0.3 km s-1. The l.o.s. velocities are blueshifted toward the radio continuum and closer to  $V_{\rm sys}$ at larger distances. An ordered velocity shift from 73.0 to 62.6 km s-1 (features with label number 8, 11, 15, 12, 17, 20, 16, 22) is observed in an elongated structure extending N-S for 33 mas ( ${\approx}150$ AU) over the central region. Maser intensities range from 0.12 to 2.39 Jy beam-1 with the brightest features showing blueshifted l.o.s. velocities. We identified 5 Zeeman pairs satisfying the condition that the circular polarization components coincide positionally within 3$\sigma $ and are separated in velocity by more than their typical line width of 0.3 km s-1, corresponding to magnetic fields less than 0.5 mG (e.g., inset in Fig. 3c; see also Fish & Reid 2006). The l.o.s. magnetic field strength ranges from -5.8 to +3.6 mG. OH maser total-power spectra show an absorption feature superposed to the maser emission (Fig. 1 bottom panel). The absorption feature extends over about 40 km s-1, from about 50 to 90 km s-1, with two deeps at the LSR velocities of 58.5 and 77.3 km s-1. Absorption is not visible on the cross-power spectra of the shortest VLBA baseline (KP-PT $\approx$ 400 km). Assuming the absorption is resolved out, this allows one to set a lower limit of about 0 $.\!\!^{\prime\prime}$09 to the size of the absorption region.

4.4 6.7 GHz CH3OH masers

We imaged the whole range of LSR velocities (from 69 to 84 km s-1) where 6.7 GHz maser emission was previously detected towards G23.01-0.41 by Caswell et al. (1995) using the Parkes 64-m telescope. The ATCA position of the 6.7 GHz maser peak reported by Caswell et al. (2000) falls inside the area of our 6.7 GHz maser detections.

Methanol maser emission at 6.7 GHz is distributed within a region of about $0\hbox{$.\!\!^{\prime\prime}$ }6$ $\times$  $0\hbox{$.\!\!^{\prime\prime}$ }6$ about the 1.3 cm continuum emission (Fig. 3b). We identified 81 distinct maser features that are grouped depending on the l.o.s. velocity: redshifted features lie to the south of the radio continuum and blueshifted ones to the north. The individual feature properties are presented in Table 4 (see the electronic edition of the Journal). Maser LSR velocities range from 83.2 km s-1 for the most redshifted feature (#38) to 67.8 km s-1 for the most blueshifted one (#81). The average offsets in l.o.s. velocities (with respect to  $V_{\rm sys}$) of the maser features belonging to the southern and northern regions of the radio continuum are +4.4 and -2.1 km s-1, respectively. Maser intensities are on average very bright (30% of the features have peak emission greater than 10 Jy beam-1), but range from 0.10 to 146.03 Jy beam-1. 67 features (83% of the total) persisted over the 2 years interval covered by our 3 observing epochs. For each maser feature, Table 4 reports the mean brightness variability defined as the ratio between the variation in the brightness (of the strongest spot) and the average of the minimum and maximum brightness. The mean brightness variability of methanol maser features was about 45% (compared to only 20% for the source G16.59-0.05, Paper I), varying from a minimum of 5% for feature #80 to a maximum of about 136% for feature #48. These estimates of brightness variability should be taken as upper limits since they include effects from the slightly varying beam shape among different epochs, as well as amplitude calibration uncertainties. Positions are relative to the structurally-stable, compact, and bright feature #10, whose intensity varies less than about 6%. Methanol maser positions and l.o.s. velocities are plotted in Fig. 3b.

\begin{figure}
\par\includegraphics[width=16cm,clip]{14234fg4.eps}
\end{figure} Figure 4:

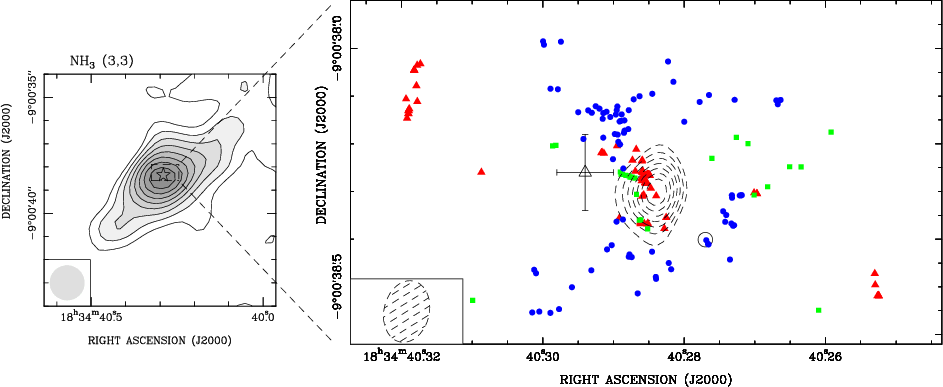

Collection of the subarcsec observations toward G23.01-0.41. Left panel: map in the NH3 (3, 3) line from Codella et al. (1997). Contour levels range from $20\%$ to $90\%$ of the peak emission (46 mJy beam-1) at multiples of $10\%$. The restoring beam is shown in the lower left corner of the panel. The star marks the peak position of the 3 mm continuum emission as determined by Furuya et al. (2008). Right panel: enlargement of the region over which we detected maser emission. Red triangles, blue dots, and green squares represent respectively H2O, CH3OH, and OH maser positions from our VLBI measurements. The empty circle marks the position of the brightest 12.2 GHz CH3OH maser feature (at  $V_{\rm LSR} = 81.5$ km s-1) measured by Brunthaler et al. (2009) with an uncertainty of a few mas. The empty triangle with the error bars indicates the position (and the associated uncertainty) of the 4.8 GHz H2CO maser feature (at  $V_{\rm LSR} = 73.6$ km s-1) derived by Araya et al. (2008). Dashed contours show the 1.3 cm VLA continuum emission. Contour levels range from $30\%$ to $90\%$ of the peak emission (0.72 mJy beam-1) at multiples of $10\%$. The restoring beam is shown in the lower left corner of the panel.

Open with DEXTER

We calculated the geometric center of all the detected features (hereafter ``barycenter'', identified with label S in Table 4), whose position is indicated by a star in Fig. 3b. In deriving the ``barycenter'' position, to reduce the weight of clustered maser features, uniform weighting has been used, weighting feature positions with the reciprocal of the local feature density. Note that because only a subset of 6.7 GHz maser features had a stable (spatial and spectral) structure over time, the ``barycenter'' is not a good point to refer the internal motions. We also calculated the geometric center (hereafter ``center of motion'', identified with label #0 in Table 4) of features with a stable spatial and spectral structure persisting over the 3 observing epochs, and refer our measurement of transverse motions to this point (Fig. 6a). With a 2 years time baseline, the relative transverse velocities of individual maser features are determined with a mean accuracy of about 30%. Proper motions, derived only for maser features with a stable structure, are calculated by performing a linear fit of feature position vs. time. To establish the extent of accelerated motions, an analysis of deviations from linear motion is postponed after an upcoming fourth epoch. The magnitude of relative proper motions ranges from 1.7 $\pm$ 1 km s-1 for feature #17 to 16.0 $\pm$ 1.6 km s-1 for feature #15. Transverse velocities of maser features have a mean value of 7.2 km s-1, about 2-3 times the spread of l.o.s. velocities. We observed a cluster of maser features connected by a bridge of extended weaker emission ( $110~{\rm mas}$ $\times$  $60~{\rm mas}$), emitting over a narrow velocity range of a few km s-1 (Fig. 6b). Because in this region spatial blending of nearby maser centers limits the precision of positions derived with Gaussian fitting, proper motions from this area were sufficiently accurate only for the brightest, more isolated features (#1, 4, 9, 17, 18, 19). Looking at Fig. 3b, 6.7 GHz maser features seem to trace a bipolar, funnel-like structure, centered to the east of the 1.3 cm continuum peak. Maser proper motions presented in Fig. 6a describe a smoothly varying velocity field, roughly symmetrical with respect to the barycenter of the spatial distribution. The regularity and near symmetry of the maser velocity distribution makes us confident that the calculated proper motions are representative of the true motions of the methanol masing-clouds.

5 Discussion

5.1 Nature of the radio continuum

The continuum source appears slightly resolved at the VLA-A 1.3 cm angular resolution of ${\sim}0\hbox{$.\!\!^{\prime\prime}$ }1$ (see Figs. 4-6). The fluxes of the continuum source at 1.3 and 3.6 cm (see Table 1) are consistent with free-free emission from an UCH II region with radius of about 450 AU ionized by a Lyman continuum of 1-3 $\times$ 1045 s-1, corresponding to a ZAMS B1 star (Panagia 1973; Schraml & Mezger 1969). The spectral index $\alpha $ = 0.9 between 3.6 and 1.3 cm could be interpreted with the emission becoming optically thin at $\lambda$ $\la$ 1 cm.

\begin{figure}
\par\includegraphics[width=16cm,clip]{14234fg5.eps}
\end{figure} Figure 5:

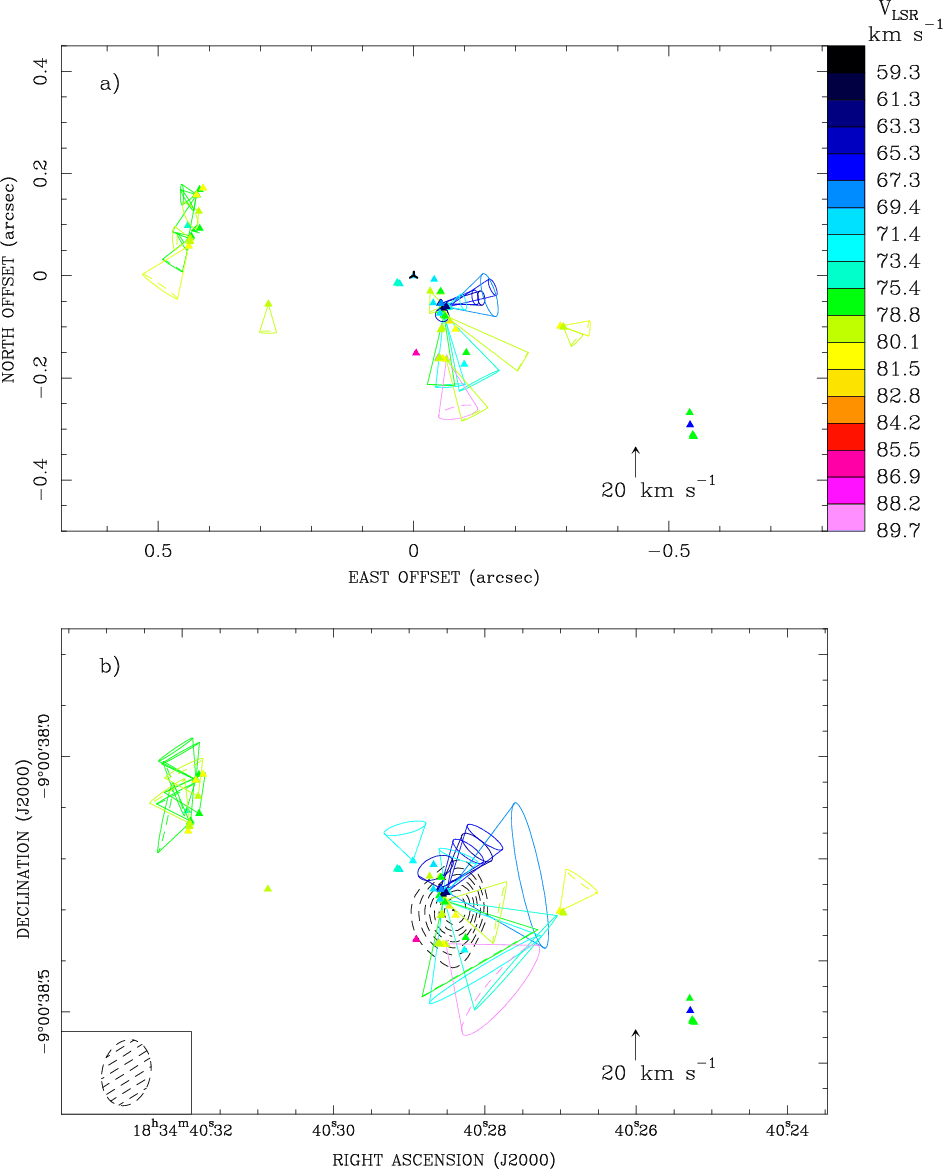

22.2 GHz H2O maser kinematics toward G23.01-0.41. a) Positions (triangles) and transverse velocities of the H2O maser features relative to the feature #24 (indicated with the vertex-connected symbol). Colored cones are used to show both the direction and the uncertainty (cone aperture) of the proper motion of maser features. The proper-motion amplitude scale is given by the black arrow in the bottom right corner of the panel. Proper motions of the maser features #30, 38, and 62 are too uncertain and, thus, not plotted. Different colors are used to indicate the maser LSR velocities, according to the color scale on the righthand side of the panel, with green denoting the systemic velocity of the HMC. b) Absolute positions and transverse velocities of the water maser features. The potted field of view is the same as in the upper panel and symbols have the same meaning as in the upper panel. Dashed contours show the VLA 1.3 cm continuum emission. Contour levels range from $30\%$ to $90\%$ of the peak emission (0.72 mJy beam-1) at multiples of $10\%$. The restoring beam is shown in the lower left corner of the panel.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=13.5cm,clip]{14234fg6.eps}\vspace*{4mm}
\end{figure} Figure 6:

6.7 GHz CH3OH maser kinematics toward G23.01-0.41. a) Absolute positions (dots) and transverse velocities of the CH3OH maser features relative to the center of motion (as defined in Sect. 4.4) of the methanol maser distribution (indicated by the cross). Colored cones are used to show both the direction and the uncertainty (cone aperture) of the proper motion of maser features. The proper-motion amplitude scale is given by the black arrow in the bottom right corner of the panel. Different colors are used to indicate the maser LSR velocities, according to the color scale on the righthand side of the plot, with green denoting the systemic velocity of the HMC. Dashed contours show the VLA 1.3 cm continuum emission. Contour levels range from $30\%$ to $90\%$ of the peak emission (0.72 mJy beam-1) at multiples of $10\%$. The restoring beam is shown in the lower left corner of the panel. b) Zoom of the crowdest region of 6.7 GHz maser emission. The map is obtained from data of the second EVN epoch (2007 March 17), summing the maser emission over the velocity range from 73.40 to 74.63 km s-1. Plotted contour levels are spaced by factor of 2, with the lowest level corresponding to the 3$\sigma $ rms of 3.0 Jy beam-1. The restoring beam is given in the lower left corner of the panel. The numbers near emission peaks are the maser feature labels given in Table 4.

Open with DEXTER

An alternative interpretation for the weak continuum emission is in terms of a shock induced ionization in a thermal jet. Following the calculation by Anglada (1996), for optically thin emission, one has: $F ~ d^2 = 10^{3.5} ~ (\Omega/4\pi) ~ \dot{P}$, where F is the measured continuum flux in mJy, $\dot{P}$ the outflow momentum rate in $M_\odot$ yr-1 km s-1, $\Omega$ the jet solid angle in sr, and d the source distance in kpc. Using the flux of 1.4 mJy measured at 1.3 cm with the VLA-C, and the accurate distance of 4.6 kpc to G23.01-0.41 by Brunthaler et al. (2009), one derives $\dot{P} = 10^{-2} ~ (\Omega/4\pi)^{-1}$ $M_\odot$ yr-1 km s-1. The momentum rate thus depends on the estimate of the jet collimation factor  $(\Omega/4\pi)^{-1}$. If the jet structure is not resolved but only a bright knot along the jet axis is observed, the jet solid angle can be estimated from the angular size of the knot if the position of the YSO powering the jet is known. In the next section we discuss the maser information with the aim to constrain the YSO position.

5.2 Water masers tracing a wind/jet system

Current models explain H2O maser excitation by collisional pumping with H2 molecules within hot (${\ga}400$ K) shocked layers of gas behind both high-velocity ($\geq$50 km s-1) dissociative (J-type; Elitzur et al. 1989) and slow ($\leq$45 km s-1) non-dissociative (C-type; Kaufman & Neufeld 1996) shocks, propagating in dense regions (H2 pre-shock density in the range 107-109 cm-3). Following these models, the cluster ``C'' of water masers witnesses the presence of dense shocked gas near the continuum source. The higher variability of the bright water masers from this cluster, compared with clusters ``A'' and ``B'', could indicate that the cluster ``C'' pinpoints the most active site of the region. The arc-like distribution of maser features in this region, together with their fast (as high as 55 km s-1) and diverging proper motions (see Fig. 5b), lead us to think that this water maser emission traces a shock front expanding from a center located to the east of the 1.3 cm continuum peak. The barycenter of the funnel-like structure of the 6.7 GHz masers (the star in Fig. 3) falls also in this area, and we speculate that is the place of the massive YSO(s), possibly a multiple system, exciting and driving both maser emissions. In the following discussion, we will use the 6.7 GHz maser barycenter as the best guess for the YSO(s) position.

If water maser emission is excited in a jet from a YSO, knowing the average distance of water masers from the YSO and the average maser velocity, one can estimate the momentum rate of the jet assuming that is momentum-driven. Using the model-predicted H2 pre-shock density of 108 cm-3, the momentum rate in the water maser jet is given by the expression $\dot{P} = 1.5$ $\times$ $10^{-3} ~ V_{10}^{2} ~ R_{100}^{2} ~ (\Omega/4\pi)$ $M_\odot$ yr-1 km s-1, where V10 is the average maser velocity in units of 10 km s-1, R100 the average distance of water masers from the YSO in units of 100 AU, and $\Omega$ the solid angle of the jet. This expression has been calculated by multiplying the momentum rate per unit surface transferred to the ambient gas ( $n_{\rm H_2}$  $m_{\rm H_2}$ V2), by a factor  $\Omega R^2$, assuming that the jet is emitted from a source at a distance R from the masers within a beaming angle $\Omega$.

We hypothesize that a wind emitted from the YSO impacts against the dense circumstellar gas, and excites and drives the motion of water masers of cluster ``C''. Water masers of cluster ``C'' have an average (sky-projected) distance from the YSO of  ${\approx}200$ AU, and their average absolute velocity is 40 km s-1. Assuming an isotropic wind ( $\Omega = 4\pi$), and considering that the derived sky-projected distance should be taken as a lower limit to the true distance, we derive a value for the momentum rate $\dot{P} \ge 0.1$ $M_\odot$ yr-1 km s-1. This value is one order of magnitude higher than the typical momentum rate of the stellar wind from a ZAMS O star of 10-2 $M_\odot$ yr-1 km s-1 (Markova et al. 2005), and might be explained if the massive YSO was still accreting mass and a fraction of mass approaching the YSO was deflected into the wind, as predicted by X-wind (Shu et al. 2000) and disk-wind (Königl & Pudritz 2000) models.

Assuming that the position of the YSO is close to the geometric center of the (methanol and water) maser distributions, the 1.3 cm continuum source is found offset from the YSO by about 60 mas to the SW. Such an offset is significantly larger than the accuracy ( ${\approx}10$ mas) of the absolute position of the continuum source, which leads us to think that the best interpretation is in terms of a thermal jet rather than an UCH II region. We describe a case similar to what is observed for the well-studied source IRAS 20126+4104, where the YSO position is clearly offset of the peaks of the VLA 3.6 cm continuum emission, tracing shock induced ionization in a thermal jet (Hofner et al. 2007). Towards G23.01-0.41, the VLA-A slightly resolves the 1.3 cm emission, which indicates that the source size is less than the VLA-A beam at 1.3 cm of ${\approx}110$ mas. Then, at the distance of the 1.3 cm continuum peak from the YSO of ${\approx}60$ mas, the jet has to be collimated within a cone of semi-aperture $\theta \le 0.5$ $\times$ 110/60 = 0.9 rad, corresponding to a jet solid angle $\Omega \le 2.5$ sr. Using this value in the expression for the momentum rate derived in Sect. 5.1, one has $ \dot{P} \ge 5$ $\times$ 10-2 $M_\odot$ yr-1 km s-1, which is consistent with the value of the momentum rate derived above for the YSO wind.

Figure 3a shows that water masers not belonging to cluster ``C'' are distributed to the NE (mainly in cluster ``A'') and to the SW (mainly in cluster ``B'') of the putative location of the YSO. They could trace shocked gas along the path of the bipolar jet, emerging from the YSO and interacting with the surrounding molecular core. Such a jet could be the engine of the massive 12CO (1-0) bipolar outflow, elongated in the NE-SW direction, observed on arcsec scales (see the sketch in Fig. 8). This interpretation explains the absolute velocities of water masers in cluster ``A'' oriented towards NE (see Fig. 5b). The same jet should be responsible for the excitation of the continuum source and all the water maser features separated from the YSO by more than ${\approx}0\hbox{$.\!\!^{\prime\prime}$ }2$. To intercept all the water masers found at a larger distance from the YSO, the jet semi-aperture has to be larger than $\theta \ge 0.25$ rad, which is consistent with the condition $\theta \le 0.9$ rad from the upper limit to the angular size of the continuum source.

Water masers in cluster ``A'' move with an average velocity of 20 km s-1 and are separated from the YSO by ${\approx}2300$ AU. Inserting these values in the expression for the momentum rate in the maser jet, one finds $ \dot{P} = 3.2 ~ (\Omega/4\pi)$ $M_\odot$ yr-1 km s-1. If the same jet is responsible for exciting the continuum source and driving the water masers of cluster ``A'', the jet solid angle ($\Omega$) can be determined by requiring that the momentum rate in the maser jet equals that from the continuum emission:

\begin{eqnarray*}3.2 ~ (\Omega/4\pi) = 10^{-2} ~ (\Omega/4\pi)^{-1}.
\end{eqnarray*}


From this equation one derives $\Omega = 0.7$ sr corresponding to a semi-opening angle of the jet $\theta = 0.5$ rad. This value, derived from measurements of the continuum flux and the maser kinematics of cluster ``A'', is consistent with the independent condition $ 0.25 \le \theta \le 0.9$ owing to the spatial distribution of all detected water masers and to the size of the continuum source. That supports our result. From the derived value of the jet solid angle, the jet momentum rate is $\dot{P} = 0.2$ $M_\odot$ yr-1 km s-1.

This value for the jet momentum rate agrees with that (0.1 $M_\odot$ yr-1 km s-1) of the dominant (SW redshifted) lobe of the large-scale 12CO (1-0) outflow reported by Furuya et al. (2008). This evidence supports the interpretation that the NE-SW distribution of water masers traces the jet at the base of the massive molecular outflow observed at arcsec scales. Note also that the momentum rate in the jet is comparable with the momentum rate (0.1 $M_\odot$ yr-1 km s-1) derived for the wide-angle wind driving the water masers of cluster ``C'', which presents the case that the jet itself is powered by the YSO wind. At a distance of  ${\approx}300$ AU from the YSO, i.e. at the position of the 1.3 cm source, most of the wind's momentum would be efficiently collimated within the jet, with a collimation factor  $(\Omega/4\pi)^{-1} \approx 20$. For comparison, values of collimation factors on the order of 10 are typical for well-studied radio jets in low- and intermediate-mass star-forming regions (Anglada 1996). If the high momentum rate of the wind were to hint that the YSO still accretes mass, the efficient collimation of the wind into a jet would indicate that the accretion onto the YSO is mediated through an accretion disk.

5.3 Methanol maser environment

In Sect. 5.2, we used the symmetries in the spatial distributions of the 6.7 GHz methanol and 22 GHz water masers to constrain the YSO position, and postulated that the YSO is located close to the geometric center of both maser specie distributions. Figure 4 shows that 6.7 GHz and 22.2 GHz masers emerge from nearby but different positions around the putative location of the massive YSO. Figures 5b and 6a show that water masers move significantly faster than methanol masers, and the average direction of motion of the two maser species is also different. Therefore, the comparison of the spatial and velocity distribution suggests that the two maser species, although associated with the same massive YSO, originate from distinct environments, characterized by a different kinematics and, likely, as predicted by water and methanol maser excitation models, by different physical conditions (e.g., Goddi et al. 2007; Moscadelli et al. 2007). CH3OH excitation models (Cragg et al. 2005) predict that Class II methanol maser emission is produced by radiative pumping in cool ( ${\approx}30$ K), or moderately warm regions (<200 K), with H2 densities in the range 106-109 cm-3. Even though comparably high densities are required for both water and Class II methanol maser action, strong 6.7 GHz methanol masers can be produced at gas temperatures significantly lower than that of the shocked layers of gas emitting water masers.

\begin{figure}
\par\includegraphics[width=7cm,clip]{14234fg7.eps}
\end{figure} Figure 7:

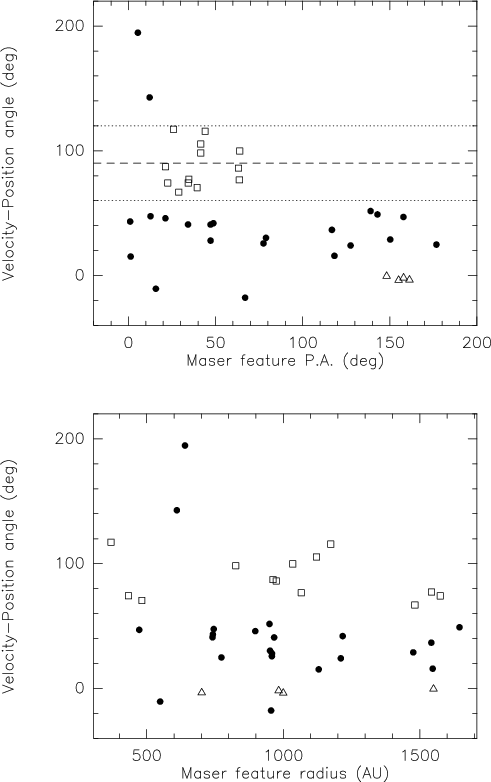

Upper and lower panels show the distribution of the angle between the proper motion and the position vectors of 6.7 GHz masers as a function of the maser PA and radial distance, respectively. Approximately azimuthal and radial velocities are indicated with empty squares and triangles, respectively (velocity-position angle in the range from 60 $\hbox {$^\circ $ }$ to 120 $\hbox {$^\circ $ }$ and from -10 $\hbox {$^\circ $ }$ to 10 $\hbox {$^\circ $ }$, respectively), whereas filled dots are used for other values of the velocity-position angle. The 6.7 GHz maser barycenter (see Table 4) is taken to be the origin of the (sky-projected) maser positions. The angle between the velocity and the position vectors of a given maser feature is evaluated positive counterclockwise and is equal to the difference between the PA of the feature velocity and position vectors. Maser features with PA in the range  $180\hbox {$^\circ $ }{-}360\hbox {$^\circ $ }$ have been folded into the PA interval  $0\hbox {$^\circ $ }{-}180\hbox {$^\circ $ }$ (by subtracting 180 $\hbox {$^\circ $ }$ to their true PA). In the upper plot, horizontal dotted and dashed lines mark the boundary and the center, respectively, of the interval over which maser velocities are approximately azimuthal.

Open with DEXTER

Looking at Fig. 6a, one notes that the distribution of 6.7 GHz maser velocities is not isotropic about the maser barycenter. Taking the maser barycenter as the origin of a system of polar coordinates, (sky-projected) maser velocities with a dominant radial component appear to concentrate at a PA different from that where maser velocities are predominantly azimuthal. Figure 7 shows the angle distribution between the maser proper motion and the corresponding position vectors, as a function of both the radial distance and the PA of the maser feature. Most of the maser velocities form an angle with the radius (outward from the maser barycenter) varying in the range from -20 $\hbox {$^\circ $ }$ to 120 $\hbox {$^\circ $ }$ (evaluated positive counterclockwise for the observer). While the distribution of the velocity-position angle appears to be rather uniform with the maser radial distance, all the azimuthal velocities (forming with the radius an angle within $90\hbox{$^\circ$ }$ $\pm$  $30\hbox{$^\circ$ }$) concentrate in a well defined PA range, $20\hbox{$^\circ$ }$ $\le$ PA $\le$  $70\hbox{$^\circ$ }$.

The observed distribution of 6.7 GHz maser velocities can be interpreted in terms of a combination of expanding and rotating motions. Let us consider a rotating structure about an axis inclined with respect to the l.o.s., and indicate with x$_{\rm ax}$ and y$_{\rm ax}$ the projections on the plane of the sky of the rotation axis and the line perpendicular to that, respectively (see the sketch in Fig. 8). Points of the rotating structure belonging to the plane containing the rotation axis and the l.o.s. lie on x$_{\rm ax}$ and have rotation velocities parallel to y$_{\rm ax}$. Therefore, it is possible to identify the projection onto the plane of the sky of the rotation axis looking for the direction in the sky to which the proper motions are perpendicular. The upper plot of Fig. 7 suggests that the azimuthal 6.7 GHz maser velocities can result from rotation around an axis whose x$_{\rm ax}$ crosses the maser barycenter and is oriented at PA within $45\hbox{$^\circ$ }$ $\pm$  $25\hbox{$^\circ$ }$. Note that this x$_{\rm ax}$ also crosses the 1.3 cm continuum peak (at a PA of  $225\hbox{$^\circ$ }$) and agrees with the orientation of the 22 GHz water maser jet discussed in Sect. 5.2. Then, there are indications that 6.7 GHz masers can emerge from a structure rotating around the jet/outflow axis.

\begin{figure}
\par\includegraphics[width=12cm,clip]{14234fg8.eps}
\vspace*{3mm}
\end{figure} Figure 8:

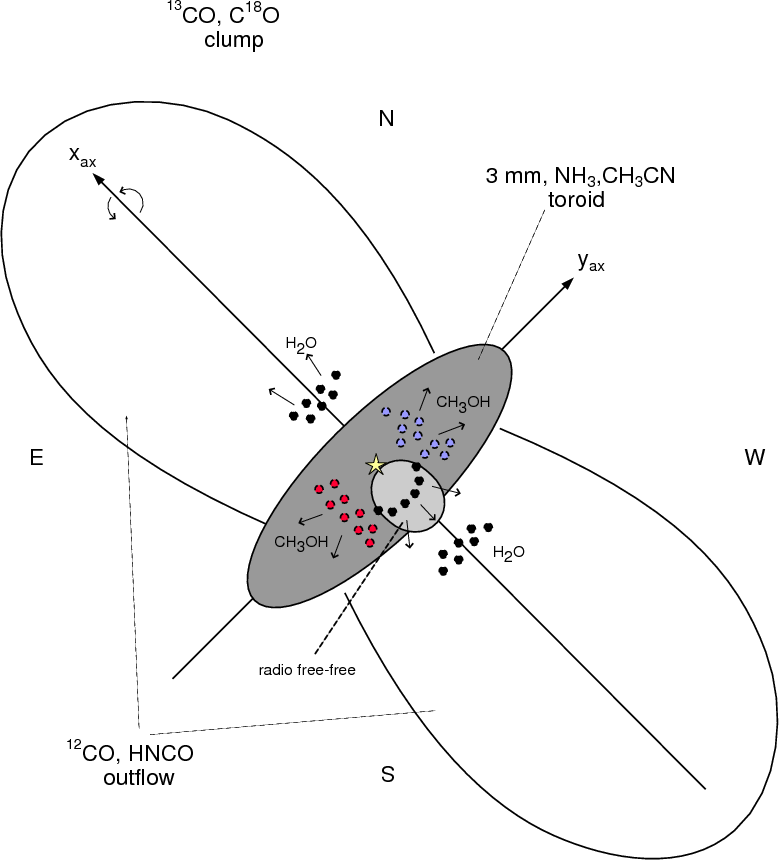

Schematic cartoon of the main components in the molecular cloud associated with G23.01-0.41. The drawing is not to scale. The components represented are (i) the outflow/jet structure traced by CO and H2O maser emission (black dots) from pc-scale to a few thousand of AU; (ii) the toroid structure seen on a large scale in CH3CN and highly excited NH3 molecules, and its inner portion traced by CH3OH maser emission (blue and red dots according to the l.o.s. velocity); (iii) the radio continuum emission superposed on the arc-like H2O maser structure. The star marks the assumed YSO(s) location.

Open with DEXTER

Many of the observed 6.7 GHz maser velocities show a component directed radially outward from the maser barycenter, suggesting that the gas traced by 6.7 GHz masers is also expanding away from the YSO. Looking at Fig. 6a and the upper plot of Fig. 7, one notes that a group of approximately radial velocities (directed within  $10\hbox{$^\circ$ }$ from the local radius) concentrates at PA between $150\hbox{$^\circ$ }{-}160\hbox{$^\circ$ }$ and $330\hbox{$^\circ$ }{-}340\hbox{$^\circ$ }$, that is along a direction approximately perpendicular to x$_{\rm ax}$. If the rotation axis is close to the plane of the sky, the rotation velocities of the spots belonging to the plane that contains the rotation and y$_{\rm ax}$ axes should be almost parallel to the l.o.s. Then, the sky-projected velocities along the y$_{\rm ax}$ axis are expected to show small azimuthal components and to be mainly radial if the gas is also flowing away from the YSO, in agreement with what we actually observe.

The same assumptions, that is that the 6.7 GHz masers trace gas flowing away from a center and rotating about an axis at small inclination with the plane of the sky, allow us also to easily interpret the observed distribution of l.o.s. velocities. Material on the near and far side of the maser structure would move toward and away from the observer, respectively. Along the sky-projected rotation axis (i.e. x$_{\rm ax}$), the observed blue- and redshifted maser velocities towards the NE and SW, respectively, can be explained if we admit that maser emission to the NE and SW originates from material on the near (approaching) and far (receding) side of the structure, respectively. Along the direction perpendicular to the sky-projected rotation axis (i.e. y$_{\rm ax}$), the distribution of l.o.s. velocities would reflect the sense of rotation, with blue- and redshifted maser velocities to the NW and SE, respectively, in agreement with the observations (Fig. 8).

If the rotation axis is slightly inclined with respect to the plane of the sky, the small group of maser features along the y$_{\rm ax}$ axis with approximately radial velocities (negligible azimuthal components), should be found close to the sky. Then their distribution of l.o.s. velocities can be used to constrain the central mass, in the hypothesis of centrifugal equilibrium. Their average distance from the maser barycenter (Fig. 7, lower plot) is ${\approx}1000$ AU, and the average of the absolute value of their l.o.s. velocities is ${\approx}4$ km s-1. With these values, a central mass of ${\approx}20~M_{\odot}$ is derived, corresponding to an early B - late O type ZAMS star.

This discussion suggests that the geometrical properties and the amplitude of the observed 6.7 GHz maser velocities can be explained in terms of rotation and expansion about a massive YSO. The idea that the methanol-masing gas can participate in an overall expanding motion has also been proposed by Bartkiewicz et al. (2009) on the basis of single-epoch VLBI observations of a sample of 31 6.7 GHz maser sites. These authors have noted that most maser regions coincide with a 4.5 $\mu$m emission excess (as it is also the case for G23.01-0.41), which is commonly interpreted as a tracer of expanding, shocked, molecular gas. In the G23.01-0.41 region, the derived orientation of the rotation axis (at PA within $45\hbox{$^\circ$ }$ $\pm$  $25\hbox{$^\circ$ }$) is consistent with the scenario where 6.7 GHz CH3OH masers can be tracing the internal portions (within a radius of about 2000 AU from the YSO) of the rotating core, observed in the NH3 and CH3CN lines on arcsec scale along the SE-NW direction (Furuya et al. 2008; Codella et al. 1997). The pattern of CH3CN l.o.s. velocities observed by Furuya et al. (2008, Fig. 11), mainly blueshifted to the NW and redshifted to the SE, agrees with the distribution of l.o.s. velocities of 6.7 GHz CH3OH masers at a much smaller angular scale. We note that the 12.2 GHz maser emission measured in the G23.01-0.41 region (Brunthaler et al. 2009) has both position and LSR velocity ( $V_{\rm LSR} = 81.5$ km s-1) consistent with the 6.7 GHz masers (Fig. 4). In order to produce bright 6.7 and 12.2 GHz masers ( $T_{\rm b} \ga 10^{10}$ K), the Class II methanol maser pumping models by Cragg et al. (2005) prescribe a combination of warm dust ($T_{\rm d}$ = 175 and 125 K) and cool gas ($T_{\rm k}$ = 30 and 50 K), for a gas density of $n_{\rm H_2}$ = 106-107 cm-3. These values agree well with the parameters of the ammonia core ($T_{\rm k}$ = 58 K and $n_{\rm H_{2}}= 6.9$ $\times$ 106 cm-3) derived by Codella et al. (1997), and would marginally support the idea of an association of methanol masers with the NH3 core.

The measured pattern of 6.7 GHz maser proper motions offers a simple explanation that the CH3CN LSR velocity gradient in the toroid mapped by Furuya et al. (2008) presents an insufficiently defined orientation. Gas close to the equatorial plane would indeed undertake a complex motion resulting from a combination of rotation and expansion. Taking all the 6.7 GHz maser features with measured proper motions, the mean absolute value ( ${\approx}4$ km s-1) of the radial velocity components is basically the same as that of the azimuthal velocity components, indicating that the masing gas expands and rotates at similar speed. Assuming that the expansion of the gas traced by the 6.7 GHz masers is momentum-driven, the momentum rate to accelerate the gas can be estimated with the expression $\dot{P} = M ~ V^{2} / R$, where M is the total mass of the expanding gas, V the average expansion velocity and R the radius of the expanding sphere (working in spherical symmetry, for simplicity). Taking an upper limit to the gas density of $n_{\rm H_{2}}=10^7$ cm-3, a velocity V = 4 km s-1, and an upper limit to the observed (sky-projected) distance of 6.7 GHz masers from the YSO of R = 2000 AU, a momentum rate $\dot{P} = 3$ $\times$ 10-3 $M_\odot$ yr-1 km s-1is derived. This value is about two orders of magnitude smaller than the momentum rate of the YSO wind supposed to be driving the expansion of water masers of cluster ``C'', indicating that a negligible fraction of the wind, non-collimated into the jet and blowing across the equatorial plane, could be responsible for the expansion of the gas nearby the YSO. The YSO wind is only one of the possible causes for the observed 6.7 GHz maser outward motion. The spatial sampling of the measured maser velocities is not sufficiently complete for a quantitative analysis to effectively constrain the geometry of the masing gas and determine which portions of it is expanding.

5.4 A molecular expanding layer in front of the central source?

Figures 3c and 4 show that the spatial distribution of the 1.665 GHz OH masers differs from that of 6.7 GHz CH3OH and 22.2 GHz H2O masers. The N-S elongated structure traced by the OH masers over the 1.3 cm continuum is slightly offset to the east of the water maser cluster ``C'', and is found near to the (putative) YSO location. To explain the strongly blueshifted l.o.s. velocities (from -4 to -14 km s-1) of this cluster of OH masers, a possible interpretation is that they are seen in the foreground of the YSO and the radio continuum emission, and that they are originating in a layer of gas moving toward the observer. The same wind which we have conjectured to be driving the expansion of water masers in cluster ``C'', might be responsible for accelerating the gas hosting the OH maser structure. The OH and CH3OH Class II maser excitation models by Cragg et al. (2002, Fig. 4# predict strong 1.665 GHz maser action and inhibition of the 6.7 GHz masers when $n_{\rm H_2}$ $\le$ 106 cm-3. This suggests that the 1.665 GHz OH masers toward the radio continuum are tracing lower densities than those required for intense 6.7 GHz CH3OH masers. Thus, the properties of the elongated structure observed (only) in the 1.665 GHz OH maser emission might be explained if the OH masers trace a gas layer with $n_{\rm H_2}$ $\le$ 106 cm-3, rapidly expanding away from the YSO toward the observer. From Zeeman splitting, the l.o.s. magnetic field strength in this OH maser layer is estimated to be about 1 mG (see Table 3, features #11 and 20). This result generally agrees with a detailed VLBA study of OH maser proper motions and polarization properties in several UCH II regions by Fish & Reid (2007). These authors found that OH masers trace the expansion of ionized gas and also established a correspondence between the gas density and the magnetic field, deriving a value of the order of 1 mG for the l.o.s. magnetic field strength if $n_{\rm H_2}$ = 106 cm-3.

We propose that the OH absorption is spatially unrelated to the OH maser emission and may instead be connected with the large scale dynamics of the region. In the NRAO VLA Sky Survey, the G23.01-0.41 region shows diffuse 1.4 GHz radio continuum emission extended on scales of about 1$^\prime$. Toward G23.01-0.41, using the Effelsberg radiotelescope Downes et al. (1980) reported both diffuse H$110\alpha$ recombination line (4.874 GHz) emission and absorption in the 4.8 GHz H2CO line at various velocities ranging from 55 to 103 km s-1. Furthermore, a lower limit of a few arcminutes to the size of the absorption region is set by the H2CO VLA-D observations by Araya et al. (2008), who resolved the absorption. The 1.6 GHz OH absorption feature visible in our VLBA total-power spectra is mainly blueshifted and that may suggest that the absorbing molecular gas stays in front of the extended radio continuum emission and is expanding toward the observer (e.g., Szymczak & Gérard 2004).

6 Summary and conclusions

We observed the HMSFR G23.01-0.41 with the VLBI technique in the three most powerful maser transitions: 22.2 GHz H2O, 6.7 GHz CH3OH, and 1.665 GHz OH. The source G23.01-0.41 was also observed with the VLA, detecting faint ($\approx$mJy) radio continuum emission with 0 $.\!\!^{\prime\prime}$1 resolution toward the center of the HMC. Our main conclusions can be summarized as follows:

1.
H2O, CH3OH, and OH maser emissions are distributed within ${\approx}2000$ AU from the center of an HMC powering a massive bipolar outflow. The three maser species, although associated with the same YSO, present different, although complementary, spatial distributions and kinematical properties.

2.
Water masers trace fast (20-50 km s-1) outflows emitted from the YSO. An arc-like structure of water masers superposed on the radio continuum marks a fast shock propagating through dense gas, and is probably driven by a YSO wind. The 1.3 cm continuum source and the two clusters of water masers, aligned along the NE-SW direction detected at larger distance from the YSO, are likely tracing the jet driving the massive CO outflow observed at larger scales.

3.
Methanol masers present a N-S oriented, funnel-like spatial distribution with red- and blueshifted features located to the south and the north, respectively. Observing three different EVN epochs spanning 2 years, we measured accurate (relative errors ${<}30\%$) proper motions of 6.7 GHz methanol features. The maser transverse velocities range from a few to about 15 km s-1. The pattern of 6.7 GHz maser proper motions can be interpreted in terms of a composition of expansion and rotation around a YSO of about 20 $M_\odot$, with the rotation axis oriented on the sky at similar PA to the axis of the jet/outflow system traced by the water masers. It is then plausible that the CH3OH masers trace the internal portions of the toroid, elongated along the SE-NW direction, observed in the CH3CN and NH3 lines on arcsec scale.

4.
Hydroxyl masers superposed on the radio continuum are probably seen in the foreground and expand outward from the central source, tracing a lower density environment than that harboring the methanol and water masers.
This study demonstrates that multi-epoch VLBI observations of different maser species provide information useful to explore the complex phenomena occurring at distances of tens up to thousands of AU around massive YSOs. The best scientific return from VLBI maser observations can be expected when these observations will be compared to data of the new generation of (sub)millimeter interferometers (such as ALMA). Clearly, thermal line observations of both outflow(s) and core(s) with an angular resolution closer to that of VLBI maser data will help to solve ambiguities in the interpretation of kinematic structures, thanks to a better sampling of the (proto)stellar environment and its physical properties.
