Global and local expansion of magnetic clouds in the inner heliosphere
A. M. Gulisano^{1,2}  P. Démoulin^{3}  S. Dasso^{1,2}  M. E. Ruiz^{1,2}  E. Marsch^{4}
1  Instituto de Astronomía y Física del Espacio, CONICETUBA,
CC. 67, Suc. 28, 1428 Buenos Aires, Argentina
2
Departamento de Física, Facultad de Ciencias Exactas y
Naturales, Universidad de Buenos Aires, 1428 Buenos Aires, Argentina
3
Observatoire de Paris, LESIA, UMR 8109 (CNRS),
92195 Meudon Principal Cedex, France
4
MaxPlanckInstitut für Sonnensystemforschung, 37191 KatlenburgLindau, Germany
Received 22 April 2009 / Accepted 22 September 2009
Abstract
Context. Observations of magnetic clouds (MCs) are
consistent with the presence of flux ropes detected in the solar wind
(SW) a few days after their expulsion from the Sun as coronal mass
ejections (CMEs).
Aims. Both the in situ observations of plasma velocity
profiles and the increase of their size with solar distance show that
MCs are typically expanding structures. The aim of this work is to
derive the expansion properties of MCs in the inner heliosphere
from 0.3 to 1 AU.
Methods. We analyze MCs observed by the two Helios spacecraft
using in situ magnetic field and velocity measurements. We split
the sample in two subsets: those MCs with a velocity profile that is
significantly perturbed from the expected linear profile and those that
are not. From the slope of the in situ measured bulk velocity
along the SunEarth direction, we compute an expansion speed with
respect to the cloud center for each of the analyzed MCs.
Results. We analyze how the expansion speed depends on the MC
size, the translation velocity, and the heliocentric distance, finding
that all MCs in the subset of nonperturbed MCs expand with almost the
same nondimensional expansion rate (). We find departures from this general rule for
only for perturbed MCs, and we interpret the departures as the
consequence of a local and strong SW perturbation by SW fast streams,
affecting the MC even inside its interior, in addition to the direct
interaction region between the SW and the MC. We also compute the
dependence of the mean total SW pressure on the solar distance and we
confirm that the decrease of the total SW pressure with distance is the
main origin of the observed MC expansion rate. We found that
was
for nonperturbed MCs while
was
for perturbed MCs, the larger spread in the last ones being due to the
influence of the solar wind local environment conditions on the
expansion.
Key words: magnetic fields  magnetohydrodynamics (MHD)  Sun: coronal mass ejections (CMEs)  solar wind  interplanetary medium
1 Introduction
Magnetic clouds (MCs) are magnetized plasma structures forming a particular subset of interplanetary coronal mass ejections (ICMEs, e.g., Burlaga 1995). MCs are transient structures in the solar wind (SW) defined by an enhanced magnetic field with respect to that found in the surrounding SW with a coherent rotation of the field of the order of about a day when these structures are observed at 1 AU (Burlaga et al. 1981). A lower proton temperature than the expected one in the SW with the same velocity is another signature of MCs that complement their identification (e.g., Marsch et al. 2009; Richardson & Cane 1995).MCs interact with their environment during their journey in the solar wind (SW) from the Sun to the outer heliosphere and, since the SW pressure (magnetic plus plasma) decreases for increasing heliocentric distance, an expansion of MCs is expected. In a heliospheric frame, the in situ observed bulk plasma velocity typically decreases in magnitude from the front to the back inside MCs, confirming the expectation that MCs are expanding objects in the SW. Furthermore, from observations of large samples of MCs observed at different heliocentric distance, it has been shown that the size of MCs increases for larger heliocentric distances (Leitner et al. 2007, and references therein).
These structures have an initial expansion from their origin in the Sun, as shown from observations of radial expansion at the corona; e.g., an example of the leading edge of a CME traveling faster than its core is shown in Fig. 6 of Tripathi et al. (2006). However their subsequent expansion mainly will be given by the environmental (SW) conditions as a consequence of force balance (Démoulin & Dasso 2009).
Dynamical models have been used to describe clouds in expansion, either considering only a radial expansion (e.g., Osherovich et al. 1993; Farrugia et al. 1997; Nakwacki et al. 2008b; Farrugia et al. 1993), or expansion in both the radial and axial directions (e.g., Shimazu & Vandas 2002; Nakwacki et al. 2008a; Démoulin & Dasso 2009; Berdichevsky et al. 2003; Dasso et al. 2007). The main aim of these models is to take into account the evolution of the magnetic field as the MC crosses the spacecraft. Another goal is to correct the effect of mixing spatialvariation/timeevolution in the onepoint observations to obtain a better determination of the MC field configuration. The expansion of several magnetic clouds has been analyzed previously by fitting different velocity models to the data (Shimazu & Vandas 2002; Vandas et al. 2005; Démoulin et al. 2008; Mandrini et al. 2007; Yurchyshyn et al. 2006; Berdichevsky et al. 2003; Dasso et al. 2007; Farrugia et al. 1993).
The expansion of some MCs is not always well marked with in situ velocity measurements. This is in particular the case for small MCs or those overtaken by fast streams. Slow magnetic clouds, with velocities lower than or of the order of 400 km s^{1}, in general have small sizes, low magnetic field strengths, and only a few of them present shocks or sheaths (e.g., Tsurutani et al. 2004). Fast streams overtaking magnetic clouds from behind can compress the magnetic field in the rear for the overtaken MC, for instance in some cases forming large structures called merged interaction regions (e.g., Burlaga et al. 2003). The interaction between a stream and an MC can affect the internal structure of the cloud (e.g., as shown from numerical simulations by Xiong et al. 2007). The difference between the velocities of the front and back boundaries, called , was frequently used to qualify how important the expansion of an observed MC is. A larger is favorable for the presence of shocks surrounding the MC, especially for the presence of a backward shock (Gosling et al. 1994). A large is less important for the presence of a frontal shock since a frontal shock is also created by a large difference between the MC global velocity and the overtaken SW velocity.

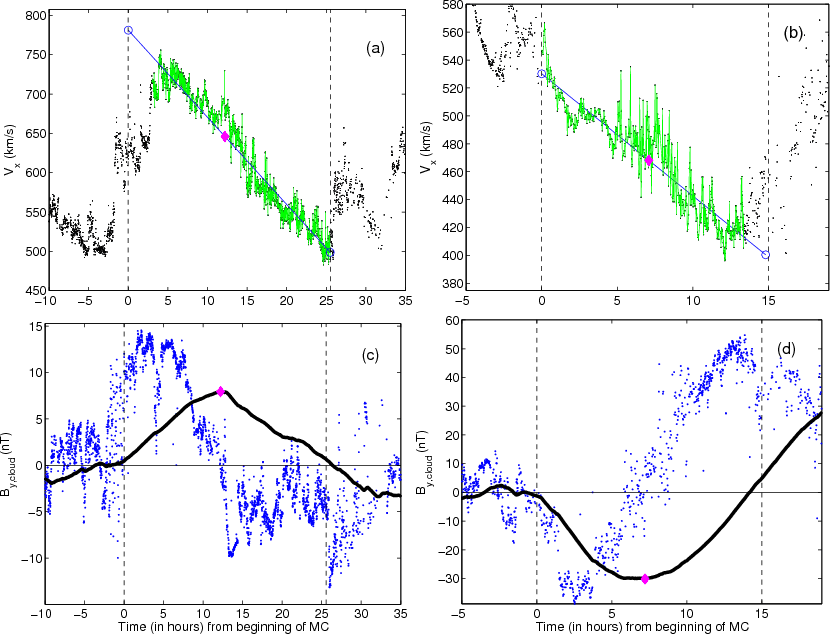

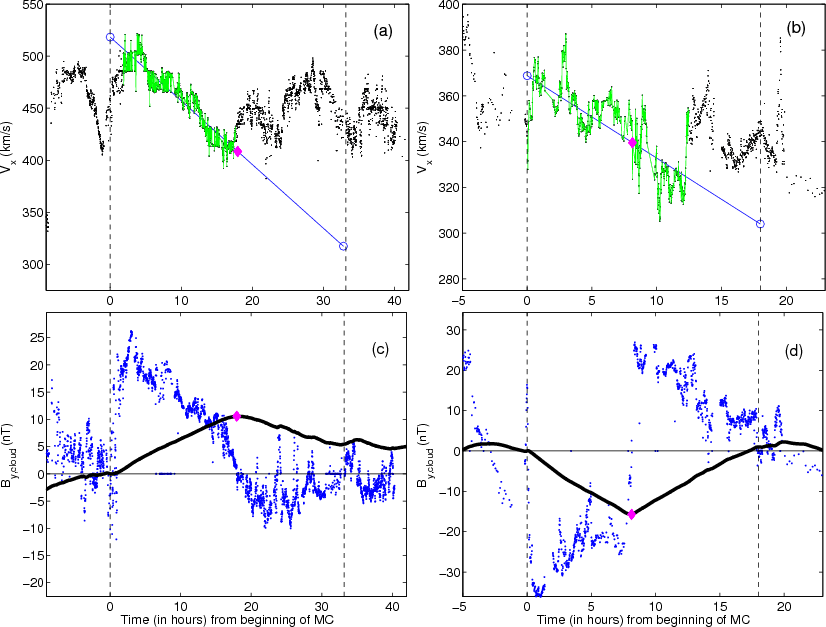

Figure 1: Examples of two analyzed MCs that are not significantly perturbed by a fast flow. The MC center was observed at 07Jan.1975 10:39 and 04Mar.1975 21:37 UT, for panels a), c) and b), d), respectively. The vertical dashed lines define the MC boundaries. a), b) V_{x} is the observed velocity component in the radial direction from the Sun, expressed in km per second. The straight line is the linear least square fit of the velocity in the time interval where an almost linear trend is present (where the observations are presented as a solid line). The linear fitting is extrapolated to the borders of the MC, which are marked with circles. c), d) B_{y} is the magnetic field component, in nT, both orthogonal to the MC axis and to the spacecraft trajectory, while the solid line represents F_{y}, which is the accumulated flux of B_{y} (Eq. (7)). The extremum of F_{y} (proxy of the cloud center) is indicated with diamonds (a color version is available in the electronic version).

Open with DEXTER
The quantity is a good proxy of the time variation of the global size of the MC, however, does not express how fast the expansion of an element of fluid is, since depends strongly on how big the studied MC is. For example the MC observed by ACE at 1 AU on 29 October 2004 (Mandrini et al. 2007) is formed by a flux rope with a large radius, AU, and it also has a large km s^{1}, and so, at first sight, it can be qualified as a very rapidly expanding MC. However, let suppose that the same MC would have most its flux having been reconnected with the encountered SW during the transit from the Sun, as has been observed in some cases (e.g., Dasso et al. 2006,2007), so that only the flux rope core would have been observed as a MC. If the remaining flux rope would have a radius of only 10^{2} AU, it would have shown km s^{1}, so it would have been qualified as a slowly expanding MC.
More generally, small flux ropes are expected to have intrinsically small , an expectation confirmed by the data (Figs. 3a,b). MCs have a broad range of sizes, with flux rope radii of a few 0.1 AU down to a few 10^{3} AU (Lynch et al. 2003; Feng et al. 2007), and it is necessary to quantify their expansion rate independently of their size. In this study, we analyze the expansion of MCs in the inner heliosphere, and find a nondimensional expansion coefficient (), which can be quantified from onepoint in situ observations of the bulk velocity time profile of the cloud. We demonstrate that characterizes the expansion rate of the MC, independently of its size.
We first describe the data used, and then the method to define the main properties of the MC (Sect. 2). In Sect. 3, we analyze the properties of the MC expansion, defining a proper expansion coefficient. We derive specific properties of two groups of MCs, defined from their interaction with the SW environment. Then, we relate the MC expansion rate to the decrease of the total SW pressure with solar distance. We summarize our results in Sect. 4 and conclude in Sect. 5.
2 Data and method
2.1 Helios data base
We have studied the MCs reported by different authors from the Helios 1 and 2 missions (Leitner et al. 2007; Bothmer & Schwenn 1998; Liu et al. 2005); from November 1974 to 1985 for Helios 1 and from January 1976 to 1980 for Helios 2. We analyzed observations of plasma properties (Rosenbauer et al. 1977), in particular bulk velocity and density of protons (Marsch et al. 1982), and magnetic field vector (Neubauer et al. 1977), for a time series with a temporal cadence of s.The magnetic and velocity fields observations are in a righthanded system of coordinates (, , ). corresponds to the SunSpacecraft direction, is on the ecliptic plane and points from East to West (in the same direction as the planetary motion), and points to the North (perpendicular to the ecliptic plane and closing the righthanded system).
2.2 Definition of the MC local frame
To facilitate the understanding of MC properties, we define a system of coordinates linked to the cloud in which is along the cloud axis (with at the MC axis). Since the velocity of an MC is nearly in the Sunspacecraft direction and as its speed is much higher than the spacecraft speed (which can be supposed to be at rest during the cloud observing time), we assume a rectilinear spacecraft trajectory in the cloud frame. The trajectory defines a direction (pointing toward the Sun); then, we define in the direction and completes the righthanded orthonormal base ( ). We also define the impact parameter, p, as the minimum distance from the spacecraft to the cloud axis.The observed magnetic field in an MC can be expressed in this local frame, transforming the observed components (B_{x}, B_{y}, B_{z}) with a rotation matrix to ( , , ). In particular, for p=0 and an MC described by a cylindrical magnetic configuration, i.e. , we have and when the spacecraft leaves the cloud. In this particular case, the magnetic field data will show: , a large and coherent variation of (with a change of sign), and an intermediate and coherent variation of , from low values at one cloud edge, with the largest value at its axis and returning to low values at the other edge.
More generally, the local system of coordinates is especially useful when p is small compared to the MC radius (R) since the direction of the MC axis can be found using a fitting method or applying the minimum variance (MV) technique to the normalized time series of the observed magnetic field (e.g. Dasso et al. 2006, and references therein). In particular, from the analysis of a set of cylindrical synthetic MCs, Gulisano et al. (2007) found that the normalized MV technique provides a deviation of the real orientation of the main MC axis of less than even for p as large as of the MC radius.
2.3 Definition of the MC boundaries
As the first step of an iterative process, we choose the MC boundaries reported in the literature, and perform a normalized minimum variance analysis to find the local frame of the MC. We then analyze the magnetic field components in the local frame, and redefine the boundaries of each MC, according to the expected typical behavior of the axial field ( , having its maximum near the center and decreasing toward the MC boundaries), the azimuthal field ( , maximum at one of the borders, minimum at the other one and changing its signs near the cloud center), and , which is expected to be small and with small variations (see Gulisano et al. 2007). Moreover, in the MC frame it is easier to differentiate the SW and MC sheath magnetic field, which is fluctuating, from the MC field, which has a coherent and expected behaviour for the three field components. We then moved the borders in order to reach these properties of the local field components, and performed the same procedure iteratively to find an improved orientation, using several times the minimum variance technique. We applied this procedure to each MC of our sample.Figure 2: Examples of two analyzed MCs that are perturbed by a fast flow as seen in the upper panels. The MC center was observed at 30Jan.1977 03:18 and 23Jun.1980 12:25 UT, for panels a), c) and b), d), respectively. The external perturbations enter in a significant part of the MCs. The same quantities, as in Fig. 1, are shown (a color version is available in the electronic version).

Open with DEXTER
Table 1: List of MC events.
2.4 Characterization of the MC expansion
Most MCs have a higher velocity in their front than in their back, showing that they are expanding magnetic structures in the SW. About half of the studied MCs have well defined linear profile V_{x}(t)(Figs. 1a,b), while for the other half, V_{x}(t)is nearly linear only in a part of the MC which includes the MC center (Figs. 2a,b). The distortions of V_{x}(t) are more frequently due to an overtaking faster SW flow in the back of the MC.We split the data set in two groups:
nonperturbed MCs for cases where the velocity profile presents a
linear trend in more than 75% of the full size of the MC and
perturbed MCs for cases where this is not satisfied. There are
almost as many perturbed as nonperturbed
MCs, considering data from each spacecraft separately and both of them together.
The measured temporal profile V_{x}(t) is fitted using a least square
fit with a linear function of time,
where is the fitted slope of the linear function. We always keep the fitting range inside the MC, but restrict it to the most linear part of the observed profile. This choice minimizes the effect of the interacting flows (but it does not fully remove it, since a long term interaction can, a priori, change the expansion rate of the full MC).
The linear fit is used to define the velocities
and
at the MC boundaries
(Sect. 2.3). Then, we define the full expansion
velocity of an MC as:
For nonperturbed MCs, , is very close to the observed velocity difference , see e.g. upper panels of Fig. 1. For perturbed MCs, this procedure minimizes the effects of the perturbations entering the MC. Then, the expansion velocity is defined consistently for the full set of MCs.

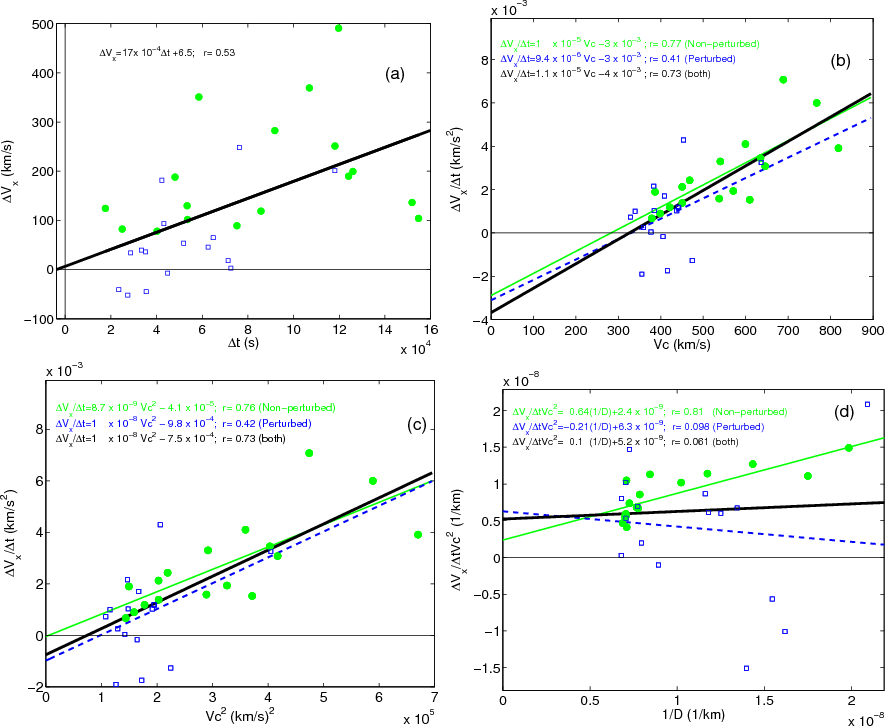

Figure 3: The panels a) d) show the correlation analysis between proxies for MC expansion with different physical quantities. The MCs are separated in two groups: perturbed (empty square symbol) and nonperturbed (filled circle symbol). The straight lines are the result of a least square fit for perturbed (dashed line), nonperturbed (thin continuous line), and for both set of MCs in the list of events shown in Table 1 (thick continuous line). is defined by Eq. (2), , is the velocity of the MC center (or at the closest approach distance), and D is the distance to the Sun. The fitted values and the obtained correlation coefficient (r) are included as insets, considering the different groups. More significant correlation is present for the nonperturbed cases (a color version is available in the electronic version).

Open with DEXTER
2.5 MC size
From the determination of the boundaries described above, we can estimate the size, S, of the flux rope along (the SunSpacecraft direction). S is computed as the time duration of observation of the MC multiplied by the MC velocity at the center of the structure (see end of Sect. 2.7).We perform a linear least square fit in loglog plots of S as a function of the distance to the Sun (D). As expected, the size has a clear dependence with D:
where S and D are in AU. Our results are compatible within the error bars with previous studies:
where d is an estimation of the true diameter of the MC. Our results are closer to Bothmer & Schwenn (1998) and Liu et al. (2005) who analyzed MCs and ICMEs, respectively. The larger difference is between our results and the last two ones while they are based on the most different sets, as follows. Wang et al. (2005) studied a large set of ICMEs defined only by a measured temperature lower by a factor of 2 than expected in the SW with the same speed (e.g., Richardson & Cane 2004). This set included MCs, but it is dominated by nonMC ICMEs. Conversely, Leitner et al. (2007) analyzed only MCs, with a strict classical definition. They fitted the magnetic field observations with a classical cylindrical linear forcefree field, then they found the impact parameter and the orientation of the MC axis to estimate the true diameter, d, of the MCs. So the selected events and the method of Wang et al. and Leitner et al. are noticeably different. We also note that Leitner et al. (2007) found a larger exponent, , when they restrict their data to AU. This indicates that the relation is not strictly a powerlaw and this could be the main origin of the different results (which are so dependent on the distribution of events with solar distance in the selected sets).

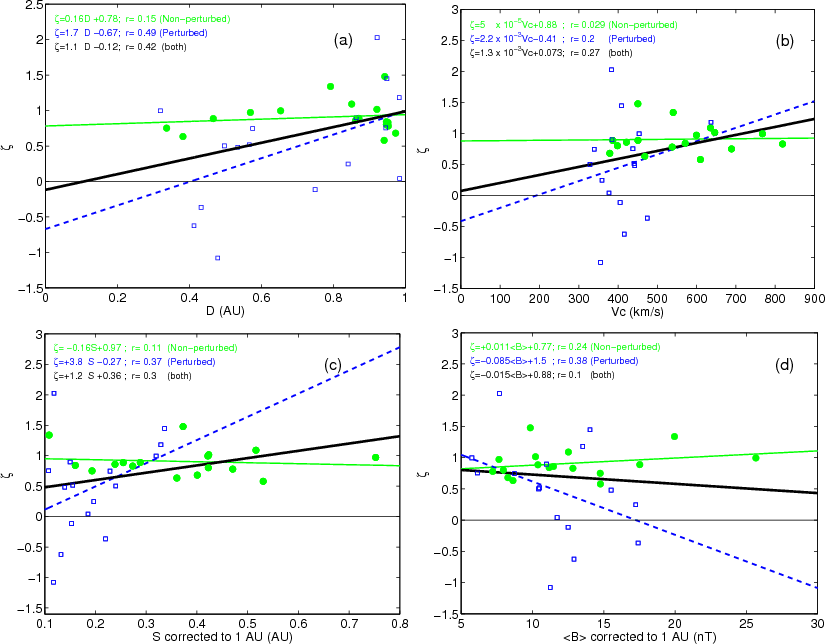

Figure 4: Panels a) d) show the correlation analysis that tests for the dependence of the nondimensional expansion factor (Eq. (8)) as a function of other parameters. Perturbed and nonperturbed MCs are represented as in Fig. 3. and are normalized to 1 AU using the size and field strength dependence on the distance, according to the relationship given in Eq. (9) (a color version is available in the electronic version).

Open with DEXTER
2.6 Magnetic field strength
Another important characteristic of MCs is their magnetic field strength. We define the average field within each MC and proceed as above with S. has an even stronger dependence upon distance:where the units of and D are nT and AU respectively. Our results have a stronger dependence on D than previous results:
Again the strongest difference exists between our results and the ones of Leitner et al. (2007). The origin of this difference is expected to be the same as for the size. Indeed for AU, Leitner et al. (2007) found a more negative exponent, , closer to our results, as ocurred for the size.
The typical expansion speed in MCs is of the order of half the Alfvén speed (e.g., Klein & Burlaga 1982). In our studied set of MCs, we have also found that the expansion speed was lower than the Alfvén speed [not shown]. This is a necessary condition to expect that the magnetic field evolves globally, adapting its initial magnetic field during its expansion, because the Alfvén speed is the velocity of propagation of information through the magnetic structure.
2.7 MC center and translation velocity
Following Dasso et al. (2006), we define the accumulative flux per unit length L(along the MC axial direction):Here we neglect the evolution of the magnetic field during the spacecraft crossing period (so also the ``aging'' effect, see Dasso et al. 2007). The set of field lines, passing at the position of the spacecraft at t_{1}, with the hyphotesis of symmetry of translation along the main axis, defines a magnetic flux surface, which is wrapped around the flux rope axis. Then, any magnetic flux surface will be crossed at least twice by the spacecraft, once at t_{1} and once at t_{2} defined by F_{y}(t_{1},t_{2})=0. Then, this property of F_{y}(t_{1},t_{2}) permits us to associate any outbound position, within the flux rope, to its inbound position belonging to the same magneticflux surface. The global extremum of F_{y}(t_{1},t), for t_{1} having a fixed value, locates the position where the spacecraft trajectory has the closest approach distance to the MC axis (MC center). This position can also be found directly from , where crosses zero. Nevertheless, using the integral quantity F_{y} has the advantage of decreasing the fluctuations and of outlining the global extremum, compared to the local extrema (see lower panels of Figs. 1 and 2).
The velocity at the MC center () is computed from the fitted linear regression Eq. (1) evaluated at the time when the spacecraft reaches the MC center.
3 Expansion rate of MCs
3.1 Correlation involving the expansion velocity
From here on, we classify the MCs belonging to the full set of events, according to the quality of their velocity and magnetic observations. If they were too noisy or with a lot of data gaps, we exclude them from the following study, keeping only those MCs with relatively good quality (listed in Table 1)., as defined by Eq. (2), characterizes the expansion speed of the crossed MC. However, as outlined in Sect. 1, is expected to be strongly correlated with the MC size, so that it does not express directly how fast a given parcel of plasma is expanding in the MC. We therefore define below, after a few steps, a better measure of the expansion rate. The size of an MC is proportional to and to . Figure 3a shows a clear positive correlation between and . Moreover the least square fit of a straight line for the full set of MCs gives a fitted curve passing in the vicinity of the origin (within the uncertainties present on the slope). This affine correlation is then removed by computing . This quantity also shows, as expected, a positive correlation with (Fig. 3b), but differently above, the fitted straight line stays far from the origin, so we cannot simply remove the correlation by dividing by . However, its dependence on brings the fitted straight line close enough to the origin (within the uncertainties of the fit, Fig. 3c) so that is a meaningful quantity. These correlations are present for both groups of MCs, but they are much stronger for nonperturbed MCs (Figs. 3b,c). Other correlations have being attempted with the above methodology. Either there is no significant correlation, or the fitted curve passes far from the origin. There is still the exception that has an affine correlation with 1/Dfor nonperturbed MCs (Fig. 3d).
3.2 Nondimensional expansion rate
The above empirical correlation analysis suggests that we can define the nondimensional expansion rate as the quantity:The first steps were to remove the MC size dependence, while the last step could be further justified by the need to have a nondimensional coefficient. Finally, it is remarkable that the correlation analysis of the MC data leads to the definition of the same variable, , as the theoretical analysis of Démoulin & Dasso (2009).
We next verify that is no longer dependent on , , D or some combination of them. Figures 4a,b show two examples of this exploration. Indeed, the nonperturbed MCs show almost no correlation, while there are still some correlations when the perturbed MCs are considered. Figure 4b also shows that even for slow MCs (see Sect. 1), the nondimensional expansion rate () is not correlated with .
Still, does
depend on the properties of the MC considered?
To test this we first need to remove the distance dependence on Sand
,
found in Sects. 2.5 and 2.6, by
defining values at a given solar distance (here taken at 1 AU). We
use:
We find that there is no significant correlation between and , as well as between and for the nonperturbed MCs (Figs. 4c,d). Taking other exponents, in the vicinity of the exponents used in Eq. (9), we also find very low correlation coefficients, in the ranges [0.08, 0.15] for and [0.15, 0.29] for .

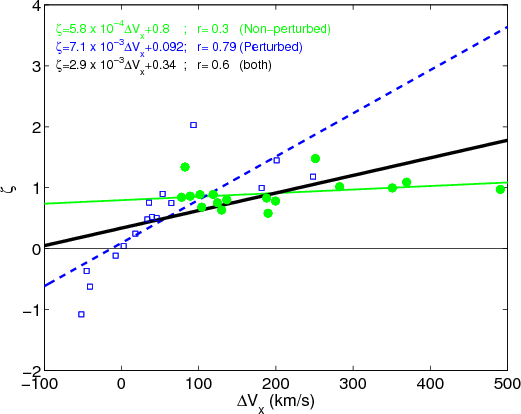

Figure 5: Perturbed and nonperturbed MCs have a remarkably different behavior of when they are plotted as a function of . The drawing convention is the same as in Figs. 3, 4 (a color version is available in the electronic version).

Open with DEXTER
3.3 Expansion of nonperturbed MCs
Perturbed and nonperturbed MCs have a remarkable different behavior of as a function of (Fig. 5). While for nonperturbed MCs the correlations have been removed, the perturbed ones have well correlated with (r=0.79).To explain the different behavior of
let us take into account that
the dependence of the size on the heliocentric distance is of the form
(as observed from several statistical studies,
Eqs. (3)(4)):
where S_{0} is the reference size at the distance D_{0}. Its physical origin is the approximate pressure balance between the MC and the surrounding SW (Démoulin & Dasso 2009, see Sect. 3.5). This physical driving of the expansion is expected to induce a smooth expansion so that the size of an individual MC closely follows Eq. (10). Then, for nonperturbed MCs, we can differentiate Eq. (10) with time to derive the expansion velocity :
Then, the nondimensional expanding rate of Eq. (8) is:
This implies that is independent of the size and the velocity of the MC as well as its distance from the Sun and its global expansion rate , in agreement with our results (Figs. 4, 5). It also implies that the velocity measurements across a given MC permits to estimate the exponent m in Eq. (10). Indeed the values of mdeduced from the statistical study of MC size versus distance (Eq. (3)) are in agreement with the mean value found independently with the velocity measurements (Fig. 5, Table 1).
3.4 Expansion of perturbed MCs
For perturbed MCs, the estimation of both from the size evolution with distance and from the measured velocity still gives consistent estimations (Eq. (3), Table 1). However, the mean value of is lower ( ) than for nonperturbed MCs ( ). More important, has a much larger spread for perturbed than nonperturbed MCs (by a factor 4 larger). Such a larger dispersion of is expected to be the result of the variable physical parameters (such as ram pressure) of the overtaking streams, and also because the interaction is expected to be in a different temporal stage for different perturbed MCs (ranging from the beginning to the end of the interaction period).The effect of an overtaking stream is simply to compress the MC (at first thought), so MCs perturbed by this effect are expected to have a lower than nonperturbed MCs. This is true in average, but there is a significant fraction (5/16) of perturbed MCs that are in fact expanding faster than the mean of nonperturbed MCs. The largest is also obtained for a perturbed MC. Moreover, for perturbed MCs still has a good correlation with , opposite to the result obtained for nonperturbed MCs (Fig. 5). Why do perturbed MCs have these properties?
When an MC is overtaken by a fast SW stream, it is compressed by the ram, plasma and magnetic pressure of the overtaking stream, so its size increases less rapidly with solar distance (than without interaction). If the interaction is strong enough, this can indeed stop the natural expansion and create an MC in compression, as in the 3 cases present in Table 1, where . A sketch of such evolution is given in Fig. 6. However, this interaction will not last for a long period of time since the overtaking stream can overtake the flux rope from both sides. As the total pressure in the back of the MC decreases, the expansion rate of the MC increases. Indeed, its expansion rate could be faster than the typical one for nonperturbed MCs, as follows. The compression has provided an internal pressure that is stronger than the surrounding SW total pressure. Then, when the extra pressure of the overtaking stream has significantly decreased, the MC has an overpressure compared to the surrounding SW, so it expands faster than usual i. e., an overexpansion, see Gosling et al. (1995). Indeed, the flux rope is expected to evolve towards the expected size that it would have achieved without the overtaken SW flow.

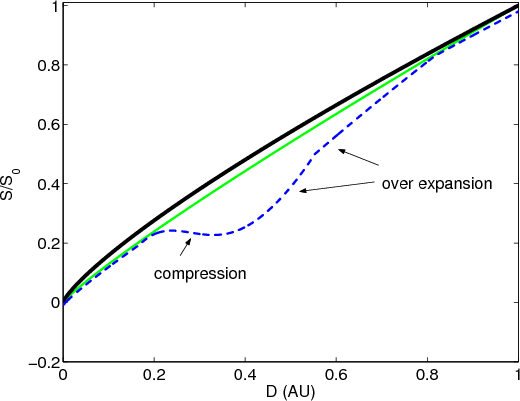

Figure 6: Cartoon of a possible evolution of the size of the MC with the heliodistance, showing the expected global expansion (thick solid line), an example of a nonperturbed MC (thin solid) and a perturbed MC (dashed line) (a color version is available in the electronic version).

Open with DEXTER
So, depending on which time the MC is observed in the interaction process, a perturbed MC can expand slower or faster than without interaction (Fig. 6). This explains the dispersion of found for perturbed MCs, but also the presence of some MCs with faster expansion than usual.
In the case of perturbed MCs, their sizes still follow
Eq. (10) on average (as shown by Eq. (3)), but it
has no meaning to apply this law locally to a given MC. In
particular, we cannot differentiate Eq. (10) with time to
get an estimation of the local expansion velocity of a perturbed MC
(so we cannot write Eq. (11)). Rather we can use
Eq. (10) only to have an approximate size S in the
expression of :
The dependence of is relatively weak, but still present (Fig. 4a). also has a dependence on , but the range of within the studied perturbed group is very limited to derive a reliable dependence from the observations (Fig. 4b), and, moreover, there is a dependence on S_{0} that we cannot quantify. It remains that the strongest correlation of is with (Fig. 5). Indeed, for perturbed MCs, strongly reflects their local expansion behavior, so that is strongly correlated to .
3.5 Physical origin of MC expansion
The main driver of MC expansion is the rapid decrease of the total SW pressure with solar distance (Démoulin & Dasso 2009). Other effects, such as the internal overpressure, the presence of a shock, as well as the radial distribution and the amount of twist within the flux rope have a much weaker influence on the expansion. This result was obtained by solving the MHD equations for flux ropes having various magnetic field profiles, and with ideal MHD or fully relaxed states (minimizing magnetic energy while preserving magnetic helicity). Within the typical SW conditions, they have shown that any forcefree flux rope will have an almost self similar expansion, so a velocity profile almost linear with time as observed by a spacecraft crossing an MC (e.g. Figs. 1, 2). They also relate the normalized expansion rate to the exponent of the total SW pressure as a function of the distance D to the Sun (defined by ) as .Here we further test the above theory with the MCs analyzed in this paper, by comparing the value obtained for with the value of obtained from previous studies of the SW.
According to Mariani & Neubauer (1990), from fitting a power law to observations of the field strength in the inner heliosphere according to B = B_{0} (D/D_{0})^{nB}, a global decay law is obtained with ( nT at D_{0} = 1 AU) from Helios 1, and ( nT at D_{0} = 1 AU) from Helios 2.
For the proton density ( ) we consider a density of cm^{3} at 1 AU (averaging slow and fast SW according to Schwenn 2006) and n_{N}=2 (corresponding to the 2D expansion for the stationary SW with constant radial velocity).
According to Schwenn (2006) and Totten et al. (1995), it is possible to represent a typical dependence of the proton temperature () upon D as approximately with ( K at D_{0} = 1 AU).
For electron temperature ( ) we follow Marsch et al. (1989), in particular their results for the ranges of velocities (300500) km s^{1} to better represent the typical conditions of the SW. For the velocity range (300400) km s^{1}, Marsch et al. (1989) found K and ; for the velocity range (400500) km s^{1}, K and . For electrons we then consider mean temperature averaged over these two ranges of SW speeds.
The partial pressures (magnetic, proton, and electron) are shown in Fig. 7. Neglecting the small effect of the particles, the total pressure in the SW ( ) is: . We then propose that the total pressure also follows a power law ( ) and fit this power law to . Then, we fit with a power law ( ). The sum of different power laws is generally not a power law, however in the present case we still find a total pressure which is very close to a power law since the magnetic and plasma pressures have similar exponents. This also implies that the exponent found, , has a low sensitivity to the plasma and the relative pressure contribution of the electrons and protons.
Using the result of Démoulin & Dasso (2009) that for forcefree flux rope, we found , in full agreement, within the error bars, with found from velocity measurement in nonperturbed MCs (Table 1). This further demonstrates that MC expansion is mainly driven by the decrease of the surrounding SW total pressure with solar distance. The main departure from this global evolution is due to the presence of overtaking flows.

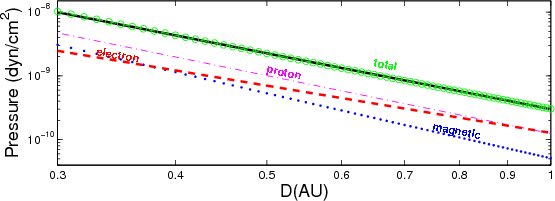

Figure 7: Loglog plots of the SW total pressure and its components as a function of the solar distance. The solid line shows the least square straight line fitted to the total pressure as computed from the points marked with circles. The total pressure in the SW decreases as (a color version is available in the electronic version).

Open with DEXTER
4 Summary and discussion of main results
MCs have a specific magnetic configuration, forming flux ropes which expand in all directions, unlike the almost 2D expansion of the surrounding SW. But how fast do they expand? Is the expansion rate specific for each MC or is there a common expansion rate? What is the role of the surrounding SW? Finally, what is the main driver of such 3D expansion?
In order to answer these questions we have reanalyzed a significant set of MCs observed by both Helios spacecrafts. In order to better define the MC extension, we first analyzed the magnetic data, finding the direction of the flux rope axis, and then we rotated the magnetic data in the MC local frame. This step is important to separate the axial and orthoaxial field components since they have very different spatial distributions in a flux rope, and since we then can use the magnetic flux conservation of the azimuthal component as a constraint on the boundary positions (e.g., as done in Steed et al. 2008; Dasso et al. 2006). Then, in the local MC frame, we can better define the boundaries of the MC.
The observed velocity profile typically has a linear variation with time, with a larger velocity in front than in the back of the MC. This is a clear signature of expansion. On top of this linear trend, fluctuations of the velocity are relatively weak, with the most noticeable exception occurring when an overtaking fast stream is observed in the back of the MC. Such fast flow can enter the MC, removing the linear temporal trend. We consider these overtaken MCs in a separate group as perturbed MCs (Fig. 2). We exclude from the analysis the MCs where the overtaking flow was extending more than half the MC size and MCs where the data gaps were too large. The remaining MCs are classified as nonperturbed, even if some of them have weak perturbations in their velocity profiles. These perturbations are filtered by considering only the major part of the velocity profile where the profile is almost linear with time (Fig. 1).
The group of nonperturbed MCs has a broad and typical range of sizes and magnetic field strengths ( [0.1,0.75] AU and [7,25] nT respectively when rescaled at 1 AU). They also have a broad range of expansion velocities ([80,500] km s^{1}). Such a range of expansion velocity cannot be explained by the range of observing distances, (D in [0.3,1] AU), since the expansion velocity decreases only weakly within this range of D. However, we found that the expansion velocity is proportional to the MC size. By further analyzing the correlation between the observed expansion velocity and other measured quantities, such as the MC velocity, we empirically defined a nondimensional expansion coefficient (Eq. (8)). For the nonperturbed MCs, is independent of all the other characteristics of the MCs (such as size and field strength). Moreover, this empirical definition of , obtained by removing the correlation in the data between the expansion rate and other quantities, finally defines the same quantity as the one defined from theoretical considerations by Démoulin et al. (2008). We conclude that characterizes the expansion rate of nonperturbed MCs.
For the nonperturbed MCs, we found that is confined to a narrow interval: . This is consistent with the result obtained at 1 AU for a set of 26 MCs observed by Wind and ACE (Démoulin et al. 2008). Indeed, we found that is independent of solar distance (within [0.3,1] AU) in the Helios MCs.
What is the origin of this common expansion rate of MCs? Démoulin & Dasso (2009) have shown theoretically that the main origin of MC expansion is the decrease of the total SW pressure with solar distance D. With a SW pressure decreasing as , they found that independently of the magnetic structure of the flux rope forming the MC. In the present work, we reanalyzed the total SW pressure variation with D, revising previous studies that also analyzed Helios data (Schwenn 2006; Totten et al. 1995; Marsch et al. 1989; Mariani & Neubauer 1990). We found , which implies , in agreement with our estimation of from the measured velocity in MCs. We then confirm that the fast decrease of the total SW pressure with solar distance is the main cause of the MC expansion rate.
For MCs overtaken by a fast SW stream (or by another flux rope on its back, e.g. Dasso et al. 2009), we minimize its importance in the estimation of the MC expansion rate by considering only the part of the velocity profile which is nearly linear with time. Still, the mean computed for perturbed MCs is significantly lower than the mean value for nonperturbed MCs, showing that the overtaking flows have a more global effect on MCs (than the part where the velocity profiles significantly depart from the linear temporal behavior). A lower expansion rate is a natural consequence of the compression induced by the overtaking flow.
More surprising, some perturbed MCs are found to expand faster (larger ) than nonperturbed MCs. We conclude that such MC are probably observed after the main interaction phase with the overtaking flow, so that they expand faster than usual in order to sustain an approximate pressure balance with the surrounding SW (Fig. 6). More precisely, as the overtaking flow disappears from the back of the MC, the MC is expected to tend towards the size that it would have reached without the interaction with the fast stream. Since it was compressed, it is expanding faster than usual to return to its expected size in a normal SW.
5 Conclusions
Our present results confirm and extend our previous work on the expansion of MCs. The nondimensional expansion factor (Eq. (8)) gives a precise measure of the expanding state of a MC. In particular, it removes the size effect which could give the false impression that parcels of fluid in large MCs are expanding faster. The value of in nonsignificantly perturbed MCs is clustered in a narrow range, independent of their magnetic structure, but determined by the pressure gradient of the surrounding SW. The mean value of is also nearly the exponent of the solar distance for the MC size (determined from the analysis of MCs at different solar distances, Sect. 2.5).However, for perturbed MCs, has a much broader range, a result linked to its proportionality to the local expansion velocity. So for perturbed MCs, is a measure of the local expansion rate and of the importance of the overtaking stream (i.e., a quantification of the influence of the MC/stream interaction on the expansion of the MC).
Finally for nonperturbed MCs, is independent of the solar distance in the inner heliosphere. Presently we do not know how far this result extends to larger distances, even if it is an expected result as long as the flux ropes still exist. This will be the subject of a future study.
AcknowledgementsWe thank the referee for reading carefully, and improving the manuscript. The authors acknowledge financial support from ECOSSud through their cooperative science program (No. A08U01). This work was partially supported by the Argentinean grants: UBACyT X425 and PICTs 200533370 and 200700856 (ANPCyT). S.D. is member of the Carrera del Investigador Científico, CONICET. A.M.G. is a fellow of Universidad de Buenos Aires. M.E.R is a fellow of CONICET.
References
 Berdichevsky, D. B., Lepping, R. P., & Farrugia, C. J. 2003, Phys. Rev. E, 67, 036405 [NASA ADS] [CrossRef] [Google Scholar]
 Bothmer, V., & Schwenn, R. 1998, Annales Geophys., 16, 1 [Google Scholar]
 Burlaga, L., Berdichevsky, D., Gopalswamy, N., Lepping, R., & Zurbuchen, T. 2003, J. Geophys. Res., 108, A01425 [Google Scholar]
 Burlaga, L., Sittler, E., Mariani, F., & Schwenn, R. 1981, J. Geophys. Res., 86, 6673 [Google Scholar]
 Burlaga, L. F. 1995, Interplanetary magnetohydrodynamics (New York: Oxford University Press) [Google Scholar]
 Dasso, S., Mandrini, C. H., Démoulin, P., & Luoni, M. L. 2006, A&A, 455, 349 [Google Scholar]
 Dasso, S., Mandrini, C. H., Schmieder, B., et al. 2009, J. Geophys. Res., 114, A02109 [NASA ADS] [CrossRef] [Google Scholar]
 Dasso, S., Nakwacki, M. S., Démoulin, P., & Mandrini, C. H. 2007, Sol. Phys., 244, 115 [NASA ADS] [CrossRef] [Google Scholar]
 Démoulin, P., & Dasso, S. 2009, A&A, 498, 551 [Google Scholar]
 Démoulin, P., Nakwacki, M. S., Dasso, S., & Mandrini, C. H. 2008, Sol. Phys., 250, 347 [NASA ADS] [CrossRef] [Google Scholar]
 Farrugia, C. J., Burlaga, L. F., Osherovich, V. A., et al. 1993, J. Geophys. Res., 98, 7621 [NASA ADS] [CrossRef] [Google Scholar]
 Farrugia, C. J., Osherovich, V. A., & Burlaga, L. F. 1997, Annales Geophysicae, 15, 152 [NASA ADS] [CrossRef] [Google Scholar]
 Feng, H. Q., Wu, D. J., & Chao, J. K. 2007, J. Geophys. Res., 112, A02102 [NASA ADS] [CrossRef] [Google Scholar]
 Gosling, J. T., Bame, S. J., McComas, D. J., et al. 1994, Geophys. Res. Lett., 21, 237 [Google Scholar]
 Gosling, J. T., Bame, S. J., McComas, D. J., et al. 1995, Space Sci. Rev., 72, 133 [NASA ADS] [CrossRef] [Google Scholar]
 Gulisano, A. M., Dasso, S., Mandrini, C. H., & Démoulin, P. 2007, Adv. Spa. Res., 40, 1881 [CrossRef] [Google Scholar]
 Klein, L. W., & Burlaga, L. F. 1982, J. Geophys. Res., 87, 613 [Google Scholar]
 Leitner, M., Farrugia, C. J., Möstl, C., et al. 2007, J. Geophys. Res., 112, A06113 [NASA ADS] [CrossRef] [Google Scholar]
 Liu, Y., Richardson, J. D., & Belcher, J. W. 2005, Planet. Space Sci., 53, 3 [NASA ADS] [CrossRef] [Google Scholar]
 Lynch, B. J., Zurbuchen, T. H., Fisk, L. A., & Antiochos, S. K. 2003, J. Geophys. Res., 108, A01239 [NASA ADS] [CrossRef] [Google Scholar]
 Mandrini, C. H., Nakwacki, M., Attrill, G., et al. 2007, Sol. Phys., 244, 25 [NASA ADS] [CrossRef] [Google Scholar]
 Mariani, F., & Neubauer, F. M. 1990, The Interplanetary Magnetic Field (Physics of the Inner Heliosphere I), 183 [Google Scholar]
 Marsch, E., Yao, S., & Tu, C.Y. 2009, Annales Geophys., 27, 869 [NASA ADS] [CrossRef] [Google Scholar]
 Marsch, E., Schwenn, R., Rosenbauer, H., et al. 1982, J. Geophys. Res., 87, 52 [NASA ADS] [CrossRef] [Google Scholar]
 Marsch, E., Thieme, K. M., Rosenbauer, H., & Pilipp, W. G. 1989, J. Geophys. Res., 94, 6893 [Google Scholar]
 Nakwacki, M., Dasso, S., Démoulin, P., & Mandrini, C. H. 2008a, Geof. Int., 47, 295 [Google Scholar]
 Nakwacki, M., Dasso, S., Mandrini, C., & Demoulin, P. 2008b, J. Atmos. Sol. Terr. Phys., 70, 1318 [Google Scholar]
 Neubauer, F. M., Beinroth, H. J., Barnstorf, H., & Dehmel, G. 1977, J. Geophys., 42, 599 [Google Scholar]
 Osherovich, V. A., Farrugia, C. J., & Burlaga, L. F. 1993, J. Geophys. Res., 98, 13225 [NASA ADS] [CrossRef] [Google Scholar]
 Richardson, I. G., & Cane, H. V. 1995, J. Geophys. Res., 100, 23397 [NASA ADS] [CrossRef] [Google Scholar]
 Richardson, I. G., & Cane, H. V. 2004, J. Geophys. Res., 109, A09104 [Google Scholar]
 Rosenbauer, H., Schwenn, R., Marsch, E., et al. 1977, J. Geophys., 42, 561 [Google Scholar]
 Schwenn, R. 2006, Living Rev. Sol. Phys., 3, 2 [NASA ADS] [Google Scholar]
 Shimazu, H., & Vandas, M. 2002, Earth, Planets, and Space, 54, 783 [Google Scholar]
 Steed, K., Owen, C. J., Harra, L. K., et al. 2008, Annales Geophys., 26, 3159 [NASA ADS] [CrossRef] [Google Scholar]
 Totten, T. L., Freeman, J. W., & Arya, S. 1995, J. Geophys. Res., 100, 13 [Google Scholar]
 Tripathi, D., Solanki, S. K., Schwenn, R., et al. 2006, A&A, 449, 369 [Google Scholar]
 Tsurutani, B. T., Gonzalez, W. D., Zhou, X.Y., Lepping, R. P., & Bothmer, V. 2004, J. Atmos. Sol. Terr. Phys., 66, 147 [NASA ADS] [CrossRef] [Google Scholar]
 Vandas, M., Romashets, E. P., & Watari, S. 2005, in ed. B. Fleck, T. H. Zurbuchen, & H. Lacoste, Solar Wind 11/SOHO 16, Connecting Sun and Heliosphere, ESA SP592, 159.1 (on CDROM) [Google Scholar]
 Wang, C., Du, D., & Richardson, J. D. 2005, J. Geophys. Res., 110, A10107 [NASA ADS] [CrossRef] [Google Scholar]
 Xiong, M., Zheng, H., Wu, S. T., Wang, Y., & Wang, S. 2007, J. Geophys. Res., 112, A011103 [Google Scholar]
 Yurchyshyn, V., Liu, C., Abramenko, V., & Krall, J. 2006, Sol. Phys., 239, 317 [NASA ADS] [CrossRef] [Google Scholar]
All Tables
Table 1: List of MC events.
All Figures
Figure 1: Examples of two analyzed MCs that are not significantly perturbed by a fast flow. The MC center was observed at 07Jan.1975 10:39 and 04Mar.1975 21:37 UT, for panels a), c) and b), d), respectively. The vertical dashed lines define the MC boundaries. a), b) V_{x} is the observed velocity component in the radial direction from the Sun, expressed in km per second. The straight line is the linear least square fit of the velocity in the time interval where an almost linear trend is present (where the observations are presented as a solid line). The linear fitting is extrapolated to the borders of the MC, which are marked with circles. c), d) B_{y} is the magnetic field component, in nT, both orthogonal to the MC axis and to the spacecraft trajectory, while the solid line represents F_{y}, which is the accumulated flux of B_{y} (Eq. (7)). The extremum of F_{y} (proxy of the cloud center) is indicated with diamonds (a color version is available in the electronic version).

Open with DEXTER
In the text
Figure 2: Examples of two analyzed MCs that are perturbed by a fast flow as seen in the upper panels. The MC center was observed at 30Jan.1977 03:18 and 23Jun.1980 12:25 UT, for panels a), c) and b), d), respectively. The external perturbations enter in a significant part of the MCs. The same quantities, as in Fig. 1, are shown (a color version is available in the electronic version).

Open with DEXTER
In the text
Figure 3: The panels a) d) show the correlation analysis between proxies for MC expansion with different physical quantities. The MCs are separated in two groups: perturbed (empty square symbol) and nonperturbed (filled circle symbol). The straight lines are the result of a least square fit for perturbed (dashed line), nonperturbed (thin continuous line), and for both set of MCs in the list of events shown in Table 1 (thick continuous line). is defined by Eq. (2), , is the velocity of the MC center (or at the closest approach distance), and D is the distance to the Sun. The fitted values and the obtained correlation coefficient (r) are included as insets, considering the different groups. More significant correlation is present for the nonperturbed cases (a color version is available in the electronic version).

Open with DEXTER
In the text
Figure 4: Panels a) d) show the correlation analysis that tests for the dependence of the nondimensional expansion factor (Eq. (8)) as a function of other parameters. Perturbed and nonperturbed MCs are represented as in Fig. 3. and are normalized to 1 AU using the size and field strength dependence on the distance, according to the relationship given in Eq. (9) (a color version is available in the electronic version).

Open with DEXTER
In the text
Figure 5: Perturbed and nonperturbed MCs have a remarkably different behavior of when they are plotted as a function of . The drawing convention is the same as in Figs. 3, 4 (a color version is available in the electronic version).

Open with DEXTER
In the text
Figure 6: Cartoon of a possible evolution of the size of the MC with the heliodistance, showing the expected global expansion (thick solid line), an example of a nonperturbed MC (thin solid) and a perturbed MC (dashed line) (a color version is available in the electronic version).

Open with DEXTER
In the text
Figure 7: Loglog plots of the SW total pressure and its components as a function of the solar distance. The solid line shows the least square straight line fitted to the total pressure as computed from the points marked with circles. The total pressure in the SW decreases as (a color version is available in the electronic version).

Open with DEXTER
In the text
Copyright ESO 2010
Current usage metrics show cumulative count of Article Views (fulltext article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 4896 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
