A&A
Volume 508, Number 2, December III 2009
|
|
---|---|---|
Page(s) | 783 - 786 | |
Section | Interstellar and circumstellar matter | |
DOI | https://doi.org/10.1051/0004-6361/200913114 | |
Published online | 21 October 2009 |
A&A 508, 783-786 (2009)
On the early-time chemistry in dark clouds
H. S. Liszt
National Radio Astronomy Observatory, 520 Edgemont Road, Charlottesville, VA, USA 22903-2475, USA
Received 12 August 2009 / Accepted 13 October 2009
Abstract
Context. Agreement between observed and calculated
abundances of some molecules in dark clouds is improved when the model
gas retains some memory of the assumed initial conditions.
Aims. We assess the relevance of commonly-assumed intitial
conditions giving rise to so-called early-time chemistry in models of
dark cloud chemistry.
Methods. Initial conditions for models of dark cloud chemistry are compared with conditions known to exist in the H2-bearing diffuse gas whose evolution they are intended to represent.
Results. The initial conditions assumed for dark cloud chemistry differ in at least five important regards from those of H2-bearing diffuse gas. Models typically assume: absolute purity of H2;
absence of polycyclic aromatic hydrocarbons; two times smaller
gas-phase abundance of C, N, and O; near-absence of sulfur and
some other easily-ionized metals; total absence of the molecules which
accompany the presence of H2 in diffuse gas, for instance, OH, CH, C2H, HCO+.
Conclusions. Initial conditions commonly assumed for dark cloud
chemical models should be reconsidered and mechanisms for the chemical
evolution from diffuse to dark gas should be included in model
calculations.
Key words: astrochemistry - ISM: molecules
1 Introduction
Comprehensive models of dark cloud chemistry typically calculate
time-dependent abundances, starting from initial conditions that
are supposed to represent diffuse gas which has suddenly made the transition
to a colder, much denser and darker state (Graedel et al. 1982; Hasegawa et al. 1992; Leung et al. 1984; Bryans et al. 2009; Ruffle & Herbst 2001; Quan et al. 2008; Garrod et al. 2007). One such set of initial conditions is
reproduced in Table 1 here. The model gas is initially devoid of trace molecules
and has a high concentration of C+ and electrons, but under these conditions
the calculated abundances of some species agree with observations best at
the so-called early times, i.e. within
perhaps
yr, well before chemical equilibrium is established.
For instance, Cordiner et al. (2007) discuss molecular anion abundances at
early times and Quan et al. (2008) show
that high abundances of O2 are difficult to suppress in pure
gas phase models once OH becomes abundant at
yr.
Reliance on these initial conditions to improve agreement between
calculations and observations has been criticized by Gerin et al. (2003).
Here we discuss the assumed intitial conditions that give rise to the present ideas of early-time chemistry in dark cloud chemical models. We argue that these starting conditions, which originated 25-30 years ago in a more primitive epoch in our understanding of the diffuse interstellar medium (ISM), cannot be supported. They should be replaced by a more appropriate set of initial assumptions and supplemented, if necessary, with a physically or at least empirically-based description of how certain supposed important distinctions between diffuse and dark gas - especially the free gas-phase elemental abudances - could have arisen, if indeed they are not entirely artificial.
In Sect. 2 we discuss five important ways in which the initial assumptions of dark cloud chemistry are subject to question. Section 3 presents a brief summary and discussion of how to bridge the gap between descriptions of the diffuse and dark gas.
2 Conditions in H2-bearing diffuse gas vs. those of ``early-times'' in dark cloud chemical models
The origins of the presently-adopted initial conditions
for dark cloud chemical models date back at least to the work of
Graedel et al. (1982) who referenced the ion and atomic elemental
abundances tabulated by Mitchell et al. (1978) for the archtypical
diffuse cloud at = 1 mag toward
Oph. Some version of these
conditions has subsequently been adopted in many later and
recent models, as noted in very summary fashion in the Introduction.
One very recent version is quoted in Table 1 here.
As seen in Table 1, all of the H-nuclei are assumed to be initially in H2, the only form of gas-phase carbon is C+, and various heavier metals are also present as the first ion. Oxygen and nitrogen are neutral, conditions which are roughly appropriate for diffuse gas (in which small abundances of the neutral carbon and other metals are present) but the abundances of the metals relative to hydrogen are below, perhaps very much below, those of the diffuse interstellar ISM (as discussed subsequently). Note also that the abundance of 4He is the primordial value, which underestimates the local galactic disk abundance by some 30%, see Balser (2006).
The initial conditions chosen for the dark cloud chemistry differ in at least five important regards from those which obtain in diffuse gas. In the starting conditions for the dense gas model: all of the H-nuclei are in H2; the PAH which heat diffuse gas and control the atomic ionization (Wolfire et al. 1995a; Tielens 2008; Liszt 2003) are absent; carbon, oxygen and nitrogen are two times more strongly depleted from the gas; the heavier metals with low ionization potentials, especially sulfur, are depleted by additional factors of 103 or more; except for H2, no molecules are present and even many important neutral atoms (H0, C0) are missing.
Each of these differences is discussed individually in the following sections. The point is that the initial conditions assumed to apply for the dense gas chemical models (and certainly not just that work from which the entries in Table 1 were taken) are neither self-consistent nor are they obvious consequences of the conditions in which the gas might have existed prior to becoming dark and dense.
Table 1: Initial nonzero fractional abundances1.
2.1 The H0/H2 ratio
H2 is easily detected in diffuse clouds (Rachford et al. 2002; Savage et al. 1977) and
even typical ``Spitzer'' H I clouds with
,
n(H) = 30
are expected to be substantially molecular in their
innermost regions, with some 25% of the H-nuclei in H2 (Liszt 2007b).
Nonetheless, the very high (but not absolute) degrees of purity of
H2 which actually obtain in many dark clouds, where n(H0)/n(H)
0.01,
require long times to achieve, as noted by Goldsmith (2007). This is
shown in Figs. 1 and 2 here for gas which at t=0 suddenly becomes
dense (at the densities n(H) of H-nuclei indicated), cold (K = 12 K)
and dark (i.e. is deprived of all H2-dissociating uv photons) so
that the only means of dissociating H2 is cosmic rays; the
calculations are shown for low and higher values of
,
the rate per H-nucleus, as indicated. In this case the
evolution is given by an analytic solution,
Eq. (2) of Liszt (2006). The solutions here differ (only) parametrically
from the curves shown by Goldsmith & Li (2005), whose H2-formation rate
was 60% that adopted here, so that the evolution in our figures is
that much more rapid.
Figure 1 shows the evolution of a relatively dense gas for various
initial purities of H2; evolution of the H2 fraction continues
for
yr, which roughly coincides with the
epoch described as ``early-time'' in chemical models. As indicated
in Fig. 2, the equilibrium time decreases as 1/n(H), so that only
if n(H)
might it be expected that the H2-fraction
could evolve substantially faster than the early-time chemistry as a
whole. Such high densities are not generaly characteristic of dark clouds
or the model calculations.
This discussion implies that the H2 fraction should be allowed to evolve from a state with substantial initial amounts of atomic hydrogen - much more than at equilibrium: to do otherwise (as now) is to assume that the gas has already undergone a long period of evolution in its dense dark state even before the calculation has begun, a contradiction. The abundance of atomic hydrogen is important for the chemistry in its own right. As shown by Rawlings et al. (2002), a high initial H-fraction strongly depresses the early-time abundances of most molecules, although a few, most notaby OH, are somewhat increased. As recently stressed by Flower et al. (2007) the abundance of molecular anions is controlled by the ratio n(e-)/n(H0). In current models n(H0)/n(H) increases with time, while physically it should be expected to decrease as in Figs. 1, 2.
![]() |

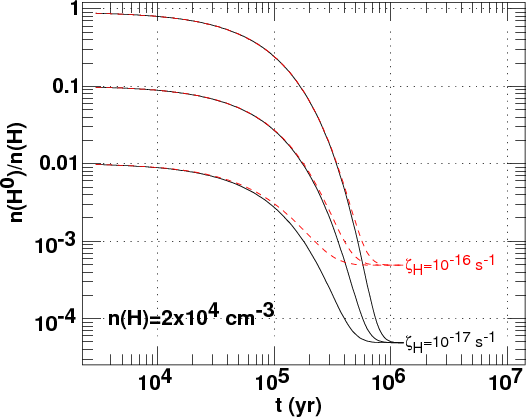

Figure 1:
Evolution of the atomic gas fraction n(H0)/n(H) in a
dark gas of total density of H-nuclei
|
Open with DEXTER |
2.2 PAH and the initial charge state
![]() |

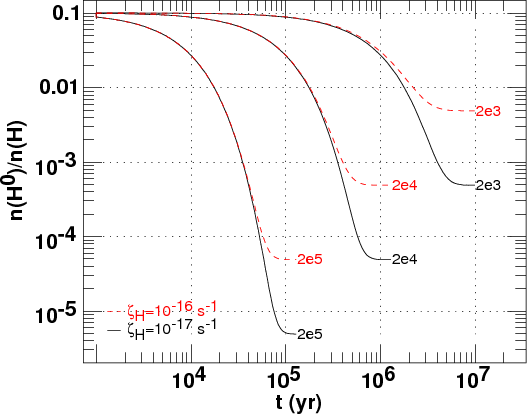

Figure 2:
Evolution of the atomic gas fraction n(H0)/n(H) in dark
gases of total density n(H) =
|
Open with DEXTER |
The assumption in chemical models that carbon is initially present solely as
C+ is a somewhat extreme version of the circumstances observed in diffuse
gas where the carbon indeed exists predominantly as C+ even when substantial
quantities of CO exist in the gas (Liszt 2007a), but typical observed ratios of
C0/C+ are in the range 0.001-0.01 (as toward
Oph) in H2-bearing
diffuse gas. Moreover, electron recombination of the C+ in the dense
dark chemically-modeled gas is relatively rapid anyway, but in diffuse
gas the neutralization of atomic ions actually occurs even faster during
their interaction with PAH (Wolfire et al. 2003,1995b; Tielens 2008; Liszt 2003).
The importance of such grain-assisted neutralization
is moderated at lower temperatures compared to direct electron
recombination, because the rate of the former varies as K1/2
and that of the latter typically as K-1/2 or faster, but this only
compensates for a portion of the disparity in rates overall.
Bryans et al. (2009) recently noted that the electron recombination
rates of atomic ions have been underestimated by factors of order three
owing to the neglect of dielectronic processes, further narrowing
the gap between electron and grain-assisted recombination rates
at low temperatures. Bryans et al. (2009) show that increased C+
recombination rates have a pronounced effect on a coupled-gas grain
chemistry in dense clouds because of the higher density of neutral
carbon.
The point is that if the PAH persist into the dense dark state for even 104 yr, recombination of carbon and the other atomic ions will occur within this period, i.e. almost before the chemical calculation begins and much more quickly than is now calculated using only electron recombination. Although the effects of PAH were originally considered for both diffuse and dense gas (Lepp & Dalgarno 1988; Lepp et al. 1988) their presence in dense dark gas was subsequently deprecated, presumably on the grounds that they would coagulate into larger particles; this process should properly be considered as part of the early chemical evolution. PAH have recently been reconsidered in dense gas by Wakelam & Herbst (2008) who showed that the apparent need for an ad hoc assumption of small sulfur abundances in dense gas (the so-called low metals case) may be eliminated. This is discussed subsequently.
2.3 Depletion of carbon, oxygen and nitrogen
As shown in Table 1, the initial abundances of carbon, nitrogen
and oxygen are about two times smaller in chemical calculations of
dense gas than is observed in the mean in the diffuse interstellar
medium. For instance, the ratio of carbon to hydrogen nuclei in Table 1 is
n(C+)/2N(H2) =
,
a factor of two below the
mean observed in diffuse gas, N(C+)/N(H) =
(Cardelli et al. 1996; Sofia et al. 2004).
Because so much of the free gas phase carbon eventually finds its way
into CO, the final CO/H2 ratio will generally be too large in the
models if the larger CNO depletions
do not obtain somehow. However, it is not consistent to assume
that such strong depletion is already present in the gas at the
same moment that the carbon is ionized: either
the free carbon abundance should evolve or an alternative,
physically-based explanation for the CO abundance
should be found.
2.4 The low-metals case
As shown in Table 1, the initial abundances of metals heavier
than oxygen are generally assumed to be very small. While
it is true that many of the easily-ionized metals heavier than
oxygen are strongly depleted in the diffuse gas - although hardly
by such large factors as in Table 1 - there are also some very
conspicuous exceptions (Savage & Sembach 1996). This is especially important
in the case of sulfur, the most abundant of all of these with
([S]/[H])
(Lodders 2003). Sulfur is not
generally believed to be depleted in the nearby interstellar
gas, in which case its appropriate starting abundance is
somewhere between the Solar value and the slightly larger
values (0.1-0.2 dex) measured in local OB stars (Daflon et al. 2003).
Note that Jenkins (2009) has recently raised the possibility that there
is some depletion and variability in the gas-phase sulfur abundance.
The marriage of low metal abundances and dark cloud chemistry is a complicated one made for the convenience of modellers, owing to the effects of metal atoms and their ions on the overall charge balance (Oppenheimer & Dalgarno 1974); if the low ionization potential metals are too abundant in most present chemical models they will suppress the formation of ions such as 3+ and HCO+, squelching the ion-molecule chemistry generally. Conversely, assumption of a very low sulfur abundance can create other problems when attempting to explain the observed abundances of a wide variety of sulfur-bearing molecules. For instance, the required abundances of OH may be much higher than are observed. Goicoechea et al. (2006) have argued that molecular abundances in the dense Horsehead PDR are best reproduced without strong sulfur depletion.
Beyond the seeming exigencies of the chemistry, there is really no justification for assuming low sulfur abundances in dense dark gas, even more so during the early times when the material is supposed to have retained some memory of the diffuse state. As noted above, Wakelam & Herbst (2008) have recently revived consideration of the effects of PAH in dense gas, and they note that the low metal case is not needed to preserve the efficacy of the ion-molecule chemistry when PAH are present. Another alternative may be consideration of small-molecule (as opposed to PAH) anions and there may be yet other means of bearing charge in the presence of high metal abundances without ruining the ion-molecule chemistry.
2.5 The absence of trace molecules inherited from the diffuse gas
The presence of metal-bearing trace diatomic molecules CH, CH+ and CN
in diffuse gas has been known for some 70 years (for a recent review see
Snow & McCall 2006) but only recently has there been a real appreciation
of the wide range of species which are present in diffuse gas. Moreover
it has been apparent since the
Copernicus observations of H2
(Savage et al. 1977) that the relative abundances N(CH)/N(H2) are
comparable in TMC-1 and diffuse clouds, and this can now be seen to
apply to other (not all) species, especially OH, HCO+ and C2H,
even when
1 mag ((Snow & McCall 2006; Liszt et al. 2006). In a
calculation such as that of Quan et al. (2008) the early-time chemistry
is largely defined by the interval required for the OH abundance,
initially zero, to rise to the values seen in diffuse clouds,
N(OH)/N(H2) = 10-7.
Perhaps most strikingly, the relative abundance n(3+)/n(H) has been found to be higher in diffuse clouds (Geballe et al. 1999), presumably owing to a higher cosmic-ray ionization rate (Indriolo et al. 2009). Because 3+ is the driver of dark cloud chemistry, accounting for its initial abundance is of obvious importance for chemical models: although it is a somewhat higher-order process, formation of 3+ happens on the same time scale as that of H2 as a whole (Liszt 2007b).
The absence of these inherited seed molecules from the initial conditions which presuppose a pure-H2 gas is difficult to understand, but amending this oversight raises a host of complications. For instance, the molecular inventory of diffuse gas is not nearly as complete as that of the models, so which species would be included? But perhaps more importantly, if the abundances of molecules in diffuse gas are comparable to those in TMC-1, what is the actual role of time-dependent chemistry at early times in the evolution from diffuse to dark conditions?
3 Summary and discussion
The initial conditions that are typically assumed to apply in time-dependent models of dark cloud chemistry are holdovers from an earlier era of understanding of the diffuse interstellar medium, especially its H2-bearing portions. The roster of trace molecules known to exist with high abundances in diffuse clouds - comparable to those in TMC-1 - has expanded greatly, the role of PAH has been elaborated, and such knowledge should be incorporated into the assumed starting conditions of dark cloud models. Moreover, elemental abundances in the diffuse gas have been more firmly established, highlighting the fact that the assumed starting abundances of carbon, nitrogen, oxygen and sulfur in chemical models have been tailored ad hoc to suit the exigencies of the reaction schemes which are employed. Of course, without gas-grain coupling the initial free gas-phase elemental abundances will persist throughout the calculations.
Some minor suggestions for bridging the gap between diffuse and dark conditions are given in Sect. 2 here. Perhaps the most straightforward is to assume a non-trivial initial abundance of H0, given the times which are required for evolution of the H2 fraction. The fate of other constituents of the diffuse gas, for instance the PAH, is more ineffable; nonetheless, critically important aspects of the cloud physics, in particular the charge balance and recombination of C+, and the utility of assuming high depletions of sulfur and other easily-ionized metals, depend on the evolution of the atomic gas fraction and the PAH abundance.
Perhaps most problematic are the high abundances observed for 3+ and
the metal-bearing trace molecule such as CH, OH and HCO+ in diffuse
gas; one must ask whether including them in the starting conditions
would not be a repudiation of the entire notion of a distinct early-time
chemistry. Although the most promising schemes for producing high molecular
abundances in diffuse gas can be quenched at high mean density (Godard et al. 2009)
it is hard to credit the idea that the trace molecules simply disappear
and must be recreated from scratch. If that were the case, it would be
possible to observe fairly dark ( > 1 mag), largely molecular gas
with anomalously small abundances of even such simple and easily-observed
species as CH and OH. That such conditions have never been observed
seems a strong argument for continuity of the trace molecule abundances
during the early chemical evolution. In any case, the discussion here
highlights the importance of measuring elemental
abundances and physical conditions in the so-called translucent clouds
with
mag which may embody the intermediate state between
diffuse and dark gas.
The National Radio Astronomy Observatory is operated by Associated Universites, Inc. under a cooperative agreement with the US National Science Foundation. I am grateful to Dr. Lucy Ziurys for a stimulating discussion of this subject and to the referee for his comments.
References
- Balser, D. S. 2006, AJ, 132, 2326 [NASA ADS] [CrossRef]
- Bryans, P., Kreckel, H., Roueff, E., Wakelam, V., & Savin, D. W. 2009, ApJ, 694, 286 [NASA ADS] [CrossRef]
- Cardelli, J. A., Meyer, D. M., Jura, M., & Savage, B. D. 1996, ApJ, 467, 334 [NASA ADS] [CrossRef]
- Cordiner, M. A., Millar, T. J., Herbst, E., Chuimin, R. N., & Walsh, C. 2007, in Molecules in Space and Laboratory
- Daflon, S., Cunha, K., Smith, V. V., & Butler, K. 2003, A&A, 399, 525 [NASA ADS] [EDP Sciences] [CrossRef]
- Flower, D. R., Pineau Des Forêts, G., & Walmsley, C. M. 2007, A&A, 474, 923 [NASA ADS] [EDP Sciences] [CrossRef]
- Garrod, R. T., Wakelam, V., & Herbst, E. 2007, A&A, 467, 1103 [NASA ADS] [EDP Sciences] [CrossRef]
- Geballe, T. R., McCall, B. J., Hinkle, K. H., & Oka, T. 1999, ApJ, 510, 251 [NASA ADS] [CrossRef]
- Gerin, M., Fossé, D., & Roueff, E. 2003, in SFChem 2002: Chemistry as a Diagnostic of Star Formation, ed. C. L. Curry, & M. Fich, 81
- Godard, B., Falgarone, E., & Pineau Des Forêts, G. 2009, A&A, 495, 847 [NASA ADS] [EDP Sciences] [CrossRef]
- Goicoechea, J. R., Pety, J., Gerin, M., et al. 2006, A&A, 456, 565 [NASA ADS] [EDP Sciences] [CrossRef]
- Goldsmith, P. F. 2007, in Molecules in Space and Laboratory, ed. J. L. Lemaire, & F. Combes, 160
- Goldsmith, P. F., & Li, D. 2005, ApJ, 622, 938 [NASA ADS] [CrossRef]
- Graedel, T. E., Langer, W. D., & Frerking, M. A. 1982, ApJS, 48, 321 [NASA ADS] [CrossRef]
- Hasegawa, T. I., Herbst, E., & Leung, C. M. 1992, ApJS, 82, 167 [NASA ADS] [CrossRef]
- Indriolo, N., Fields, B. D., & McCall, B. J. 2009, ApJ, 694, 257 [NASA ADS] [CrossRef]
- Jenkins, E. B. 2009, ApJ, 700, 1299 [NASA ADS] [CrossRef]
- Lepp, S., & Dalgarno, A. 1988, ApJ, 324, 553 [NASA ADS] [CrossRef]
- Lepp, S., Dalgarno, A., van Dishoeck, E. F., & Black, J. H. 1988, ApJ, 329, 418 [NASA ADS] [CrossRef]
- Leung, C. M., Herbst, E., & Huebner, W. F. 1984, ApJS, 56, 231 [NASA ADS] [CrossRef]
- Liszt, H. 2003, A&A, 398, 621 [NASA ADS] [EDP Sciences] [CrossRef]
- Liszt, H. S. 2006, A&A, 458, 507 [NASA ADS] [EDP Sciences] [CrossRef]
- Liszt, H. S. 2007a, A&A, 476, 291 [NASA ADS] [EDP Sciences] [CrossRef]
- Liszt, H. S. 2007b, A&A, 461, 205 [NASA ADS] [EDP Sciences] [CrossRef]
- Liszt, H., Lucas, R., & Pety, J. 2006, A&A, 448, 253 [NASA ADS] [EDP Sciences] [CrossRef]
- Lodders, K. 2003, ApJ, 591, 1220 [NASA ADS] [CrossRef]
- Mitchell, G. F., Kuntz, P. J., & Ginsburg, J. L. 1978, ApJS, 38, 39 [NASA ADS] [CrossRef]
- Oppenheimer, M., & Dalgarno, A. 1974, ApJ, 192, 29 [NASA ADS] [CrossRef]
- Quan, D., Herbst, E., Millar, T. J., et al. 2008, ApJ, 681, 1318 [NASA ADS] [CrossRef]
- Rachford, B. L., Snow, T. P., Tumlinson, J., et al. 2002, ApJ, 577, 221 [NASA ADS] [CrossRef]
- Rawlings, J. M. C., Hartquist, T. W., Williams, D. A., & Falle, S. A. E. G. 2002, A&A, 391, 681 [NASA ADS] [EDP Sciences] [CrossRef]
- Ruffle, D. P., & Herbst, E. 2001, MNRAS, 322, 770 [NASA ADS] [CrossRef]
- Savage, B. D., & Sembach, K. R. 1996, ARA&A, 34, 279 [NASA ADS] [CrossRef]
- Savage, B. D., Drake, J. F., Budich, W., & Bohlin, R. C. 1977, ApJ, 216, 291 [NASA ADS] [CrossRef]
- Snow, T. P., & McCall, B. J. 2006, ARA&A, 44, 367 [NASA ADS] [CrossRef]
- Sofia, U. J., Lauroesch, J. T., Meyer, D. M., & Cartledge, S. I. B. 2004, ApJ, 605, 272 [NASA ADS] [CrossRef]
- Tielens, A. G. G. M. 2008, ARA&A, 46, 289 [NASA ADS] [CrossRef]
- Wakelam, V., & Herbst, E. 2008, ApJ, 680, 371 [NASA ADS] [CrossRef]
- Wolfire, M. G., Hollenbach, D., McKee, C. F., Tielens, A. G. G. M., & Bakes, E. L. O. 1995a, ApJ, 443, 152 [NASA ADS] [CrossRef]
- Wolfire, M. G., McKee, C. F., Hollenbach, D., & Tielens, A. G. G. M. 1995b, ApJ, 453, 673 [NASA ADS] [CrossRef]
- Wolfire, M. G., McKee, C. F., Hollenbach, D., & Tielens, A. G. G. M. 2003, ApJ, 587, 278 [NASA ADS] [CrossRef]
All Tables
Table 1: Initial nonzero fractional abundances1.
All Figures
![]() |
Figure 1:
Evolution of the atomic gas fraction n(H0)/n(H) in a
dark gas of total density of H-nuclei
|
Open with DEXTER | |
In the text |
![]() |
Figure 2:
Evolution of the atomic gas fraction n(H0)/n(H) in dark
gases of total density n(H) =
|
Open with DEXTER | |
In the text |
Copyright ESO 2009
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
