A&A 507, 1671-1674 (2009)
Elemental abundances and minimum mass of heavy elements in the envelope of HD 189733b
O. Mousis1,2,5 - J. I. Lunine1 - G. Tinetti3,5 - C. A. Griffith1 - A. P. Showman1 - Y. Alibert2 - J.-P. Beaulieu4,5
1 - Lunar and Planetary Laboratory, University of Arizona, Tucson, AZ, USA
2 -
Institut UTINAM, CNRS-UMR 6213, Observatoire de Besançon, Université de Franche-Comté, Besançon, France
3 -
Department of Physics and Astronomy, University College London, London, UK
4 -
Institut d'astrophysique de Paris, CNRS-UMR 7095, Université Pierre & Marie Curie, France
5 -
The HOLMES collaboration
Received 21 August 2009 / Accepted 23 September 2009
Abstract
Context. Oxygen (O) and carbon (C) have been inferred
recently to be subsolar in abundance from spectra of the atmosphere of
the transiting hot Jupiter HD 189733b. Yet, the mass and radius of
the planet coupled with structure models indicate a strongly supersolar
abundance of heavy elements in the interior of this object.
Aims. Here we explore the discrepancy between the large amount
of heavy elements suspected in the planet's interior and the paucity of
volatiles measured in its atmosphere.
Methods. We describe the formation sequence of the icy
planetesimals formed beyond the snow line of the protoplanetary disk
and calculate the composition of ices ultimately accreted in the
envelope of HD 189733b on its migration pathway. This allows us to
reproduce the observed volatile abundances by adjusting the mass of
ices vaporized in the envelope.
Results. The predicted elemental mixing ratios should be
0.15-0.3 times solar in the envelope of HD 189733b if they are
fitted to the recent O and C determinations. However, our fit to the
minimum mass of heavy elements predicted by internal structure models
gives elemental abundances that are 1.2-2.4 times oversolar in the
envelope of HD 189733b.
Conclusions. We propose that the most likely cause of this
discrepancy is irradiation from the central star leading to development
of a radiative zone in the planet's outer envelope which would induce
gravitational settling of elements. Hence, all strongly irradiated
extrasolar planets should present subsolar abundances of volatiles. We
finally predict that the abundances of nitrogen (N), sulfur (S) and
phosphorus (P) are of
,
and
relative to H2, respectively in the outer part of HD 189733b's atmosphere.
Key words: planetary systems - planetary systems: formation - planetary systems: protoplanetary disks
1 Introduction
HD 189733b is a transiting hot Jupiter (
)
orbiting a bright (V = 7.7) and close (d = 19 pc) K2V stellar primary at the distance of 0.03 AU (Bouchy et al. 2005).
Observations dedicated to the characterization of the atmosphere of
HD 189733b during secondary eclipses revealed the presence of H2O (Tinetti et al. 2007), CH4 (Swain et al. 2008) and CO (Charbonneau et al. 2008). The dayside spectrum of HD 189733b has also been analysed at near-IR wavelengths by Swain et al. (2009a, hereafter S09a) who confirmed the presence of the previously discovered molecules and announced the detection of CO2.
Emission spectra probe both atmospheric temperature and composition.
Initial estimates of the composition, found to depend on the assumed
temperature profile, were derived from a range of profiles, and are
shown in Table 1 (S09a).
In the solar system, the atmospheric compositions of Jupiter and Saturn provide important constraints on the formation processes of these planets (Alibert et al. 2005a,b), on their internal structures and the thermodynamic conditions that existed in the primitive nebula at the epoch of formation of their solid and gaseous building blocks (Hersant et al. 2008; Mousis et al. 2009). The observed supersolar abundances of volatiles in Jupiter and Saturn can be explained by the accretion into the envelopes of the two forming planets of planetesimals composed of a mix of rock, clathrate hydrates (hereafter clathrates) and pure ices formed from a gas phase of solar composition (Mousis et al. 2009), in a way that is consistent with the so-called core-accretion formation model (Pollack et al. 1996).
In the case of HD 189733b, the puzzling feature of the O and C determinations by S09a is that they have been inferred to be subsolar in the atmosphere while internal structure models indicate a strongly supersolar abundance of heavy elements in the interior of this object (Guillot 2008). A broader range of abundances are indicated by works that consider temperature profiles not included in the initial discoveries of molecules in extrasolar planetary atmospheres (Madhusudhan & Seager 2009; Swain et al. 2009b) and current analyses of both transmission and emission data aim to better constrain the elemental abundances. Although consensus has not yet been reached on the metallicity of HD 189733b, the possibility that this - or potentially other - hot Jupiters have subsolar metallicity raises the interesting theoretical question of whether and how a giant planet may achieve subsolar metallicity during its formation. Here, we address this theoretical question. We use our model of the formation sequence of ices in protoplanetary disks to determine the amount of heavy elements needed to account for the recent observations of O and C abundances in the atmosphere of HD 189733b by S09a. We show that the required amount of accreted ices in HD 189733b is much smaller than the minimum mass of heavy elements predicted by internal structure models. We then investigate the reasons that could explain this discrepancy and conclude that the most likely cause would be the development of a radiative zone in the outer part of the planet's envelope which, combined with gravity, would induce gravitational settling of elements. We finally predict the N, S and P abundances in the outer part of HD 189733b's atmosphere.
2 Delivery of heavy elements to proto-HD 189733b
Close-in giant planets are thought to have formed in the cold outer region of protoplanetary disks and migrated inwards until they stopped at very small orbital radii to the star (Goldreich & Tremaine 1980; Lin et al. 1996; Fogg & Nelson 2005, 2007; Mandell et al. 2007). In this context, we follow the core-accretion model to describe the formation of HD 189733b in which a solid core is first formed by collisional accretion of planetesimals in the outer part of the disk (defined to be beyond the ice condensation, or ``snow'' line). In a second phase, when the mass of this core becomes large enough, rapid accretion of gas and gas-coupled solids is triggered, leading to the formation of a gas giant planet (Pollack et al. 1996; Alibert et al. 2005a,b). Building blocks accreted by proto-HD 189733b may have formed all along its radial migration pathway in the protoplanetary disk. However, we assume here that only the planetesimals produced beyond the snow line, i.e. those possessing a significant fraction of volatiles, materially affected the observed O and C abundances due to their vaporization when they entered the envelope of the planet.
3 Formation sequence of icy planetesimals
Table 1: Elemental and molecular abundances measured in HD 189733b (from S09a).
We describe the formation sequence of the different ices formed beyond the snow line of the protoplanetary disk. For this purpose, we use the solar nebula model employed by Mousis et al. (2009) for calculating the condensation sequence of the different volatiles in the feeding zone of HD 189733b. We refer the reader to the work of Alibert et al. (2005c) for a full description of this model of an accretion disk. Once formed, these ices will add to the composition of the planetesimals accreted by the growing planet on its migration pathway. Our calculation of the composition of these ices is made easier by the fact that it does not depend on their formation location or the adopted disk thermodynamic conditions (Marboeuf et al. 2008). On the other hand, it does depend significantly on the initial elemental composition of the disk's gas phase (Marboeuf et al. 2008), which is assumed to be solar in the present case, in agreement with the measured parent star metallicity ([Fe/H![$]
= -0.03 \pm 0.04$](/articles/aa/full_html/2009/45/aa13160-09/img12.png)
Table 2: Elemental and molecular abundances in the protoplanetary disk.
In order to define the initial gas phase composition of the disk, we follow the approach of Mousis et al. (2009) and consider a gas phase in which all elements are in solar composition (Lodders 2003). Oxygen, carbon, and nitrogen are postulated to exist only in the form of H2O, CO, CO2, CH3OH, CH4, N2, and NH3. The abundances of CO, CO2, CH3OH, CH4, N2 and NH3 are then determined from the adopted CO/CO2/CH3OH/CH4 and N2/NH3 gas phase molecular ratios. Once the abundances of these molecules are fixed, the remaining O gives the abundance of H2O. We then set CO/CO2/CH3OH/CH4 = 70/10/2/1
in the gas phase of the disk, values that are consistent with the ISM
measurements considering the contributions of both gas and solid phases
in the lines of sight (Marboeuf et al. 2008). In addition, S is assumed to exist in the form of H2S, with H2S/H
S/H2)
,
and other refractory sulfide components (Pasek et al. 2005). We also consider N2/NH3
= 1/1 in the gas phase of the disk. This value is compatible with
thermochemical calculations in the solar nebula that take into account
catalytic effects of Fe grains on the kinetics of N2 to NH3 conversion (Fegley 2000).
In the following, we adopt these mixing ratios as the nominal gas phase
composition of our protoplanetary disk (see Table 2). The process by which volatiles are trapped in icy planetesimals, illustrated in Fig. 1,
is calculated using the equilibrium curves of ammonia hydrates,
clathrates and pure condensates, and the thermodynamic path detailing
the evolution of temperature and pressure at the assumed distance to
the star of 5.2 AU in the protoplanetary disk. This distance
to the star has been arbitrarily chosen equal to that of Jupiter from
the Sun as illustrative of the condensation sequence of the ices in the
protoplanetary disk. The adoption of any other thermodynamic path
located beyond the snow line would give the same information, provided
that the temperature of the disk reaches values low enough to allow the
formation of pure condensates at 20-30 K.
![]() |

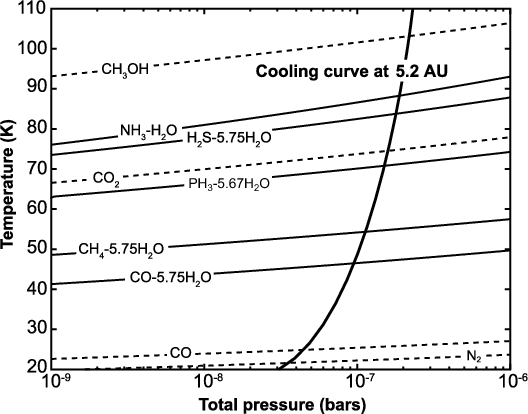

Figure 1: Equilibrium curves of hydrate (NH3-H2O), clathrates (X-5.75H2O or X-5.67H2O) (solid lines), and pure condensates (dotted lines), and cooling curve of the protoplanetary disk at the distance to the star of 5.2 AU, assuming full (100%) efficiency of clathration. Species remain in the gas phase above the equilibrium curves. Below, they are trapped as clathrates or simply condense. |
Open with DEXTER |
The equilibrium curves of hydrates and clathrates derive from Lunine & Stevenson (1985)'s
compilation of published experimental work, in which data are available
at relatively low temperatures and pressures. On the other hand, the
equilibrium curves of pure condensates used in our calculations derive
from the compilation of laboratory data given in the CRC Handbook of
Chemistry and Physics (Lide 2002).
The cooling curve intercepts the equilibrium curves of the different
ices at particular temperatures and pressures. For each ice considered,
the domain of stability is the region located below its corresponding
equilibrium curve. The clathration process stops when no more
crystalline water ice is available to trap the volatile species. Note
that, in the pressure conditions of the disk, CO2 is the only species that crystallizes at a higher temperature than its associated clathrate. We then assume that solid CO2 is the only existing condensed form of CO2 in this environment. In addition, we have considered only the formation of pure ice of CH3OH
in our calculations since, to our best knowledge, no experimental data
concerning the equilibrium curve of its associated clathrate have been
reported in the literature. Figure 1
illustrates the case where the clathration efficiency is total in the
protoplanetary disk, implying that guest molecules had the time to
diffuse through porous water-ice planetesimals before their accretion
by proto-HD 189733b on its migration pathway. In this case, NH3, H2S, PH3, CH4 and 36% of CO form NH3-H2O hydrate, H2S-5.75H2O, PH3-5.67H2O, CH4-5.75H2O and CO-5.75H2O clathrates with the available water. The remaining CO and N2,
whose clathration normally occurs at lower temperatures, remain in the
gas phase until the disk cools enough to allow their condensation in
the form of pure ices. Once formed, clathrates and pure ices
agglomerated and were presumably incorporated into icy planetesimals
accreted by HD 189733b. In Sect. 4,
we calculate the abundances of volatiles in the envelope of
HD 189733b as a function of the mass of ices incorporated in the
planet on its migration pathway.
4 Abundances of volatiles in HD 189733b
Following the approach described in Mousis et al. (2009),
we have calculated the composition of ices incorporated in
planetesimals formed in the protoplanetary disk for full clathration
efficiency. This allowed us to reproduce the observed volatile
abundances by adjusting the mass of ices vaporized in the envelope. To
this end, two different approaches have been considered. We have first
assumed that the O and C abundances measured by S09a are representative
of the bulk O and C composition of HD 189733b's envelope, since
these values derive from measurements of the dominant O and C compounds
(H2O, CO, CO2 and CH4) at the sampled pressure levels (a few
bars). We attempted to match simultaneously these O and C abundances to
our model that predict the relative abundances of volatiles in the
envelope. The masses so derived constitute the minimum total mass of
ices needed to reproduce the observations. In a second approach, we
have considered the mass of heavy elements (
)
predicted by Guillot (2008)
in HD 189783b from internal structure models. With an ice-to-rock
ratio of 1 as is invoked for the composition of planetesimals
produced in the outer solar nebula (Mousis et al. 2009), the minimum mass of ices accreted and dissolved in the envelope of HD 189783b should be equal to 10
if the core has eroded with time
. We have then determined the corresponding elemental abundances that would result from a homogeneous mixing of these 10
of volatiles in the giant planet's envelope.
Table 3 gives the
abundances of volatiles in HD 189733b determined in each of the
two cases. It shows that the elemental abundances calculated assuming
the presence of 10 of ices vaporized in the envelope are more than 8 times higher than those fitted to the observations of S09a. Figure 2 represents the volatiles enrichments relative to solar elemental abundances (see Table 3)
calculated in HD 189733b as a function of the mass of ices
accreted and dissolved in the envelope. This figure shows that the
predicted elemental mixing ratios are
0.15-0.3 times
solar in the envelope of HD 189733b if they are fitted to the
determinations of S09a. These subsolar elemental abundances in
HD 189733b require the accretion of only
1.2
of ices (including
0.6
of water) in the envelope. On the other hand, our fit to the minimum mass of heavy elements predicted by Guillot (2008) gives elemental abundances that are
1.2-2.4 times oversolar in the envelope of HD 189733b. Such oversolar elemental abundances require the presence of
5
of water over the 10
of ices vaporized in the envelope. The calculated oversolar enrichments are lower than those observed in Jupiter
because the budget of ices needed in Jupiter's envelope to fit the observed volatiles enrichments under the same conditions (
18.6
;
see Mousis et al. 2009)
is higher than the one used here. However, because the plausible mass
range of heavy elements is quite large in HD 189733b, it is also
compatible with enrichment values higher than those observed in Jupiter
(see Fig. 2).
Table 3: Calculated elemental abundances of volatiles in HD 189733b.
![]() |

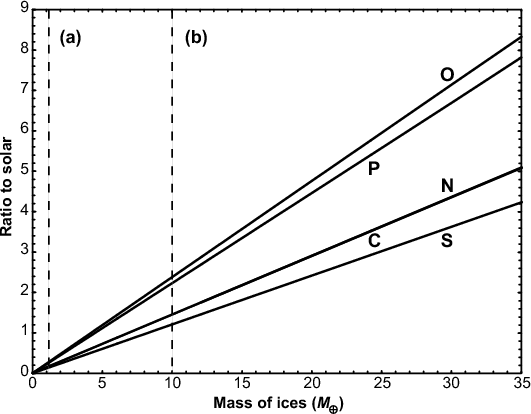

Figure 2: Volatile enrichments in the envelope of HD 189733b as a function of the mass of accreted ices. N and C lines appear superimposed. The vertical lines corresponds to the enrichments in volatiles calculated in the case a) of the simultaneous fit of the O and C abundances to the ones determined by S09a and b) of the fit of the volatiles abundances to the minimum mass of heavy elements predicted by Guillot (2008). |
Open with DEXTER |
5 Discussion
The observation that HD 189733b has subsolar abundances in its atmosphere poses some problems. Only 1
of
ices must be accreted in the envelope to explain the observed C and O
enrichments while internal structure models require the presence of
20-50
of heavy elements in HD 189733b (Guillot 2008).
This mass range of heavy elements should then be consistent with the
observation of supersolar elemental abundances in the atmosphere, in a
way similar to Jupiter, and not with the subsolar abundances observed
by S09a. A number of explanations of this striking discrepancy may be
advanced:
- 1.
- Planetesimals accreted by the growing planet did not ablate in the atmosphere but carried their volatiles intact to the deep interior, where they remain. Simulations by Baraffe et al. (2006), based on the extended core-accretion models of Alibert et al. (2005a), show that 100 km planetesimals are destroyed in the envelope once the core mass reaches around 6 Earth masses, so this seems implausible.
- 2.
- HD 189733b started its formation at or beyond the
ice-line and then migrated further to the inner parts of the disk,
where planetesimals accreted by them were primarily rocky with little
or no ice phase. While rocky planetesimals do contain varying amounts
of volatiles, the most volatile species should be subsolar relative to
the refractory phases. Were HD 189733b to have migrated rapidly
inward of the ice line, it is possible that most of the planetesimals
it accreted were volatile poor. However, formation models suggest that
close-in giant planets formed beyond the snow line before they started
their migration (Lin et al. 1996; Fogg & Nelson 2005, 2007; Mandell et al. 2007).
Since dynamical models
show that the ratio of accreted to ejected planetesimals converges
towards zero in the case of giant planets with masses reaching or
exceeding that of Jupiter (Guillot & Gladman 2000),
the amount of planetesimals accreted by HD 189733b on its
migration trajectory should have been very low. Enough material might
have been accreted to be compatible with the elemental subsolar
abundances inferred by Swain et al. (2009a,b), but would have been insufficient to explain the presence of 20-50
of heavy elements predicted by internal structure models (Guillot 2008).
- 3.
- The C and O atmospheric abundances may not be representative of the envelope composition, either because they are sequestered in species too refractory to be found in the atmosphere, or because the atmosphere is isolated from the interior by a radiative zone. The former seems implausible given the stability and observability of H2O and CO as carbon and oxygen carriers. HD 189733b is strongly irradiated, which leads to the development of an outer radiative zone extending down to the kilobar pressure level. We therefore hypothesize that differential settling, resulting from the combination of gravity and irradiation effects, took place inside the atmosphere of HD 189733b, thus lowering the C and O abundances in the upper layers (Baraffe et al. 2009).

O.M., G.T. and J.-P.B. acknowledge the financial support of the ANR HOLMES. A.P.S. acknowledges support from the NASA Origins program. G.T. is supported by Royal Society. J.I.L. is supported by JPL's Distinguished Visiting Scientist Program. Many thanks to an anonymous referee whose comments have helped us to improve our manuscript.
References
- Alibert, Y., Mousis, O., Mordasini, C., & Benz, W. 2005a, ApJ, 626, L57 [NASA ADS] [CrossRef]
- Alibert, Y., Mousis, O., & Benz, W. 2005b, ApJ, 622, L145 [NASA ADS] [CrossRef]
- Alibert, Y., Mordasini, C., Benz, W., & Winisdoerffer, C. 2005c, A&A, 434, 343 [NASA ADS] [CrossRef] [EDP Sciences]
- Baraffe, I., Alibert, Y., Chabrier, G., & Benz, W. 2006, A&A, 450, 1221 [NASA ADS] [CrossRef] [EDP Sciences]
- Baraffe, I., Chabrier, G., & Marman, T. 2009, Rep. Progr. in Phys., submitted
- Bouchy F., Udry, S., Mayor, M., et al. 2005, A&A, 444, L15 [NASA ADS] [CrossRef] [EDP Sciences]
- Charbonneau, D., Knutson, H. A., Barman, T., et al. 2008, ApJ, 686, 1341 [NASA ADS] [CrossRef]
- Fegley, B. J. 2000, SSRv, 92, 177 [NASA ADS]
- Fogg, M. J., & Nelson, R. P. 2005, A&A, 441, 791 [NASA ADS] [CrossRef] [EDP Sciences]
- Fogg, M. J., & Nelson, R. P. 2007, A&A, 461, 1195 [NASA ADS] [CrossRef] [EDP Sciences]
- Goldreich, P., & Tremaine, S. 1980, ApJ, 241, 425 [NASA ADS] [CrossRef]
- Guillot, T. 2008, PhST, 130, 014023 [NASA ADS] [CrossRef]
- Guillot, T., & Gladman, B. 2000, ASPC, 219, 475 [NASA ADS]
- Helled, R., Podolak, M., & Kovetz, A. 2006, Icarus, 185, 64 [NASA ADS] [CrossRef]
- Hersant, F., Gautier, D., Tobie, G., & Lunine, J. I. 2008, P&SS, 56, 1103 [NASA ADS]
- Lide, D. R. 2002, CRC Handbook of Chemistry and Physics: a ready reference book of chemical and physical data (CRC Press)
- Lin, D. N. C., Bodenheimer, P., & Richardson, D. C. 1996, Nature, 380, 606 [NASA ADS] [CrossRef]
- Lodders, K. 2003, ApJ, 591, 1220 [NASA ADS] [CrossRef]
- Lunine, J. I., & Stevenson, D. J. 1985, ApJS, 58, 493 [NASA ADS] [CrossRef]
- Madhusudhan, N., & Seager, S. 2009, ApJ, in press
- Mandell, A. M., Raymond, S. N., & Sigurdsson, S. 2007, ApJ, 660, 823 [NASA ADS] [CrossRef]
- Marboeuf, U., Mousis, O., Ehrenreich, D., et al. 2008, ApJ, 681, 1624 [NASA ADS] [CrossRef]
- Mousis, O., Marboeuf, U., Lunine, J. I., et al. 2009, ApJ, 696, 1348 [NASA ADS] [CrossRef]
- Pasek, M. A., Milsom, J. A., Ciesla, F. J., et al. 2005, Icarus, 175, 1 [NASA ADS] [CrossRef]
- Pollack, J. B., Hubickyj, O., Bodenheimer, P., et al. 1996, Icarus, 124, 62 [NASA ADS] [CrossRef]
- Saumon, D., & Guillot, T. 2004, ApJ, 609, 1170 [NASA ADS] [CrossRef]
- Saumon, D., Geballe, T. R., Leggett, S. K., et al. 2000, ApJ, 541, 374 [NASA ADS] [CrossRef]
- Swain, M. R., Vasisht, G., & Tinetti, G. 2008, Nature, 452, 329 [NASA ADS] [CrossRef]
- Swain, M. R., Vasisht, G., Tinetti, G., et al. 2009a, ApJ, 690, L114 [NASA ADS] [CrossRef]
- Swain, M. R., et al. 2009b, ApJ, in press
- Tinetti G., Vidal-Madjar, A., Liang, M.-C., et al. 2007, Nature, 448, 169 [NASA ADS] [CrossRef]
- Visscher, C., Lodders, K., & Fegley, B. J. 2006, ApJ, 648, 1181 [NASA ADS] [CrossRef]
- Zahnle, K., Marley, M. S., Freedman, R. S., Lodders, K., & Fortney, J. J. 2009, ApJ, 701, L20 [NASA ADS] [CrossRef]
Footnotes
- ... time
- In the case of Jupiter, interior models also predict that the current mass of its core can be as low as zero (Saumon & Guillot 2004).
- ... Jupiter
- C, N, S, P, Ar, Xe and Kr abundances are observed 1.6-5.8 times oversolar in the Jovian atmosphere (see Mousis et al. 2009, and references therein).
All Tables
Table 1: Elemental and molecular abundances measured in HD 189733b (from S09a).
Table 2: Elemental and molecular abundances in the protoplanetary disk.
Table 3: Calculated elemental abundances of volatiles in HD 189733b.
All Figures
![]() |
Figure 1: Equilibrium curves of hydrate (NH3-H2O), clathrates (X-5.75H2O or X-5.67H2O) (solid lines), and pure condensates (dotted lines), and cooling curve of the protoplanetary disk at the distance to the star of 5.2 AU, assuming full (100%) efficiency of clathration. Species remain in the gas phase above the equilibrium curves. Below, they are trapped as clathrates or simply condense. |
Open with DEXTER | |
In the text |
![]() |
Figure 2: Volatile enrichments in the envelope of HD 189733b as a function of the mass of accreted ices. N and C lines appear superimposed. The vertical lines corresponds to the enrichments in volatiles calculated in the case a) of the simultaneous fit of the O and C abundances to the ones determined by S09a and b) of the fit of the volatiles abundances to the minimum mass of heavy elements predicted by Guillot (2008). |
Open with DEXTER | |
In the text |
Copyright ESO 2009
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
