Issue |
A&A
Volume 507, Number 2, November IV 2009
|
|
---|---|---|
Page(s) | 713 - 721 | |
Section | Extragalactic astronomy | |
DOI | https://doi.org/10.1051/0004-6361/200912705 | |
Published online | 15 September 2009 |
A&A 507, 713-721 (2009)
Polycyclic aromatic hydrocarbon selected
galaxies![[*]](/icons/foot_motif.png)
M. Haas1 - C. Leipski2 - R. Siebenmorgen3 - H. Meusinger4 - H. Drass1 - R. Chini1
1 - Astronomisches Institut Ruhr-Universität Bochum,
Universitätsstraße 150, 44801 Bochum, Germany
2 -
Department of Physics, University of California, Santa
Barbara, CA 93106, USA
3 -
European Southern Observatory,
Karl-Schwarzschild-Str. 2, 85748 Garching, Germany
4 -
Thüringer Landessternwarte Tautenburg, Sternwarte 5,
07778 Tautenburg, Germany
Received 16 June 2009 / Accepted 5 August 2009
Abstract
Context. This is the fourth in a series of papers based on the ISOCAM Parallel Survey at 6.7 m.
While the first three papers have been devoted to active galactic
nuclei (AGN), here we report on emission-line galaxies without AGN
signatures in their optical spectra.
Aims. Polycyclic aromatic hydrocarbon (PAH) emission has been
found in both starbursts and modestly starforming galaxies, but the
relation between starforming activity and PAH luminosity is still a
matter of debate. The different correlation degrees could be caused by
the variety of optical and far-infrared sample selection criteria. In
order to obtain a census of the typical properties of PAH emitting
galaxies, we here study moderately distant galaxies which have been
selected by their PAH emission.
Methods. Combining the ISOCAM Parallel Survey at 6.7 m
with 2MASS we have colour-selected a sample of 120 candidates for
strong PAH emission. We obtained optical and mid-infrared spectra of 75
and 19 sources, respectively, and analysed IRAS-ADDSCANs and
available Spitzer 3.6-160
m photometry.
Results. The Spitzer mid-infrared spectra exhibit clear PAH
features and corroborate that our photometric selection criteria trace
the PAH emission of galaxies fairly well. The optical spectra show
emission lines, at median redshift
,
as well as H
and Ca II absorption, indicating ongoing starformation as well as
post-starbursts. The mid- and far-infrared spectral energy
distributions (SEDs) provide evidence for a broad range of far-infrared
(FIR) luminosities (
), but in general the dust is colder (
K,
)
than for starburst galaxies like M 82 (
K). For most galaxies the monocromatic luminosity
peaks at about equal height at optical, 6.7
m
(PAH) and FIR wavelengths. In about 15% of the sources the FIR
luminosity exceeds the optical and PAH energy output by about a factor
5-10 despite the cool dust temperature; in these galaxies a large dust
mass of 108-109
is inferred.
Conclusions. At moderate distance (
),
PAH selected galaxies turn out to be a quite heterogeneous population
of dust-rich, partly infrared-luminous galaxies but mostly cool with a
range of post-starburst signatures and starforming activity which
appears to be rather modest relative to the entire gas content (derived
from the dust mass and assuming a standard gas/dust ratio). Our results
on PAH selected galaxies question the often expressed interpretation
that the majority of high redshift galaxies detected in 15 and 24
m surveys are dominated by powerful ongoing starbursts with high starforming efficiency.
Key words: galaxies: active - infrared: galaxies
1 Introduction
Polycyclic aromatic hydrocarbonates (PAHs) emit prominent
features in the mid-infrared around 6-9 m (Puget & Leger 1989).
PAH carriers are widely distributed in the dusty interstellar medium
of our Galaxy (Mattila et al. 1996) and they are excited in the
photodissociation regions (Cesarsky et al. 1996b) as well as by the
mild UV-radiation field around A- and F-type stars
(Lemke et al. 1998; Uchida et al. 2000).
PAH emission occurs in normal spirals (e.g. Mattila et al. 1999)
as well as in luminous and ultra-luminous starbursts (ULIRGs,
Genzel et al. 1998). PAH features have been detected also in
dusty elliptical galaxies (Bregman et al. 2008; Kaneda et al. 2008)
and in AGN (Schweitzer et al. 2006; Shi et al. 2007),
although faint above the underlying continuum.
In the local universe (z < 0.01), the PAH flux
appears to be better correlated with the 850 and 160 m emission
from cold dust than with the 15 and 24
m warm dust emission
(Haas et al. 2002; Bendo et al. 2008). Compared with normal galaxies, ULIRGs show an enhanced 100
m/PAH flux ratio (Klaas et al. 2001), and among optically selected metal-rich starforming galaxies
the 70
m/8
m flux ratio increases with luminosity
(Monkiewicz et al. 2008).
An analysis of Revised Shapley-Ames galaxies in the SINGS survey suggests
that it is uncertain by a factor of 10 to use the PAH luminosity to extrapolate the far-infrared (FIR, >60
m) properties and the starforming activity (Dale et al. 2005).
For example, consider two galaxies with the same PAH luminosity:
A quiescent one like NGC 891 with a large amount of cool dust
(SED peaking at 120
m, with star forming efficiency
,
Chini et al. 1986)
and an active one like M 82 with about a factor of 10 less
dust mass which is heated to higher temperatures (SED peaking at
60
m, with star forming efficiency
,
Thronson et al. 1987).
Despite their similarity in PAH luminosity, the galaxies are clearly
different in FIR luminosity and starforming activity, hence different
in physical states.
Because the underlying continuum from stars and very small dust grains
is relatively weak (except for AGN and elliptical galaxies),
the 6-9 m PAH emission of local galaxies dominates by far
(
80%) the total flux seen in ISOCAM 6.7
m and Spitzer 8
m broad band images. At cosmological distances the PAH emission shifts into
the ISOCAM 15
m (z = 1) and Spitzer 24
m (z =2)
passbands and could dominate the observed fluxes as well.
This could naturally explain the peak found in the differential
galaxy number counts, without invoking an extraordinary new galaxy
population (Xu 2000).
While for high-redshift galaxy populations (detected in the
GOODS fields in the 15 and 24
m passbands)
the rest-frame FIR observations are in general not available,
models derived from local - mostly IRAS detected - templates
suggest also a high far-infrared luminosity (e.g. Elbaz et al. 2002; Caputi et al. 2007).
But the key question remains open as to whether PAH emitting galaxies
typically show an intense M 82-like starburst activity, presumably
affecting the whole galaxy,
or whether the sources are large dust-rich systems with
moderate star formation relative to the total gas content.
Therefore, it is vital to establish the nature of PAH emitting
galaxies over a range of luminosities and distances.
Combining the spectroscopic SDSS galaxy sample with the Spitzer
First Look and SWIRE surveys,
a good correlation between 8 m, 24
m and 70
m luminosity
has been reported (Wu et al. 2005; Zhu et al. 2008). However, these samples are optically selected to have strong H
emission and, because SWIRE reaches much deeper than SDSS, a substantial
fraction of PAH emitting IR galaxies may have been excluded;
for example these samples do not contain any ULIRGs.
Therefore, it may be put into question as to how far these correlations
from optically selected samples are relevant for properly selected PAH emitting galaxies.
The ISO-ELAIS survey contains some fields observed at
6.7 m (e.g. Väisänen et al. 2002), but so far
no specific results on PAH emission have been reported,
since the survey focused on exploring the cosmic starforming
history to higher redshifts mainly using the 15 and 90
m data
(Rowan-Robinson et al. 2004 and references therein).
The ISO-FIRBACK survey at 170
m has found a population
of IR-luminous but cold galaxies, rather neglected up to now
(Patris et al. 2003; Dennefeld et al. 2005).
While 22 of these FIR selected galaxies with clean counterparts at shorter
wavelengths show PAH emission as inferred from Spitzer-IRAC
photometry, the modelled
/
ratio in total spreads by about a factor of ten (Sajina et al. 2006).
A proper study of the census of PAH emitting galaxies should be
built on galaxy samples selected by their PAH emission.
We here report such a study at moderate distance (
)
based on the ISOCAM 6.7
m Parallel Survey.
Distances in this paper are calculated using a
CDM cosmology with
H0 =71 km s-1 Mpc-1,
and
.
2 Sample selection
2.1 ISOCAM 6.7
m Parallel Survey and 2MASS
The most prominent PAH emission features lie around 7 m (with
peaks at 6.2, 7.7 and 8.6
m) and at 11.3
m.
The bandpass of the ISOCAM LW2 filter is 5-8.5
m centered at 6.7
m. Thus, LW2 is able to measure 6.2
m PAH emission
for moderately distant galaxies up redshift
.
Parallel to the observation of a prime target by ISO's photometer
ISOPHOT or the spectrographs ISOSWS/ISOLWS, the mid-infrared
camera ISOCAM (Cesarsky et al. 1996a) randomly mapped sky locations next to the prime target using the LW2 filter.
This results in the 6.7 m ISOCAM Parallel Survey. It
covers a total area of 27 deg
and contains about 16 000 point sources (
FHWM = 5'') with a flux limit
down to F(6.7
m)
1 mJy (Siebenmorgen et al. 1996, 2000; Ott et al. 2003; Ott et al. in preparation). At high galactic latitude
,
the surveyed area is about 10 deg
.
It provides a suitable hunting ground to search for
galaxies with prominent PAH emission.
In order to select such galaxies, we have matched
(within a radius of 2
)
the ISOCAM sources
with the 2MASS point source catalog, with the USNO-B, DSS and UCAC optical
catalogues, as well as the NVSS and FIRST radio surveys, and analysed
IRAS ADDSCANs.
The point source criterion ensures that the galaxies are compact
and/or at sufficient distance to be unresolved by these two surveys
(5'' angular extend corresponds to
5 kpc at z = 0.1).
We excluded objects which have multiple NIR and
optical counterparts within 10
,
or are contaminated by extended
sources (2MASS XSC), or have proper motion (pm> 3
from
UCAC). At
,
this yields about 3000 isolated ISO-2MASS
sources with clean photometry. The brightness of the sources goes down to
mag,
mag,
mag (Vega based system). The typical uncertainties on the
and
colours
are about 0.2 mag and 0.4 mag, respectively. Essentially none
of the sources is listed in the NVSS and FIRST radio catalogues. Note
that our procedure may have excluded closely interacting galaxy pairs.
![]() |

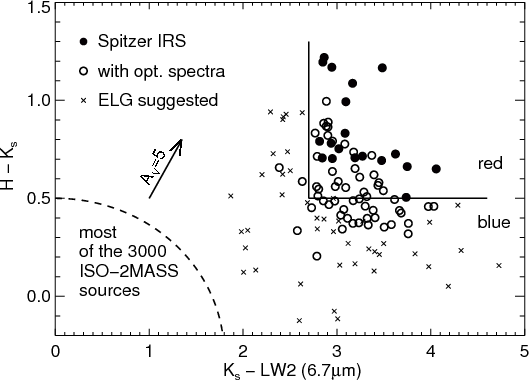

Figure 1:
Colour-colour diagram illustrating the sample selection. While most of
the 3000 ISO-2MASS sources lie in the region around zero outlined
by the dashed curve, here we consider only sources with 6.7 |
Open with DEXTER |
2.2 Near-mid-infrared colour selection
The source selection is described in more detail by Haas et al. (2004,
Paper 1).
We give a brief desciption here: stars and passive
elliptical galaxies populate the colour range
.
About 150 of the 3000 ISO-2MASS sources show a 6.7
m
flux excess which we defined by
(Fig. 1). We consider them
as candidates for galaxies with strong PAH emission
(hereafter named PAH-candidates).
The threshold
is based on the comparison with
local normal galaxy populations (Dale et al. 2001) as well as
luminous and ultra-luminous infrared galaxies (Genzel et al. 1998;
Klaas et al. 2001; Laurent et al. 2000) for
which we found suitable LW2 data in the ISO Data Archive
.
While among local galaxies only ultra-luminous infrared galaxies
(ULIRGs) have red
,
at
redshift
the K-correction may shift normal galaxies to
red
values
.
Active galactic nuclei (AGN) populate the
colour range
and, at redshift z<1, also
(Haas et al. 2004).
While this range overlaps with that of the PAH-candidates,
in this paper all sources with AGN signatures in their
optical spectra are omitted.
The results on the 33 ISO-2MASS-AGN
have been presented by Leipski et al. (2005, 2007, Papers 2+3).
The sample of 120 PAH-candidates is listed in Table 1. None of the 75 sources with optical spectra turned out to be a star. Therefore we adopt that the sample consists of 44 ``red'' galaxies with colours similar to those of AGN, and 76 ``blue'' galaxies outside the AGN colour range.
3 Follow-up data
3.1 Optical spectroscopy
In order to study the emission- and absorption-line properties
of the PAH-candidates and to determine their redshifts,
we have performed optical spectroscopy in the wavelength
range between 3500 and 9000 .
As mentioned above, among the red subset also AGN are expected.
Therefore, we obtained spectra for the complete set of 44 red sources.
For the remaining subset of 76 blue sources (120-44)
we restricted the observational effort and obtained optical spectra
of 19 sources randomly selected. Among these blue sources, no AGN was found.
The
data were obtained during 2004 and 2005 at various
telescopes, and standard data reduction
was applied. The quality of the spectra is not homogeneous,
but in general, it is sufficient to
identify the prominent emission lines.
Faint lines or absorption structures are measurable only
in the best spectra of the brightest objects.
Examples are shown in Fig. 2.
Good spectra of additional 12 sources are available from the Sloan Digital Sky Survey (SDSS, data release 7), as well as photometry of 43 sources for which we also inspected the morphology (Table 1).
3.2 Mid-infrared spectroscopy
In order to verify the PAH nature of the 6.7 m emission
and to exclude the possibility of buried AGN,
for the 19 brightest red sources we obtained low-resolution
mid-infrared (MIR) spectra using the Infrared Spectrograph (IRS, Houck et al. 2004) onboard the Spitzer Space Telescope (Werner et al. 2004).
![]() |

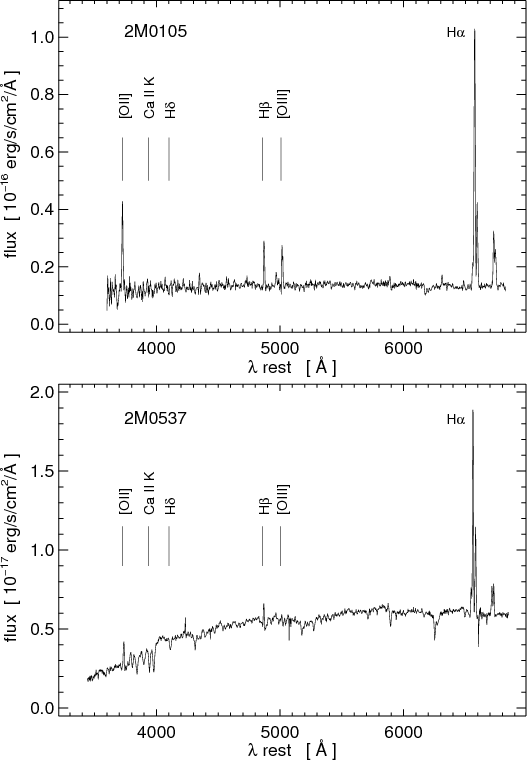

Figure 2:
Examples of optical spectra. Top (2MASS 01051501 -2612466): While H |
Open with DEXTER |
Spectra of 9 sources were observed in cycle-1 (prog-id 3231)
covering the full wavelength range 5-38 m with a relatively short integration time (
s in SL and
s
in LL).
All 9 spectra show clear PAH features but poor S/N in the
high-excitation emission lines used for excluding or establishing
buried AGN. Therefore, in cycle-2 (prog-id 20090) we observed 10 more
sources with longer integration time (
s), but only in the range 19-38
m containing the high-excitation lines [NeV]
and
[OIV]
.
All 19 spectra were taken without peak-up images.
Starting from the background subtracted pipeline products, we performed standard interactive data reduction, using the SPICE software tool as well as our own routines for improved cleaning of residual rogue pixels and and cosmic rays, and for combining the spectra of the four IRS channels.
Table 2 lists the MIR spectral properties
as well as continuum fluxes at 15, 24 and 35 m.
Integration of the spectra over the LW2 passband yields a good
coincidence between the LW2 and IRS photometry for all
but one of the 9 sources
(
)
.
3.3 Mid- and far-infrared photometry
All but 4 sources are not contained in the IRAS faint
source catalogue. Therefore we analysed IRAS ADDSCANs.
Using a matching radius of 20
around the 2MASS position,
19 sources could be detected with at least 4
at 60
m and 13 of them also at 100
m.
The fact that 13/19 sources are detected in both filters supports
that the
detections are real. Because the flux level is rather low, we adopt in
general a 30% photometric uncertainty, although for 4 sources
listed in the IRAS faint source catalog our ADDSCAN-photometry agrees
within 1%. We also checked on the 2MASS and ISOCAM images that no
nearby (<30
)
red source is likely to contribute
to the IRAS fluxes. (Actually two more sources had been detected on ADDSCANs,
but they have been discarded). Table 1 lists the photometry
of the accepted detections and the 60
m upper limits of the remaining sources.
In the wavelength range 3.6-160 m,
14 sources are covered on archival maps taken with the Spitzer Space Telescope. All sources are detected in all bands observed
and match well with the 2MASS positions (better than 2
for IRAC 3.6-8
m and 4-10
for MIPS 24-160
m,
respectively). Using the Post Basic Calibrated Data Products, we
derived aperture photometry with an uncertainty of about 10% (IRAC) and
less than 30% (MIPS). Because the used apertures are sufficiently
large, e.g. 12
for IRAC, no aperture corrections are necessary.
The values are listed in Table 3.
We computed far-infrared luminosities using the standard formula
(Sanders & Mirabel 1996, their Table 1):
=
4
DL
1.6
1.26
10
(2.58 F60 + F100) [
],
with F60 and F100 given in Jy. For the 6 cases with 60
m detection but 100
m upper limit, we adopted
.
F100 is probably even higher, because most sources have
F60/F100>2, if measured. Note that the
formula
assumes an average star forming galaxy SED and thus may weaken possible
differences between M 82- and NGC 891-types. But given the
photometric uncertainties,
this approximation should be sufficient for our purpose, and any
difference between the IRAS 60+100
m and Spitzer
70+160
m passbands should play a minor role. Therefore,
we used the same formula also for the Spitzer 70 and 160
m data to
derive
,
adopting
and
and
,
when F160 is
not observed.
3.4 K-correction
Because our sources have strong PAH features as shown below, K-correction plays a role:
- 1)
- we have determined the K-correction for LW2 fluxes from local ISO-SWS spectra of starforming galaxies. For the redshift of our sources from z=0.03 to z =0.3 the K-correction factor increases steadily from 1.1 to 2.2;
- 2)
- for 24
m fluxes we determined K-correction factors from our 19-38
m spectra. To correct also the photometry data of sources without spectra, a fit yields
F24 (K-corrected) =F24 (observed);
- 3)
- in the FIR K-correction plays a minor role, at least with regard to the measurement errors. At 60 and 70
m we applied a K-correction factor of (1 + 0.33 z), i.e. 0 at z = 0 and 10% at z=0.3, and no K-correction at 100 and 160
m.
4 Results and discussion
![]() |

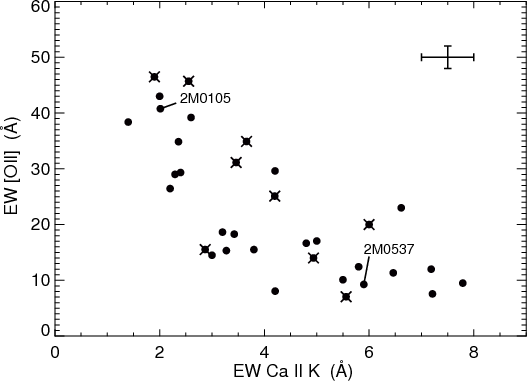

Figure 3:
Equivalent widths of [O II] emission and Ca II K
absorption. The average errors are illustrated by the bars in the upper
right corner. The two sources with spectra shown in Fig. 2 are labeled.
Overplotted crosses mark those sources detected with IRAS at
60 |
Open with DEXTER |
4.1 Optical spectra
Two example spectra are displayed in Fig. 2.
In general, the spectra
show a range of blue and red continua as well as reddened Balmer
emission lines with a ratio reaching H
/ H
> 6 even after
correction for stellar absorption troughs.
Most spectra also show [O II]
emission (henceforth simply denoted [O II]). The equivalent widths of [O II] and H
are broadly correlated. High-excitation emission lines ([O III]
)
mostly are not detected or are faint,
and the emission line ratios place the objects
in the starforming part of the standard diagnostic diagrams used for
separating AGN, LINER and starforming galaxies
(Veilleux & Osterbrock 1987).
The equivalent width of [O II] is an indicator of the average massive
star formation rate (e.g. Dressler & Gunn 1982; Kennicutt 1992). Sodré &
Stasinska (1999) report a clear correlation of EW
[O II] with spectral types ST obtained with a principal component
analysis of the continuum and absorption features of spectra. For ST > 0 their equivalent widths cover approximately the same range as in Fig. 3 of the present paper with
for ST 0 and
for ST 10
.
These authors argue that the spectral sequence can be interpreted as a
sequence of an increasing ratio of the present to the average past star
formation rate. In that picture, low values of EW [O II] correspond, on average, to galaxies where most of the
star formation occured long ago, very few OB stars contribute to the
optical spectrum, and the ionizing UV radiation field is dominated by AGB
stars. The highest values of EW [O II] in our sample are measured for the
two ULIRGS (Sect. 4.3).
From the 45 EW [O II] measurements listed in Table 1,
one finds a remarkably
high mean value of 23 .
This can be compared with the mean values
of 11
and 17
found by Liu and Kennicutt (1995) for a complete, magnitude-limited
sample of (optically selected) local galaxies and for a sample of more
distant merger galaxies, respectively. Even for the (certainly unrealistic)
case that the
30 galaxies in our spectroscopic sample without EW [O II]
measurements have no [O II] emission at all, the sample average of
14
is larger than that of Liu & Kennicutt's local sample.
About one third of the objects show H
and/or Ca II K
absorption with equivalent widths
.
This indicates that stars of intermediate age contribute strongly
to the spectra.
However, there is no galaxy in our
spectroscopic sample with really strong Balmer absorption indicating a
dominant A-star population as measured in ``E+A'' galaxies with
(Liu & Kennicutt 1995).
The H
and Ca II K absorptions
suggest that about 0.5-1 Gyr ago an intense starforming episode
stopped and that we now see the galaxy in a post-starburst
phase, but with considerable ongoing star formation as traced by the
H
and [O II] emission.
The spectra of 34 sources had sufficient S/N at the blue end to allow us to quantify both [O II] emission and Ca II K absorption. The equivalent widths of [O II] emission and Ca II K absorption are roughly anti-correlated. The sources with strong [O II] have weak Ca II K, and vice versa, as shown in Fig. 3.
So far, we have assumed that
both the emission lines and their underlying continuum
suffer, on average, from similar extinction.
On the other hand, Calzetti (2001) found
in a UV-selected sample of star forming galaxies that
the H II emission lines undergo a factor 2 higher
extinction than the stellar continuum.
An explanation for this difference could be that H II regions
are located closer to the parent dusty molecular clouds and
therefore are more likely affected by extinction
than the bulk of stars.
If the difference between emission line and continuum extinction
also holds for our sample, then one expects that EW [O II] decreases
with increasing H
/H
ratio
(which traces the emission line extinction).
In fact, the mean EW [O II] value decreases from EW = 26.6 Å
for sources with low H
/H
to EW = 14.2 Å
for high H
/H
.
However, the population in the lower right
corner of Fig. 3
(EW [O II] < 20 and EW Ca II K > 4) contains sources with
low as well as high emission line extinction which again is not
correlated with IRAS 60
m detection or non-detection.
In addition, the highest EW [O II] are seen in the two ULIRGs
although they have H
/H
10.
This indicates that, even in the case of
high emission line extinction, the [O II] equivalent width can identify
the star forming activity fairly well and consistent with MIR emission
line diagnostics (Sect. 4.2.2).
Furthermore, the EW [O II] comparison of our sample with that of others
(Sodré & Stasinska 1999; Kennicutt 1992; Liu & Kennicutt 1995) was performed in a consistent manner, all samples not being
extinction corrected. These considerations give us confidence
that the potential extinction difference
between emission lines and continuum
does not affect our basic conclusions on the wide range of starforming
activity and the presence of aged stellar populations in PAH selected
galaxies.
We inspected the extent and morphology of 43 sources with
SDSS images available. Most (34/43) of the sources appear extended (>
)
and about one third (12/43) shows irregular morphology or
possible faint companions (with unknown redshift). However the
data did not allow us to establish a connection
between morphology and spectral properties such as equivalent widths.
Nevertheless, this suggests that disturbed morphology does not
automatically imply the presence of powerful starbursts.
To summarise, the optical spectra indicate a range of ongoing
starformation as well as evidence for a intermediate-age stellar populations.
The basic conclusions have been drawn
without calculating starforming rates from the emission line
fluxes, because the corrections for extinction and for aperture
loss due to the
slit widths introduce large uncertainties.
4.2 Mid-infrared spectra
4.2.1 PAH nature of the 6.7
m flux
While local non-AGN templates suggest that PAH emission
dominates the 6.7 m flux of our sources,
we need to exclude that hidden AGN contribute
significantly to the 6.7
m
continuum. Hard X-ray data (>2 keV) are not available for our
sample. Therefore, we checked the nature of the 6.7
m flux by means of MIR spectra.
Figure 4 displays the IRS spectrum of the
brightest source 2MASS 03574895-1340458. The
5-38 m spectra of the other 8 cycle-1 sources
look very similar. The MIR spectra show strong 6-9
m PAH emission.
Depending on the redshift of our sources (
0.03<z<0.3),
the LW2 passband essentially catches the 6.2
m PAH feature and part of the 7.7
m feature. The 8.6
m PAH feature is shifted out of LW2.
On average, about 50% of the rest frame 6-9 m PAH flux
falls into
the LW2 passband and thus explains why the objects have high
K-LW2>1.8 colour values and meet the selection criterion.
The individual values of the PAH fraction seen in LW2 are
listed in Table 2.
Among our sample,
however, we do not see a trend of K-LW2 colour with redshift,
indicating that the broad range of K-LW2 (Fig. 1)
is not dominated by K-correction effects.
![]() |

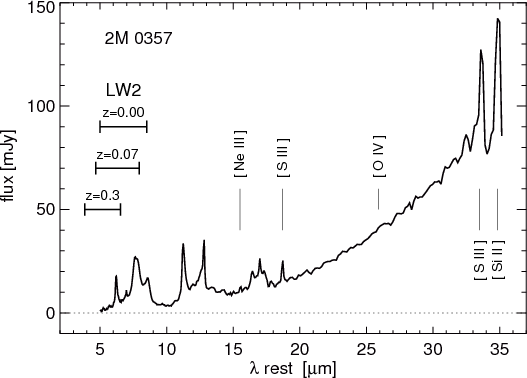

Figure 4:
Example IRS spectrum of 2MASS 03574895-1340458 exhibiting strong PAH features at 6-9 |
Open with DEXTER |
Any 10 m silicate absorption is difficult to determine,
but if present then it appears weak.
With respect to buried AGN, which in principle could
contribute to the 6.7
m continuum, we
consider what can be concluded further from the
19-38
m spectra of cycle-1 and cycle-2.
High-excitation lines ([NeV]
and
[OIV]
)
are not detected, even in the ten 19-38
m
spectra with longer integration times. The low upper limits of the line luminosities and equivalent widths
argue against powerful buried AGN and against a significant
6.7
m AGN continuum. This conclusion is further
supported when looking for possible re-emission of shielding dust at
longer optically thin wavelengths: With the exception of two ULIRGs,
the SEDs show only a moderate rise from 15 to 35
m, and hence
are different from those of elusive X-ray detected AGN like NGC4945
and of starburst-AGN composites like Circinus
(Fig. 5). The two ULIRGs of our sample do not have a 5-10
m spectrum, but cool
F25/F60 colours (Fig. 6) which argue in favour of starburst dominated 6.7
m emission with strong PAH features (Genzel et al. 1998).
These results from 19 sources with MIR spectra lead us to conclude that
most if not all galaxies of our sample show strong PAH emission and
that our LW2 photometry serves as a measure for about 50% of the
6-9 m PAH
luminosity.
![]() |
Figure 5:
IRS spectrum of 2MASS 03574895-1340458 and ISO-SWS spectra
of the starburst-AGN composite
Circinus and the elusive X-ray AGN NGC 4945.
The ISO-SWS spectra are scaled to match the PAH flux level at 6-9 |
Open with DEXTER |
![]() |

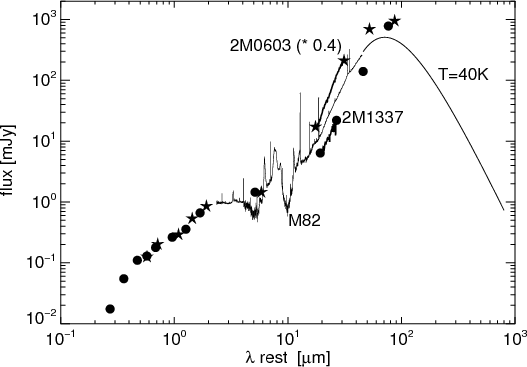

Figure 6:
SEDs of the two ULIRGs.
2MASS 06033357-4509412 (asterisks) is scaled by a factor 0.4 to match
the 6.7 |
Open with DEXTER |
4.2.2 Mid-infrared starforming tracers
[Ne II]
would be the first choice among MIR starforming tracers, because of its
brightness and the required low excitation potential of 21.6 eV.
But in the low resolution spectra this line is not well separated from
the 12.7
m
PAH feature. Therefore we analysed the [S III]
and [Ne III]
lines requiring excitations of 23.3 eV and 40.9 eV, respectively. The fluxes are listed in Table 2.
The [S III] / [Ne III] flux ratio lies in the range
2-5 typical for (modestly) starforming galaxies; for comparison,
intense starburst galaxies like M 82 have
[S III] / [Ne III]
2 (Verma et al. 2003)
and the starburst knots in the overlapping region of the Antennae galaxy
pair have [S III] / [Ne III]
1 (Kunze et al. 1996).
This is because the radiation field of bursts of O-stars is harder and a
higher fraction of neon is in the double-ionized state.
There is a marginal trend that sources with high [Ne III] fraction also
show a high equivalent width of H
and [O II]
.
Two sources, which turn out to be ULIRGs (Sect. 4.3),
have steeply rising 20-35 m continua (Fig. 6).
But the MIR continua of all 17 other sources do not show the strong rise between 15 and 35
m typical for warm starburst heated dust like that
found in M 82 (Fig. 7).
![]() |

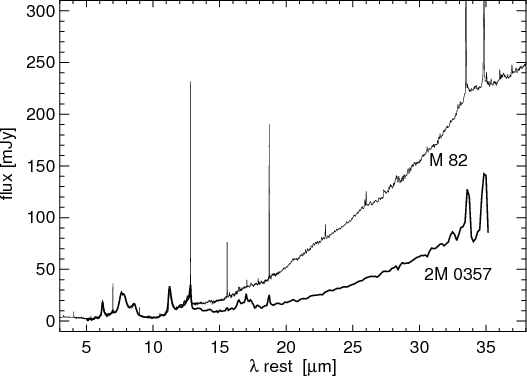

Figure 7:
IRS spectrum of 2MASS 03574895-1340458 and ISO-SWS spectrum
of the starburst template M82. The spectrum of M82 is scaled to match the PAH flux level at 6-9 |
Open with DEXTER |
![]() |

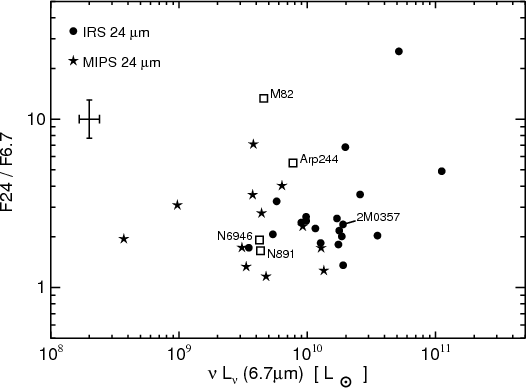

Figure 8:
Colour-magnitude diagram F24 |
Open with DEXTER |
![]() |

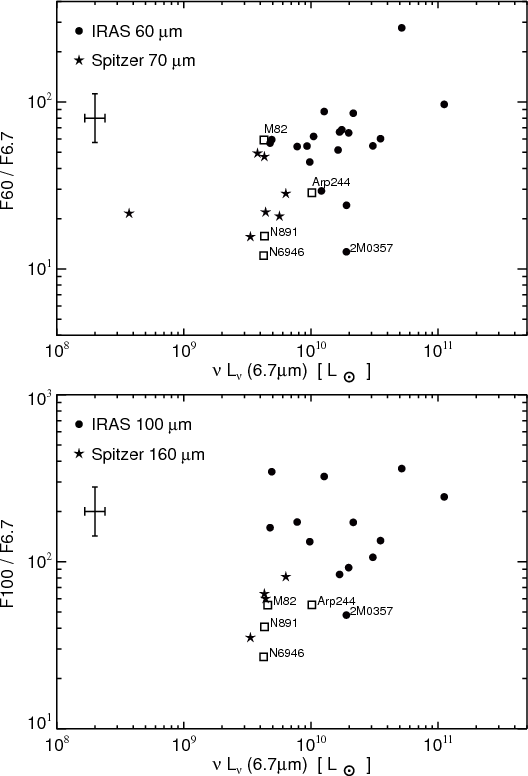

Figure 9:
Colour-magnitude diagrams F60 / F6.7
and F100 / F6.7 versus
6.7 |
Open with DEXTER |
This is also reflected in the low
F24/F6.7 ratio for most sources
as shown in Fig. 8.
In this plot we included both the F24 data from the spectra and the
MIPS-24 m photometry (Tables 2
and 3);
for three sources without redshift but with photometry
we adopted the median redshift of the sample (z=0.105).
For the comparison sources we used the IRAS 25
m fluxes from the
NED (the difference between IRAS-25 and MIPS-24 bandpasses is
negligible here).
The
F24/F6.7 colours of most galaxies appear more similar to
those of the rather quiescent spiral galaxies
NGC 891 (edge-on) and NGC 6946 (face-on) than to M 82.
A few sources reach the
F24/F6.7 ratio of Arp244,
the colliding Antennae galaxy pair with
dust-enshrouded starbursts as well as a large amount of cold dust
(Mirabel et al. 1998; Haas et al. 2000).
To summarise,
most (15/19)
of the mid-IR spectra indicate rather modest starforming activity and
do not show the signatures of powerful M 82-like starburst
galaxies, either in emission lines or the continua.
4.3 Far-infrared properties
Figure 9 shows the 60 and 100 m fluxes
normalized by F6.7
m. We include also the Spitzer 70 and 160
m
photometry, adopting for the first look that colour corrections play a
minor role. A striking fact is that at least half of the FIR detected
sources show a much higher
F60/F6.7 ratio than the local cool templates,
and the
F100/F6.7 ratio of virtually all sources exceeds that of
local templates. Thus the basic result is:
Apart from the two ULIRGs,
most if not all of the 17 sources with IRAS FIR detections are exceptionally
strong cool dust emitters, relative to their PAH emission.
![]() |

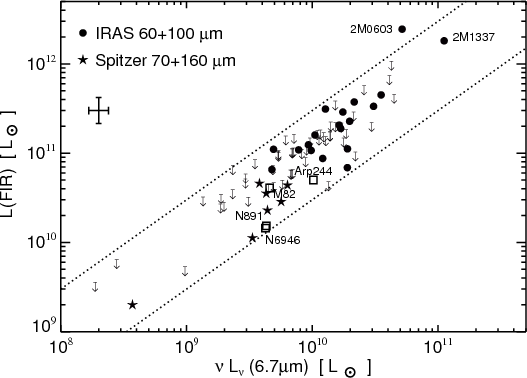

Figure 10:
Far-infrared versus 6.7 |
Open with DEXTER |
Further evidence for this conclusion comes from the far-infrared
luminosities as shown in Fig. 10. Among the 19 IRAS detections 16 sources have
.
Two of them qualify as ULIRGs with
(in Table 1 they are marked after the 2MASS
name)
.
One of the two ULIRGs (2MASS13371721+0904430 at z = 0.3) has a remarkably high F100/F60 (=5.5) indicating a large amount of cool dust despite the
ultra-luminous IR emission. A similar cool ULIRG has been found at
z = 0.45 by Chapman et al. (2002) in the ISO-FIRBACK survey.
Most of the sources with upper IRAS FIR flux limits
have
(<
). The seven Spitzer FIR detections reach about a factor of 5 lower
fluxes than the IRAS upper limits, resulting in both
lower
and
,
too,
which makes the sources similar to local cool templates.
Therefore, we suggest that most of the sources with IRAS FIR upper
limits also have
similar to the Spitzer FIR
detected sources and to local cool templates.
From Fig. 10 it is clear that
is
basically correlated with L6.7.
However, the
ratio of the entire sample
varies between 3 and 30, in a range
of a factor of 10. The ratio increases further at highest luminosities,
consistent with the results by Klaas et al. (2001) and Elbaz et al. (2002). If the total IR luminosity
is considered instead of
,
the range
of
will be even larger.
Comparing the FIR properties with optical equivalent widths,
the IRAS detected sources have the same EW [O II] versus EW Ca II K
distribution as the IRAS non-detections and do not show a preference for a
high EW [O II] (Fig. 3).
In particular, for those sources with low EW [O II],
the cool dust temperature and the signatures of old stellar populations
suggests that the FIR luminosity is powered substantially by
the interstellar radiation field from the old stars rather than purely
by the ongoing starformation. If this is the case, then
will not properly measure the ongoing starforming activity.
To summarise, most (17/19) of the IRAS 60-100 m detected sources
are exceptionally luminous cool dust emitters, but not all of them exhibit
strong starforming signatures as traced by, for instance,
their [O II] equivalent widths.
4.4 Optical to millimetre SEDs
Figure 11 shows the mean optical to millimetre
SEDs (
)
of the 17 IRAS sources and of the 7 Spitzer sources, detected at FIR wavelengths. The two ULIRGs have been excluded.
The important features of these IRAS- and Spitzer-SEDs are:
- 1)
- The Spitzer-SED has three peaks of roughly the same height,
one in the optical at about 0.6
m, one in the MIR around 7
m and one in the FIR at about 100
m. Between these peaks the SED shows valleys at about 4 and 25
m. This SED is similar to that of NGC 891 and NGC 6946.
- 2)
- The IRAS-SED shows peaks of about the same height at optical and
MIR wavelengths, but is about 7-10 times brighter in the FIR than the Spitzer-SED. At 6.7
m the IRAS-SED is about a factor of 1.5 higher than the Spitzer-SED. In the optical-NIR the IRAS-SED is somewhat redder than the Spitzer-SED.
The redder optical SED is consistent with the IRAS detection statistics: While among the 44 sources with red NIR SED (i.e., with H-K>0.5 in Fig. 1) about one quarter is detected with IRAS, the fraction of the IRAS detections among the remaining 76 bluer sources is about a factor of 3 lower. Thus, optical selection criteria are biased against the red but exceptionally FIR bright sources.
- 3)
- Figure 11 also shows the mean 850
m flux predicted for the IRAS sources. This prediction is based on the 1:1 relation between LW2 and SCUBA 850
m flux found for normal, luminous and ultra-luminous dust-rich local galaxies (Klaas et al. 2001; Haas et al. 2002). The remarkable benefit of this relation is that the sub-mm flux can be predicted from the PAH flux, despite the fact that the emission from cold dust is not related to that from transiently heated very small grains. The 60-850
m SED is consistent with cool dust at
K (emissivity index
). Here, we applied a K-correction for average flux loss in LW2. Without such a K-correction the dust temperature would be warmer. Using standard formulae (Krügel 2003), high dust and gas masses are derived (
, and
assuming the standard gas/dust mass ratio of 100). For comparison, the dust masses of M 31 (Andromeda galaxy) and the archetypal ULIRG Arp 220 are about
and
, respectively (Haas et al. 1998; Klaas et al. 2001).
- 4)
- For comparison, the Milky Way SED from COBE/DIRBE is shown.
While the peaks at 6.7 and 100
m are of similar height, the MIR 20-60
m energy output is much lower than in the IRAS- and Spitzer-SEDs, and at optical wavelengths the Milky Way would be about ten times brighter than in the FIR (not shown in Fig. 11 to avoid confusion by too many lines). The SEDs of sources with an IRAS FIR upper limit have about equally high peaks at optical and 6.7
m. This adds a further argument supporting that these sources are similar to the Spitzer-SED sources, i.e. local templates like NGC 891 and NGC 6946.
![]() |

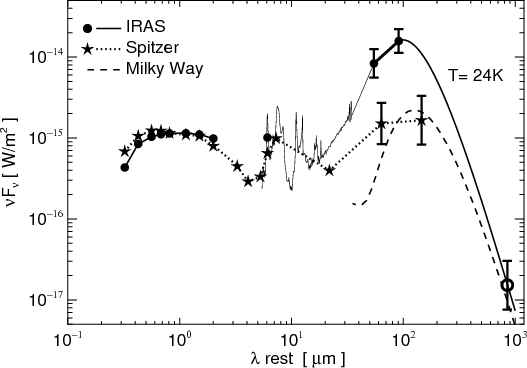

Figure 11:
Mean optical to millimetre SEDs ( |
Open with DEXTER |
5 Summary and conclusions
In order to obtain a census of the typical properties of PAH
emitting galaxies, we combined the ISOCAM Parallel Survey at
6.7 m
with 2MASS and colour-selected a sample of 120 candidates for
strong PAH emission. Optical spectra of 75 sources establish that
they are starforming galaxies at moderate distance (
0.03<z<0.3) with a median redshift
.
Mid-infrared spectroscopy of the reddest 19 sources confirms that they have strong PAH emission and that they are not
dust-enshrouded AGN. This leads us to conclude that the
entire sample of 120 sources consists of PAH selected galaxies
with a 6.7
m luminosity between 10
and 10
.
This galaxy population has the following properties:
- 1)
- In about one third of the sources the H
and [O II]
equivalent widths indicate intermediate to strong starforming activity, while one third shows only moderate ongoing star formation but H
and/or Ca II K absorption, indicating a significant contribution of stars of intermediate mass and age. The remaining third of the sources lies between these cases. Many sources exhibit morphological irregularities, but our data did not allow us to establish a relation with spectral properties.
- 2)
- The mid-infrared emission lines [S III]
and [Ne III]
as well as the lack of higher ionisation lines corroborate that even in the reddest sources the radiation field is relatively soft. For all sources except two ULIRGs, the MIR lines and continua exclude powerful buried AGN and do not suggest the presence of intense hidden starbursts. The 24
m/6.7
m flux ratio is more like that of cool normal spiral galaxies such as NGC 891 and NGC 6946 and in a few sources it reaches that of the Antennae galaxy Arp 244.
- 3)
- In the far-infrared, 26 sources are detected on IRAS-ADDSCANS or Spitzer maps. Most SEDs steeply rise from 60 to 100
m, adding further evidence that a large amount of cool dust (T < 25 K,
) dominates the FIR luminosity (10
to
). In 17 sources (
15%) the FIR energy output is 5-10 times higher than the optical one, despite the cool dust temperature. The sources with upper FIR flux limits are consistent with this picture. The exceptional FIR-luminous galaxies increase the dispersion in the
relation. Their, on average, redder optical colours and the fact that 30% of them have rather low H
and [O II]
equivalent widths, strongly suggest that optical selection criteria fail to collect a complete PAH emitting galaxy sample.

The ISOCAM Parallel Survey has been performed with the Infrared Space Observatory ISO, an ESA project with instruments funded by ESA Member States and with the participation of ISAS and NASA. The Two Micron All Sky Survey (2MASS) is a joint project of the University of Massachusetts and IPAC/Caltech, funded by the National Aeronautics and Space Administration and the National Science Foundation. This work is based essentially on observations made with the Spitzer Space Telescope, which is operated by the Jet Propulsion Laboratory, California Institute of Technology under a contract with NASA. Observing time for optical spectroscopy has been granted at the telescopes: South African Astrophysical Observatory 1.9m, Tautenburg 2m, Kitt Peak 2.1m, Calar Alto 2.2m, Nordic Optical Telescope 2.5m, Telescopio Nazionale Galileo 3.5m, ESO/NTT 3.5m, CTIO Blanco 4m, ESO/VLT 8.2m. We thank an anonymous referee for detailed constructive comments. This work was supported by Nordrhein-Westfälische Akademie der Wissenschaften und der Künste.
References
- Bendo, G. J., Draine, B. T., Engelbracht, C. W., et al. 2008, MNRAS, 389, 629 [CrossRef] [NASA ADS]
- Bregman, J. D., Bregman, J. N., & Temi, P. 2008, ASPC, 381, 34 [NASA ADS]
- Calzetti, D. 2001, PASP, 113, 1449 [CrossRef] [NASA ADS]
- Caputi, K. I., Lagache, G., Yan, L., et al. 2007, ApJ, 660, 97 [CrossRef] [NASA ADS]
- Cesarsky, C. J., Abergel, A., Agnese, P., et al. 1996a, A&A, 315, L32 [NASA ADS]
- Cesarsky, D., Lequeux, J., Abergel, A., et al. 1996b, A&A, 315, L309 [NASA ADS]
- Chapman, S. C., Smail, I., Ivison, R. J., et al. 2002, ApJ, 573, 66 [CrossRef] [NASA ADS]
- Chini, R., Kreysa, E., Kruegel, E., et al. 1986, A&A, 166, L8 [NASA ADS]
- Dale, D. A., Helou, G., Contursi, A., et al. 2001, ApJ, 549, 215 [CrossRef] [NASA ADS]
- Dale, D. A., Bendo, G. J., Engelbracht, C. W., et al. 2005, ApJ, 633, 857 [CrossRef] [NASA ADS]
- Dennefeld, M., Lagache, G., Mei, S., et al. 2005, A&A, 440, 5 [EDP Sciences] [CrossRef] [NASA ADS]
- Dole, H., Lagache, G., Puget, J.-L., et al. 2006, A&A, 451, 417 [EDP Sciences] [CrossRef] [NASA ADS]
- Dressler, A., & Gunn, J. E. 1982, ApJ, 263, 533 [CrossRef] [NASA ADS]
- Elbaz, D., Cesarsky, C. J., Chanial, P., et al. 2002, A&A, 384, 848 [EDP Sciences] [CrossRef] [NASA ADS]
- Genzel, R., Lutz, D., Sturm, E., et al. 1998, ApJ, 498, 579 [CrossRef] [NASA ADS]
- Haas, M., Lemke, D., Stickel, M., et al. 1998, A&A, 338, L33 [NASA ADS]
- Haas, M., Klaas, U., Coulson, I., et al. 2000, A&A, 356, L83 [NASA ADS]
- Haas, M., Klaas, U., & Bianchi, S. 2002, A&A, 325, L23 [CrossRef] [NASA ADS]
- Haas, M., Siebenmorgen, R., Leipski, C., et al. 2004, A&A, 419, L49 [EDP Sciences] [CrossRef] [NASA ADS]
- Houck, J. R., Roellig, T. L., van Cleve, J., et al. 2004, ApJS, 154, 18 [CrossRef] [NASA ADS]
- Juvela, M., Mattila, K., Lemke, D., et al. 2009, A&A, 500, 763 [EDP Sciences] [CrossRef] [NASA ADS]
- Kaneda, H., Onaka, T., Sakon, I., et al. 2008, ApJ, 684, 270 [CrossRef] [NASA ADS]
- Kennicutt, R. C. 1992, ApJ, 388, 310 [CrossRef] [NASA ADS]
- Klaas, U., Haas, M., Müller, S. A. H., et al. 2001, A&A, 379, 823 [EDP Sciences] [CrossRef] [NASA ADS]
- Krügel, E. 2003, The physics of interstellar dust, IoP Series in Astron. & Astrophys. Bristol
- Kunze, D., Rigopoulou, D., Lutz, D., et al. 1996, A&A, 315, L101 [NASA ADS]
- Lagache, G., Puget, J.-L., & Dole, H. 2005, ARA&A, 43, 727 [CrossRef] [NASA ADS]
- Laurent, O., Mirabel, I. F., Charmandaris, V., et al. 2000, A&A, 359, 887 [NASA ADS]
- Leipski, C., Haas, M., Meusinger, H., et al. 2005, A&A, 440, L8 [CrossRef] [NASA ADS]
- Leipski, C., Haas, M., Meusinger, H., et al. 2007, A&A, 464, 895 [EDP Sciences] [CrossRef] [NASA ADS]
- Lemke, D., Mattila, K., Lehtinen, K., et al. A&A, 331, 742
- Liu, C. T., & Kennicutt, R. C. 1995, ApJ, 450, 547 [CrossRef] [NASA ADS]
- Mattila, K., Lemke, D., Haikala, L. K., et al. 1996, A&A, 315, L353 [NASA ADS]
- Mattila, K., Lehtinen, K., Lemke, D. 1999, A&A, 342, 643 [NASA ADS]
- Mirabel, I. F., Vigroux, L., Charmandaris, V., et al. 1998, A&A, 333, L1 [NASA ADS]
- Monkiewicz, J. A., Dickinson, M. E., Davoodi, P., et al. 2008, ASPC, 381, 332 [NASA ADS]
- Ott, S., Siebenmorgen, R., Schartel, N., et al. 2003, ESA SP-511, 159
- Patris, J., Dennefeld, M., Lagache, G., et al. 2003, A&A, 412, 349 [EDP Sciences] [CrossRef] [NASA ADS]
- Puget, J. L., & Léger, A. 1989, ARA&A, 27, 161 [CrossRef] [NASA ADS]
- Rowan-Robinson, M., Lari, C., Perez-Fournon, I., et al. 2004, MNRAS, 315, 1290 [CrossRef] [NASA ADS]
- Sajina, A., Scott, D., Dennefeld, M., et al. 2006, MNRAS, 369, 939 [CrossRef] [NASA ADS]
- Sanders, D. B., & Mirabel, I. F. 1996, ARA&A, 34, 749 [CrossRef] [NASA ADS]
- Schweitzer, M., Lutz, D., Sturm, E., et al. 2006, ApJ, 649, 79 [CrossRef] [NASA ADS]
- Shi, Y., Ogle, P., Rieke, G. H., et al. 2007, ApJ, 669, 841 [CrossRef] [NASA ADS]
- Siebenmorgen, R., Abergel, A., Altieri, B., et al. 1996, A&A, 315, L169 [NASA ADS]
- Siebenmorgen, R., Schartel, N., & Ott, S. 2000, LNP 548, 275 in ISO Surveys of a Dusty Universe, ed. D. Lemke et al., 275
- Sodré, L., & Stasinska, G. 1999, A&A, 345, 391 [NASA ADS]
- Thronson, H. A., Jr., Walker, C. K., et al. 1987, ApJ, 318, 645 [CrossRef] [NASA ADS]
- Uchida, K. I., Sellgren, K., Werner, M. W., et al. 2000, ApJ, 530, 817 [CrossRef] [NASA ADS]
- Väisänen, P., Morel, T., Rowan-Robinson, M., et al. 2002, MNRAS, 337, 1043 [CrossRef] [NASA ADS]
- Veilleux, S., & Osterbrock, D. E. 1987, ApJS, 63, 295 [CrossRef] [NASA ADS]
- Verma, A., Lutz, D., Sturm, E., et al. 2003, A&A, 403, 829 [EDP Sciences] [CrossRef] [NASA ADS]
- Werner, M. W., Roellig, T. L., Low, F. J., et al. 2004, ApJS, 154, 1 [CrossRef] [NASA ADS]
- Wu, H., Cao, C., Hao, C.-Na, et al. 2005, ApJ, 632, L79 [CrossRef] [NASA ADS]
- Xu, C. 2000 ApJ, 541, 134
- Zhu, Yi-N., Wu, H., Cao, C., et al. 2008, ApJ, 686, 155 [CrossRef] [NASA ADS]
Online Material
Table 1: The sample of PAH selected galaxies and observed properties.
Table 2: Parameters from the Spitzer IRS spectra.
Table 3:
Photometry from Spitzer IRAC (3.6-8 m) and MIPS (24-160
m).
Footnotes
- ... galaxies
- Tables 1-3 are only available in electronic form at http://www.aanda.org
- ... Archive
- http://www.iso.vilspa.esa.es/ida/
- ... values
- http://www.ipac.caltech.edu/2mass/releases/sampler/sampler.html
- ...
telescopes
- South African Astrophysical Observatory 1.9 m, Tautenburg 2m, Kitt Peak 2.1m, Calar Alto 2.2m, Nordic Optical Telescope 2.5 m, Telescopio Nazionale Galileo 3.5 m, ESO/NTT 3.5m, CTIO Blanco 4m, ESO/VLT 8.2m.
- ...
)
- The outlier (2MASS 15554606+1532218) has a factor 1.8 lower IRS flux in
the LW2 passband. The discrepancy could be explained by
either a photometric LW2 error due to a non-detected cosmic ray event,
or an IRS pointing error or aperture effects.
On SDSS images the source is extended with a diameter of
about 8'' including a bright tail to the south.
While from the LW2 image the total flux is measured,
part of the flux could be missed in the IRS spectrum due to the
slit width of 3.7'' between 5
m and 14
m. However, the IRS spectrum of 2MASS 1555 does not show a jump at 14
m longward of which the slit width is 11.6
. Probably a combination of all three effects is responsible for the discrepancy between LW2 and IRS photometry of this source. Because this source has typical average properties, the results and conclusions are essentially not affected by the choice of the 6.7
m flux value.
- ... ADDSCANs
- http://scanpi.ipac.caltech.edu:9000/
- ... ST 10
- The Sodré & Stasinska (1999) spectral type ST is correlated with the Hubble morphological type. ST>0 roughly corresponds to Hubble types later than Sa, and ST 10 to irregular galaxies.
- ...
name)
- We do not expect that our sample contains more than these two
ULIRGs. The reason is that
known local ULIRGs have
and
, and all objects of this red subsample have redshifts, so that the FIR luminosity can be determined. With exception of the two ULIRGs, all other sources of the red subsample have
even in case of upper FIR flux limits. Outside of the red subsample a ULIRG could be expected if z > 0.3. Then it still has
, but
becomes lower, because the PAH features move out of the LW2 passband. In this colour range there are 10 sources without spectra, but for none of them is the optical to MIR SED consistent with a ULIRG template at (photometric) redshift z > 0.2.
- ...
Spitzer-SED.
- Because the number of our Spitzer FIR detected sources covered by SDSS is very small, we used the mean SDSS SED of all non-IRAS detections. The result is basically the same, but smoother.
All Tables
Table 1: The sample of PAH selected galaxies and observed properties.
Table 2: Parameters from the Spitzer IRS spectra.
Table 3:
Photometry from Spitzer IRAC (3.6-8 m) and MIPS (24-160
m).
All Figures
![]() |
Figure 1:
Colour-colour diagram illustrating the sample selection. While most of
the 3000 ISO-2MASS sources lie in the region around zero outlined
by the dashed curve, here we consider only sources with 6.7 |
Open with DEXTER | |
In the text |
![]() |
Figure 2:
Examples of optical spectra. Top (2MASS 01051501 -2612466): While H |
Open with DEXTER | |
In the text |
![]() |
Figure 3:
Equivalent widths of [O II] emission and Ca II K
absorption. The average errors are illustrated by the bars in the upper
right corner. The two sources with spectra shown in Fig. 2 are labeled.
Overplotted crosses mark those sources detected with IRAS at
60 |
Open with DEXTER | |
In the text |
![]() |
Figure 4:
Example IRS spectrum of 2MASS 03574895-1340458 exhibiting strong PAH features at 6-9 |
Open with DEXTER | |
In the text |
![]() |
Figure 5:
IRS spectrum of 2MASS 03574895-1340458 and ISO-SWS spectra
of the starburst-AGN composite
Circinus and the elusive X-ray AGN NGC 4945.
The ISO-SWS spectra are scaled to match the PAH flux level at 6-9 |
Open with DEXTER | |
In the text |
![]() |
Figure 6:
SEDs of the two ULIRGs.
2MASS 06033357-4509412 (asterisks) is scaled by a factor 0.4 to match
the 6.7 |
Open with DEXTER | |
In the text |
![]() |
Figure 7:
IRS spectrum of 2MASS 03574895-1340458 and ISO-SWS spectrum
of the starburst template M82. The spectrum of M82 is scaled to match the PAH flux level at 6-9 |
Open with DEXTER | |
In the text |
![]() |
Figure 8:
Colour-magnitude diagram F24 |
Open with DEXTER | |
In the text |
![]() |
Figure 9:
Colour-magnitude diagrams F60 / F6.7
and F100 / F6.7 versus
6.7 |
Open with DEXTER | |
In the text |
![]() |
Figure 10:
Far-infrared versus 6.7 |
Open with DEXTER | |
In the text |
![]() |
Figure 11:
Mean optical to millimetre SEDs ( |
Open with DEXTER | |
In the text |
Copyright ESO 2009
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
