A&A 507, 317-326 (2009)
A binary engine fuelling HD 87643's complex circumstellar environment
Determined using AMBER/VLTI imaging
,
F. Millour1 - O. Chesneau2 - M. Borges Fernandes2 - A. Meilland1 - G. Mars3 - C. Benoist3 - E. Thiébaut4 - P. Stee2 - K.-H. Hofmann1 - F. Baron5 - J. Young5 - P. Bendjoya2 - A. Carciofi6 - A. Domiciano de Souza2 - T. Driebe1 - S. Jankov2 - P. Kervella7 - R. G. Petrov2 - S. Robbe-Dubois2 - F. Vakili2 - L. B. F. M. Waters8 - G. Weigelt1
1 - Max-Planck Institut für Radioastronomie, Auf dem Hügel 69,
53121 Bonn, Germany
2 - UMR 6525 H. Fizeau, Univ. Nice Sophia Antipolis, CNRS, Observatoire
de la Côte d'Azur, 06108 Nice Cedex 2, France
3 - UMR 6202 Cassiopée, Univ. Nice Sophia Antipolis, CNRS,
Observatoire de la Côte d'Azur, BP 4229, 06304 Nice, France
4 - UMR 5574 CRAL, Univ. Lyon 1, Obs. Lyon, CNRS, 9 avenue Charles
André, 69561 Saint Genis Laval Cedex, France
5 - Astrophysics Group, Cavendish Laboratory, University of Cambridge,
J.J. Thomson Avenue, Cambridge CB3 0HE, UK
6 - Instituto de Astronomia, Geofísica e Ciências Atmosféricas,
Universidade de São Paulo, Rua do Matão 1226, Cidade
Universitária, 05508-900, São Paulo, SP, Brazil
7 - LESIA, Observatoire de Paris, CNRS UMR 8109, UPMC, Univ. Paris
Diderot, 5 place Jules Janssen, 92195 Meudon Cedex, France
8 - Faculty of Science, Astronomical Institute ``Anton
Pannekoek'', Kruislaan 403, 1098 SJ Amsterdam, The Netherlands
Received 24 December 2008 / Accepted 2 August 2009
Abstract
Context. The star HD 87643, exhibiting the
``B[e] phenomenon'', has one of the most extreme infrared excesses for
this object class. It harbours a large amount of both hot and cold
dust, and is surrounded by an extended reflection nebula.
Aims. One of our major goals was to investigate the
presence of a companion in HD87643. In addition, the presence of close
dusty material was tested through a combination of multi-wavelength
high spatial resolution observations.
Methods. We observed HD 87643 with high
spatial resolution techniques, using the near-IR AMBER/VLTI
interferometer with baselines ranging from 60 m to
130 m and the mid-IR MIDI/VLTI interferometer with baselines
ranging from 25 m to 65 m. These observations are
complemented by NACO/VLT adaptive-optics-corrected images in the K
and L-bands, and ESO-2.2m optical Wide-Field Imager
large-scale images in the B, V
and R-bands.
Results. We report the direct detection of a
companion to HD 87643 by means of image synthesis using the
AMBER/VLTI instrument. The presence of the companion is confirmed by
the MIDI and NACO data, although with a lower confidence. The companion
is separated by 34 mas
with a roughly north-south orientation. The period must be large
(several tens of years) and hence the orbital parameters are not
determined yet. Binarity with high eccentricity might be the key to
interpreting the extreme characteristics of this system, namely a dusty
circumstellar envelope around the primary, a compact dust nebulosity
around the binary system and a complex extended nebula suggesting past
violent ejections.
Key words: techniques: high angular resolution - techniques: interferometric - stars: emission-line, Be - binaries: close - circumstellar matter - stars: individual: HD 87643
Introduction
Stars with the ``B[e] phenomenon'' are B-type stars with strong Balmer emission lines, numerous permitted Fe II lines, and forbidden O I and Fe II lines in their optical spectrum. In addition, these stars exhibit a strong near and mid-IR excess due to circumstellar dust (Allen & Swings 1976; Conti 1997). For brevity, we henceforth refer to stars showing the B[e] phenomenon as ``B[e] stars''. The class of B[e] stars is composed of several sub-classes, including objects at different evolutionary stages and of low, medium, and high mass (Lamers et al. 1998). Distances toward them are usually poorly known. As a consequence, the determination of the evolutionary state of B[e] stars is often uncertain.
Observations suggest that the wind of some of the most massive B[e] stars stars or sgB[e] in][]1998AetA...340..117L is composed of two distinct components, as proposed by Zickgraf et al. (1985). The first component is a wind of low density in the polar regions; the second component is a wind of high density and low velocity located in the equatorial region of the star. The thermal infrared excess is supposed to be produced in the outer parts of the equatorial wind where the temperature allows the formation of dust grains, but dust might also survive much closer to the star in a dense and compact disc.
The formation of dusty environments around B[e] evolved objects is a challenge, with many theoretical issues (see Kraus & Lamers 2003). A non-spherical, disc-like environment may be the key to understanding dust formation in sgB[e] stars. It could be attributed to the rapid rotation of these stars (e.g. Zsargó et al. 2008; Bjorkman & Cassinelli 1993; Kraus 2006; Lamers & Pauldrach 1991) but could also be caused by companions, since some B[e] stars were found to be binaries. Indeed, the number of companions detected around these objects is steadily growing (Miroshnichenko et al. 2004,2006), but claims that all B[e] stars are binaries are still controversial (Zickgraf 2003).
The number of B[e] stars is rather limited, and many of them are unclassified in][]1998AetA...340..117L because they exhibit properties usually associated with young and evolved objects simultaneously.
Our group has undertaken a large observing campaign to investigate these poorly studied objects (sgB[e] and unclB[e]) mostly using optical interferometry with the Very Large Telescope Interferometer stars]2005ASPC..337..211S. Early results were published on the sgB[e] star CPD-57 2874 (Domiciano de Souza et al. 2007).
HD 87643 (Hen 3-365, MWC 198,
IRAS 10028-5825) appears to be a
special case among sgB[e] and unclB[e] stars. It is a B2[e]
star (Oudmaijer
et al. 1998) that exhibits the largest infrared
excess among this class and appears to be embedded in a complex
nebula whose properties are reminiscent of the nebulae around LBVs
(Surdej
& Swings 1983; Surdej
et al. 1981;
van
den Bergh 1972). HD 87643 is considered a unclB[e]
by
Lamers
et al.
(1998): it was classified as sgB[e]
(see the estimation of the bolometric luminosity
in McGregor
et al. 1988; Cidale
et al. 2001),
under the assumption
that it lies close to the Carina arm
(2-2.5 kpc McGregor
et al. 1988;
Miroshnichenko
1998; Oudmaijer
et al. 1998),
but one can also find
it classified as a Herbig star (Baines
et al. 2006;
Valenti
et al. 2000). The
of the central star is unknown
since no pure photospheric line is detected in the visible spectrum.
Clues to the disc-like geometry of the environment are provided by
the polarisation ellipse in the U-Q plane across H
(Oudmaijer
et al. 1998).
The detected PA is about
15
-20
(Yudin
& Evans 1998; Oudmaijer
et al. 1998).
On the other hand, Baines
et al. (2006) claimed to have
detected an asymmetric outflow around HD87643 using
spectro-astrometry. However, they also note that ``HD 87643
stands out in the complexity
of its spectro-astrometry'', compared with the numerous other Herbig
Be stars they observed.
HD 87643 has displayed a long-term decline of the
visual
brightness for the last 30 yr, from
in 1980
(Miroshnichenko
1998),
to
in early
2009 (Pojmanski
2009).
This decline is superimposed
on shorter-term variations, such as a 0.5 mag
decrease in
1 month,
followed by a 0.7 mag increase
in
5 months,
seen in the ASAS photometric survey
(Pojmanski
2009)
between JD 2453000 and
JD 2453180. Yudin
& Evans (1998) also noted that HD87643
shows Algol-like variability, the star showing variations ``on a
timescale of days'', and being ``bluer during brightness
minima''.
The totality of the ISO/SWS 2-45 m mid-IR
emission from
HD 87643 seems concentrated within the smallest ISO aperture (
), and at 10
m, the dusty
environment is unresolved on a
1'' scale (Voors 1999).
The ISO/LWS spectrum also
continues from the shorter-wavelength SED without any jump, which is an
additional sign that the mid-IR emission is
compact. The disc-like geometry is strongly supported by the
huge infrared excess exhibited by the source, the large absorption
of the central star flux, and the polarimetric
data. Voors
(1999)
proposed that the disc might be a
circumbinary disc.
In this paper we report new observations that bring a new insight into this interesting object, proving the presence of a companion, a resolved circum-primary dust envelope (most likely a disc), and circumbinary material.
The outline of the article is as follows: the observations and data recorded are presented in Sect. 1, then we present and discuss the main results from our observing campaign in Sect. 2, and give a global view of the system, considering this new information, in Sect. 3.
1 Observations and data processing
1.1 AMBER/VLTI near-IR interferometry
HD 87643 was observed at the ESO/Paranal observatory with the
Astronomical Multi BEam Recombiner (AMBER), the
near-infrared instrument of the VLTI (Petrov
et al. 2007). The
observations were carried out on February 18, 2006 in medium
spectral resolution (R=1500) and during a series of
nights in March 2008
at low spectral resolution (R=35). AMBER uses three
8m
telescopes (Unit Telescopes, hereafter UT) or three
1.8m telescopes (Auxiliary Telescopes, hereafter
AT). The calibration stars used were HD 109787,
HD 86440,
HD 101531, HD 63744 and
Oph. Details of the observations can
be found in Table 1.
Table 1: AMBER and MIDI observing logs.
The data were processed with the standard AMBER data reduction software (amdlib 2.1, see for instance Tatulli et al. 2007; Millour et al. 2004) plus a series of advanced scripts to calibrate the data (Millour et al. 2008). The AMBER DRS performs a fringe fitting instead of Fourier transforms and computes interferometric data products such as V2 and closure phases (for a review of the interferometric data analysis, see: Monnier 2006; Millour 2008; Haniff 2006). We performed the reduction using standard selection criteria (see for instance Appendix C in Millour et al. 2007) for the individual exposures, rejecting 80% of the data before averaging the data products. The additional scripts allowed us to compute realistic error bars, including the uncertainties on the diameters of the calibration stars, the instrument atmosphere transfer function instabilities, and the fundamental noise. The study of the transfer function provided by different calibrators gives an estimate of absolute errors on V2between 0.05 and 0.1. The visibilities and closure phases are shown in Fig. 3.
1.2 MIDI/VLTI mid-IR interferometry
The observations of HD 87643 at the ESO/Paranal observatory
using
the MID-Infrared instrument (hereafter
MIDI, Leinert
et al. 2004,2003)
were carried
out from February until May 2006. MIDI is the mid-infrared
(N-band, 7.5-13.5 m) two-telescope combiner of the VLTI,
operating like a classical Michelson interferometer. In our case,
only the ATs were used since HD 87643 is bright in the mid-IR
(156 Jy). We used a standard MIDI observing sequence, as
described
by Ratzka
et al.
(2007). The source was observed in the
so-called High-Sens mode, implying that the photometry from each
individual telescope is performed subsequently to the recording of
the fringes. The low spectral resolution (R=30)
provided by the
prism was used. The data consist of 7 visibility spectra and
one
flux spectrum (PSF 1.2'' with ATs). The errors on the
visibilities, including the internal ones and those from the
calibrator diameter uncertainty, range from 0.05
to 0.15. The MIDI
spectrum was difficult to calibrate, and the accuracy of the
absolute photometry is not better than 30%, although one can
see
in Fig. 4

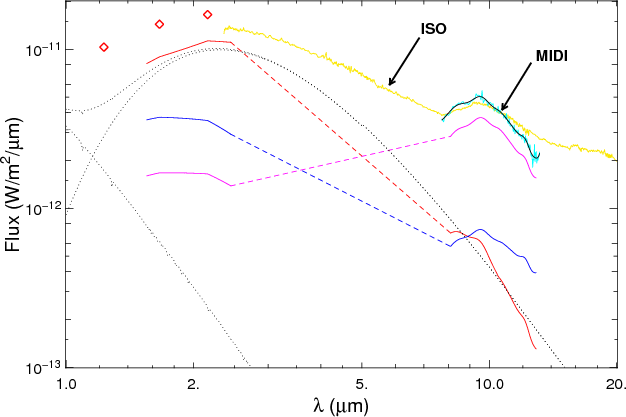

that the MIDI spectrum agrees well with the

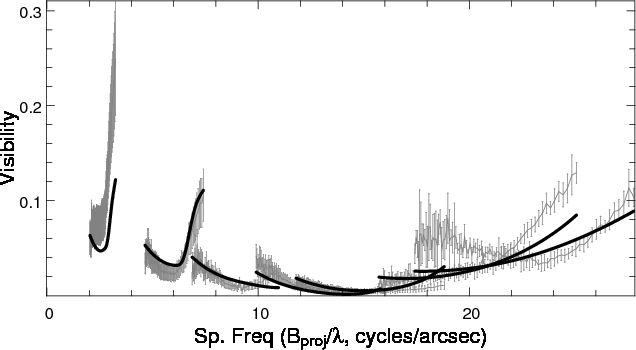

IRAS (Olnon
et al. 1986) and the ISO spectra
(affected by problems of ``gluing'' between different spectral
bands, as reported in Voors
1999). The log of the
observations is given in Table 1. We
used two
different MIDI data reduction packages: MIA developed at the
Max-Planck-Institut für Astronomie and EWS developed at the
Leiden Observatory (MIA+EWS
,

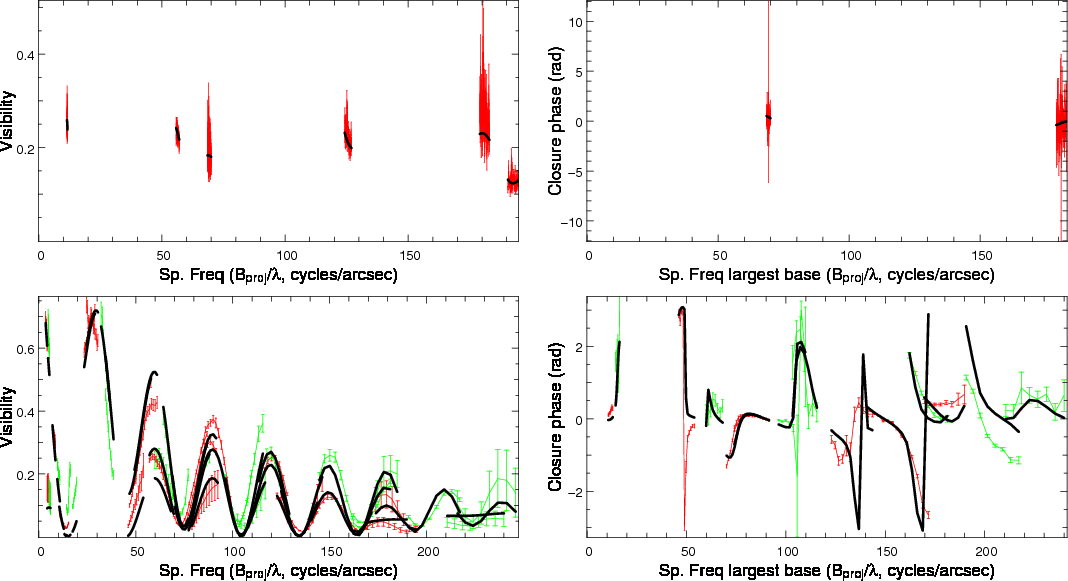

ver.1.5.1). The resulting visibilities can be seen in
Fig. 4.
1.3 NACO/VLT adaptive optics assisted imaging
We observed HD 87643 at the ESO/Paranal observatory with the
NACO
adaptive optics camera (NAos adaptive optics system combined with
the COnica camera, Rousset
et al. 2003) attached to UT4 of the Very Large
Telescope (VLT). NACO was operated
in the visual wavefront sensor configuration. We observed the target
with Ks (m) and L'
(3.8
m)
broad-band filters. The
star HD 296986 was used to derive the point-spread function
(PSF). The
S13 camera mode was used for Ks, with a 13 mas per
pixel scale and a
field of view. In L',
using camera
mode L27, the field of view was
and
the pixel scale was 27.1 mas. The auto-jitter mode was used,
which, at each exposure, moves the telescope in a random pattern within
a box of side 7'' in Ks and 15'' in L '. The
journal of observations can be found in Table 2.
Table 2: Journal of observations with NACO/VLT.
The data reduction was performed using our own scripts. First, bad pixels were removed (i.e. interpolated using the adjacent pixel values) and a flat-field correction was applied to the data. Then, the sky was computed as the median of all exposures and subtracted exposure by exposure. A visual inspection of each exposure allowed us to check the PSF quality. The ``bad'' ones were removed for the next step. This allowed us to significantly improve the final data product image quality compared to the standard pipeline-reduced frames. This also led us to disregard the 20/03/2008 data-sets, which were in any case flagged as ``failed'' in the observing log. A cross-correlation technique was then used to re-centre the images with about 1 pixel accuracy. Finally, all the selected frames were co-added, resulting in the total exposure time shown in Table 2.
As a result, we got a pair of science star/PSF star images for
each
observation (which were repeated due to changing weather conditions
and saturation of the detector). The PSF FWHM is mas
in the
-band and
mas
in the L'-band. In addition to a
deconvolution attempt presented in Sect. 2.2,
we
computed radial profiles to increase the dynamic range from about
103
per pixel to
104-105.

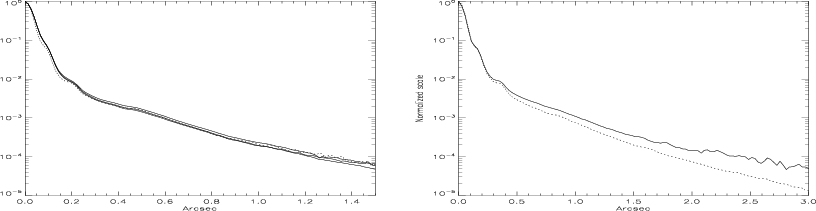

The result can be
found in Fig. 5.
1.4 2.2 m/WFI large-field imaging

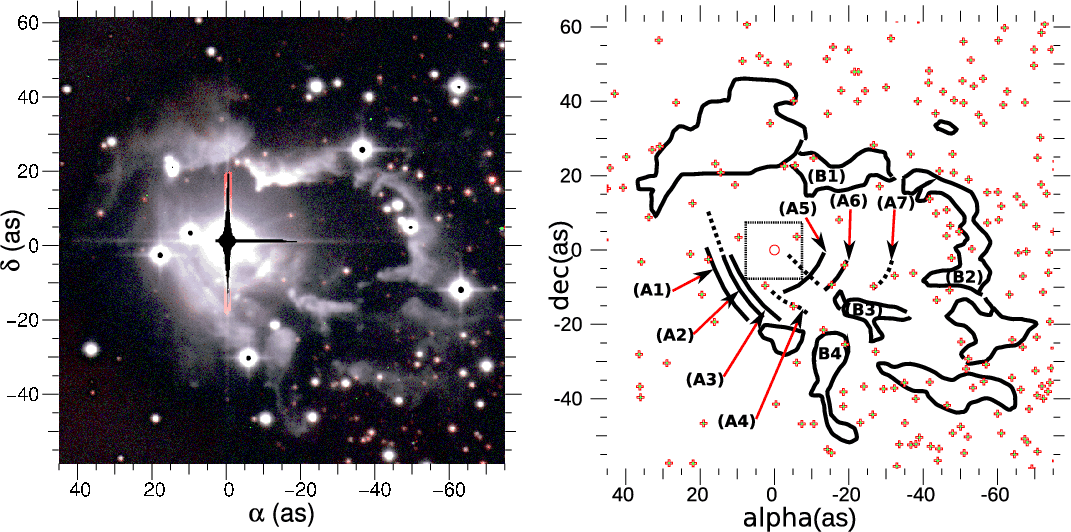

We retrieved unpublished archival ESO/wide-field imager (WFI)
observations of the nebula around HD 87643 from the ESO
database
carried out on March 15 and 16, 2001. The WFI is a
mosaic camera attached to the ESO 2.2m telescope at the La Silla
observatory. It consists of eight 2k
4k CCDs, forming an
8k
8k
array with a pixel scale of 0.238'' per pixel. Hence, a
single WFI pointing covers a sky area of about
.
The
observations were performed in the
and
broadband
filters and in the narrow-band filter in the H
line
(
,
).
However,
we used only the observations with B, V,
and R filters given that
it is a reflection nebula only (Surdej
et al. 1981). In
order to cover the gaps between the WFI CCDs and to correct for
moving objects and cosmic ray hits, for each pointing, a sequence
of five offset exposures was performed in each filter.
The data reduction was performed using the package alambic developed by Vandame based on tools available from the multi-resolution visual model package (MVM) by Rué & Bijaoui (1997). The image is shown in Fig. 6.
2 New facts about HD 87643
2.1 Interferometry data: A binary star plus a compact dusty disc
From the sparse 2006 AMBER medium spectral resolution data, the structure of the source could not be inferred unambiguously. The squared visibilities from 2006 did not show any significant variation with spatial frequency. The closure phases were measured as zero within the error estimates (see Fig. 3).
The Br
emission line appears clearly in the AMBER
calibrated spectrum after using the technique described in
Hanson
et al.
(1996) of fitting and removing the
Br
line for the calibrator. The resulting Br
line accounts for 15% of the
continuum flux at its maximum and
is spread over 5 spectral pixels (250
),
similar to what is
reported in McGregor
et al. (1988).
The extensive AMBER low spectral resolution data, secured in 2008 (see Fig. 3), show large variations of V2 and closure phases and clearly indicate a modulation from a binary source. Given the good uv coverage (see Fig. 1) and the quality of the data, we undertook an image reconstruction process, aiming to determine the best models to use for the interpretation.
![]() |

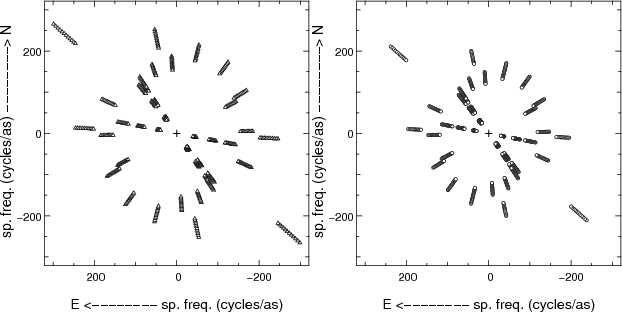

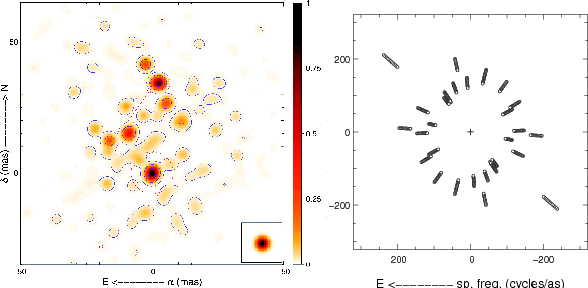

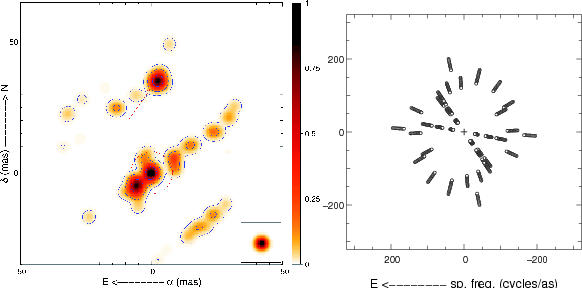

Figure 1: UV coverage obtained on HD87643 in the H-band ( left), in the K-band ( right). The radial lines are caused by the different wavelengths within the bands. |
Open with DEXTER |
2.1.1 Image reconstruction
The images in Fig. 2 were reconstructed from the AMBER squared visibilities and closure phases using the MIRA software (Thiébaut 2008). MIRA compares the visibilities and the closure phases from a modelled image with the observed data using a cost-estimate optimisation, including a priori information such as image positivity (all image pixels are positive) and compactness of the source (using a so-called L2-L1 regularisation, see Thiébaut 2008, for details).
![]() |

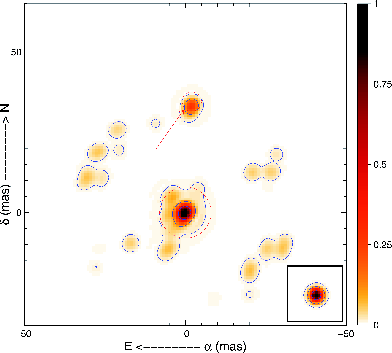

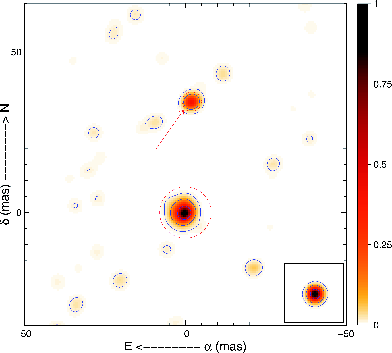

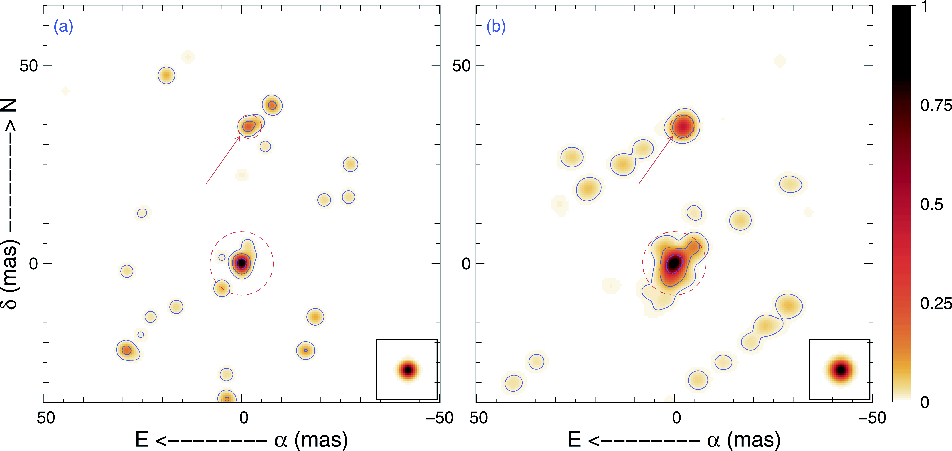

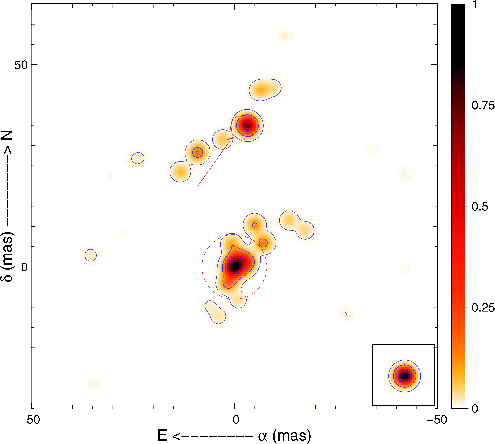

Figure 2: Aperture-synthesis images of HD87643 reconstructed from the H-band AMBER data (panel 2a) and the K-band data (panel 2b), assuming the source is achromatic in each band. Contours with 50, 10, and 1% of the maximum flux are shown, and the beam size is shown in the lower-right box. The arrow shows the companion star, whereas the dashed circles show the trusted structures in the images. |
Open with DEXTER |
Separate image reconstructions were made using the H-band
and
K-band data, assuming that the object was achromatic
over the
whole band considered. MIRA needs a starting image, but we found
that the image reconstruction result did not significantly
depend on it. Extensive tests and comparisons with other
software (Hofmann
& Weigelt 1993; Baron
&
Young 2008, see
Appendix A)
made us confident that we could
distinguish between artifacts and real structures in the
images. The theoretical field of view, computed using the
formula ,
is
70 mas,
being the shortest projected baseline (15 m). We
convolved the K-band image with a Gaussian beam of
mas
and the H-band one with a beam
of
mas,
being the
longest projected baseline (128 m). The image noise is of the
order of 1%.
The reconstructed image reveals the presence of a companion
star with
a plane-of-sky separation of 34.5 mas (see
Table 3).
the K-band image also
reveals an extended structure detected around the main
star. We cannot assess any elongation of this resolved
structure due to the poor UV coverage in the NW direction. We
emphasise that there is still a 180
uncertainty due to the
overall uncertainty on the AMBER closure phase sign (and
not due to the image reconstruction process: see
Appendix A.1.3).
We will refer in the following
to ``the northern'' and ``the southern'' components.
We also extracted relative fluxes for the different components within the dashed circles in Fig. 2 (see Table 3), but one has to bear in mind that extracting such fluxes is affected not only by large errors, but also potentially by large systematics. Therefore, we also performed the flux measurements using model-fitting.
2.1.2 Model fitting
In Sect. 2.1.1,
we show that the 2008
AMBER data can be directly interpreted assuming the presence of
a binary source with a plane-of-sky separation of 34 mas
and a
PA of
(see Table 3)
and
a resolved southern component. We fitted the data using such a
model to obtain more accurate component fluxes. The images show
a series of large-scale artifacts (i.e. flux whose spatial
location is poorly constrained), accounting for a large fraction
of the total integrated flux. These artifacts are related to the
lack of data with high visibilities at small spatial
frequencies. We therefore also included an extended component to
our model, fully resolved on all AMBER baselines.
Our model-fitting used the scientific software
yorick
combined with the AMBER data reduction software amdlib.
This
tool was complemented with a series of optimisation scripts developed
by the JMMC (Béchet
et al. 2005) and others developed by
us. We judge that the resulting fits were satisfactory, even
though the formal
is about 40 (see
Fig. 3),
probably due to an underestimation of
the errors during the data reduction.
Table 3: Estimated diameter of the envelope, position of the secondary source, and respective fluxes, relative to the total flux.
The MIDI data show complex, spectrally dependent visibility variations from one observation to another (see Fig. 4). Spherical and even 2-D axi-symmetric dusty models were not able to account for this data set. We used the separation and P.A. inferred from the AMBER 2008 data as initial values for the fitting of the AMBER 2006 and MIDI 2006 measurements.
The result of such a fit shows that our binary model is compatible with both the AMBER and MIDI 2006 data sets. Moreover, we find that the MIDI separation is close to that derived from the AMBER 2008 data set. The P.A. of the secondary component differs slightly between near- and mid-infrared, which might be due to an offset of the dust structure compared to the main star. The total flux seen by MIDI is dominated by a fully resolved background in addition to the unresolved binary components (Table 3). The AMBER 2006 data set is too limited to provide a strong constraint on the the flux ratios; therefore, we do not use them in the following analysis.
We stress that the MIDI data is affected by an independent
180
orientation ambiguity to the AMBER ambiguity (due to
the uncalibrated closure phase sign), as it only consists of
squared visibility data. Hence, we cannot definitely
relate the component fluxes derived from the MIDI data to those
derived from the AMBER data.
2.2 NACO K-band imaging: a very compact dusty environment
![]() |
Figure 3: Squared visibilities ( left) and closure phases ( right) plotted as a function of spatial frequency, projected onto the inferred binary position angle. The 2006 AMBER data set is seen on top, 2008 on the bottom. The model involving a binary system composed of one resolved and one unresolved component plus a fully resolved background is shown with a solid black line. |
Open with DEXTER |
We performed a deconvolution process on our NACO images. Using both speckle techniques and the Lucy-Richardson deconvolution algorithm, an elongated north-south compact structure could be detected in the K-band but not in the L-band. This is compatible with the AMBER data.
In addition, we tested the presence of dusty emission in the
surroundings of the star by azimuthally integrating the flux to
increase the dynamic range (see Fig. 5).
In the K-band, no extended emission is detectable
up to 1.5 arcsec (at larger
distances, ghost reflections or electronic ghosts impair the
dynamic range of the images) and a faint emission can be seen in
the L-band from 0.5 to 3.0 arcsec. This
might be linked to
the fully resolved component seen in our AMBER data, and
therefore probably implies that it is much more extended than
the field of view of AMBER. However, the dynamic range of our
images (103 per pixel,
and
104-105
for the
radial profiles) does not allow us to access the spatial
distribution of such a dusty nebula.
2.3 WFI imaging: the large scale nebula revisited
The extended nebula was discovered and studied by Surdej & Swings (1983); Surdej et al. (1981); van den Bergh (1972). In particular, using the 3.6m ESO telescope at La Silla, Surdej & Swings (1983) showed that the structure was a reflection nebula with a 60-100'' extension.
The nebula revealed by the WFI instrument (see Fig. 6) with the 2.2m telescope at La Silla shows increased dynamic range but shares the same spatial resolution and global morphology as the previous works. The nebular structures are primarily seen in the north-west quadrant from the central star in the form of an extended and structured filamentary feature at distances of 15-20'' (north) to 35-50'' (west). In some places, labelled (B1) to (B4), the nebula appears blown-up by the central star wind, with clumpy and patchy features.
This structure has no extended counterpart in the south-east region, where arc-like structures (labeled (A1) to (A4) in the figure) can be seen closer to the star (at 10'', 12'', 14'', and 18'' respectively). These arcs are spaced by two to four arc-secs and might come from past ejection events.
In the south-west region, at 12'', 19'', and 30'' respectively from the star, two bright and one faint arc can be seen (labelled (A5) to (A7) in the figure). These arcs do not appear to be connected to the previously-mentioned ones.
A star count made using sextractor (Bertin & Arnouts 1996) gives values twice as low in the east half than in the west half of the image. No significant relative change in the counts as a function of filter is detectable over the field. This indicates that there is a total absorption screen somewhere in the field, totally masking the background stars in the east half of the WFI image. We note that it corresponds to a dark cloud in the eastern part, clearly seen in our WFI image in front of red (hydrogen?) nebular emission. However, we cannot directly assess if this screen is in front or behind HD 87643 and its nebula.
![]() |
Figure 4: MIDI visibilities (in Gray with error bars), projected on the direction of the detected binary star and compared with our model (in thick black line). |
Open with DEXTER |
3 Discussion
3.1 Adopting a distance for the system
HD 87643 is thought to be an evolved B[e] star, and the nebula
suggests a link to the LBV class (Surdej
& Swings 1983). HD 87643 stands out as
unusual compared to typical sgB[e] stars such as CPD-57 2874, since ISO
SWS and LWS spectra show a considerable amount of cold
dust (
K).
McGregor et al. (1988) implicitly assumed that HD 87643 is a supergiant in order to determine its distance, based on its location in the direction of the Carina Arm. Such a location would place it at a distance of 2-3 kpc. However, the distance of HD 87643 has never been accurately measured. When other estimates of the distance are found in the literature, the values are usually much smaller. These were derived by:
- 1.
- van
den Bergh
(1972) and de
Freitas Pacheco et al. (1982):
530 pc, based on Kurucz models for a B2V star (
K, E(B-V) = 0.63 mag, R* = 6
);
- 2.
- Surdej et al. (1981): 1 kpc, based on MV = -4.1 derived from photometry;
- 3.
- Shore et al. (1990): 1.2 kpc, using the IUE UV spectrum;
- 4.
- Lopes et al. (1992): 2-3 kpc using the equivalent width (hereafter, EW) of Na I lines. We note, however, that the high reported value of 2.9 kpc is affected by a factor of 2 error in their application of the statistical relation cited by Allen (1973). Considering the correct relation (r = 2.0 D, r being the distance in kpc and D being the mean EW in Å of the two Na D lines), the distance would be 1.46 kpc (Lopes, private communication). The EW were measured using low-resolution spectra, implying a possible contamination of circumstellar origin;
- 5.
- Oudmaijer et al. (1998): 1-6 kpc, also based on the Na I D-line equivalent widths derived from a higher-resolution spectrum, but using data on the interstellar extinction for nearby stars instead of the relationship from Allen (1973). The large uncertainty of this distance is due to the large scatter of the extinction values in the Carina arm line of sight.
- 6.
- Zorec (1998): 1.45 kpc, based on a SED fitting using various assumptions.
![]() |
Figure 5:
NACO radial profiles. Left is the |
Open with DEXTER |
![]() |
Figure 6:
Reflection nebula around HD 87643, as a composite of R,
V and B filters (
left), together with a sketch presenting the main structures (
right). The saturated regions are masked by black zones in
the image. This image is a small part of the
|
Open with DEXTER |
3.2 Orbital characteristics of the binary system
One of the main results from the AMBER interferometric observations is that HD 87643 is a double system. In the K-band, the NACO image core is also significantly resolved with an elongation in the same direction as the AMBER binary. The separation and position angle of the components are well constrained by the data. It is more difficult to derive an accurate flux ratio, given the complexity of the object. Here, we shall summarise our results, from the most constrained ones to the most speculative.
- The plane-of-sky separation of the components is
mas. At 1.5 kpc, it corresponds to a projected separation of
AU. As a comparison, the separation of the interacting components of
Lyrae (Zhao et al. 2008) is of the order of 0.2 AU (orbital period 12 d), the separation of the
Velorum (Millour et al. 2007) colliding-wind components is of the order of 1.3 AU (period 78 d), and the approximate separation of the high-mass binary
Ori C (Kraus et al. 2007; Stahl et al. 2008; Patience et al. 2008) is 15-20 AU (orbital period of between 20 and 30 yr).
- Therefore, the orbital period of HD87643 is large, approximately 20-50 years. In particular, no significant orbital motion is seen between our 2006 and 2008 data sets.
- The orbital plane might be seen at a high inclination (i.e.
close to edge-on). Indeed, this is suggested by the high level of
observed polarisation (Oudmaijer
et al. 1998). The large-scale measurements also seem
to imply a bipolar morphology (see Sect. 3.3).
In
addition, HD87643 shows photometric variability. The short-term
variations (e.g. amplitude
0.5mag, seen in the ASAS light curves and in Miroshnichenko 1998) are similar to Algol-like variability (Yudin & Evans 1998) and are therefore probably a consequence of the time-variable absorption by the material passing through the line-of-sight. This is also in favour of a highly inclined (edge-on) disc-like structure.
- The orbit might be highly eccentric. This hypothesis is supported by the periodic structures seen in the large-scale nebula (see Sect. 3.3) that would suggest periodic eruptions. These eruptions would be a sign of close encounters of the binary components, while we observed a well-separated binary.
3.3 A link to the larger-scale nebula
Dust is found at large distances east and west of the nebula,
with fluxes reaching 15 Jy at 16.7 m (ISO/CAM1,
offset of 25''from the star, aperture
),
whereas
no flux is detected in the
north and south positions
.
This points to a bipolar nebulosity in the east-west direction.
As mentioned by Surdej et al. (1981), the number of field stars decreases in the south-east direction. Also from this work (Sect. 2.3), the number of visible stars in the eastern part of the WFI image of the nebula is about 2 times less than in the western part. This may mean that the other side of a symmetrical bipolar nebula remains hidden in our WFI image.
Finally, we note that inferring the geometry of the nebula is potentially of great importance as this reflection nebula allows one to study the central star from different viewing angles, i.e probing different latitudes of the central star. The anisotropy of the star flux was already noted in Surdej et al. (1981) and Surdej & Swings (1983).
Oudmaijer
et al. (1998) and Baines
et al. (2006)
measured expansion velocities of
1000
.
Therefore one can estimate an ejection
time for the nebula: at 1.5 kpc distance and taking a 50''
extent, one gets
355 yr.
For the arc-like structures and the same value for the
expansion
speed and distance, we find the following values:
71 yr
for A1,
85 yr
for A2,
100 yr
for A3, and
128 yr
for A4. This
first series gives ejection time intervals of
14,
14 and
28 yr,
respectively, between two
consecutive arcs. This might be the trace of a periodic ejection
with a period of
14 yr
on the assumption that one arc
(between A3 and A4) is not seen in our image. However, this
periodicity is probably affected by a projection effect since
the
of the arcs is not known and they appear to be
almost linear (instead of circular); hence, the
14 yr
periodicity is a lower limit. Concerning the second series of
arcs, we find
85 yr
for A5,
135 yr
for A6, and
213 yr
for A7. In this case, the apparent ejection time
intervals between two consecutive arcs are
50 yr and
78 yr.
Given that the arcs appear almost circular in the image,
we can assume that the projection angle is close to 90
.
Since we have only three arcs in this case (with one barely seen), we
can only put an upper limit of
50 yr on the
periodicity of these ejections.
These broken structures suggest short, localised ejection that might coincide with short periastron passages of the companion, triggering violent mass-transfer between the components. Therefore, we tentatively infer limits between 14 and 50 yr for the periodicity of the binary system. Monitoring the system at high angular resolution over a timescale of a few dozen years would most likely bring an unprecedented insight into this system.
3.4 The nature of HD 87643
Our interferometric measurements show a complex object composed
of a partially resolved primary component, a compact secondary
component, and a fully resolved component (i.e. extended, or
nebular, emission). As shown in Table 3,
their relative flux strongly varies between 1.6 and 13 m.
The L-band NACO image of HD 87643
cannot be distinguished from
the calibrator star, and there is very little emission at
1''-5''distance. In the K-band, except from the
binary signature, no
flux can be detected at a larger distance. Given the amount of
dust in the system (McGregor
et al. 1988), the compactness
of the near-IR emissions indicate that most of it resides in a
region smaller than 100 mas.
We may assume that the K-band
flux comes entirely from the very central source, as seen by NACO
(i.e., it contains the central binary star plus the extended
emission, as seen by AMBER). We assume the same for the H-band.
Given these hypotheses, we can infer the absolute flux of each
component using (for example) the 2MASS magnitudes in the H
and K-bands.
In the mid-infrared, the MIDI spectrum is close to the ISO
one. Therefore, we can also assume that all the N-band
flux
originates from the MIDI field of view (i.e. 1'') and infer
the absolute fluxes of the components in the N-band.
These fluxes
(N-band) and magnitudes (H and K-bands)
are presented in
Table 4
and plotted in Fig. 7
as a function of the wavelength.
Table 4: Estimated fluxes for each component from the model fitting of Sect. 2.1.2.
![]() |
Figure 7:
A view of the (non-de-reddened) HD87643 SED with the extracted fluxes
from our interferometric measurements. The
southern component flux is shown in red (top curve at
2 |
Open with DEXTER |
Even if the effect of reddening on the H and K-band flux is not negligible, a significant reddening fraction comes from the circumstellar envelope. Therefore we performed this study on the original measurements, without de-reddening.
3.4.1 A dust-enshrouded star in the south
The flux of the envelope around the southern component, from the
AMBER and MIDI data, can be qualitatively described by a
1300 K
black body radiation (dotted line in Fig. 7).
Its
Gaussian FWHM, inferred from the
model-fitting, is 4 mas
(i.e. 6 AU at 1.5 kpc) in the
near-infrared (H and K-bands),
and is well constrained by the
AMBER 2008 data. These suggest an extended dusty
envelope around this component and clearly indicate that the dust
must be very close to the sublimation limit. Thus, the H
and
K-band emission should mainly originate from the
inner radius of
a dusty disc, encircling a viscous gas disc or a
2-component wind (Porter
2003). Estimating the
envelope extension with a ring instead of a Gaussian would lead
to a slightly smaller size. Thus, we can estimate that
the inner radius of the dusty disc is of the order of 2.5-3 AU
(at 1.5 kpc).
3.4.2 A puzzling dusty object in the north
By contrast, the northern component is unresolved (size, or
diameter, of the source 2 mas,
i.e.
3 AU
at
1.5 kpc). Moreover, its flux can be accounted for
neither by a simple black-body at a constant temperature nor by
free-free emission. The slope of the flux variation between the H
and N-bands suggests a range of temperatures for
the dust (from at least
300 K
to
1300 K).
No cold dust can survive so close (
K at a radius
1.5 AU)
to a putative luminous hot star without effective screening of the
stellar radiation.
3.4.3 A cold dust circumbinary envelope
The resolved component shows a large increase of flux between H, K, and N and also carries most of the silicate emission (see Fig. 7). The binary system is therefore embedded within a large oxygen-rich, dusty envelope whose shape is not constrained by our data. This envelope must significantly contribute to the reddening of both components.
In conclusion, we propose the following picture of the system:
two stars with dusty envelopes probably surrounded by a common
dusty envelope. One source might be a giant or a
supergiant hot star surrounded by a disc, in which we would
mainly see the inner rim corresponding to the dust sublimation
radius. The other source is surrounded by a compact dusty
envelope, and it is either not a luminous hot star or it is heavily
screened by very close circumstellar matter. In the N-band,
the
circumbinary envelope contribution is not greater than
1'', since
the MIDI (aperture 1.2'') and ISO
(aperture
)
fluxes match very well, and is not
smaller than
200 mas,
as our MIDI data indicates.
4 Concluding remarks
Our work presents new observations of HD87643, including very high angular resolution images. It completely changes the global picture of this still puzzling object:
- The binary nature of the system has been proved, with a projected physical separation of approximately 51 AU in 2008 at the adopted distance of 1.5 kpc. The orbital period is most likely several tens of years, and the large-scale nebula indicates a possible high eccentricity.
- The temperature of the southern component is compatible with an inner rim of a dusty disc. In the near-IR, we do not see the central star, but it might be a giant or a supergiant star.
- The northern component and its dusty environment are
unresolved. The underlying star is unlikely to be a massive hot star,
or is heavily screened by close-by circumstellar material, as cold dust
(
K) exists closer than 1.5 AU from the star (if it lies at 1.5 kpc).
- The system is embedded in a dense, circumbinary, and dusty envelope, larger than 200 mas and smaller than 1''.
Therefore, we call for future observations of this system, using both high spectral resolution spectroscopy and high angular resolution techniques, to place this interesting stellar system on evolutionary tracks and better understand its nature.
AcknowledgementsF. Millour and A. Meilland are funded by the Max-Planck Institut für Radioastronomie. M. Borges Fernandes works with financial support from the Centre National de la Recherche Scientifique (France). The research leading to these results has received funding from the European Community's Sixth Framework Programme through the Fizeau exchange visitors programme. This research has made use of services from the CDS, from the Michelson Science Centre
, and from the Jean-Marie Mariotti Centre
to prepare and interpret the observations. Most figures in this paper were produced with the scientific language yorick
. The authors thank K. Murakawa for fruitful discussions.
References
- Allen, C. W. 1973, Astrophysical quantities (London, University of London: Athlone Press), 3rd ed.
- Allen, D. A., & Swings, J. P. 1976, A&A, 47, 293 [NASA ADS]
- Baines, D., Oudmaijer, R. D., Porter, J. M., et al. 2006, MNRAS, 367, 737 [CrossRef] [NASA ADS]
- Baron, F., & Young, J. S. 2008, in SPIE Conf. Ser., 7013
- Béchet, C., Tallon, M., Tallon-Bosc, I., et al. 2005, in SF2A-2005: Semaine de l'Astrophysique Francaise, ed. F. Casoli, T. Contini, J. M. Hameury, & L. Pagani, 271
- Bertin, E., & Arnouts, S. 1996, A&AS, 117, 393 [EDP Sciences] [CrossRef] [NASA ADS]
- Bjorkman, J. E., & Cassinelli, J. P. 1993, ApJ, 409, 429 [CrossRef] [NASA ADS]
- Cidale, L., Zorec, J., & Tringaniello, L. 2001, A&A, 368, 160 [EDP Sciences] [CrossRef] [NASA ADS]
- Conti, P. S. 1997, in Luminous Blue Variables: Massive Stars in Transition, ed. A. Nota, & H. Lamers, ASP Conf. Ser., 120, 161
- de Freitas Pacheco, J. A., Gilra, D. P., & Pottasch, S. R. 1982, A&A, 108, 111 [NASA ADS]
- Domiciano de Souza, A., Driebe, T., Chesneau, O., et al. 2007, A&A, 464, 81 [EDP Sciences] [CrossRef] [NASA ADS]
- Haniff, C. 2006, New Astron. Rev., 51, 583 [NASA ADS]
- Hanson, M. M., Conti, P. S., & Rieke, M. J. 1996, ApJS, 107, 281 [CrossRef] [NASA ADS]
- Hofmann, K.-H., & Weigelt, G. 1993, A&A, 278, 328 [NASA ADS]
- Kraus, M. 2006, A&A, 456, 151 [EDP Sciences] [CrossRef] [NASA ADS]
- Kraus, M., & Lamers, H. J. G. L. M. 2003, A&A, 405, 165 [EDP Sciences] [CrossRef] [NASA ADS]
- Kraus, S., Balega, Y. Y., Berger, J.-P., et al. 2007, A&A, 466, 649 [EDP Sciences] [CrossRef] [NASA ADS]
- Lamers, H. J. G., & Pauldrach, A. W. A. 1991, A&A, 244, L5 [NASA ADS]
- Lamers, H. J. G. L. M., Zickgraf, F.-J., de Winter, D., Houziaux, L., & Zorec, J. 1998, A&A, 340, 117 [NASA ADS]
- Leinert, C., Graser, U., Waters, L. B. F. M., et al. 2003, in SPIE Conf. Ser., ed. W. A. Traub, 893
- Leinert, C., van Boekel, R., Waters, L. B. F. M., et al. 2004, A&A, 423, 537 [EDP Sciences] [CrossRef] [NASA ADS]
- Lopes, D. F., Damineli Neto, A., & de Freitas Pacheco, J. A. 1992, A&A, 261, 482 [NASA ADS]
- McGregor, P. J., Hyland, A. R., & Hillier, D. J. 1988, ApJ, 324, 1071 [CrossRef] [NASA ADS]
- Millour, F., Tatulli, E., Chelli, A. E., et al. 2004, in SPIE Conf. Ser. 5491, ed. W. A. Traub., 1222
- Millour, F., Petrov, R. G., Chesneau, O., et al. 2007, A&A, 464, 107 [EDP Sciences] [CrossRef] [NASA ADS]
- Millour, F. 2008a, New Astron. Rev., 52, 177 [CrossRef] [NASA ADS]
- Millour, F., Valat, B., Petrov, R. G., et al. 2008b, in SPIE Conf. Ser., 7013
- Miroshnichenko, A. S. 1998, in B[e] stars, ed. A. M. Hubert, & C. Jaschek, 145, Astrophys. Space Sci. Library, 233
- Miroshnichenko, A. S., Levato, H., Bjorkman, K. S., et al. 2004, A&A, 417, 731 [EDP Sciences] [CrossRef] [NASA ADS]
- Miroshnichenko, A. S., Bernabei, S., Polcaro, V. F., et al. 2006, in ASP Conf. Ser. 355, Stars with the B[e] Phenomenon, ed. M. Kraus & A. S. Miroshnichenko, 347
- Monnier, J. D. 2006, New Astron. Rev., 51, 604 [NASA ADS]
- Olnon, F. M., Raimond, E., Neugebauer, G., et al. 1986, A&AS, 65, 607 [NASA ADS]
- Oudmaijer, R. D., Proga, D., Drew, J. E., et al. 1998, MNRAS, 300, 170 [CrossRef] [NASA ADS]
- Patience, J., Zavala, R. T., Prato, L., et al. 2008, ApJ, 674, L97 [CrossRef] [NASA ADS]
- Petrov, R. G., Malbet, F., Weigelt, G., et al. 2007, A&A, 464, 1 [EDP Sciences] [CrossRef] [NASA ADS]
- Pojmanski, G. 2009, in ASP Conf. Ser., ed. K. Z. Stanek, 52, ASP Conf. Ser., 403
- Porter, J. M. 2003, A&A, 398, 631 [EDP Sciences] [CrossRef] [NASA ADS]
- Ratzka, T., Leinert, C., Henning, T., et al. 2007, A&A, 471, 173 [EDP Sciences] [CrossRef] [NASA ADS]
- Rousset, G., Lacombe, F., Puget, P., et al. 2003, in SPIE Conf. Ser. 4839, ed. P. L. Wizinowich, & D. Bonaccini, 140
- Rué, F., & Bijaoui, A. 1997, Exper. Astron., 7, 129 [CrossRef] [NASA ADS]
- Shore, S. N., Brown, D. N., Bopp, B. W., et al. 1990, ApJS, 73, 461 [CrossRef] [NASA ADS]
- Stahl, O., Wade, G., Petit, V., Stober, B., & Schanne, L. 2008, A&A, 487, 323 [EDP Sciences] [CrossRef] [NASA ADS]
- Stee, P., Meilland, A., Berger, D., et al. 2005, in The Nature and Evolution of Disks Around Hot Stars, ed. R. Ignace, & K. G. Gayley, ASP Conf. Ser. 211, 337
- Surdej, J., & Swings, J. P. 1983, A&A, 117, 359 [NASA ADS]
- Surdej, A., Surdej, J., Swings, J. P., et al. 1981, A&A, 93, 285 [NASA ADS]
- Tatulli, E., Millour, F., Chelli, A., et al. 2007, A&A, 464, 29 [EDP Sciences] [CrossRef] [NASA ADS]
- Thiébaut, E. 2008, in SPIE Conf. Ser., 7013
- Valenti, J. A., Johns-Krull, C. M., & Linsky, J. L. 2000, ApJS, 129, 399 [CrossRef] [NASA ADS]
- van den Bergh, S. 1972, PASP, 84, 594 [CrossRef] [NASA ADS]
- Voors, R. H. M. 1999, Ph.D. Thesis, Universiteit Utrecht, The Netherlands,
- Yudin, R. V., & Evans, A. 1998, A&AS, 131, 401 [EDP Sciences] [CrossRef] [NASA ADS]
- Zhao, M., Gies, D., Monnier, J. D., et al. 2008, ApJ, 684, L95 [CrossRef] [NASA ADS]
- Zickgraf, F.-J. 2003, A&A, 408, 257 [EDP Sciences] [CrossRef] [NASA ADS]
- Zickgraf, F.-J., Wolf, B., Stahl, O., Leitherer, C., & Klare, G. 1985, A&A, 143, 421 [NASA ADS]
- Zorec, J. 1998, in Astrophysics and Space Science Library 233, B[e] stars, ed. A. M. Hubert, & C. Jaschek, 27
- Zsargó, J., Hillier, D. J., & Georgiev, L. N. 2008, A&A, 478, 543 [EDP Sciences] [CrossRef] [NASA ADS]
Online Material
Appendix A: MIRA imaging of HD87643: tests and reliability estimates
This work made use of the MIRA software to reconstruct images from the sparsely sampled AMBER interferometric data. In this appendix, we present test results demonstrating which structures in the reconstructed images are reliable.
A.1 Altering the UV coverage
The idea here is to find out if the structures remain qualitatively the same in the final image when altering the resolution (removing the high spatial frequencies) or the low frequency components of the UV plane.
A.1.1 Removing low spatial frequencies
Removing low spatial frequencies reduces the field of view, and the MIRA image reconstruction software does not manage to overcome this difficulty (see Fig. A.1). Therefore, we conclude that the low spatial frequencies (i.e. the short baselines) are just as important as longer baselines to perform image reconstruction.
![]() |
Figure A.1: Removing low spatial frequencies to check whether the structures are reconstructed. |
Open with DEXTER |
A.1.2 Removing high spatial frequencies
As a second test of the image reconstruction reliability, we cut all the high spatial frequencies in order to get a more symmetric UV coverage. The result is seen in Fig. A.2, together with the corresponding UV coverage. The striking point compared to the image presented in Fig. 2 is that all the structures seen in this new image are qualitatively the same as before. This ensures that the binarity and resolution of the southern components are not due to image reconstruction artifacts.
![]() |
Figure A.2: Removing high spatial frequencies to have a more symmetric UV coverage. |
Open with DEXTER |
A.1.3 Imaging without phases
Since the AMBER closure phases in our data-set were noisy
(
radian),
we wondered whether these phases were
contributing significant information to the image reconstruction
compared to squared visibilities alone.
We tried to reconstruct an image of HD87643 using the same AMBER data, except for the closure phases, and both the MIRA and BSMEM image reconstruction software. Indeed, they are able to cope with phase-less data, in this case making a phase-retrieval image reconstruction. In Fig. A.3 we show the MIRA reconstruction. We are able to reconstruct qualitatively the same image of HD87643 as in Fig. 2 without using the closure phase information.
![]() |
Figure A.3:
HD87643 image reconstruction without the phase information. We had to
rotate the image by 180 |
Open with DEXTER |
We note, however, that we had to rotate the result to match the orientation of Fig. 2. This makes sense since only the phase information would be able to orient the system.
A.2 Testing with other image reconstruction algorithms
MIRA is only one example of an image reconstruction software package for optical interferometry. Other software packages exist, and we present here the tests we made using several of them.
A.2.1 BSMEM
BSMEM is based on the maximum entropy method (MEM) applied to bispectrum measurements (deduced from the squared visibilities and closure phase measurements). It works using an iterative algorithm, comparing the distance from the reconstructed image to the data and the ``entropy'' computed from the properties of the image itself (Baron & Young 2008). We applied BSMEM to the AMBER data. The result can be seen in Fig. A.4. We find the same structures as for the MIRA reconstruction process.
![]() |
Figure A.4: Image reconstruction of HD87643 using the BSMEM software. |
Open with DEXTER |
A.2.2 Building-block method
The building-block method (Hofmann
& Weigelt 1993) was
developed to reconstruct diffraction-limited images from the
bispectrum of the object obtained with bispectrum speckle
interferometry and long-baseline interferometry. Since the
intensity distribution of an object can be described as a sum of
many small components, the building-block algorithm iteratively
reconstructs images by adding building blocks
(e.g. -functions).
The initial model image may simply
consist of a single
peak. Within each iteration step,
the next building block is positioned at the particular
coordinate, which leads to a new model image that minimises the
deviations (
)
between the model bispectrum and the
measured object bispectrum elements. An approximation of the
-function
was derived which allows fast calculation of a
large number of iteration steps. Adding both positive and
negative building blocks, taking into account the positivity
constraint, and adding more than one building block per
iteration step improves the resulting reconstruction and the
convergence of the algorithm. The final image is obtained by
convolving the building-block reconstruction with a beam
matching the maximum angular resolution of the
interferometer. We applied this method to the AMBER data, and
the resulting image (Fig. A.5)
shows many
similarities with the MIRA one, including a resolved southern
component in the K-band.
![]() |
Figure A.5: Image reconstruction of HD87643 using the building-block software. |
Open with DEXTER |
A.3 Conclusion
The tests presented above show that the binary and resolved
southern component are structures that can be trusted in the
images. All other structures (possible elongation of the
southern component, inclined large ``stripes'' in the images)
are artifacts from the image reconstruction process, which may
indicate that the image has some additional flux, not
constrained by the observations (fully resolved background).
Footnotes
- ... imaging
- Based on observations made with the ESO very large telescope at Paranal Observatory under programs 076.D-0575, 077.D-0095, 076.D-0141, 380.D-0340, and 280.C-5071, with the ESO 1.52-m and archival ESO data.
- ...
- Appendix is only available in electronic form at http://www.aanda.org
- ... (MIA+EWS
- Available at http://www.strw.leidenuniv.nl/ nevec/MIDI
- ... database
- http://archive.eso.org
- ...yorick
- Open-source scientific software freely available at the following URL: http://yorick.sourceforge.net
- ... positions
- These measurements can be found in the ISO database: http://iso.esac.esa.int
- ... CDS
- http://cdsweb.u-strasbg.fr
- ... Centre
- http://msc.caltech.edu
- ... Centre
- http://www.jmmc.fr
- ... yorick
- http://yorick.sourceforge.net
All Tables
Table 1: AMBER and MIDI observing logs.
Table 2: Journal of observations with NACO/VLT.
Table 3: Estimated diameter of the envelope, position of the secondary source, and respective fluxes, relative to the total flux.
Table 4: Estimated fluxes for each component from the model fitting of Sect. 2.1.2.
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
