The CoRoT space mission: early results
On the differential rotation of CoRoT2a^{}
H.E. Fröhlich^{1}  M. Küker^{1}  A. P. Hatzes^{2}  K. G. Strassmeier^{1}
1  Astrophysikalisches Institut Potsdam (AIP),
An der Sternwarte 16, 14482 Potsdam, Germany
2
Thüringer Landessternwarte Tautenburg,
KarlSchwarzschildObservatorium (TLS), Sternwarte 5, 07778 Tautenburg, Germany
Received 20 February 2009 / Accepted 15 July 2009
Abstract
We apply a robust spot model to fit the light curve of CoRoT2a. The spots are assumed to be longliving and each has its own rotation period. A model with three circular spots reproduces the basic features of the longitudetime spot coverage map. One of the spots exhibits a noticeably lower rotational frequency than the other two. From the rotational frequencies of the three dark features we infer a differential rotation of above 0.11 rad/d, in rough agreement with theoretical models. Mean field models of angular momentum transport by convection and meridional flow lead to an equatorial rotational frequency that exceeds that of the poles by 0.09 rad/d. The spot decay corresponds to a turbulent magnetic diffusivity of
cm^{2}/s.
Key words: stars: activity  stars: individual: CoRoT2a  stars: interiors  stars: latetype  stars: rotation  starspots
1 Introduction
The second detection of a transit planet by the CoRoT satellite belongs to a young (0.5 Gyr) mainsequence G7 star (Bouchy et al. 2008). The orbital period of the ``hot'' Jupiter is 1.743 days (Alonso et al. 2008). The parent star rotates with a period of 4.5 days. The star's inclination is (Alonso et al. 2008).
By relying on similarity to the Sun, Lanza et al. (2009, L09) applied their maximumentropy (ME) technique to fit the time variability of the total solar irradiance (Lanza et al. 2003) and analyzed the CoRoT2a photometric white light data correspondingly in terms of short living (3.2 days) surface features: dark spots and bright faculae with a constant ratio between them. Assuming a short surface activity timescale, they divided the 142 day time span into 45 intervals and, by applying ME regularization, mapped the evolution in surface brightness inhomogeneities. Even without taking into account the effect of bright faculae they were able to produce an excellent fit (0.2 mmag) to the data. The results indicate that there are two ``active longitudes'', which are slowly converging (by over the whole interval). From the relative motion, they were able to infer a minimal differential rotation of below one percent.
CoRoT2a's photometric variability of 0.07 mag exceeds the solar level by a factor of 20, even at solar maximum. If the spots are larger than their solar counterparts, then, for purely dimensional reasons, one expects longer lifetimes. In the following we adopt a multispot modeling approach to analyze the measured whitelight light curve of CoRoT2a. Admittedly the CoRoT2a light curve looks complex, but there is regularity in this complexity and one can see a regular pattern that can be easily identified with a few spots. The two and threespot modeling was carried out with the code of Dorren (1987), assuming circular spots and a linear limbdarkening law. Bright features were not modeled. According to L09, in the case of CoRoT2a, the surface inhomogeneities are dominated by dark spots, not bright faculae. A MarkovChain Monte Carlo method (MCMC) was applied to analyze in a Bayesian manner the multidimensional parameter space.
We note that CoRoT2a is a slow rotator and not amenable to the Doppler imaging technique. We were therefore compelled to use photometric modeling and draw conclusions with the proper caveats.
2 Theory: differential rotation
Current models of stellar rotation predict a weak increase in the surface differential rotation with increasing rotation frequency and a modest increase with effective temperature (Küker & Rüdiger 2008). From Doppler imaging, Barnes et al. (2005) found a strong dependence on temperature and no systematic dependence on rotation. These results were confirmed by Reiners (2006) with the Fourier transform method. With the effective temperature of CoRoT2a that is only 150 K lower than that of the Sun, we do not expect to observe a drastic difference between the rotation patterns of both stars. We note that this holds only for the total value of the differential rotation,
(1)
where the subscripts eq and pole refer to values at the equator and the poles, respectively. The corresponding values for the solar differential rotation and the lapping time are 0.07 rad/d and 90 d, respectively.
We investigate this problem by computing the rotation pattern and meridional flow for a young Sun from the evolutionary track used in Küker & Stix (2008). The model star has one solar mass, an age of 0.55 Gyr, a luminosity of 0.745 solar luminosities, and a radius of 0.9 solar radii. The effective temperature is 5640 K and the base of the convection zone is located at a fractional radius of 0.73.
We use the mean field formulation of fluid dynamics, which takes into account the effect of smallscale motions on the largescale flow, rotation, and heat transport without treating the smallscale motions in detail. For the convective heat transport in a nonrotating convection zone, this approach leads to the wellknown mixing length theory. The description that we use here is identical for slow rotation but takes into account the effect of the Coriolis force on the convective motions. Similar descriptions can be found for the momentum transport, which is expressed in terms of the Reynolds stress. The transport coefficients describing the effect of the smallscale flows were computed by Kitchatinov & Rüdiger (1993), Kitchatinov et al. (1994), and Kitchatinov & Rüdiger (2005). The numerical scheme is a modified version of that in Küker & Stix (2001) as described in Bonanno et al. (2007).
The differential rotation is caused by a nondiffusive term in the Reynolds stress and a tilt of the heat transport vector towards the rotation axis, both caused by the Coriolis force. The polar region is slightly warmer than the equator throughout the convection zone. The difference is 10 K at the bottom and about 2.4 K at the top. That temperature gradient balances the differential rotation as a driving force of meridional flow and allows an equilibrium to be established without the requirement of constant rotation period along cylindrical surfaces for much faster rotation than with a strictly spherical stratification.

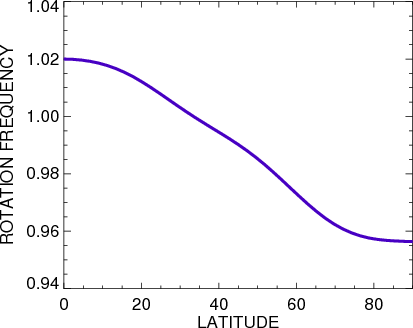

Figure 1: Angular velocity versus latitude on the stellar surface. The unit is rad/d.

Open with DEXTER
The surface rotation law predicted by our model is shown in Fig. 1. It is of the same type as that on the solar surface with the equator rotating faster than the polar caps. The difference of rad/d between the rotation rates at the equator and the poles corresponds to a lapping time of 71 days.
The level of differential rotation found in our model exceeds the (admittedly) minimal value given by L09 by an order of magnitude. We ask whether the rotation can be made more rigid by adjusting free parameters. The only two parameters that can be varied are the mixing length parameter and the anisotropy of the effect in the surface layer. Both are set to a value of two in our standard calibration, which is motivated by reproducing the internal solar rotation as measured by helioseismology. Setting the anisotropy parameter to zero decreases the surface shear to less than half the value that we find with our standard model but this would imply the assumption of predominantly horizontal gas motions in the top layer and lead to unrealistic results if applied to the Sun. Lowering the mixing length parameter to a value of 1.5 lowers the surface differential rotation by about 1/6th but reduces the meridional flow speed by 50 percent. As with the anisotropy parameter, application to the Sun does not yield the closest agreement with observations. We conclude that for our model to be valid the differential rotation of CoRoT2a must be much stronger than the lower limit found by L09.

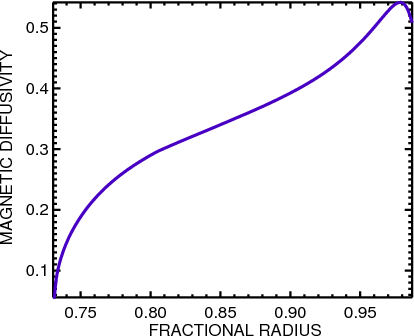

Figure 2: The turbulence magnetic diffusivity versus the fractional radius in the convection zone of CoRoT2a for a rotation period of 4.5 days. The unit is 10^{13} cm^{2} s^{1}.

Open with DEXTER
Besides a measure of differential rotation, precision photometry of star spots provides
decay times, which should be compared with theoretical ones.
The decay of sunspots follows approximately the linear decay law (Krause & Rüdiger 1975)
where A is the spot area and is the (turbulence) magnetic diffusivity coefficient. Equation (2) allows a comparison between the diffusion coefficient computed from a theoretical model and the observed sunspot area. Assuming that the same relation holds for star spots, we can thus derive the value of in the surface layers of CoRoT2a from measured spot areas and lifetimes.
Figure 2 shows the magnetic diffusivity from our model of the convection zone of CoRoT2a. As the Coriolis number increases with depth, the lower parts of the convection zone are affected more by rotational quenching of the transport coefficients. The surface value of cm^{2} s^{1} is the same as from standard mixinglength theory, but in the lower part the diffusion coefficient is significantly reduced.

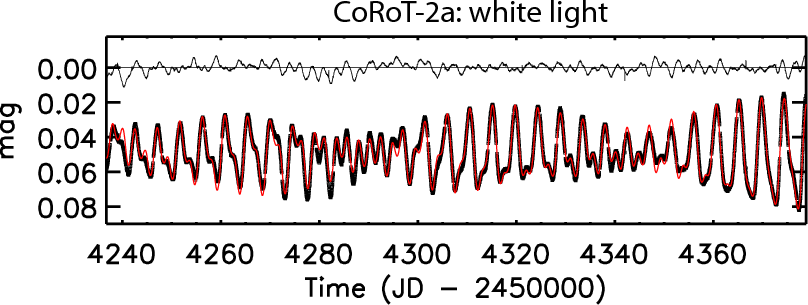

Figure 3: Robust fit of the light curve by three dark circular spots differing in rotational frequency. The residuals, shown at the top, are 2.6 mmag.

Open with DEXTER
3 Observations
The CoRoT photometric satellite Baglin et al. (2006) observed CoRoT2a during the first long run from May 16 to October 5, 2007. The 142 d run covers about 30 consecutive rotations of CoRoT2a. For further detail the reader is referred to L09.
Transits were removed according to the ephemeris given by Alonso et al. (2008), creating gaps of 2.7 h every 1.743 days. The remaining data points were binned in time bins of 0.4 h duration, which is roughly a quarter of the satellite's orbital period (103 min). The reason for this highresolution binning was that in the case of the CP star HD 50 773 an excellent fit to the data by a simple spot model could be achieved after removing a sinusoidal signal (at the 100 ppm level) at the CoRoT orbital frequency and its overtones (Lüftinger et al. 2009). A similar artifact in the CoRoT2a data should be detectable by a binning with a time resolution shorter than the orbital period of the satellite. However, in the framework of our simplified threespot model the residuals are much too large for the CoRoT effect to be detected. After binning, 7669 normal points remain. The median of all the contributing measurements within a time bin has been used to calculate the flux value of a normal point. The weight of a normal point increases with the number of original measurement values. As in L09, whitelight data were used. As the color information hints at a linear trend of the time series in at least one color band, one also has to allow for a systematic linear trend in the white light.
The precision light curve (Fig. 3) spanning 142 days exhibits an overall variation of 0.07 mag.
4 Bayesian spot modeling
Any ME method involves estimating a large number of free parameters. Here we prefer a more robust approach. We try to fit the light curve by assuming two and three, respectively, longliving circular dark features differing in rotational period. We also allow for some spot evolution. Our most ambitious model, with three spots, is described by 29 parameters.
To estimate all these parameters, a Bayesian method was applied. This provides a straightforward way of estimating parameters and their uncertainties from the data alone. From the marginal distribution of a particular parameter, all other quantities follow (e.g. mean, median, mode, standard deviation, and confidence regions). The marginal distribution is what remains if the likelihood function is integrated over all parameters apart from the particular one under study, taking into account proper prior distributions. The Bayesian approach is indeed so attractive because one can draw the marginal distribution from the data alone without relying on Monte Carlo simulations that use artificial data. Although deriving a best set of parameter values is comparatively easy, assigning mean values and error bars is computationally demanding, but becomes quite feasible with the MarkovChain MonteCarlo (MCMC) technique (see Press et al. 2007), which is related to the famous Metropolis formalism (Metropolis et al. 1953). This method has already been successful in analyzing highprecision photometric data from the MOST space satellite (Croll 2006; Fröhlich 2007).
For a migrating circular spot, the light curve is determined by at least four parameters: starting longitude, final longitude, latitude, and spot radius. Longitudes are defined with respect to a rigidly rotating coordinate system. To describe the basic rotation of the star, the same reference period as L09 has been taken, namely 4.5221 days. Longitude increases in the direction of stellar rotation. The zero point is the central meridian facing the observer at the beginning of the time series. The inclination of the star (87.84 ) is given. The spot intensity with respect to the unspotted atmosphere and the parameter for the linear limbdarkening law are assumed to be adjustable.
The rotational frequency of a spot may change slightly with time. To allow for this, an additional parameter enters: the longitude value at the halfway point  at the middle of the time span. A spot's longitude at any time is interpolated quadratically by a Lagrange threepoint formula from these three longitude values. Spot overlapping is not allowed.
Three parameters are considered to be nuisance parameters: zeropoint, slope, and measurement error. Spotted stars that are geometrically similar exhibit the same light curve, except for an offset in magnitude. In what follows, this offset is considered irrelevant and removed by integration. This is justifiable, because the magnitude of the unspotted star, i.e., the zeropoint, is in almost all cases unknown. The data may also exhibit a longterm trend, caused by an instrumental effect. The Bayesian analysis allows the presence of an unknown slope simply by trying all possible slopes. As with the zeropoint, dependence on this parameter is eliminated by integration. These two integrations (with respect to zeropoint as well as slope) can be done even analytically if one assumes that the distribution of the measurement error is Gaussian in magnitude (see Sect. A). The magnitude error in the ith normal point can be written as , where N_{i} is the number of measurements contributing to the ith time bin. We assume that nothing is known about . The likelihood depends strongly on , so it is perhaps a good idea not to fix its value, but to allow for a large range of values. We have eliminated the parameter by integration using Jeffreys prior. Hence, the likelihood function considered is a mean likelihood with respect to photometric offset, slope, and measurement error. In short, the method itself determines photometric offset, longterm trend, and ``measurement'' error from the data (strictly speaking, the residuals, in any case, are considered as Gaussian noise).
In the following a flat prior distribution over the parameter space is presumed. For this reason, longitudes are restricted to the interval , instead of the latitude its sine is considered, and instead of spot radius (or area) its logarithm is used. The last replacement ensures that the posterior distribution for a radius is consistent with that for an area, i.e., it makes no difference whether one prefers radii or areas. A latitude prior that is constant over the sine of the latitude takes into account that there is a greater possibility of locating by chance a spot near the equator than near the poles.
Spot evolution is described by a simple ansatz: the spot area is assumed to evolve linearly with time. For a decaying spot, this prescription allows an estimate of the turbulent magnetic diffusivity according to Eq. (2). In the case of both, increasing as well as decreasing area, five parameters are needed to describe area evolution: the maximal area and the time of that, two time derivatives (for increase and decrease, resp.), and a smoothing parameter that prevents a sharp bend at the time of maximal extent.
5 Results
Table 1: Spot parameters: expectation values and 1 uncertainties are listed.
In the framework of our spot model, an acceptable fit needs at least three spots. Some results for the two and the threespot solution are given in the Table 1. The mean differential rotation exploits the starting and the ending longitudes of the slowest and the fastest spot only. It is considered to be an additional delineated parameter and its marginal distribution is computed in the same way as for the independent parameters. The maximal differential rotation takes into account the ``halfway'' longitudes as well when computing the timedependent frequencies. It is given for the ``best'' model in each case. Therefore, no error estimate is possible.
The residuals of the twospot model exceed that of our threespot model more then twice. A gain in the goodnessoffit as high as this speaks for itself. It justifies the enlargement of the parameter space from 20 to 29 parameters beyond a doubt, and hence we believe that use of the threespot model is most appropriate. The high degree of differential rotation in the threespot model, 0.13 rad/d, is due to the third spot located near the southern pole. Without the third spot, the differential rotation would be as low as 1.6 percent.
6 Discussion and conclusions
There are other reasons why we should discard the twospot solution: Both spots are located at very high latitudes, and the other delineated parameter values are also not convincing: both the spot rest intensity and the limb darkening value assume extreme values.
Admittedly, even in the threespot case the estimates of rest intensity (brightness contrast) of the spots and linear limb darkening coefficient look unrealistic. We have repeated the calculations with these two parameters fixed to the same values as in Lanza et al., i.e., . The residuals are then only one percent larger. So, as in the case of the latitudes (see below), these two parameters are illdefined, notwithstanding their formally small error bars.
Although the star is seen nearly equatoron, the spot latitudes are surprisingly well defined. This, of course, is because we have assumed that the spots are completely circular with sharp boundaries to the unperturbed photosphere. Due to lack of analytical formulae, we are unable to do the same MCMC calculations with other than circular shapes. The ``spots'' are probably not so simple. Perhaps our idealized model spots describe in reality dark features, which would be more appropriately described by groups of spots or even extended active regions.
Distrusting the latitudes derived from the data, we do not try to compute the full equatorpole span of differential rotation. The differential rotation extracted from the data represents, therefore, a lower bound. Nevertheless, the latitudinal ordering of the spots makes sense. As expected for a solarlike star, the fastest spot (no. 2) is the closest to the equator, the slowest (no. 3) near the pole. In contrast to latitudinal information, the longitudinal information that can be drawn easily from the nearly 5monthlong light curve seems to be highly reliable. It is this kind of information on which the inferred rotational periods rely.

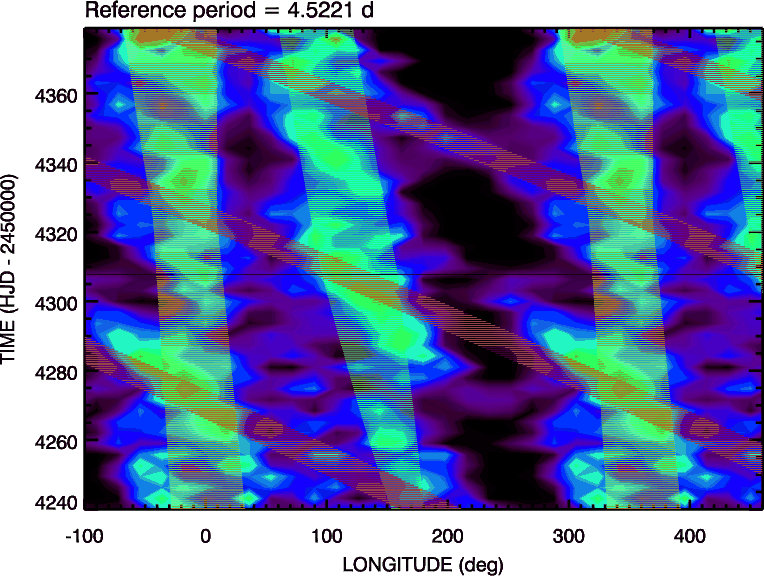

Figure 4: Plotted over Fig. 4 of L09 are the migration paths of our three spots. They outline the same activity pattern! Besides the two ``active longitudes'' a slowly rotating feature (red) is evident. The longitudinal extent corresponds to the diameter of the spots if they were located at the equator. We thank Antonino Lanza and coworkers for kindly providing their longitude versus time ME activity data.

Open with DEXTER
In Fig. 4, the migration paths of the three spots are overplotted on the longitudetime diagram of L09 (their Fig. 4) showing how longitudinal spot coverage evolves with time. Our threespot model outlines the same activity pattern! Besides the two ``active longitudes''  our fast rotating spots  a slowly rotating feature is discernible already in the spot coverage ME map of L09. The cyclic behavior noticed by Lanza et al. can be naturally explained, at least partly, by a beat phenomenon. Unfortunately, the duration of the time series is too short to settle this issue. From the migration paths, one finds a minimal period of 4.535 d (spot no. 2, close to longitude ) and a maximal one of 5.000 d (spot no. 3). From both these extreme values, a maximal shear of 0.13 rad/d follows. This corresponds to a beat period of 49 d. It seems to be noticeable that the rotational period of the 3rd spot increases with time by 2.3 percent.
By accepting a decrease in goodnessoffit, one can look for a solution without period change, i.e., in which migration paths are straight lines in the longitudeversustime map. In that case, the number of longitudes to be determined is reduced to two per spot. The residuals are larger by three per cent, which is substantial in view of the 7669 normal points involved, but the degree of differential rotation is slightly lower at 0.11 rad/d, corresponding to a lapping time of 55 days, which is closer to the theoretical expectation of 0.09 rad/d. It is that case for which Fig. 5 shows the posterior probability distribution of the angular velocity difference, a derived parameter. This marginal distribution is surprisingly well confined. What does this mean? It means that, given the model is true, i.e., that of three circular spots (no more, no less) with unknown but constant periods, a linear limbdarkening law, and parameterized spot evolution, then the minimal value of the rotational shear is very well constrained by the data to be rad/d. It seems to be an advantage of Bayesian reasoning that one has to state explicitly and beforehand all the assumptions and prejudices inherent to the modeling.

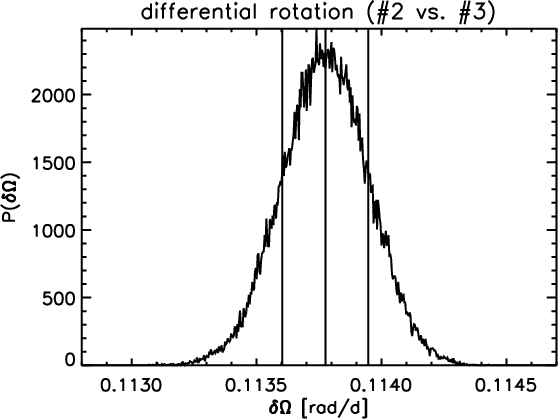

Figure 5: The marginal distribution for the shear , the difference between the rotational frequency of the fastest spot (no. 2) and the slowest one (no. 3), provided the spot periods are assumed constant. Due to the length of the time series the periods are very well constrained and hence the shear, too. Vertical lines mark the mean and the one confidence interval (68 percent region).

Open with DEXTER
Spot evolution is depicted in Fig. 6. We emphasize that it is the imposed restriction in spot evolution that enables us to estimate the degree of differential rotation. The longevity assumption is essential to our approach, and it seems to us reasonable because of the large size of the spots assuming that there are a few spots only. Surely, one can, as L09 have done, fit the data with shortliving surface features, but the information on differential rotation is then mostly lost.
A byproduct of considering spot evolution is an estimate of the turbulent magnetic diffusivity from the inferred spot decay. To derive a robust estimate, all spots are assumed to decay likewise. This further reduces the number of free parameters. The residuals are increased by merely 0.2 percent. So the assumption of a common decay law seems justified. Assuming a stellar radius of (Alonso et al. 2008), one arrives at a diffusivity of , twice the theoretical value.

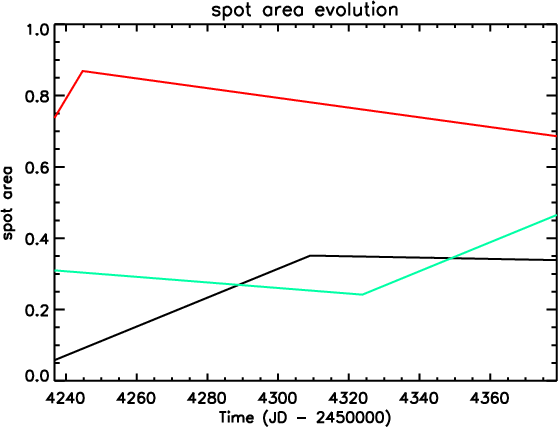

Figure 6: The evolution in the area of the three spots. The decreasing parts of spot area evolution exhibit nearly the same slope. From this a turbulent magnetic diffusivity can be computed. The third spot is so large because of the latitude that the MCMC method assigns to it: .

Open with DEXTER
Acknowledgements
This work has been conducted in the framework of the CoRoT additional program on ``Stellar variability and microvariability. II. Spot maps and modeling''. The authors thank the CoRoT instrument team for providing such excellent photometric data, A.F. Lanza for valuable suggestions, and an anonymous Referee for helping to improve the paper.
Appendix A: Bayesian spot modeling
Our starting point is the likelihood function. For the time being, it depends on
all kinds of parameters, nuisance parameters as well as ``real'' ones.
In case of N data points, it reads:
(A.1)
The signal , expressed in magnitudes, incorporates an offset c_{0} as well as a linear trend d_{0}:
The offset c_{0} describes our ignorance concerning the unspotted brightness of the star, and the linear trend d_{0} accounts for any instrumental effects.
We set
.
Relative errors s_{i} are normalized according to
.
Now, one can integrate
over the unknown
using Jeffreys'
prior:
(A.2)
where denotes the gamma (factorial) function. Offset c_{0} and slope d_{0} are considered as nuisance parameters and integrated away analytically resulting in a likelihood function depending only on the M spot modeling parameters which one obtains from marginalization of their posterior probability distributions.
Integration over c_{0} provides
(A.3)
where A_{1}=1, , , and .
Obeying the convention
the
integration over d_{0} yields:
=
(A.4)
where , , , , and .
References
 Alonso, R., Auvergne, M., Baglin, A., et al. 2008, A&A, 482, L21 [CrossRef] [EDP Sciences] (In the text)
 Baglin, A., Auvergne, M., Boisnard, L., et al. 2006, 36th COSPAR Scientific Assembly, 36, 3749 (In the text)
 Barnes, J. R., Collier Cameron, A., Donati, J.F., et al. 2005, MNRAS, 357, L1 [NASA ADS] (In the text)
 Bonanno, A., Küker, M., & Paternò, L. 2007, A&A, 462, 1031 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
 Bouchy, F., Queloz, D., Deleuil, M., et al. 2008, A&A, 482, L25 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
 Croll, B. 2006, PASP, 118, 1351 [NASA ADS] [CrossRef] (In the text)
 Dorren, J. D. 1987, ApJ, 320, 756 [NASA ADS] [CrossRef] (In the text)
 Fröhlich, H.E. 2007, Astron. Nachr., 328, 1037 [NASA ADS] [CrossRef] (In the text)
 Kitchatinov, L. L., & Rüdiger, G. 1993, A&A, 276, 96 [NASA ADS] (In the text)
 Kitchatinov, L. L., & Rüdiger, G. 2005, Astron. Nachr., 326, 379 [NASA ADS] [CrossRef] (In the text)
 Kitchatinov, L. L., Pipin, V. V., & Rüdiger, G. 1994, Astron. Nachr., 315, 157 [NASA ADS] [CrossRef] (In the text)
 Krause, F., & Rüdiger, G. 1975, Sol. Phys., 42, 107 [NASA ADS] [CrossRef] (In the text)
 Küker, M., & Rüdiger, G. 2008, J. Phys. Conf. Ser., 118, 012029 [NASA ADS] [CrossRef] (In the text)
 Küker, M., & Stix, M. 2001, A&A, 366, 668 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
 Lanza, A. F., Rodonò, M., Pagano, I., Barge, P., & Llebaria, A. 2003, A&A, 403, 1135 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
 Lanza, A. F., Bonomo, A. S., & Rodonò, M. 2007, A&A, 464, 741 [NASA ADS] [CrossRef] [EDP Sciences]
 Lanza, A. F., Pagano, I., Leto, G., et al. 2009, A&A, 493, 193 [NASA ADS] [CrossRef] [EDP Sciences] (L09) (In the text)
 Lüftinger, T., Fröhlich, H.E., Weiss, W., et al. 2009, A&A, submitted (In the text)
 Metropolis, N., Rosenbluth, A, Rosenbluth, M., et al. 1953, J. Chem. Phys., 21, 1087 [NASA ADS] [CrossRef] (In the text)
 Press, W. H., Teukolsky, S. A., Vetterling, W. T., & Flannery, B. P. 2007, Numerical Recipes, 3rd edn. (Cambridge: Cambridge Univ. Press) (In the text)
 Reiners, A. 2006, A&A, 446, 267 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
