Washington photometry of five star clusters in the Large Magellanic Cloud![[*]](/icons/foot_motif.png)
A. E. Piatti1 - D. Geisler2 - A. Sarajedini3 - C. Gallart4
1 - Instituto de Astronomía y Física del Espacio, CC 67, Suc. 28, 1428, Ciudad de Buenos Aires, Argentina
2 - Grupo de Astronomía, Departamento de Astronomía,
Universidad de Concepción, Casilla 160-C, Concepción, Chile
3 - Department of Astronomy, University of Florida, PO Box 112055,
Gainesville, FL 32611, USA
4 - Instituto de Astrofísica de Canarias, Calle Vía
Lactea, 38200, La Laguna, Tenerife, Spain
Received 28 March 2009 / Accepted 12 May 2009
Abstract
Aims. We present CCD photometry in the Washington system C and T1 passbands down to T1
22.5 in the fields of NGC 1697, SL 133, NGC 1997, SL 663, and OHSC 28, five mostly unstudied star clusters in the LMC.
Methods. Cluster radii were estimated from star counts in appropriate-sized boxes distributed throughout the entire observed fields. We perform a detailed analysis of the field star contamination and derive cluster colour-magnitude diagrams (CMDs). Based on the best fits of isochrones computed by the Padova group to the (T1, C-T1) CMDs, the
index and the Standard Giant Branch procedure, we derive metallicities and ages for the five clusters. We combine our sample with clusters with ages and metallicitiesa similar scale and examine relationships between position in the LMC, age and metallicity.
Results. With the exception of NGC 1697 (age = 0.7 Gyr, [Fe/H] = 0.0 dex), the remaining four clusters are of intermediate-age (from 2.2 to 3.0 Gyr) and relatively metal-poor ([Fe/H] = -0.7 dex). The cluster and field age-metallicty realtions show evidence for a metallicitybut do overlap, particularly on the upper envelope side of the cluster age-metallicity relation.
Conclusions. We confirm previous results that clusters younger than 1 Gyr were formed during an outside-in process; this occurred after a burst of cluster formation that took place mainly in the outer disk and peaked at
2 Gyr ago.
Key words: techniques: photometric - galaxies: individual: LMC - Magellanic Clouds - galaxies: star clusters - stars: Hertzsprung-Russell (HR) and C-M diagrams
1 Introduction
The ages and abundances of Magellanic Cloud (MC) star clusters are prime indicators of their galaxy's chemical evolution and star formation history. In addition, these star clusters are important in a number of additional ways beyond the MCs themselves. Because of their richness and the fact that they inhabit a region of age-metallicity space not covered by the Milky Way clusters, they have become vital testbeds for theoretical models of stellar evolution at intermediate-age and moderately low metallicity (Whitelock et al. 2003; Gallart et al. 2003; Ferraro et al. 1995). However, the number of well studied clusters in the MCs is still a very small percentage of those that have been catalogued, and detailed investigations of even a handfull of clusters represents a significant improvement on our knowledge of the chemical enrichment history of these galaxies.
Table 1: Observation log of selected clusters.
Bekki & Chiba (2005) investigated the dynamical and chemical evolution
of the Large Magellanic Cloud (LMC) from a theoretical standpoint as it has
interacted with the Galaxy and the Small Magellanic Cloud (SMC).
They suggest that tidal interactions have occured which have stimulated bursts
of star and clusterat specific periods, namely during periods of closest
approach.
A second observational challenge has recently been proposed by Bekki (2008), who suggests
that the MC system has a common halo
produced either by a dynamical coupling that started 4 Gyr ago or by a remnant
of a small group of galaxies destroyed via tidal stripping by the Milky Way.
However, note that accurate proper motions which are so crucial for
accurately modeling the orbits of the SMC and LMC are
still problematic (Kallivayalil et al. 2006).
In the observational arena, Grocholski et al. (2006) confirmed that LMC clusters
the metallicity gradient typically seen in non-barred galaxies, although
Carrera et al. (2006) showed that the mean [Fe/H] of the LMC field decreases with distance
from the bar. This is an important issue to explore further,
since any interaction with the SMC and/or the Galaxy had to leave its imprint
on the chemical history of the LMC. Grocholski et al. also found that clusters
with [Fe/H] > -1.0 dex show a tight metallicity([Fe/H] =
),
with no tail towards solar metallicities, in contrast with previous work (see, for example,
Olszewsky et al. 1991). Carrera et al. (2008) obtained
Ca II triplet metallicities of red giant branch stars in four LMC
fields at galactocentric distances from
3
to 8
and found that the metallicity distribution in each field showed
a well defined peak, with a tail towards lower metallicities. The mean
metallicities remain constant until
6
([Fe/H]
-0.5 dex), while for the outermost field the metallicity is
subtantially lower ([Fe/H]
-0.8 dex).
Recently, Gallart et al. (2008) have presented evidence that, while
the oldest field star population is coeval throughout the LMC disk, the age of the
youngest component of the dominant stellar population gradually increases with
galactocentric distance, from active star formation in a field at 2.3
from the
kinematic centre of the LMC
up to an age of 1.5 Gyr at 7.1
.
Such a result has not been investigated within the LMC star
cluster population yet. To do that, we need to enlarge the number of known clusters with
ages and metallicities placed onto the same or similar
scale. The fact that field stars have been formed in an
outside-in process in the inner disk could be related to the aforementioned interactions
between the MCs and the Galaxy and, therefore, could have a counterpart in the LMC cluster
formation history.
Studies of the chemical enrichment histories of field stars and clusters
have arrived at a variety of results. Grocholski et al. (2006) found that the metallicity
distribution of intermediate-age clusters is similar to what has been found for red
giant stars in the bar, which suggests that
the bar and the intermediate-age clusters have similar star formation histories.
Carrera et al. (2008) showed that while the disk star age-metallicity relationship (AMR)
is well reproduced by closed-box models or models with a small degree of outflow, that of stars in the
bar is only reproduced by models with combinations of infall and outflow. It becomes necessary
to compare the AMRs of clusters and field stars using an age baseline covering
the entire lifetime of the LMC.
Our group has been intensively involved in a long-term project to obtain ages and metallicities of LMC clusters, as well as investigating other important parameters. We have derived ages and metallicities for some 40 LMC clusters (Piatti et al. 2003), studied the infamous cluster age-gap (Geisler et al. 1997; Piatti et al. 2002), discovered a new giant branch clump structure (Piatti et al. 1999), searched for age and metallicity gradients (Piatti et al. 2003), and investigated in detail the AMR (Piatti et al. 2003). We continue here our previous work on LMC clusters, presenting results on five mostly unstudied clusters (NGC 1697, SL 133, NGC 1997, SL 663, OHSC 28) with the aim of adding them to our growing sample of well-studied LMC clusters that allows us to assemble a much more comprehensive database with which to study the formation and evolution of LMC clusters and their parent galaxy. As before, we employ the Washington System, initially developed for late-type stars and old stellar populations (Canterna 1976) and widely applied to intermediate age and old clusters in the Galaxy and in the Magellanic Clouds (e.g. Geisler et al. 1997; Bica et al. 1998; Geisler & Sarajedini 1999). The long wavelength baseline covered by the C,T1filters can also provide a great deal of insight into the CMDs of young star clusters, especially given Washington isochrones (Girardi et al. 2002) that allow us to determine ages. The Washington system also provides a means to determine metallicities from red giant stars.
The paper is organized as follows. The next section describes the observations and data reduction. Section 3 presents the procedure followed to estimate the cluster structural parameters, and focuses also on their CMDs along with the estimation of the cluster properties. The analysis and discussion of the results and their implications in the context of the chemical evolution of the LMC are presented in Sect. 4, and our principle findings are summarized in Sect. 5.
2 CCD CT
photometry
The observations of NGC 1997 and OHSC 28 were performed using the
Tektronix 2K CCD #3 at the 0.9 m telescope at the Cerro Tololo
Inter-American Observatory (CTIO) on 1997 December 20 and 23, respectively, while
those of NGC 1697, SL 133 and SL 663 were obtained with the Danish Faint
Object Spectrograph and Camera (DFOSC) on the 1.54 m Danish telescope at the
European Southern Observatory (ESO) on La Silla, during the night 29 December 1999.
Both the DFOSC and CTIO imagers have similar fields-of-view of
arcmin
with a plate scale of 0.4''/pix. We used
the Washington (Canterna 1976) C and Kron-Cousins R filters. The latter has a
significantly higher throughput as compared with the Washington T1 filter,
and R magnitudes can be accurately transformed to yield T1 magnitudes (Geisler 1996).
Table 1 shows the log of the observations with filters, exposure times, airmasses, and seeing estimates. Observational setups, data reduction procedures, stellar point spread function photometry, and transformation to the standard system follow the same prescriptions described in detail in Piatti et al. (2008,2003c). The standard star photometry shows the root-mean-square deviation of the observations from the fits to be less than 0.015 mag, indicating the nights were photometric.
The final information gathered for
each cluster consists of a running star number, the CCD x and y coordinates,
the derived T1 magnitude and C-T1 colour, and the photometric errors
and
.
Tables 2 to 6 give this information for
NGC 1697, SL 133, NGC 1997, SL 663, and OHSC 28, respectively.
They are only available at the CDS.
![]() |

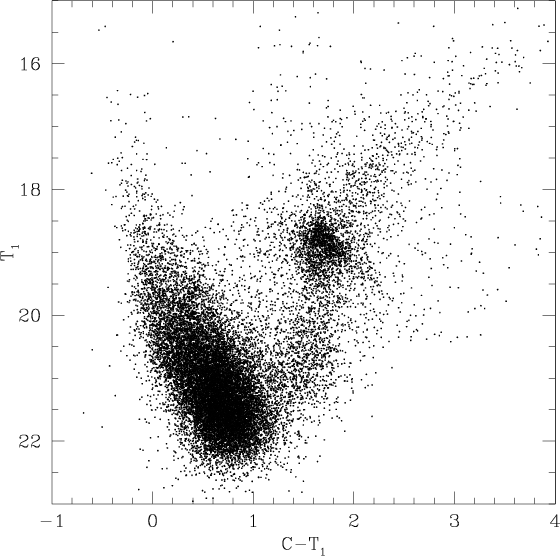

Figure 1: ( C-T1, T1) colour-magnitude diagram for all the measured stars in the field of NGC 1697. |
Open with DEXTER |
![]() |

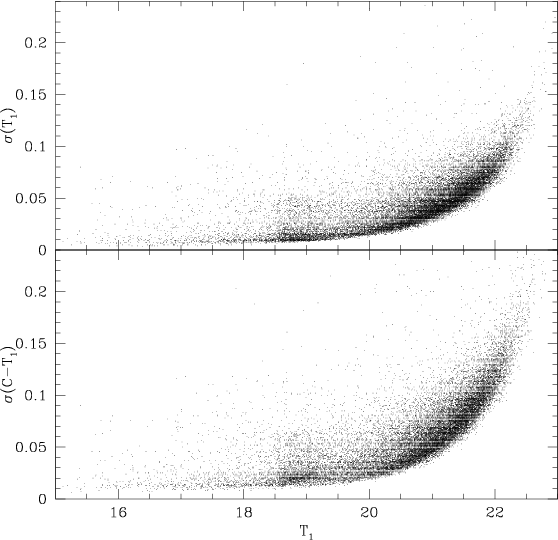

Figure 2: T1 magnitude and C-T1 colour internal photometric errors as a function of T1 for stars measured in the field of NGC 1697. |
Open with DEXTER |
In Fig. 1, we plot - as an example - the colour-magnitude diagram (CMD) of all the
measured stars in the field of NGC 1697, while Fig. 2 shows the behaviour of
and
as a function of T1 for this cluster.
The remaining cluster fields have similar photometry quality.
Note that exposures in the more critical C filter were longer on the smaller
telescope so that the resultant photometric errors are similar.
The mean
magnitude and colour errors for stars brighter than T1 = 19 are in the range
-0.030 and
-0.040; for stars with T1 = 19-21,
0.06 and
0.08; and for stars with T1 = 21-22.5,
0.13 and
.
The quality of our photometry allowed us to detect and measure the
turn-off (TO) for all of the clusters, which was used in our age
estimates. Indeed, by using the relation between the T1 TO magnitude and age
based on the theoretical isochrones by
Girardi et al. (2002) and by comparing it with our data, we conclude that
we are able to define TOs for stellar populations as old as
Gyr (
)
with an error of 0.10 mag in T1.
Slightly older and therefore fainter TOs can be reached at the expense of larger errors.
Table 7: Cluster sizes and field contamination.
3 Data analysis
3.1 Cluster properties from star counts
In order to construct density profiles of the clusters, we began by fitting
Gaussian distributions to the star counts in the x and y directions to determine
the coordinates of the cluster centres and their estimated uncertainties. The number
of stars projected along the x and
y directions were counted using 5 pixel intervals, thus allowing us
to statistically sample the spatial distributions. The fit of a single
Gaussian for each projected density profile was performed using the NGAUSSFIT routine
in the STSDAS/IRAF package. The cluster centres were determined with a typical NGAUSSFIT standard
deviation of
10 pixels (
4'').
![]() |

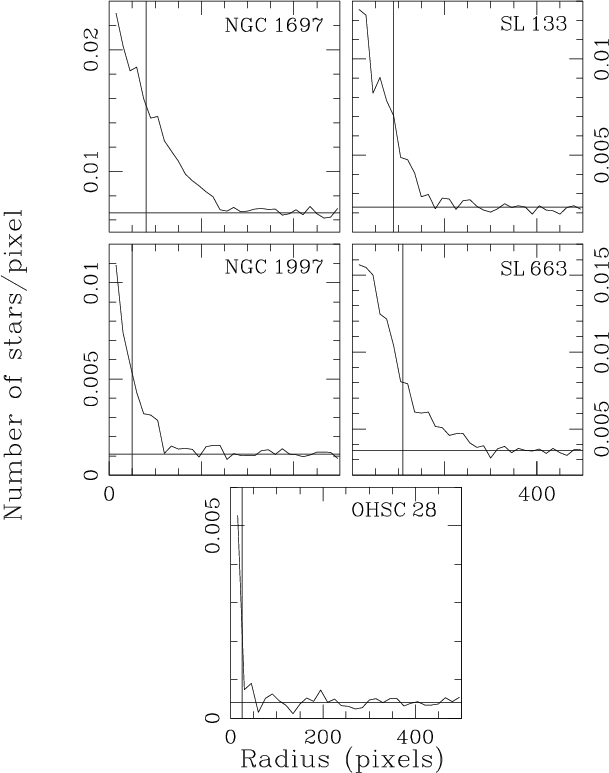

Figure 3:
Stellar density profiles for the selected clusters:
NGC 1697 ( upper left), SL 133 ( upper right), NGC 1997 ( middle left),
SL 663 ( middle right) and OHSC 28 ( bottom). The horizontal lines correspond to the
background levels far from the clusters, whereas the vertical lines indicate
|
Open with DEXTER |
We then constructed the cluster radial profiles by computing the number of stars
per unit area at a given radius r, as shown in Fig. 3. The background regions of the clusters were constrained by the observed field
boundaries and by a circle of radius 500 pixels from the centre of each cluster. The
estimated background levels, the radii of the FWHM (
), and the cluster
radii (
)
- defined as the distance from the cluster's centre where the number
of stars per unit area equals that of the background - are listed in Table 7.
Cluster dimensions are relatively small: 4 of the clusters have FWHM
between 50 and 110 pixels, while that of OHSC 28 is only 25 pixels, and they fade into the stellar field populations at a distance twice
or three times
.
We then derived the statistical
field star contamination for the radial intervals
and
,
yielding the values quoted in Cols. 5 and 6 of Table 7.
Note that the percentage of field stars is 1/10-1/3 of the total
number of stars in the central cluster region (
),
while the contamination is 0.4-0.66
at a radial range from
to
.
![]() |
Figure 4:
Schematic finding chart of the stars observed in the field of
NGC 1697 ( upper left), with two concentric circles corresponding to
|
Open with DEXTER |
![]() |

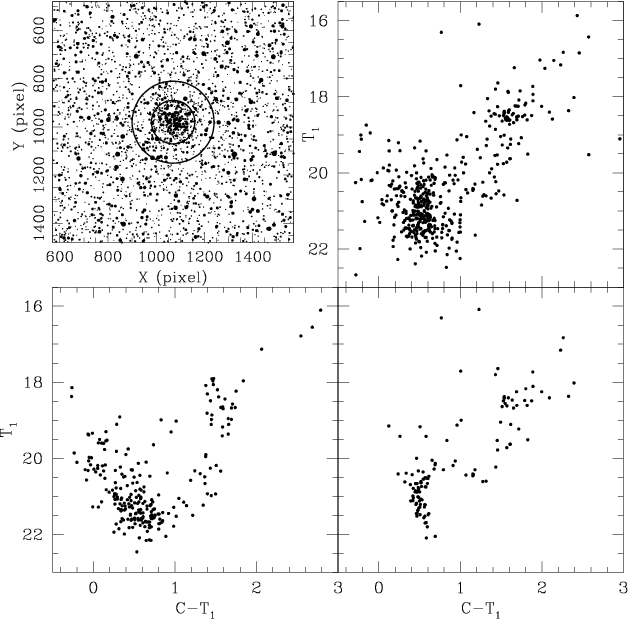

Figure 5: Same as Fig. 4, for SL 133. |
Open with DEXTER |
![]() |

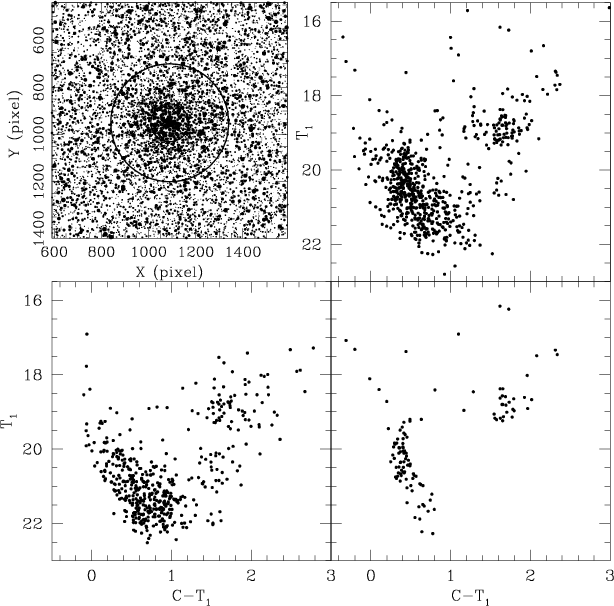

Figure 6: Same as Fig. 4, for NGC 1997. |
Open with DEXTER |
3.2 Cluster properties from the CMDs
Figures 4 to 8 show three CMDs constructed using different
circular extractions around each of
the clusters. We also show close-up schematic finding charts of NGC 1697,
SL 133, NGC 1997, SL 663, and OHSC 28 in
the top left panel of the figures, respectively.
In the top right panel, we show the cluster CMDs for stars
distributed in the range
,
while the right bottom panels present
the corresponding cleaned cluster CMDs.
![]() |

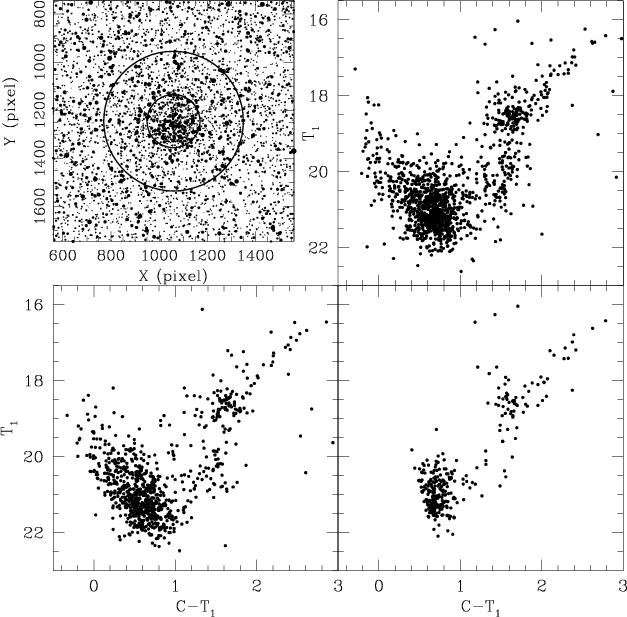

Figure 7: Same as Fig. 4, for SL 663. |
Open with DEXTER |
![]() |

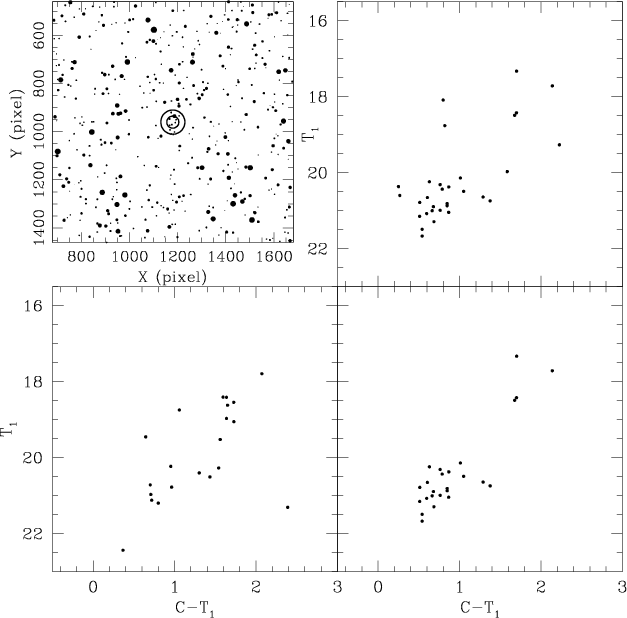

Figure 8: Same as Fig. 4, for OHSC 28. |
Open with DEXTER |
We statistically cleaned the cluster CMDs of stars that can potentially belong to
the foreground/background fields or have relatively large
.
We used four circular extractions placed well beyond the clusters, distributed
throughout the observed fields, and with a total area (the sum of the four
circular extraction areas) equal to that
of the cluster area (
.
The resulting field CMDs, i.e. the sum of the four
individual circularly extracted field CMDs, are shown in the bottom left panels of
Figs. 4 to 8. We then subtracted from each cluster CMD, for
different bins with sizes [
,
]
= (0.5, 0.2) mag,
the corresponding number of stars counted in the field CMDs. The total number of
stars subtracted is in general agreement with the values given in Col. 2 of Table 7. Then, we eliminated stars with
larger than: 0.02 for T1 < 18; 0.035 for
;
0.04
for
;
0.055 for
;
0.065 for
;
0.08 for
;
and 0.12 for
,
respectively. In the bottom right panels of Figs. 4 to 8 we show the CMDs of the remaining cluster stars. In the subsequent analysis,
we use these CMDs for estimating the fundamental parameters of each cluster.
Note that the main sequences (MSs) of the clusters appear better-defined,
particularly for NGC 1697, SL 113 and Sl 663, which are immersed in
relatively more crowded fields. Of course, additional sources of dispersion such
as some unavoidable field interlopers, evolutionary
effects and/or binarity can also take place.
Table 8: Fundamental parameters of LMC clusters.
Cluster reddening values were estimated by interpolating the
extinction maps of Burstein & Heiles (1982). As Table 8 lists,
the E(B-V) colour excesses resulted the same for four clusters. As for the cluster
distance moduli, we adopt for all the clusters a value for the LMC
distance modulus of
(Sarajedini et al. 2002; Alves et al. 2002; Pietrzynski & Gieren 2002), since the T1 mag of the red giant clumps (Col. 4 of Table 8) are the same within the errors. We profited from the available theoretical isochrones
computed for the Washington photometric system to estimate age
of the clusters. Particularly, we used the
isochrones calculated with core overshooting included by the Padova
group (Girardi et al. 2002) which lead to results similar to those derived
from the Geneva group's isochrones (Lejeune & Schaerer 2001). However, the
former reach fainter luminosities, allowing a better fit to
the fainter portions of the MS. We used chemical compositions of Z
= 0.019, 0.008, 0.004 and 0.001 for the isochrone sets
in steps of
log t = 0.05 dex.
We then selected a set of isochrones, along with the equations E(C-T1) = 1.97E(B-V)and MT1 = T1 + 0.58E(B-V) - V-MV (Geisler & Sarajedini 1999), and superimposed them on the cluster CMDs, once they were properly shifted. In the fitting procedure, we commonly employed seven different isochrones; ranging from slightly younger to slightly older than the derived cluster age. We repeated this procedure for each one of the four metallicity values selected. Finally, from the four derived ages - corresponding to Z = 0.019, 0.008, 0.004 and 0.001, respectively - we chose the isochrone which best reproduces the cluster's main features. Columns 3 and 9 of Table 8 and Fig. 9 show the results of the isochrone fitting. For each cluster CMD, we plot the isochrone of the adopted cluster age with solid lines, and two additional isochrones bracketing the derived age with dotted lines. The ages of the bracketing isochrones were estimated by taking into account the observed dispersion (i.e., photometric errors, binarity, evolutionary effects, etc.) in the cluster CMDs. Note that the theoretically computed bluest stage during the core He-burning phase is redder than the observed red giant clump (RGC) in the CMD of NGC 1697, a behaviour which has also been detected in other studies of Galactic and Magellanic Cloud clusters (Piatti et al. 2004b; Geisler et al. 2003; Piatti et al. 2004a, for example).
![]() |

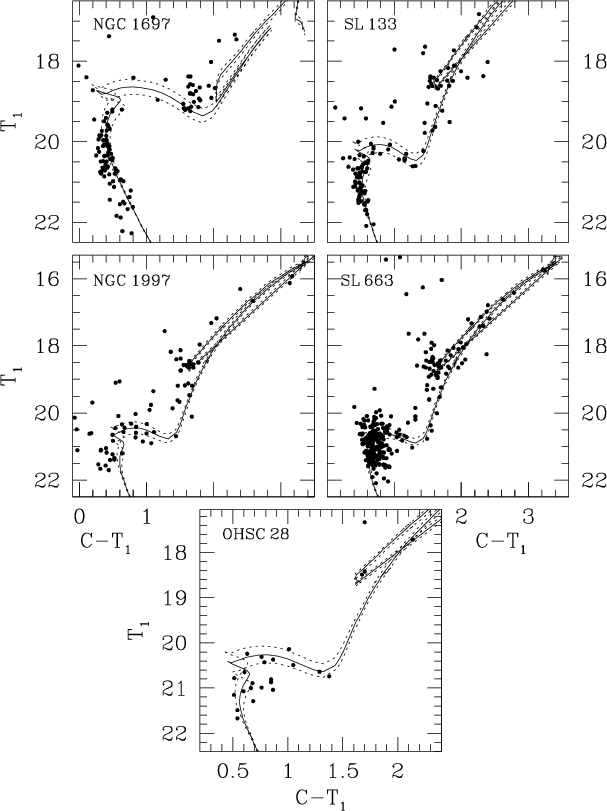

Figure 9: Washington T1 versus C-T1 CMDs for the selected star clusters. Isochrones from Girardi et al. (2002), computed taking into account overshooting are overplotted. The solid and dashed lines correspond to the derived clusters ages and to the ages obtained taken into account their associated errors (see Cols. 3 and 4 of Table 8), respectively: log (t) = 8.80, 8.85 and 8.90 and Z = 0.020 for NGC 1697 ( upper left); log (t) = 9.25, 9.30 and 9.35 and Z = 0.004 for SL 133 ( upper right); log (t) = 9.35, 9.40 and 9.45 and Z = 0.004 for NGC 1997 ( middle left); log (t) = 9.40, 9.45 and 9.50 and Z = 0.004 for SL 663 ( middle right), and log (t) = 9.30, 9.35 and 9.40 and Z = 0.004 for OHSC 28 ( bottom). |
Open with DEXTER |
We also derived the ages of the four clusters older than 1 Gyr
from the
index - calculated by determining the difference in the
T1 magnitude between the RGC and MS TO
in the cluster CMD - and Eq. (4) of Geisler et al. (1997). The T1 RGC and TO uncertaintes were estimated by bearing in mind the intrinsic dispersion of the cluster stars in the CMDs and the fact that the T1 photometric errors are smaller than 0.03 and 0.06 mag for T1
19 and 21, respectively (see, Fig. 2). The mean
values and their errors were estimated from the average of independent
measurements by two authors. The maximum difference in
was only
0.2 mag, and the mean difference was
mag. Both T1 RGC
and T1 TO, the
index
and the calculated ages with their errors are succesively listed from Cols. 4
to 7 of Table 8. We note that ages determined in this
way have been found to be in good agreement with those derived from comparison
to appropriate theoretical isochrones (Piatti et al. 2003d; Geisler et al. 2003; Piatti et al. 2003a, for example). We then averaged the ages obtained from the isochrone fitting
with those derived from the
index and adopted the final values
quoted in Col. 8 of Table 8. We assigned equal weight to both age estimates
since they show good agreement, although the isochrone ages are
consistently smaller. We did not derive a
age for NGC 1697 as it
is too young for the calibration.
Table 9: Ages and metallicities of LMC clusters.
We followed the standard Standard Giant Branch (SGB) procedure of inserting absolute MT1 magnitudes and intrinsic (C-T1)o colours for the clusters into Fig. 4 of Geisler & Sarajedini (1999) to obtain by interpolation the cluster metal abundances ([Fe/H]). These derived metallicities corrected for age effects via the prescription given in Geisler et al. (2003). Their Fig. 6 shows that for an age of 3 Gyr, the correction results equals to 0.3 dex. The corrected metallicities for the cluster sample are listed in Col. 10 of Table 8, showing excellent agreement with the Z values associated with the isochrones which best resemble the cluster features. Again, we did not perform this procedure on NGC 1697 given its young age.
Olszewsky et al. (1991) and Grocholski et al. (2006) found [Fe/H] =
dex
and
dex for N1997 and SL 663, respectively, from the spectra of
three and eight stars taken at the infrared CaII triplet. Grocholski et al.
also derived
metallicities for another 11 clusters which had previous estimates and found that a
mean shift of
0.2 dex exists, in the sense that their values are more metal-rich.
On the other hand, bearing in
mind our metallicity error and that of Grocholski et al. (see also their Fig. 12), we
find good agreement between both estimates of SL 663's metal abundance.
4 Discussion
To investigate the chemical evolution of the LMC, we added the clusters studied
herein to a list of selected LMC clusters. The selection was performed in order
to generate a cluster sample with ages and metallicities determined on as similar a
scale as possible to that of the
present cluster sample. This avoids uncertain fundamental
parameter determinations and zero-point offsets between different age and/or
metallicitiy scales. All the independent age and metallicity
determinations are in generally good agreement, among the 54 total LMC clusters
in the sample.
Note that 9 well-known old clusters were taken from the literature (t > 12 Gyr), the remaining clusters coming from our own previous studies using the
same Washington C,T1 techniques described in this paper.
Table 9 lists the cluster sample along with the ages and
metallicities adopted, and the deprojected angular distances assuming that
all clusters are part of the inclined disk, using the standard value i 45
in Westerlund (1990; see also, van der Marel & Cioni 2001). For the galaxy centre, we adopted the
position of NGC 1928 (
20
57
,
28
41
).
The resulting cluster list given in Table 9 contains objects distributed
throughout the LMC disk and putative halo.
Such a sample allows us to investigate the spatial
distribution of clusters for different metallicity bins, while still keeping a
statistically reasonable number of objects per bin. In order to
trace the cluster formation history and the metallicity enrichment of
the LMC, we analyzed the cluster-metallicity and metallicity-deprojected distance
relationships. We plot in Fig. 10 the cluster ages and metallicities
as a function of their deprojected angular distance for
four metallicity intervals, namely:
[Fe/H] < -1.20 (pentagon); -1.20
[Fe/H]
-0.80
(square); -0.80 < [Fe/H] < -0.4 (circle); and [Fe/H]
-0.4 (triangle), respectively. We included in the upper panel an enlargement
for young clusters with deprojected distances <6
.
![]() |

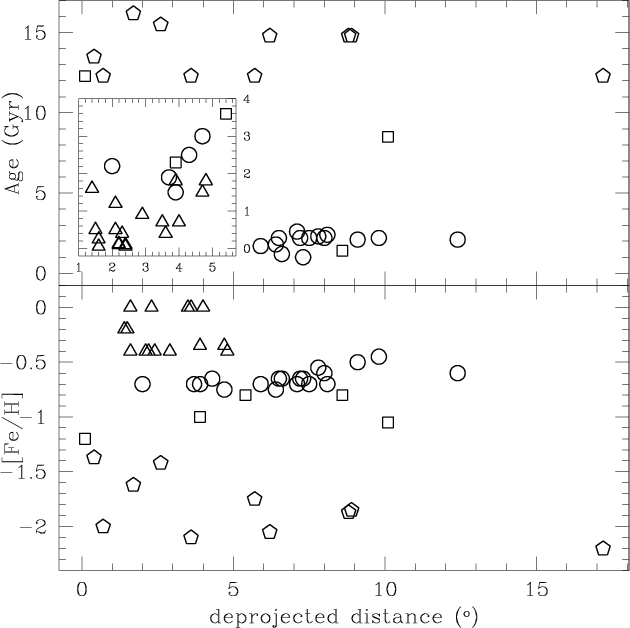

Figure 10:
Relationships between the LMC cluster ages and metallicities and the deprojected distance. Symbols correspond to different [Fe/H] intervals: [Fe/H]
< -1.20 (pentagon); -1.20 |
Open with DEXTER |
The bottom panel of Fig. 10 reveals that the most metal-rich clusters
are preferentially located in the inner disk
- defined by a radius of 4
(Bica et al. 1998) - where they were probably formed,
since most of them are younger than 1 Gyr old (see top panel).
In contrast, clusters with [Fe/H]< -0.5 exist
over the entire disk out to 10
.
Thus, the distance from the galaxy centre
alone does not appear to be the main variable to describe the cluster spatial-metallicity relationship. Our
result agrees with those of Carrera et al. (2008), who concluded that the difference in
mean metallicity between their innermost and the outermost fields is due to the
lack of young, more metal-rich populations in the latter. Grocholski et al. (2006) also found
evidence confirming that the LMC lacks
the metallicity gradient typically seen in non-barred spiral galaxies, suggesting that
the bar is driving the mixing of stellar populations in the LMC. However, in contrast with
our Fig. 10, they found that clusters with [Fe/H] > -1.0 dex show a
tight distribution (
), with no tail toward solar
metallicities. According to the metallicity distribution of our larger cluster
sample - they observed giant stars in 28 LMC clusters -, we find a noticeable peak at [Fe/H]
-0.7 dex and a notable concentration of more metal-rich clusters.
However, note that the Ca triplet technique they employed does not work for
clustersthan about 1 Gyr, which are expected to be slightly more
metal-rich.
The top panel of Fig. 10 shows that the most metal-poor clusters are
also the oldest ones in the LMC, as expected. There also exists a quiescent period of cluster
formation between 11 and 3 Gyr ago - the infamous clustergap (Geisler et al. 1997; Bekki et al. 2004; Piatti et al. 2002), before a large number of
intermediate-age clusters (IACs) were mainly
formed in the outer disk starting 3 Gyr ago. The enlargement in the top panel shows that
the subsequent cluster formation has been concentrated to
the inner disk. Indeed, here a possible gradient exists, in which
the younger clusters are formed closer to the galaxy centre. We find in this last
result a hint for an outside-in cluster formation scenario. Gallart et al. (2008) also found that the ages of the youngest component of the
dominant stellar population gradually increase with galactocentric distance, from
currently active star formation in a field at 2.3
from the kinematical centre of
the LMC, to 1.5 Gyr at 7.1
.
Note that this putative outside-in formation
took place in the inner disk after the bursting formation process was triggered
mainly in the outer disk beginning
3 Gyr ago.
![]() |

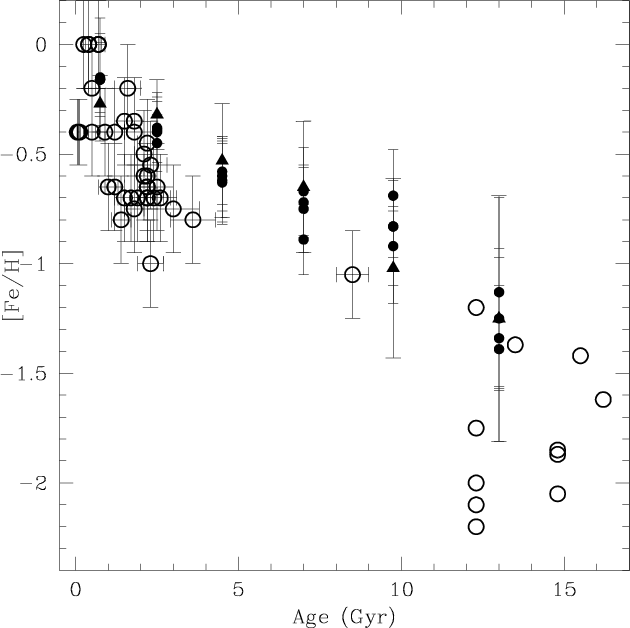

Figure 11: Age-metallicity relation for LMC clusters (open circles) and that derived by Carrera et al. (2008, see their Table 7) for the LMC bar (filled triangles) and disk (filled circles) systems. |
Open with DEXTER |
Figure 11 shows the resulting AMR, wherein open circles represent individual
clusters (which carry the error bars in age and metallicity quoted in
Table 9), while filled triangles and circles represent average metallicities,
over the age intervals adopted by
Carrera et al. (2008, their Table 7), for a sample of stars in the bar
(Cole et al. 2005) and in the four different disk fields of
Carrera et al. (2008), respectively. Note that the most
striking difference between the disk and bar AMR found by
Carrera et al. is that the disk metallicity has
increased substantially (0.22 dex) in the last 1-2 Gyr,
while the bar metallicity has remained basically constant in this time
interval. This different behaviour implies that, while the disk AMR
is well reproduced by close-box models or models with a small degree of outflow, that
of the bar is only reproduced by models with a combination of infall and outflow.
From the metal-poor end of the AMR, we find that several old clusters have [Fe/H]
-2.2 dex, whereas the mean metallicity of the poorest field stars reach
[Fe/H] = -1.4 dex. Even
so, there are also old clusters within the metallicity range of the oldest field star
populations. Towards the region of the IACs, we find a similar behaviour between
cluster and field star abundances in the sense that the
field star metallicities tend to delimit the upper envelope of the cluster metallicities.
The offset between the clusters and the field population may reflect a metallicitydifference.
For ages younger than 1 Gyr it seems that clusters and field stars
share on average similar metallicity ranges. Note that
in the cluster age gap, the only clusteris
at the metal-poorf the field star distribution.
In summary, we find evidence that the upper envelope of the cluster AMR appears to be
coincident with that of the LMC field to within the errors,
especially the disk stars. But note that Grocholski et al. (2006) showed that the metallicity distribution of intermediate-age clusters is
similar to that found for red giants in the bar, which may indicate that the bar
and the IACs have similar star formation histories. This result agrees, in turn, with theoretical
models that suggest the bar and IACs formed as a result of a close encounter
with the SMC
4 Gyr ago (Bekki & Chiba 2005). In this scenario,
that encounter peaked at
2 Gyr ago and
triggered the formation of a large number of clusters in both MCs
(Piatti et al. 2008). Recently, Bekki (2008) proposed that the MC system has a common halo,
produced either by a dynamical coupling that started
4 Gyr ago or by a remnant
of a small group of galaxies destroyed via tidal stripping by the Galaxy. Unfortunately, we
cannot favour either of these suggested scenarios from the available cluster data. However,
since the AMR for the open clusters of the Galaxy does not show enhanced cluster
formation like that which occurred in the MCs
2 Gyr ago, perhaps both MCs
have been interacting more like members of a binary system than isolated
entities of a group of galaxies which includes the Milky Way.
5 Summary and conclusions
We have used the 0.9 m and 1.54 m telescopes at the Cerro Tololo Inter-American Observatory (CTIO) and at the European Southern Observatory (ESO), respectively, to obtain CCD imaging of a number of star clusters in the LMC as part of a continuing project. Here we have presented the CMDs of NGC 1697, SL 133, NGC 1997, SL 663 and OHSC 28 in the Washington photometric system. The analysis of the photometric data leads to the following main conclusions:
- (i)
- After a thorough analysis of the cluster radial density profiles, we
estimated the percentage of field star contamination as a function of
the distance from each cluster's centre. Field star contamination
rises from 10% up to 33% at a distance corresponding to half the
maximum of the cluster stellar density profile. The number of field
stars reaches 40-66% at the cluster radius.
- (ii)
- Using the observed cluster (T1,C-T1) diagrams, statistically
cleaned from field star contamination,
we estimated their ages and metallicities from a comparison to
theoretical isochrones and from the
index and the SGB procedure. With the exception of NGC 1697 which is a Hyades-age cluster with a solar metal content, the remaining four clusters are of intermediate-age (from 2.2 to 3.0 Gyr) and relatively metal-poor ([Fe/H] = -0.7 dex).
- (iii)
- Combining these results with those for a sample of 49 additional
clusters with ages and metallicities on a similar scale as the
present one, we reinforce previous suggestions with respect to the
chemical evolution of the LMC, that the apparent radial abundance gradient is the
result of the superposition of old and intermediate-age clusters spread over the entire LMC disk, and a more metal-rich population of young clusters preferentially
formed in the inner disk. These young clusters would have been formed
during an outside-in process after a burst of cluster formation
mainly in the outer disk that peaked
2 Gyr ago.
- (iv)
- Irrespective of the spatial distribution of cluster ages and
metallicities and the incompleteness of our cluster sample,
the cluster and field AMRs show evidence for a small offset in mean metallicity
(possibly reflecting a scale difference), while
overlapping on the higher metallicity envelope of the cluster AMR. Since the AMR
for the open clusters of the Galaxy does not show an enhancement of cluster
formation like that which occurred in the MCs
3 Gyr ago, it is possible that the SMC and the LMC interacted more closely with each other than they did with the Galaxy.
Acknowledgements
We gratefully acknowledge the comments and suggestions of the reviewer, Dr. Fusi Pecci, which allowed us to improve the manuscript. This work was partially supported by the Argentinian institutions CONICET and Agencia Nacional de Promoción Científica y Tecnológica (ANPCyT). This work is based on observations made at the European Southern Observatory and at Cerro Tololo Inter-American Observatory (CTIO), which is operated by AURA, Inc., under cooperative agreement with the National Science Foundation. We appreciate the valuable time invested by Luis González in obtaining part of the data. A.S. acknowledges support from NSF CAREER grant AST00-94048. D.G. gratefully acknowledges support from the Chilean Centro de Astrofísica FONDAP No. 15010003 and the Chilean Centro de Excelencia en Astrofísica y Tecnologías Afines (CATA). C.G. acknowledges partial support from Chilean CONICYT through FONDECYT grant 1990638 and the Spanish Ministry of Education and Science (grant AYA2007-67913).
References
- Alves, D. R., Rejkuba, M., Minniti, D., & Cook, K. H. 2002, ApJ, 573, L51 [NASA ADS] [CrossRef]
- Bekki, K. 2008, ApJ, accepted (In the text)
- Bekki, K., & Chiba, M. 2005, MNRAS, 356, 680 [NASA ADS] [CrossRef] (In the text)
- Bekki, K., Couch, W. J., Beasley, M. A., et al. 2004, ApJ, 610, L93 [NASA ADS] [CrossRef]
- Bica, E., Geisler, D., Dottori, H., et al. 1998, AJ, 116, 723 [NASA ADS] [CrossRef] (In the text)
- Brocato, E., Castellani, V., Ferraro, F. R., Piersimoni, A. M., & Testa, V. 1996, MNRAS, 282, 614 [NASA ADS]
- Burstein, D., & Heiles, C. 1982, AJ, 87, 1165 [NASA ADS] [CrossRef] (In the text)
- Canterna, R. 1976, AJ, 81, 228 [NASA ADS] [CrossRef] (In the text)
- Carrera, R., Gallart, C., Pancino, E., Zinn, R., & Hardy, E. 2006, in Chemical Abundances and Mixing in Stars in the Milky Way and its Satellites, ESO Astrophysics Symposia (Springer-Verlag), 230 (In the text)
- Carrera, R., Gallart, C., Hardy, E., Aparicio, A., & Zinn, R. 2008, AJ, 135, 836 [NASA ADS] [CrossRef] (In the text)
- Carretta, E., Gratton, R. G., Clementini, G., & Fusi Pecci, F. 2000, ApJ, 120, 1808
- Cole, A. A., Tolstoy, E., Gallagher, III J. S., & Smecker-Hane, T. 2005, AJ, 129, 1465 [NASA ADS] [CrossRef] (In the text)
- Dutra, C. M., Bica, E., Clariá, J. J., Piatti, A. E., & Ahumada, A. V., 2001, A&A, 371, 895 [NASA ADS] [CrossRef] [EDP Sciences]
- Ferraro, I, Ferraro, F. R., Fusi Pecci, F., Corsi, C. E., & Buonanno, R. 1995, MNRAS, 272, 391 [NASA ADS]
- Gallart, C., Zoccali, M., Bertelli, G., et al. 2003, AJ, 125, 742 [NASA ADS] [CrossRef]
- Gallart, C., Stetson, P. B., Meschin, I. P., Pont, F., & Hardy, E. 2008, ApJ, 682L, 89 [NASA ADS] [CrossRef] (In the text)
- Geisler, D. 1996, AJ, 111, 480 [NASA ADS] [CrossRef] (In the text)
- Geisler, D., & Sarajedini, A. 1999, AJ, 117, 308 [NASA ADS] [CrossRef] (In the text)
- Geisler, D., Bica, E., Dottori, H., et al. 1997, AJ, 114, 1920 [NASA ADS] [CrossRef] (In the text)
- Geisler, D., Piatti, A. E., Bica, E., & Clariá, J. J. 2003, MNRAS, 341, 771 [NASA ADS] [CrossRef]
- Girardi, L., Bertelli, G., Bressan, A., et al. 2002, A&A, 391, 195 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Grocholski, A. J., Cole, A. A., Sarajedini, A., Geisler, D., & Smith V. V. 2006, AJ, 132, 1630 [NASA ADS] [CrossRef] (In the text)
- Hill, V., François, P., Spite, M., Primas, F., & Spite, F. 2000, A&A, 364, L19 [NASA ADS]
- Johnson, J. A., Bolte, M., Stetson, P. B., Hesser, J. E., & Somerville, R. 1999, ApJ, 527, 199 [NASA ADS] [CrossRef]
- Kontizas, M., Morgan, D. H., Hatzidimitriou, D., & Kontizas, E., 1990, A&AS, 84, 527 [NASA ADS]
- Lejeune, T., & Schaerer, D. 2001, A&A, 366, 538 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Lyngå , G., & Westerlund B. 1963, MNRAS, 127, 31 [NASA ADS]
- Olsen, K. A. G., Hodge, P. W., Mateo, M., et al. 1998, MNRAS, 300, 665 [NASA ADS] [CrossRef]
- Olszewski, E. W., Harris, H. C., Schommer, R. A., & Canterna, R. W. 1988, AJ, 95, 84O [NASA ADS] [CrossRef]
- Olszewski, E. W., Schommer, R. A., Suntzeff, N. B., & Harris, H. C. 1991, AJ, 101, 515 [NASA ADS] [CrossRef] (In the text)
- Piatti, A. E., Geisler, D., Bica, E., et al. 1999, AJ, 118, 2865 [NASA ADS] [CrossRef] (In the text)
- Piatti, A. E., Sarajedini, A., Geisler, D., Bica, E., & Clariá, J. J. 2002, MNRAS, 329, 556 [NASA ADS] [CrossRef] (In the text)
- Piatti, A. E., Geisler, D., Bica, E., & Clariá, J. J. 2003a, MNRAS, 343, 851 [NASA ADS] [CrossRef]
- Piatti, A. E., Bica, E., Geisler, D., & Clariá, J. J. 2003b, MNRAS, 341, 977
- Piatti, A. E., Clariá, J. J., & Ahumada, A. V. 2003c, MNRAS, 340, 1249 [NASA ADS] [CrossRef]
- Piatti, A. E., Bica, E., Geisler, D., & Clariá, J. J. 2003d, MNRAS, 344, 965 [NASA ADS] [CrossRef]
- Piatti, A. E., Clariá, J. J., & Ahumada, A. V. 2004a, A&A, 418, 979 [NASA ADS] [CrossRef] [EDP Sciences]
- Piatti, A. E., Clariá, J. J., & Ahumada, A. V. 2004b, A&A, 421, 991 [NASA ADS] [CrossRef] [EDP Sciences]
- Piatti, A. E., Geisler, D., Sarajedini, A., Gallart, D., & Wischnjewsky, M. 2008, MNRAS, 389, 429 [NASA ADS] [CrossRef]
- Pietrzynski, G., & Gieren, W. 2002, AJ, 124, 2633 [NASA ADS] [CrossRef]
- Shapley, H., & Lindsay, E. M. 1963, Irish AJ, 6, 74 [NASA ADS]
- Sarajedini, A., Grocholski, A. J., Levine, J., & Lada, E. 2002, AJ, 124, 2625 [NASA ADS] [CrossRef]
- van der Marel, R. P., & Cioni, M. R. L. 2001, AJ, 122, 1807 [NASA ADS] [CrossRef]
- Westerlund, B. E. 1990, A&AR, 2, 29 [NASA ADS] (In the text)
- Whitelock, P. A., Feast, M. W., van Loon, J. Th., & Zijlstra A. A. 2003, MNRAS, 342, 86 [NASA ADS] [CrossRef]
Footnotes
- ... Cloud
- Tables 2-6 are only available in electronic form at the CDS via anonymous ftp to cdsarc.u-strasbg.fr (130.79.128.5) or via http://cdsweb.u-strasbg.fr/cgi-bin/qcat?J/A+A/501/585
- ... STSDAS/IRAF
- IRAF is distributed by the National Optical Astronomy Observatories, which is operated by the Association of Universities for Research in Astronomy, Inc., under contract with the National Science Foundation.
All Tables
Table 1: Observation log of selected clusters.
Table 7: Cluster sizes and field contamination.
Table 8: Fundamental parameters of LMC clusters.
Table 9: Ages and metallicities of LMC clusters.
All Figures
![]() |
Figure 1: ( C-T1, T1) colour-magnitude diagram for all the measured stars in the field of NGC 1697. |
Open with DEXTER | |
In the text |
![]() |
Figure 2: T1 magnitude and C-T1 colour internal photometric errors as a function of T1 for stars measured in the field of NGC 1697. |
Open with DEXTER | |
In the text |
![]() |
Figure 3:
Stellar density profiles for the selected clusters:
NGC 1697 ( upper left), SL 133 ( upper right), NGC 1997 ( middle left),
SL 663 ( middle right) and OHSC 28 ( bottom). The horizontal lines correspond to the
background levels far from the clusters, whereas the vertical lines indicate
|
Open with DEXTER | |
In the text |
![]() |
Figure 4:
Schematic finding chart of the stars observed in the field of
NGC 1697 ( upper left), with two concentric circles corresponding to
|
Open with DEXTER | |
In the text |
![]() |
Figure 5: Same as Fig. 4, for SL 133. |
Open with DEXTER | |
In the text |
![]() |
Figure 6: Same as Fig. 4, for NGC 1997. |
Open with DEXTER | |
In the text |
![]() |
Figure 7: Same as Fig. 4, for SL 663. |
Open with DEXTER | |
In the text |
![]() |
Figure 8: Same as Fig. 4, for OHSC 28. |
Open with DEXTER | |
In the text |
![]() |
Figure 9: Washington T1 versus C-T1 CMDs for the selected star clusters. Isochrones from Girardi et al. (2002), computed taking into account overshooting are overplotted. The solid and dashed lines correspond to the derived clusters ages and to the ages obtained taken into account their associated errors (see Cols. 3 and 4 of Table 8), respectively: log (t) = 8.80, 8.85 and 8.90 and Z = 0.020 for NGC 1697 ( upper left); log (t) = 9.25, 9.30 and 9.35 and Z = 0.004 for SL 133 ( upper right); log (t) = 9.35, 9.40 and 9.45 and Z = 0.004 for NGC 1997 ( middle left); log (t) = 9.40, 9.45 and 9.50 and Z = 0.004 for SL 663 ( middle right), and log (t) = 9.30, 9.35 and 9.40 and Z = 0.004 for OHSC 28 ( bottom). |
Open with DEXTER | |
In the text |
![]() |
Figure 10:
Relationships between the LMC cluster ages and metallicities and the deprojected distance. Symbols correspond to different [Fe/H] intervals: [Fe/H]
< -1.20 (pentagon); -1.20 |
Open with DEXTER | |
In the text |
![]() |
Figure 11: Age-metallicity relation for LMC clusters (open circles) and that derived by Carrera et al. (2008, see their Table 7) for the LMC bar (filled triangles) and disk (filled circles) systems. |
Open with DEXTER | |
In the text |
Copyright ESO 2009
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
