Appendix A: Additional figures

\begin{figure}
\par\includegraphics[width=8.8cm,clip]{14786fg2.eps}

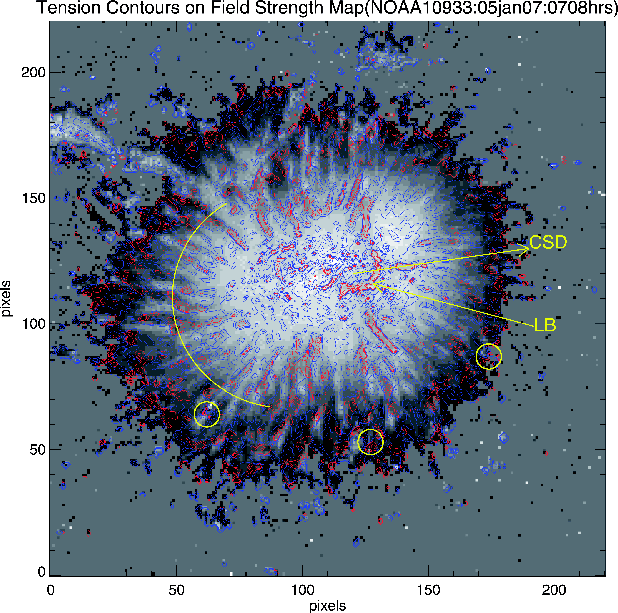

\end{figure} Figure A.1:

Same as that of Fig. 1, except that the continuum image is replaced by the field strength map of NOAA AR 10933. Contour levels are $\pm 1.2, \pm 4, \pm 12$ millidynes/cm3.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=8.8cm,clip]{14786fg3.eps}

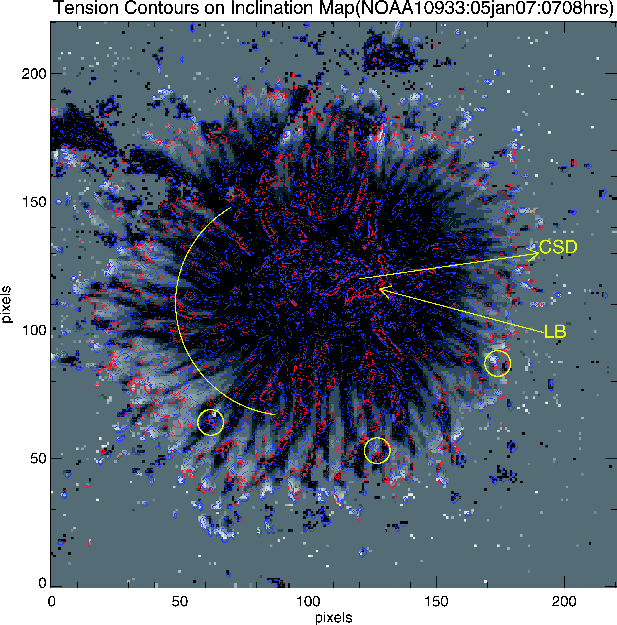

\end{figure} Figure A.2:

Same as that of Fig. 1, except that the continuum image is replaced by the field inclination map of NOAA AR 10933.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=8.8cm,clip]{14786fg6.eps}

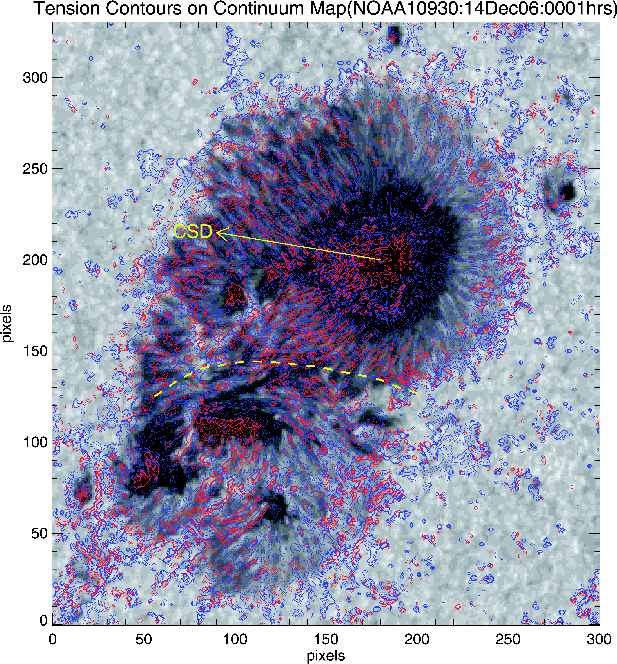

\end{figure} Figure A.3:

Same as that of Fig. 3, except that this sunspot is observed on 14 December 2006 at a heliocentric angle of $\theta $ = 8$^\circ $.

Open with DEXTER
