| Issue |
A&A
Volume 508, Number 1, December II 2009
|
|
|---|---|---|
| Page(s) | 247 - 257 | |
| Section | Interstellar and circumstellar matter | |
| DOI | https://doi.org/10.1051/0004-6361/200912087 | |
| Published online | 15 October 2009 | |
Online Material
Appendix A: Resulting fit parameters
Table A.1:
Resulting fit parameters for the decomposition analysis of
the 10
m
silicate feature. Dashes indicate that the lower boundary
has been reached and the component proportion has been set to 0.
Appendix B: Spectra of the complete data sample
![\begin{figure}%
\par\mbox{\includegraphics[width=4.2cm]{12087f13.eps}\hspace*{2m...
...9.eps}\hspace*{2mm}\includegraphics[width=4.2cm]{12087f40.eps} }
\end{figure}](/articles/aa/olm/2009/46/aa12087-09/img382.png)
|

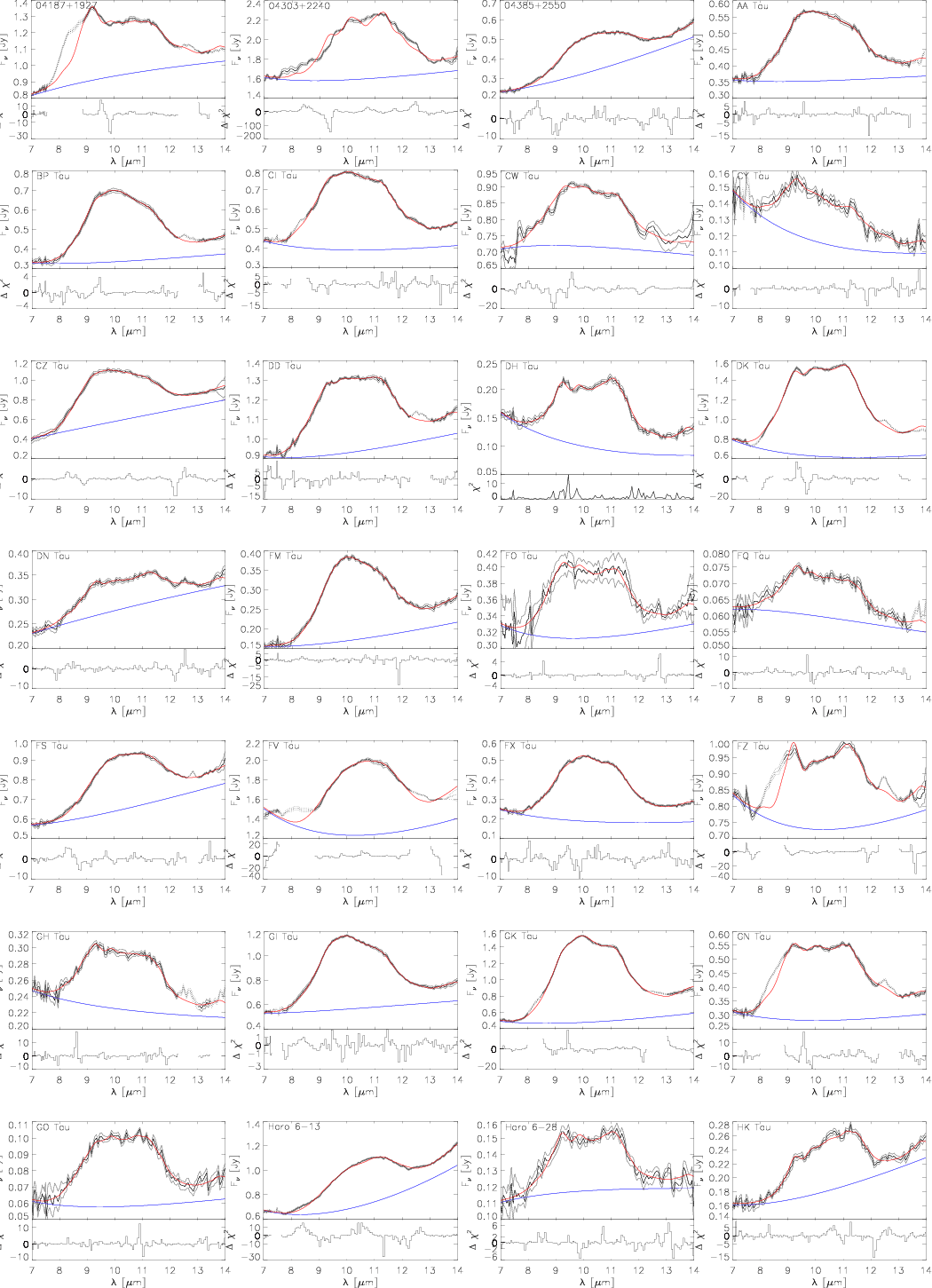

Figure B.1:
IRS spectra (black line) and fit (red line) including the
corresponding uncertainties (gray lines) of the full dataset. The
continuum background used for the fit function is shown in blue. In
the lower part of the figures, the resulting |
| Open with DEXTER | |
,
multiplied by
the sign of the deviation, are shown.
![\begin{figure}\par\mbox{\includegraphics[width=4.2cm]{12087f41.eps}\hspace*{2mm}...
...*{2mm}\includegraphics[width=4.2cm]{12087f54.eps} } \hspace{9.4cm}\end{figure}](/articles/aa/olm/2009/46/aa12087-09/img383.png)
|

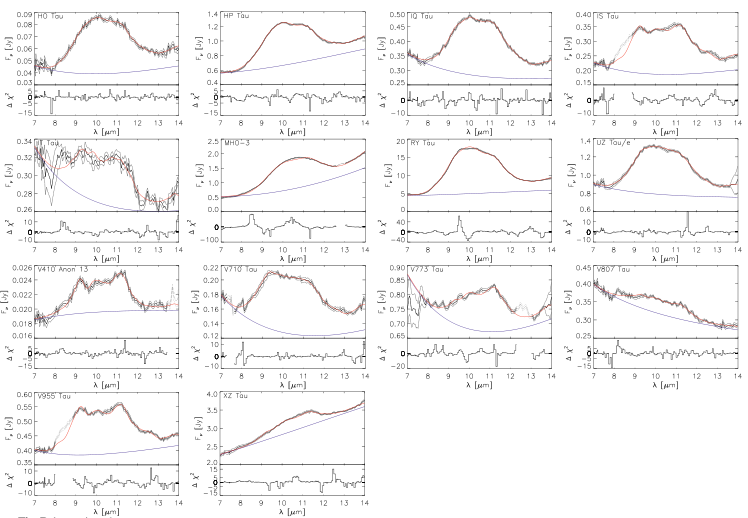

Figure B.1: continued. |
| Open with DEXTER | |
