Multiwavelength study of the Carina–Sagittarius Arm - I. Astrometric and photometric search for new open clusters in the 320° ≤ l ≤ 325° region

Open Access

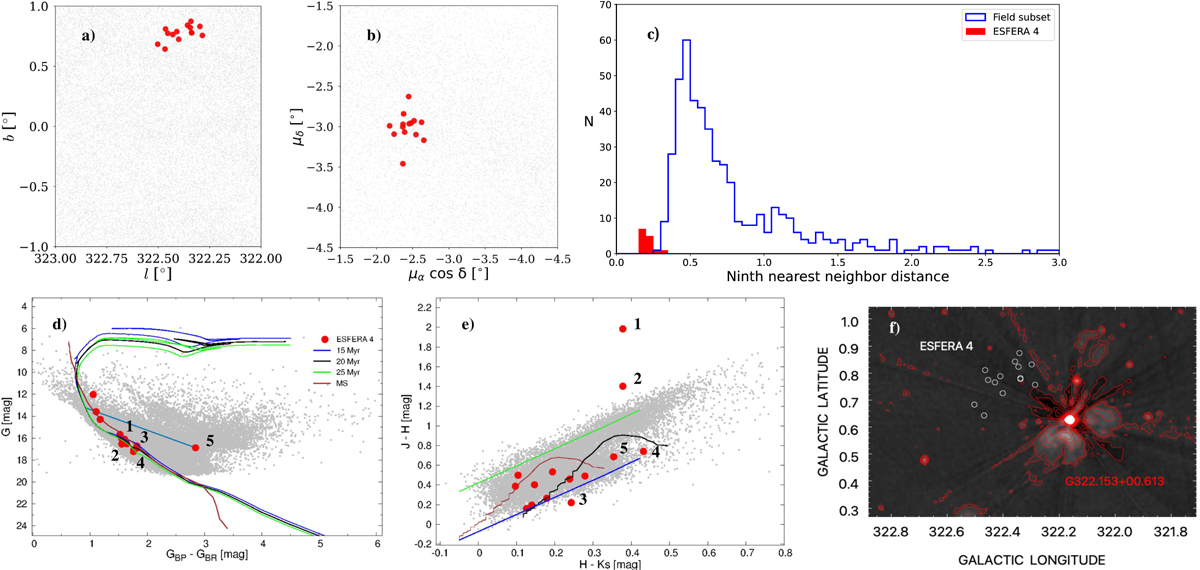

Fig. C.3

Multiparametric analysis of the open cluster ESFERA 4. Symbols as in Fig. 5. In Fig (d) the MS is fitted to a distance of 1648 pc and A_V = 2.5 mag; (f) Red contours trace the H II emission of G 322.153+00.613 (Anderson et al. 2014), contour levels are: -60, -40, -20 and -10 mJy beam⁻¹ for the negative emission and 5 (~3 σ_rms), 10, 30, 50, 70, 100, 150, 200, 250 and 300 mJy beam⁻¹ for the positive emission.
