Fig. A.3
Download original image

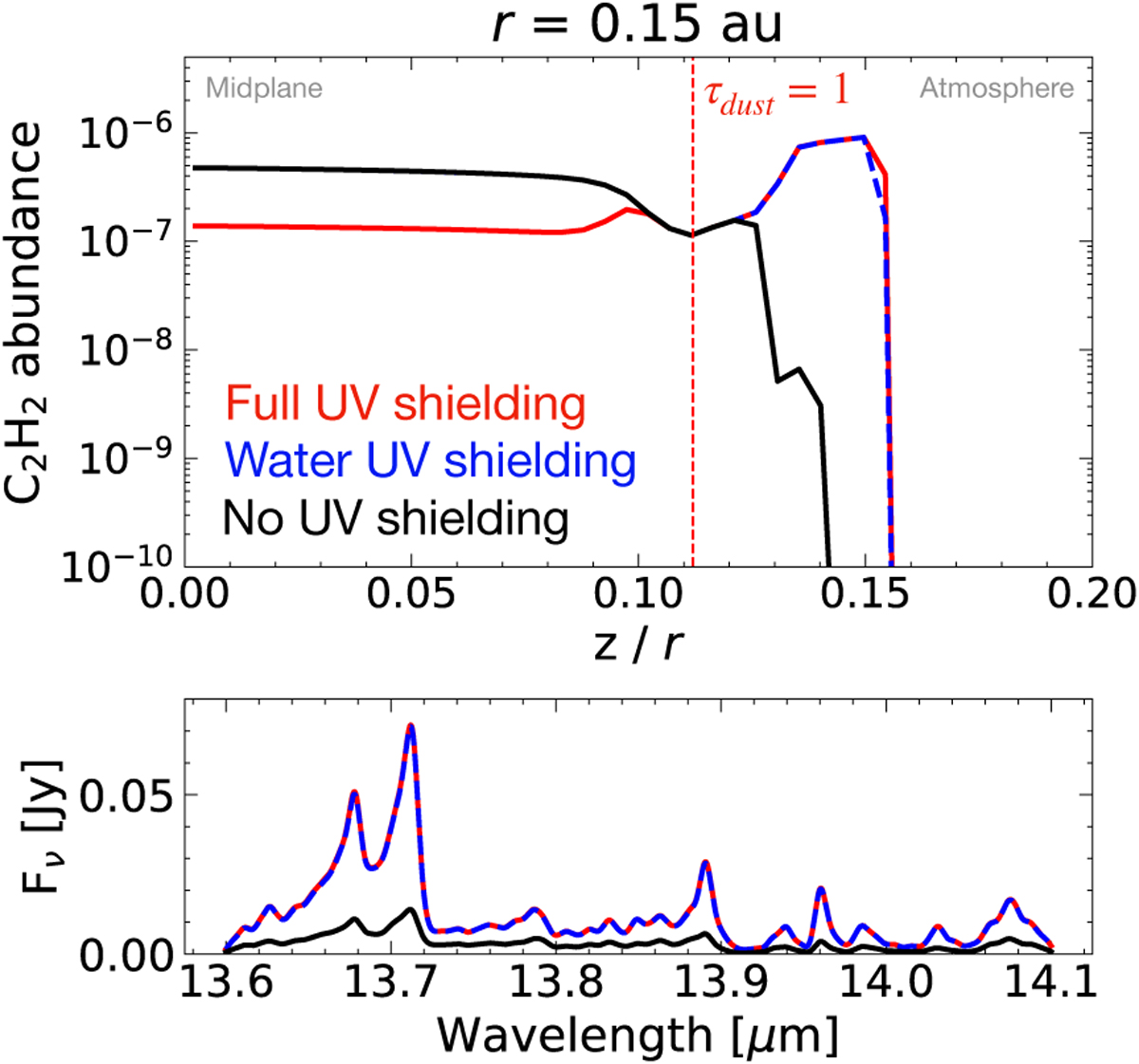

Top: Vertical cut at r = 0.15 au showing the abundance of acetylene when there is no UV shielding by the gas (black), water UV shielding (blue), or the 12 species mentioned in Sect. 2.2.1 (red). Bottom: C2H2 spectrum for these different UV shielding prescriptions.
