Fig. C.1
Download original image

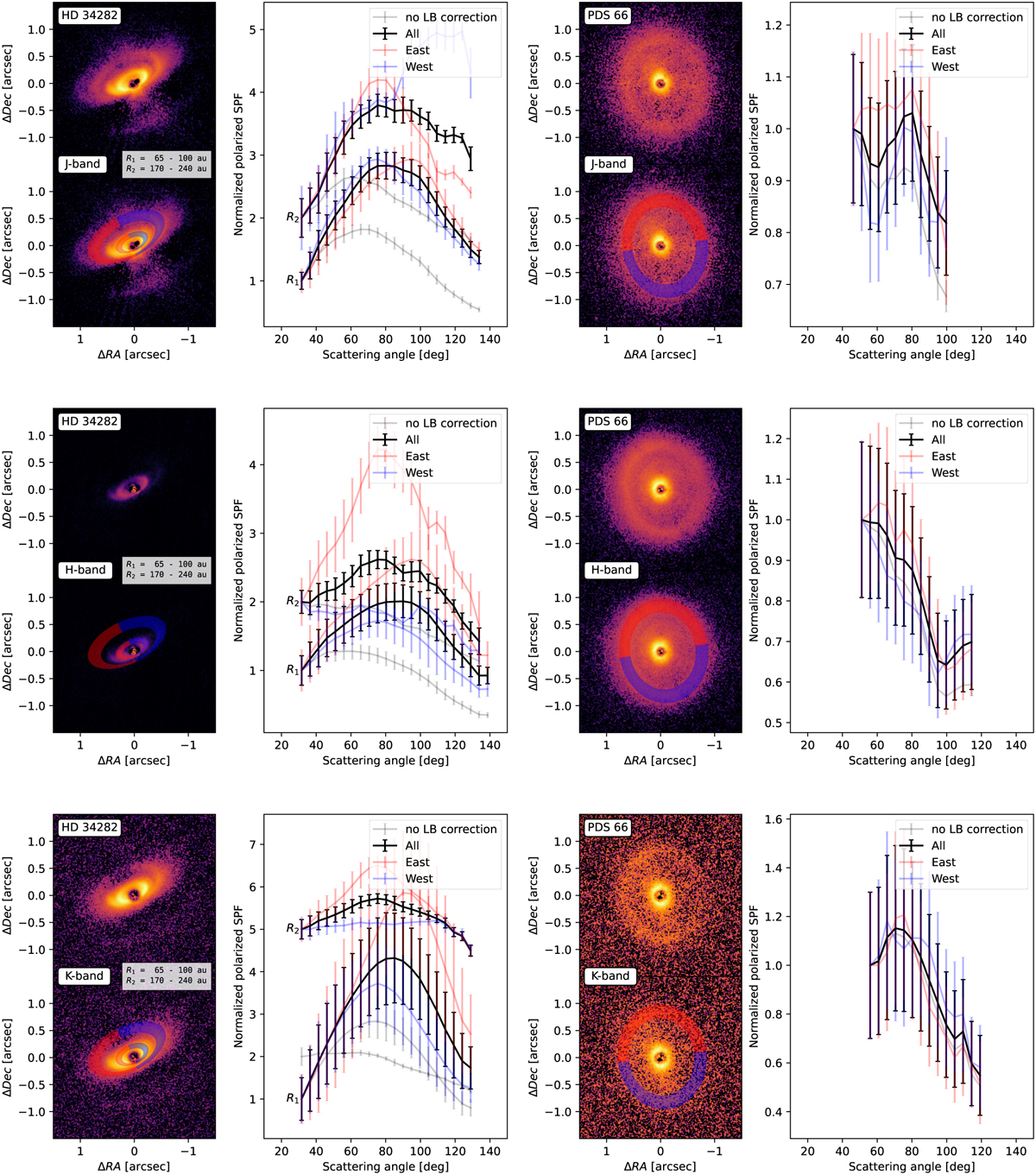

Panel of SPF extraction from each side of the ring. In each case, we display the Qφ image with and without the extraction zone on the left, and the extracted polarized SPF on the right. We plot SPF for the entire disk (solid black), east side (dotted red), west side (dotted blue), and without correcting for the limb-brightening effect (dotted gray).
