Fig. 13
Download original image

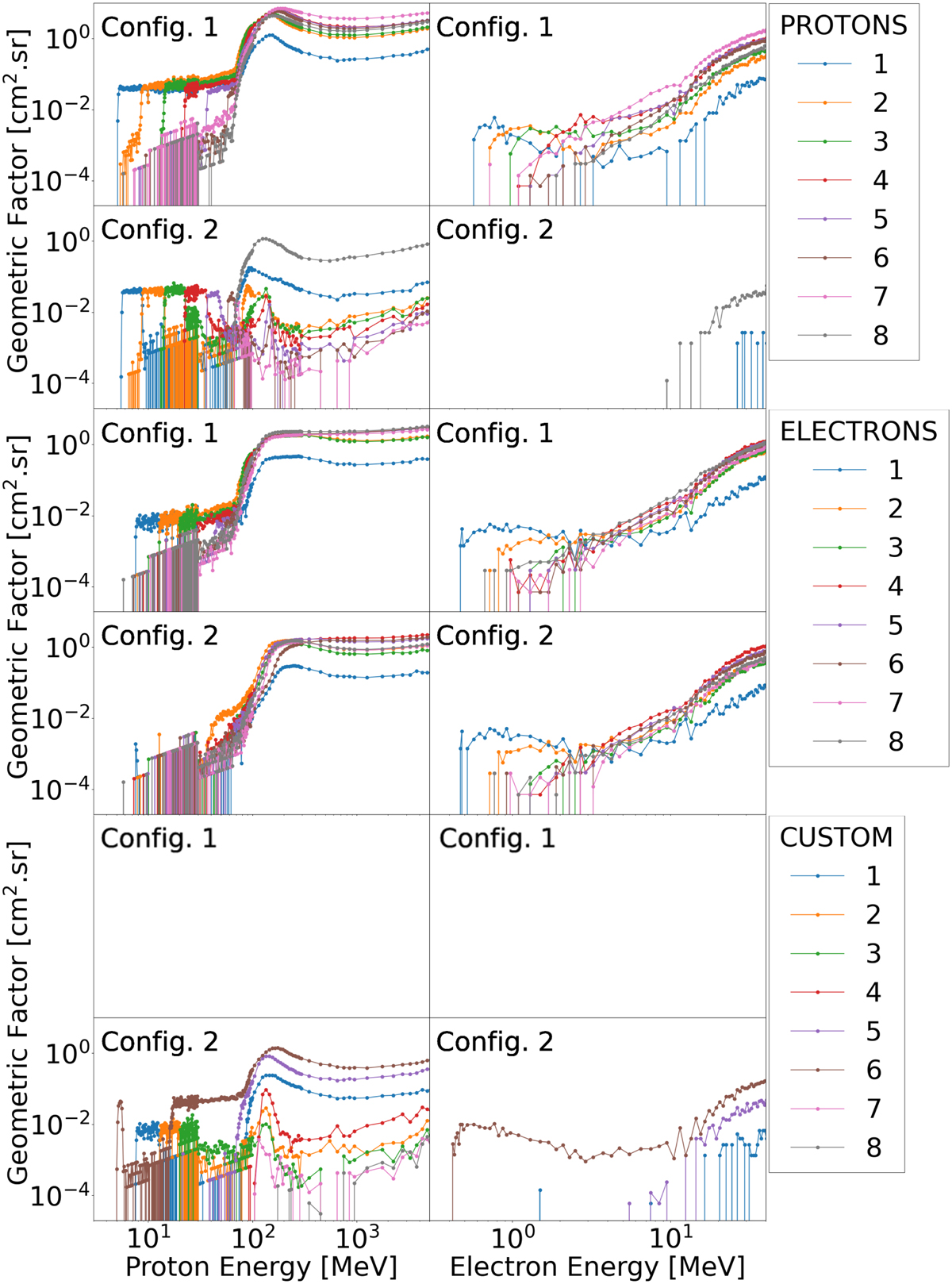

Response functions of the PROTONS (top four panels), ELECTRONS (middle four panels), and CUSTOM (bottom four panels) detection bins to protons (left column) and electrons (right column). Configuration 1 response functions are shown in the top panels of each quadrant while Configuration 2 are shown in the bottom panels of each quadrant. The CUSTOM detection bins were not used in Configuration 1.
