Fig. 12

Download original image

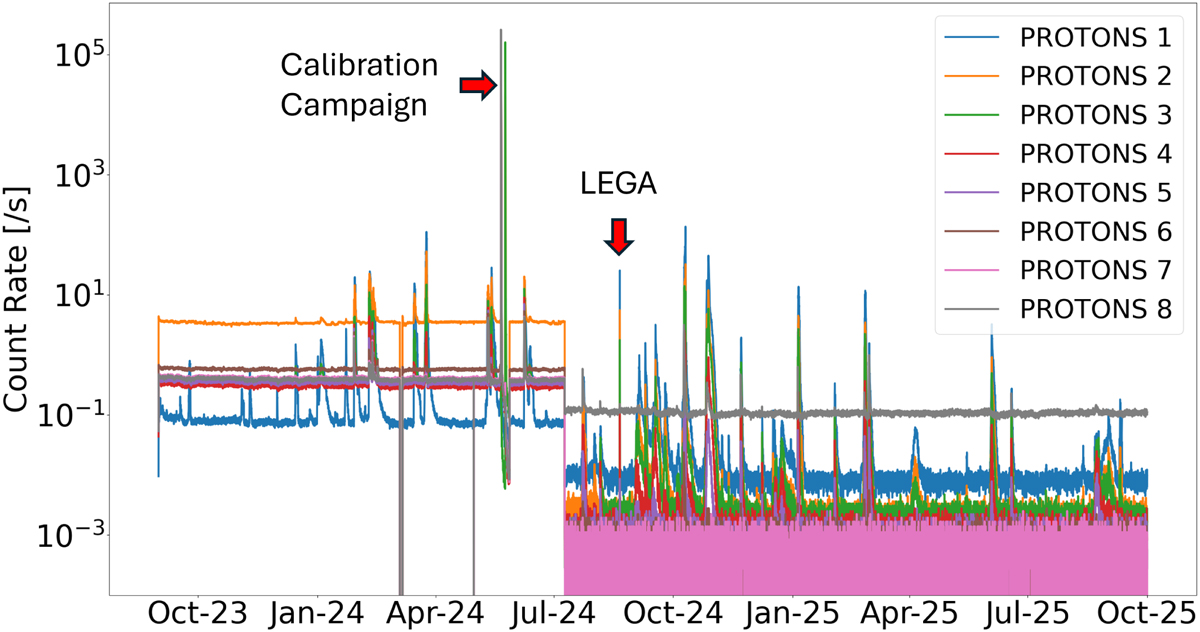

RADEM count rates of all PROTONS detection bins from August 30, 2023, until September 30, 2025. Each colour represents a different detection bin. Most increases in count rates are cause by SEP events. The calibration scan executed between the May 20 and 27, 2024, and the Earth gravity assist which took place on August 20, 2024, can also be seen as increases in the count rates of most detection bins. The abrupt change on July was due to a reconfiguration of the detection bins.
