Fig. 4

Download original image

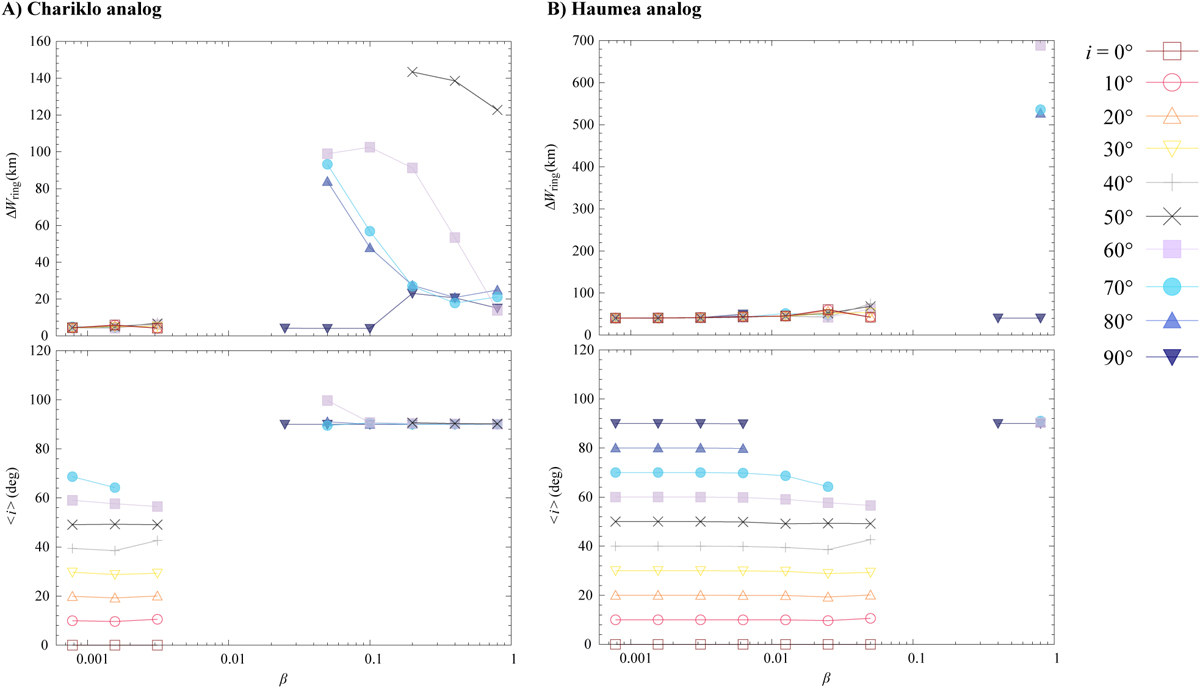

Width of rings derived from the valuer of ΔWring (upper panels) and the average inclination angle of the particles in the ring (lower panels) as a function of β. Panels A and B show the Chariklo (ap = 15 au) and Haumea (ap = 50 au) analog models, respectively. Symbols represent different initial ring tilt angles in the range of [0°−90°].
