Fig. A.2.

Download original image

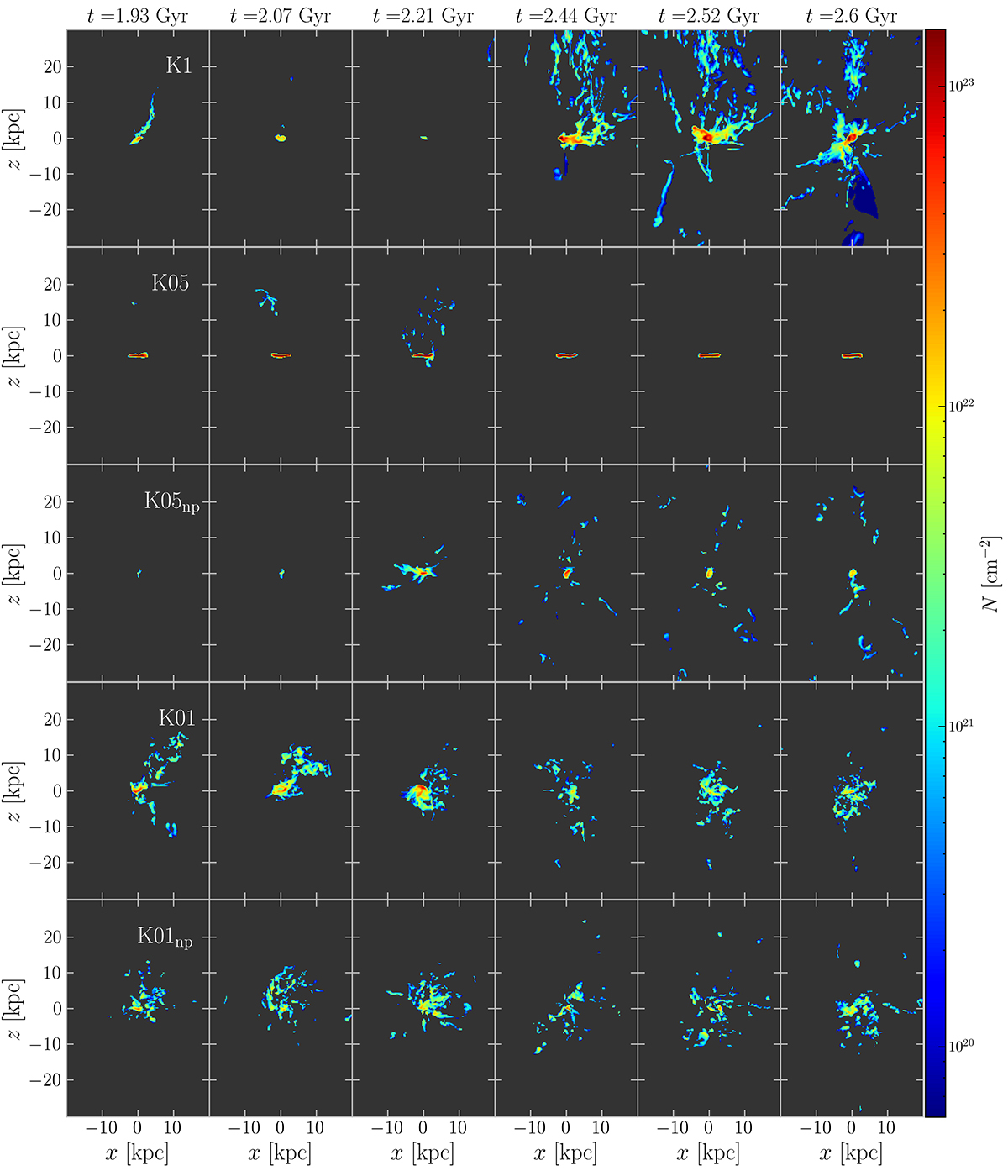

Column density of the cold gas, T < 5 × 104 K, projected on a plane parallel to the jet axis, for various snapshots ranged in less than 1 Gyr (from left to right), of the five runs K1, K05, K05np, K01, and K01np (from top to bottom). The figure shows the crucial differences in the cold gas formation: run K1 shows the most prominent cold gas structures in a filamentary and clumpy form. Run K05 shows the presence of a long-lived cold gas disk, with very rare formation events of few clumps. While run K05np forms less cold gas compared to runs with precession, it shows a spatially large distribution of cold structures, similar to run K1. Runs K05 and K05np have cold gas structures more localized in the center, with the former, with precession, having more cold gas.
