Fig. 12
Download original image

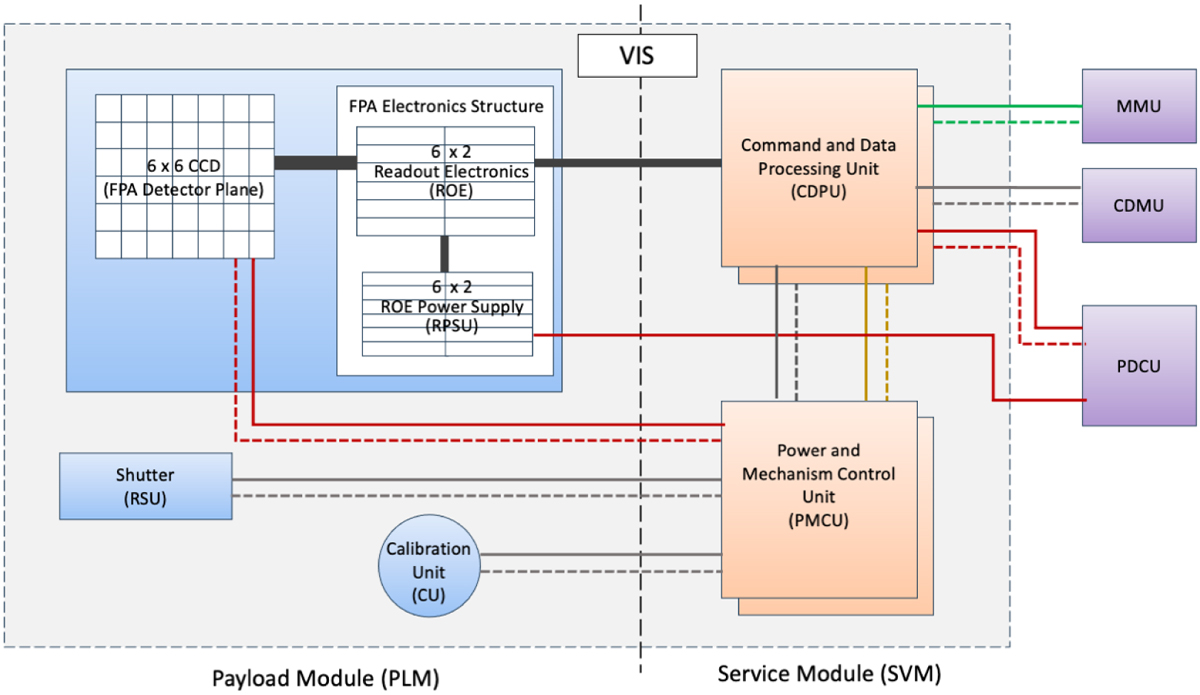

The VIS electronics interfaces. Units in the Payload Module are shown in blue and those in the Service Module in orange (these are dual-redundant). Modules in purple are those belonging to the spacecraft: the Mass Memory Unit (MMU) mostly filled with science images, the Command and Data Management Unit (CDMU), and the Power Control and Distribution Unit (PCDU).
