Fig. 8


Download original image

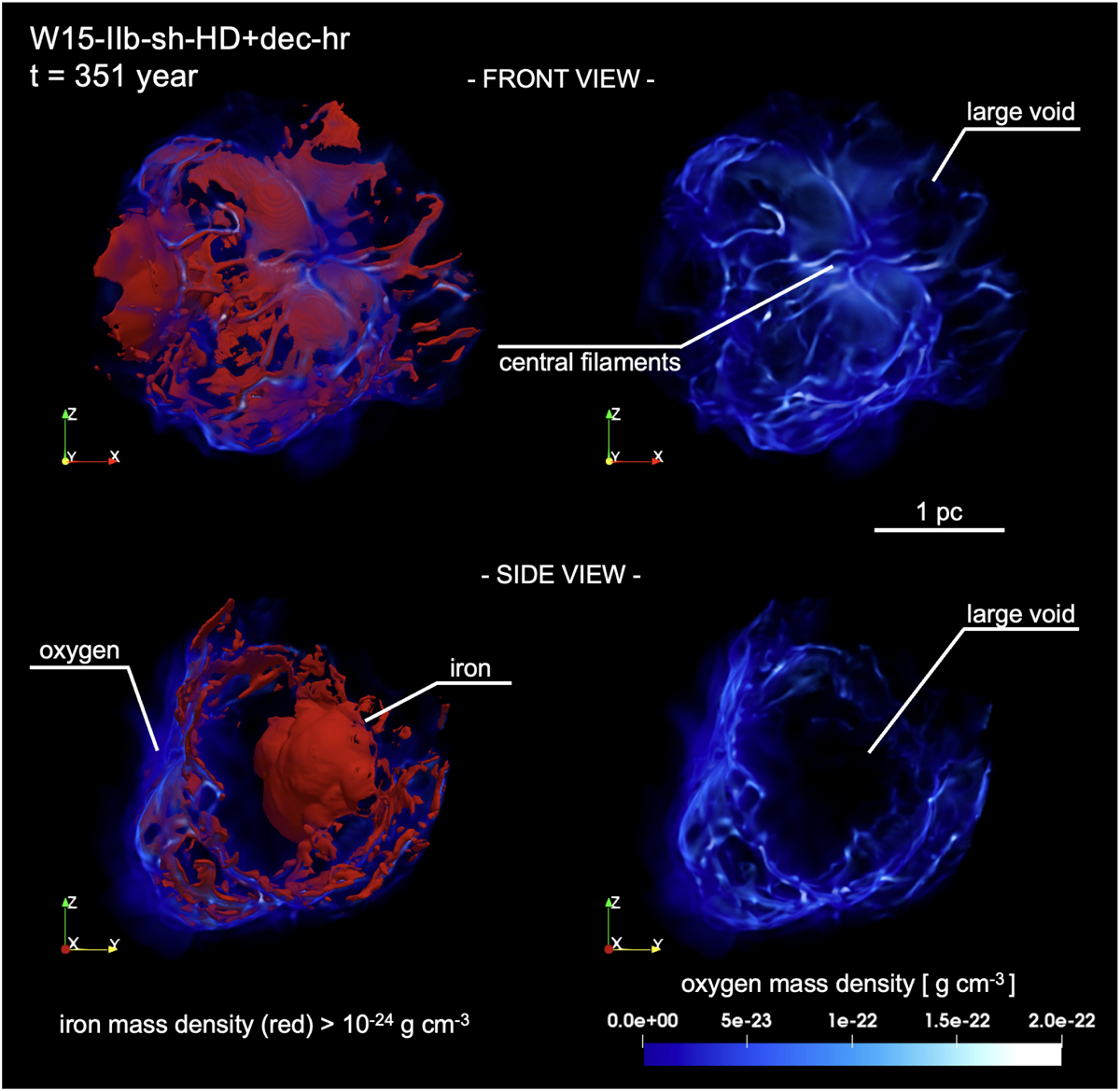

Distribution of unshocked Fe-rich ejecta, represented as a red isosurface in the left panels, corresponding to Fe densities exceeding 10−24 g cm−3, at the age of Cas A for model W15-IIb-sh-HD+dec-hr. The unshocked O-rich ejecta are shown through volume rendering in a blue color palette, with the color scale provided at the bottom right, both in combination with the Fe-rich distribution (left panels) and independently (right panels). The opacity in the rendering is proportional to the plasma density, enhancing the visualization of denser regions. Two perspectives are presented: the upper panels show the front view as seen from Earth, while the lower panels provide a side view from a vantage point to the west (positive x-axis). See online Movie 1 for an animation of these data; a navigable 3D graphic of the O and Fe spatial distributions at the age of Cas A is available online and at https://skfb.ly/psXKr.
