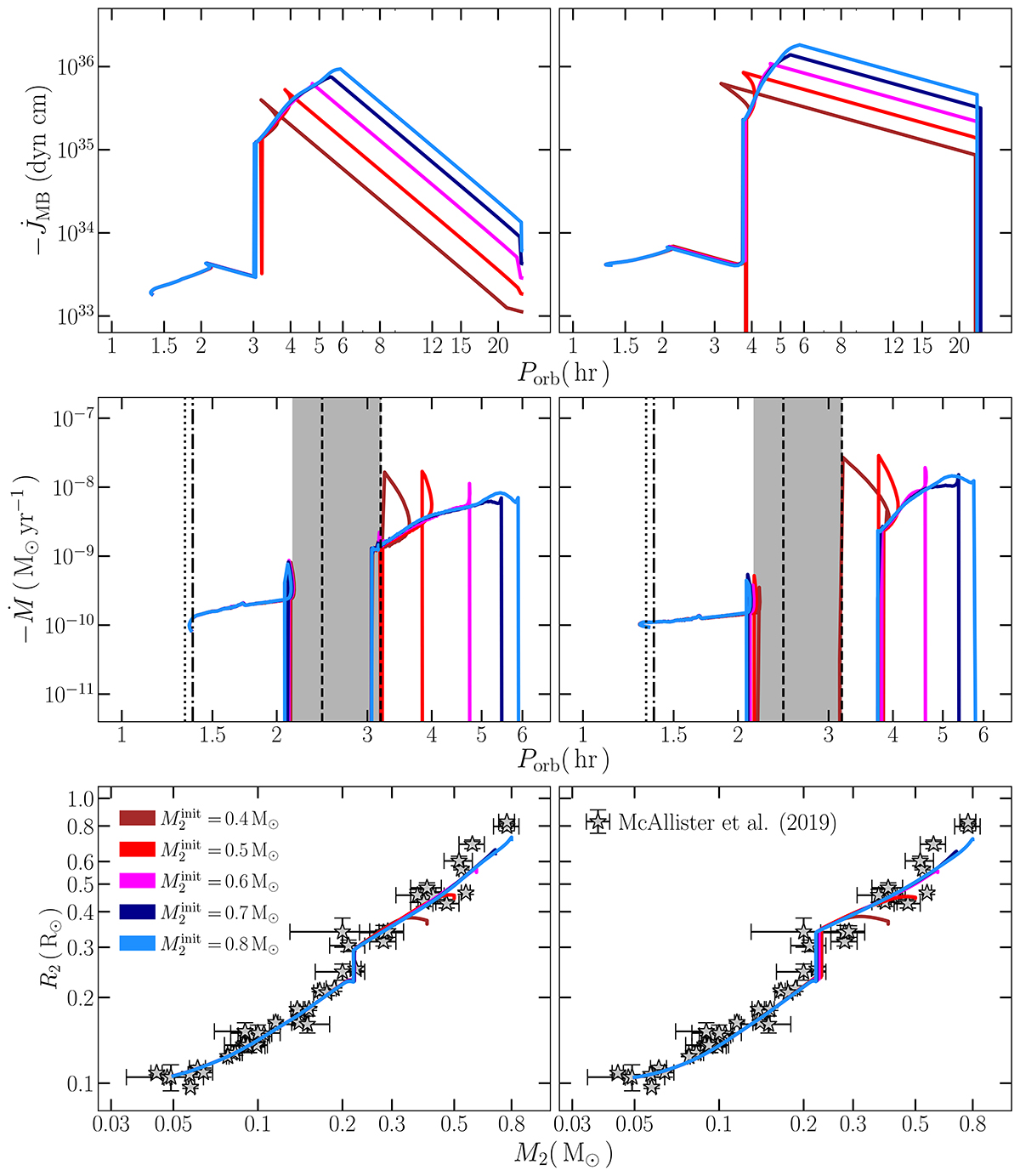

The calibrated SBD magnetic braking prescription can reproduce the period gap for cataclysmic variables. Left panels: Evolution of CV using standard RVJ magnetic braking (Eq. (8)) assuming γ = 3. Right panels: Using SBD magnetic braking (Eq. (7)) assuming K = η = 50 as in Belloni et al. (2024). Angular momentum loss due to magnetic braking (top), mass transfer rate (middle), and the mass-radius relation (bottom) for CVs with different initial donor masses represented by the colors. The boundaries of the period gap derived by Schreiber et al. (2024) are indicated by the dashed lines (at periods of 147 − 191 min) and those estimated by Knigge et al. (2011) as the gray shaded area (covering 129 − 191 min). The period minimum was estimated by Knigge et al. (2011) to be P_min ≈ 82.4 min (dotted-dashed line) and 79.6 ± 0.2 min (dotted line) by McAllister et al. (2019). In the bottom panels the markers represent the masses and radii of CVs measured by McAllister et al. (2019) and their respective error bars. The initial parameters of our CV models were fixed at M_WD = 0.83 M_⊙ and P_orb = 1 d.
