Fig. 7


Download original image

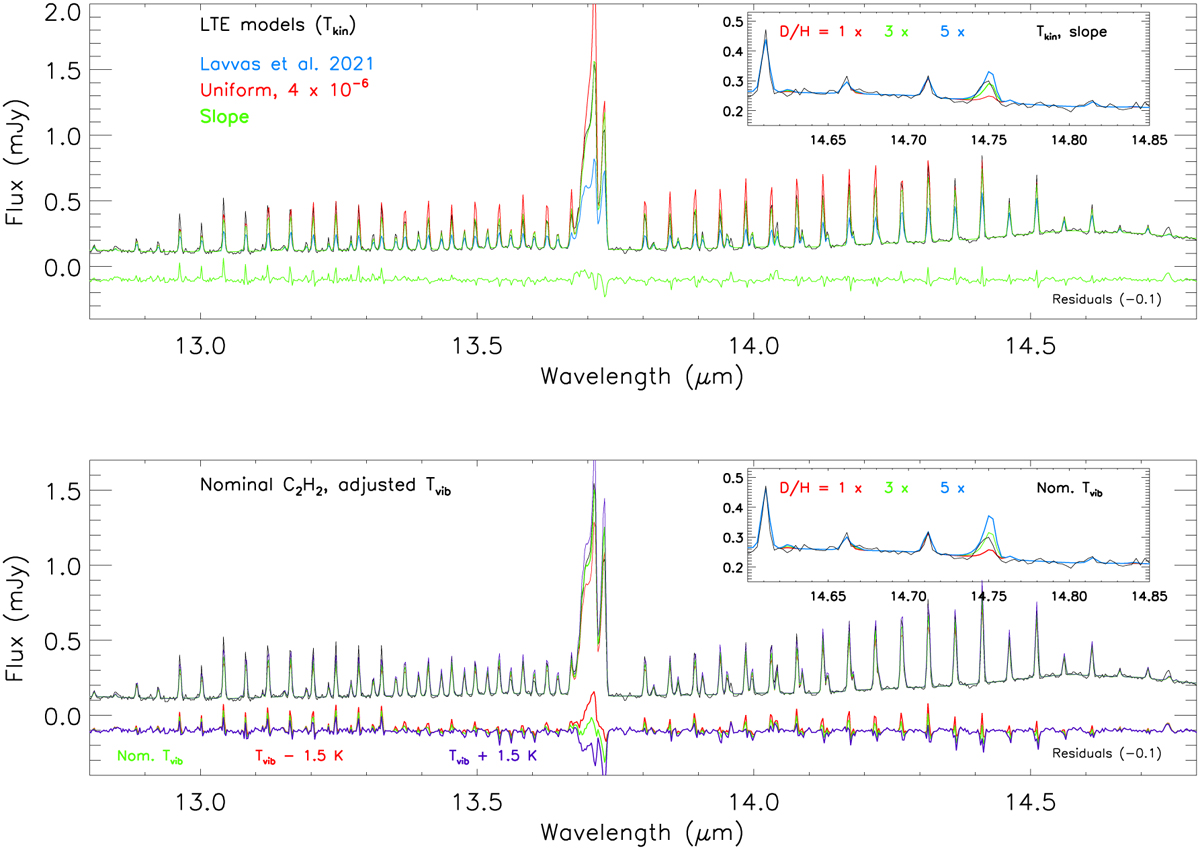

Acetylene (C2H2) and its isotope emission over 12.8–14.8 μm. Black: observations. Colored curves: models. All models assume a terrestrial 12C/13C ratio. Top: LTE models (i.e,. using the Tkin profile) for various C2H2 profiles. Light blue: reference profile from Lavvas et al. (2021); red: vertically uniform C2H2 with 4 × 10−6 mixing ratio; green: slope profile from Fig. 8. Residuals for this latter model are shown. Bottom: Non-LTE models (adjusted Tvib) using the C2H2 profile from Lavvas et al. (2021). Green curve: nominal solution, using the dashed-dotted light blue Tvib(z) profile in Fig. 3. Observation minus model residuals are shown for this model, as well as for models using Tvib(z) + 1.5 K (dark blue) and Tvib(z) – 1.5 K (red). Insets: Zoom on the region of the ν5 band of C2HD at 14.75 μm. Models use either the C2H2 slope profile (top) or the Tvib solution profile (bottom), and D/H ratios in C2H2 equal to one, three, and five times the telluric value.
