Fig. 6


Download original image

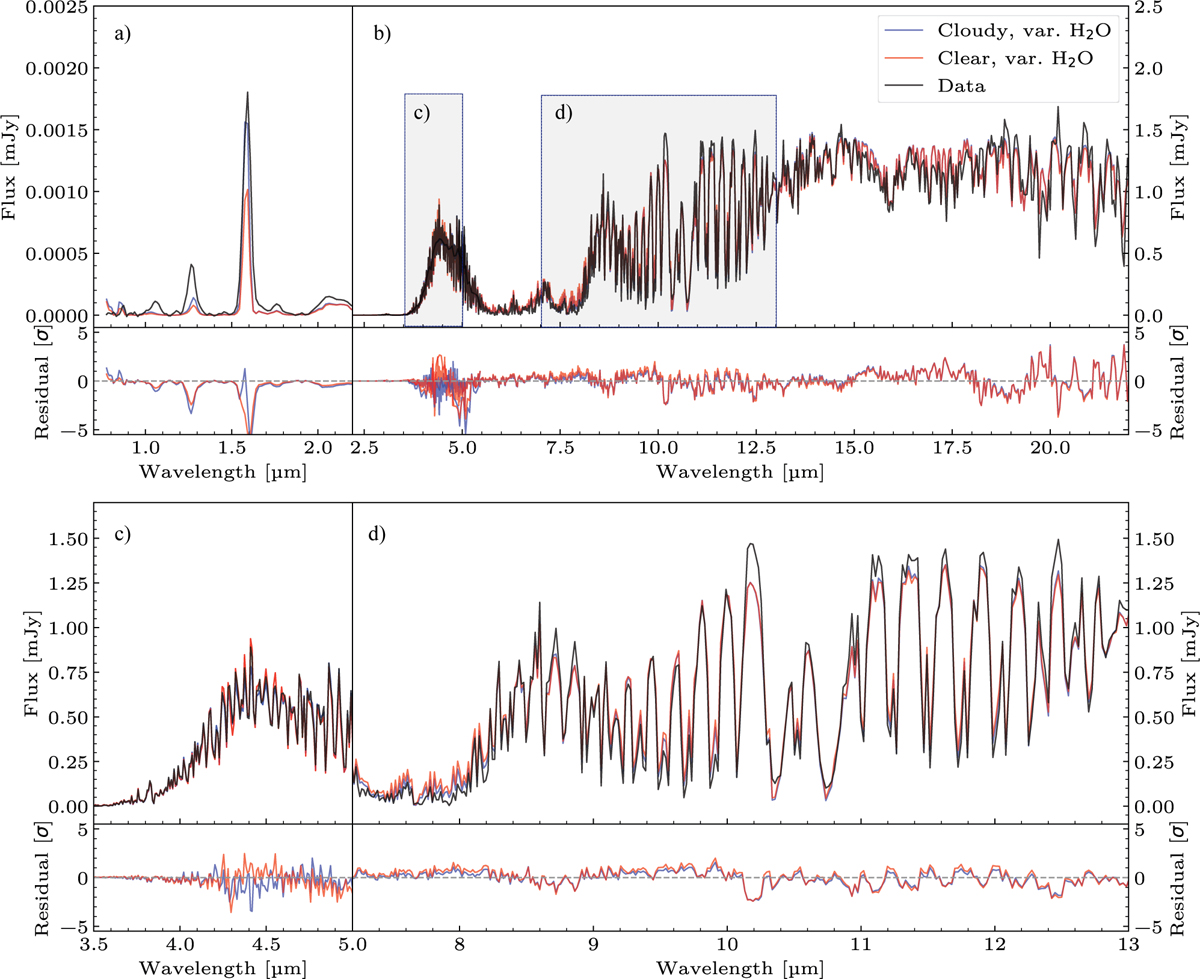

Best-fit retrieval spectra of the cloudy in blue and the clear retrieval in red. Both models include a variable water profile and are compared to the data in black. Panels a and b: data and retrievals at the wavelength range from 0.8 to 2.2 µm, and at the wavelength from 2.2 µm to 22 µm. Panels c and d: insets from 3.5 to 5.4 µm, and from 7.2 to 13 µm. The latter two panels are included in panel b where their locations are highlighted. In every panel we show the flux in the upper part and the corresponding residual between retrieval and data in the lower plot. For better visibility the presented models and data are re-binned to a resolution of R = 500 for the NIRSpec/G395M and MIRI/MRS and R = 100 for NIRSpec/PRISM wavelengths.
