Fig. 3.

Download original image

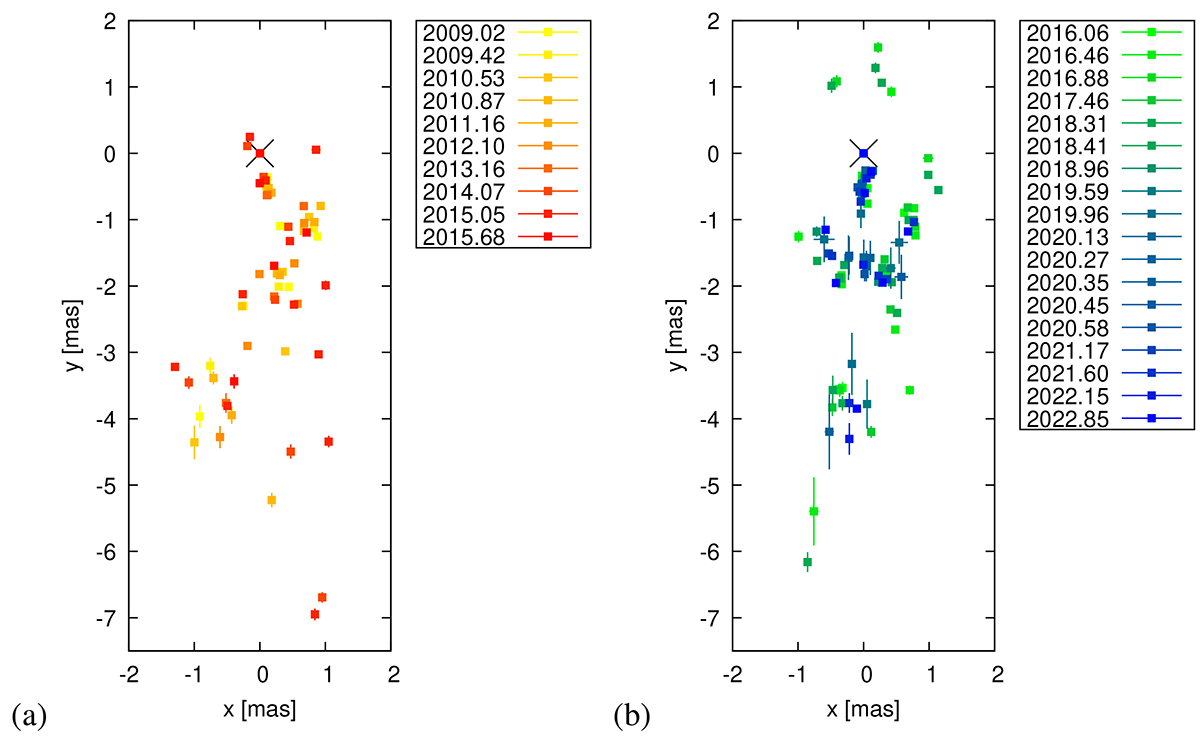

xy-positions before 2016 (a) and after 2016 (b). The two plots are shown with the same scale to facilitate their comparison. An ordering of component positions seems to take place after 2016 and is visible as a ring structure around the radio core in panel b. The data are available in Tables D.1, D.2, and E.1.
