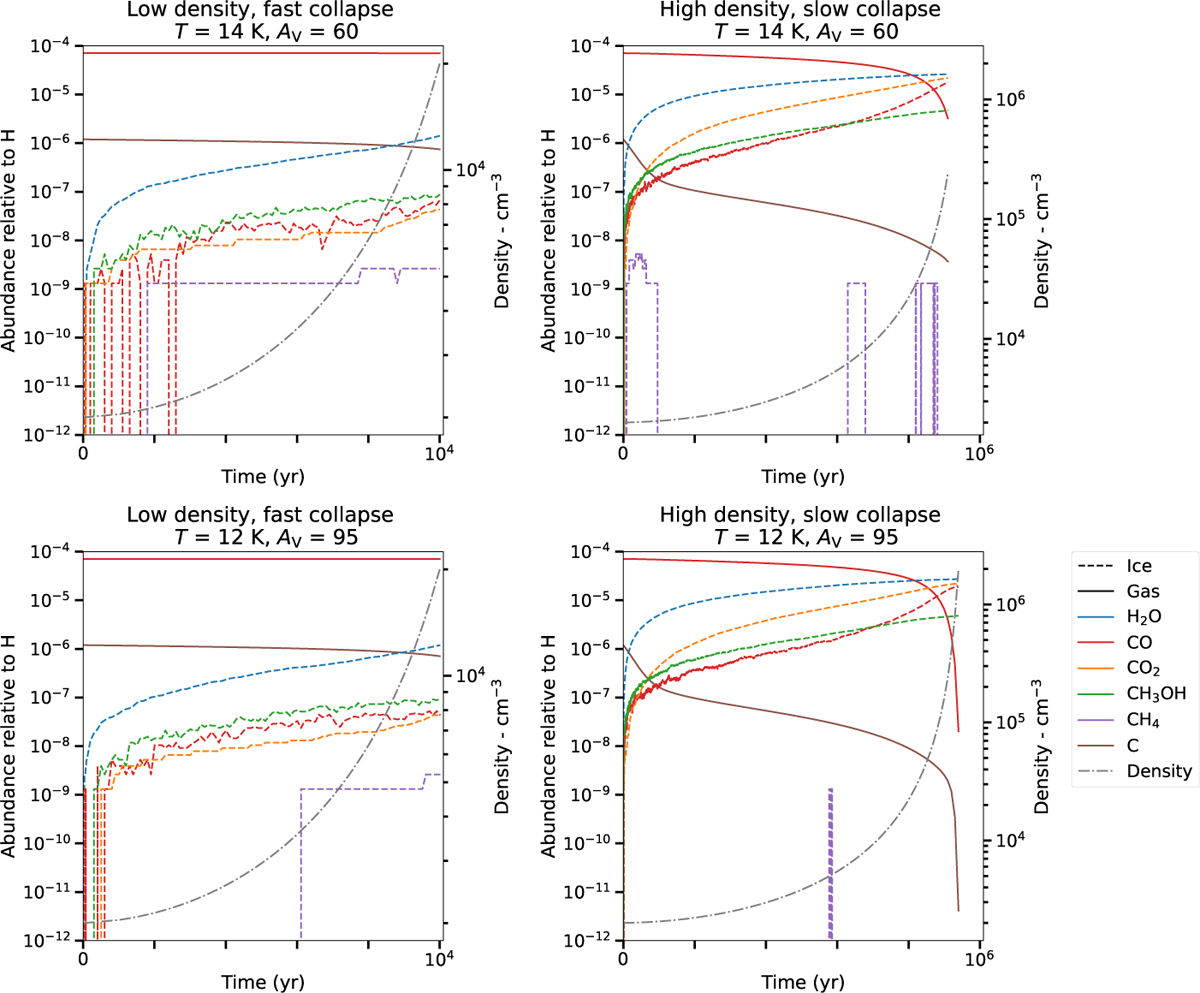

Fig. B.4


Download original image

Time evolution for the species closely related to the formation of CH3OH and hydrides in the ice predicted by some of our KMC models (extremes) for the collapse phase. We note that the heavy fluctuations observed for CH4 is a finite-size effect, due to the very low concentration numbers generated by the KMC on the grain (CH4 abundance is found to fluctuate between 1 and 0 on our 50 × 50 lattice). For the high-density slow-collapse model (model 9) towards NIR38 (T = 14 K, AV = 60 mag), the results are shown for 95.9% of the intended collapse time.
