Fig. B.1

Download original image

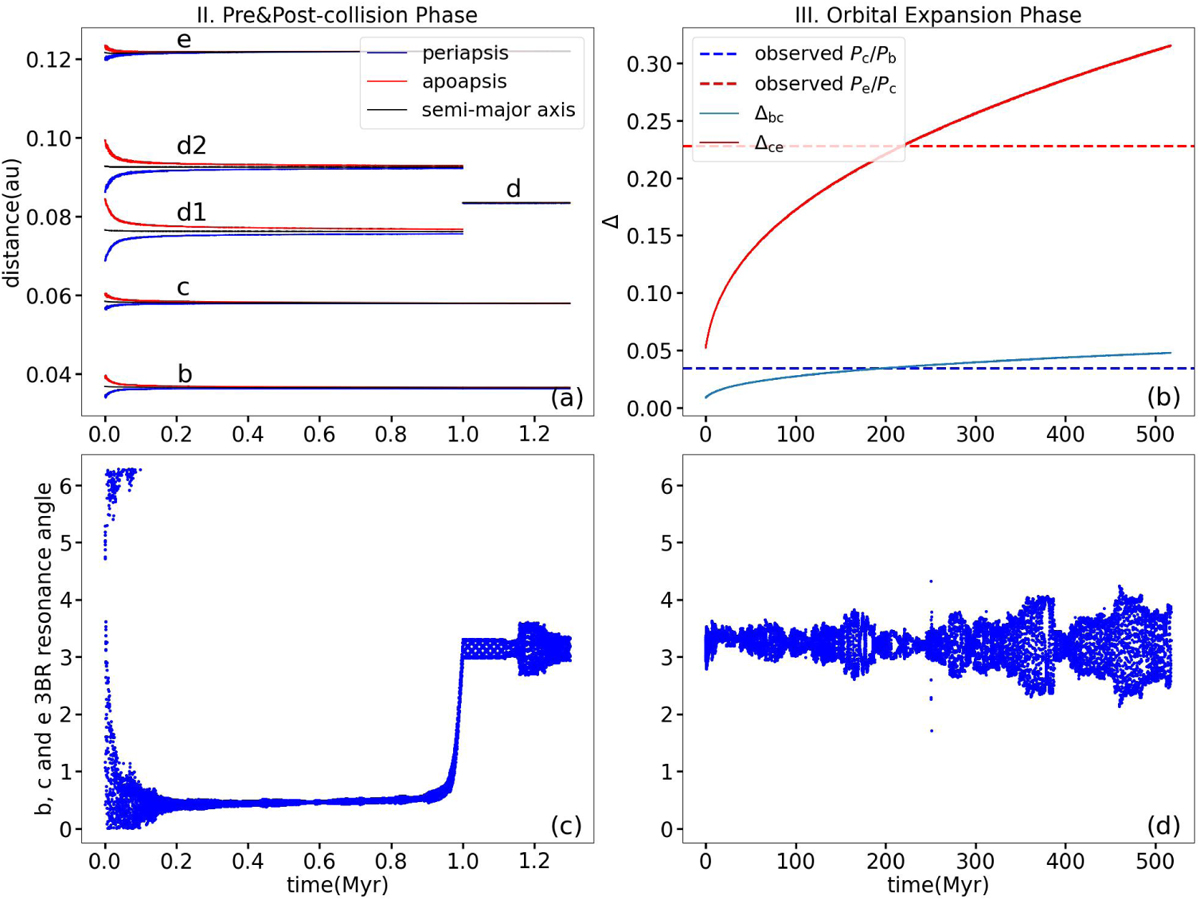

Resonance reformation and orbital expansion under optimized conditions with mass model M1 in Table 2. Panel a shows the evolution of planets’ semi-major axis (black), pericenter (blue), and apocenter (red) in the optimized collision phase, in which planets d1 and d2 are adiabatically replaced by planet d. Panel b represents the expansion of period ratio from integer ratio in Phase III, with Δ defined as Δbc = Pc/Pb−2 and Δce = Pe/Pc−3. In panel c and d, the blue dots show the 3BR angle between b, c, and e: φ3BR = 2 λb−5 λc+ 3λe. The figure shows that the b, c, and e resonance reforms after the simplified collision phase (panels a and c), whereafter the period ratio expands with tidal damping (panels b) before the resonance finally breaks at a larger planet period ratio, ceasing the expansion.
