Fig. 3
Download original image

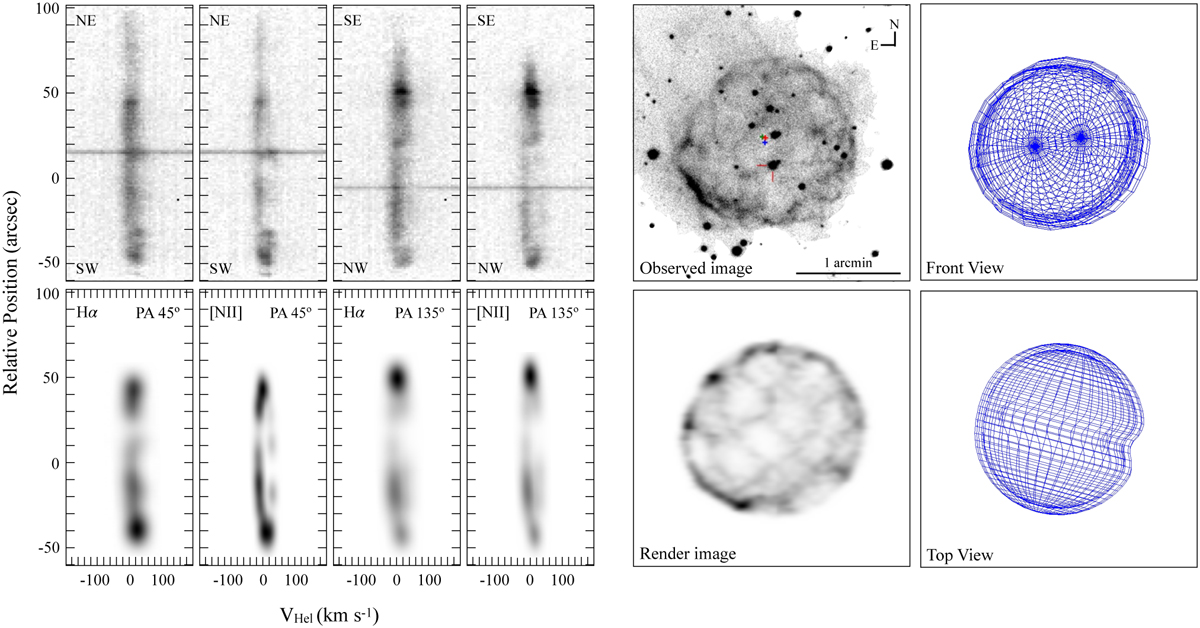

Spatio-kinematic information of HaTr 5 and the best SHAPE model. Left: SOAR GHTS Hα and [N II] (top) and SHAPE synthetic (bottom) PV diagrams. (center) HASH Hα+[N II] (top) and SHAPE synthetic (bottom) image. Right: SHAPE mesh models along the line of sight and from the plane of the sky along the southeast to northwest direction.
